Toyota COROLLA 空气囊 — Figure 8421

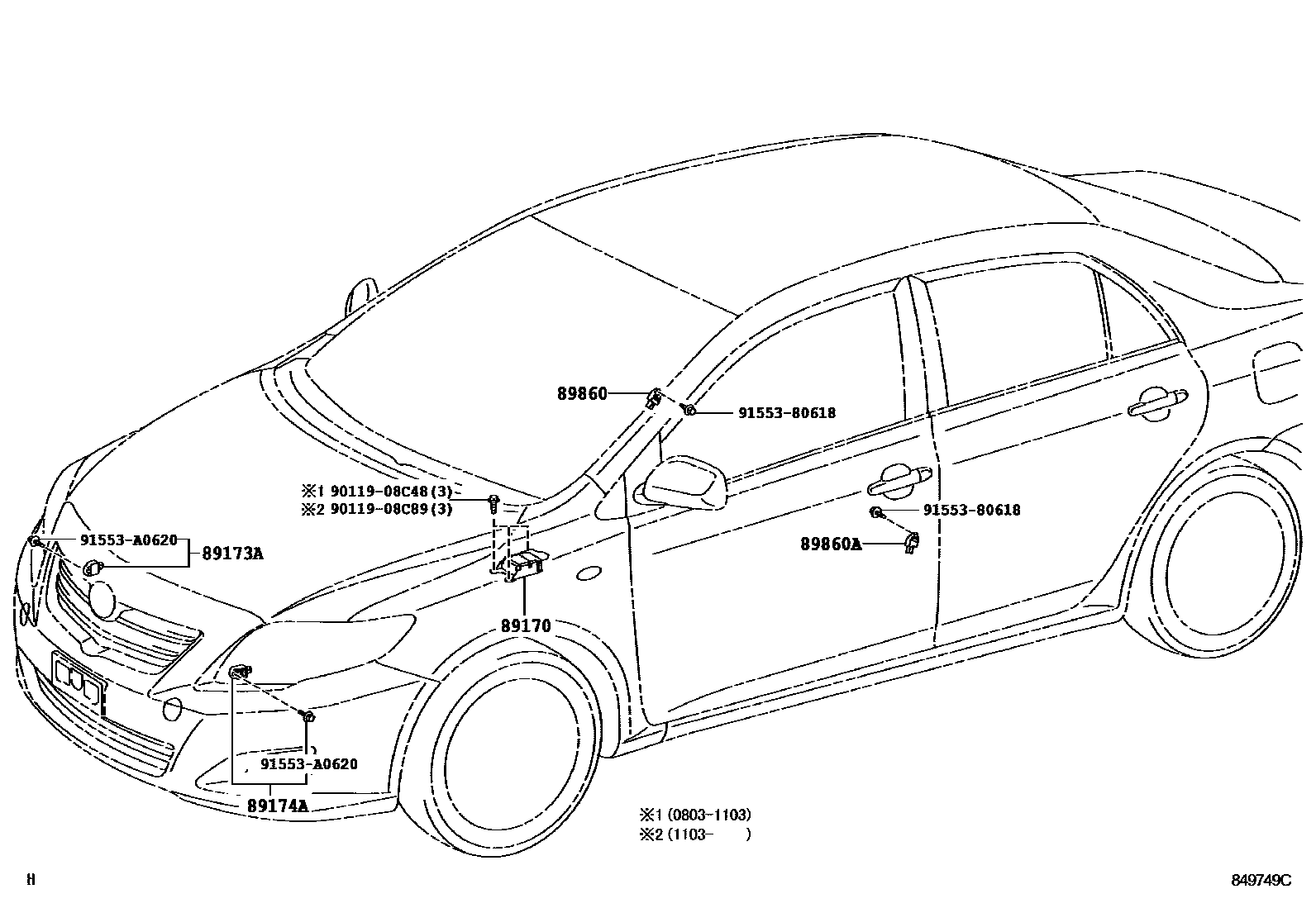

Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170 | air bag sensor assembly | 89170-02840 · 89170-02850 · 89170-02B60 · 89170-02B70 |
| 89173A | Right front air bag sensor | 89173-19435 · 89173-49435 |
| 89174A | Left front air bag sensor | 89173-19435 · 89173-49435 |
| 89860 | Right side airbag sensor assembly | 89831-42010 · 89831-52020 |
| 89860A | Left side air bag sensor assembly | 89831-42010 · 89831-52020 |
