Toyota COROLLA 测距雷达和倒车雷达 — Figure 8417

Toyota COROLLA EPC diagram 8417, 测距雷达和倒车雷达, with 1 images and 2 PNC and OE references.

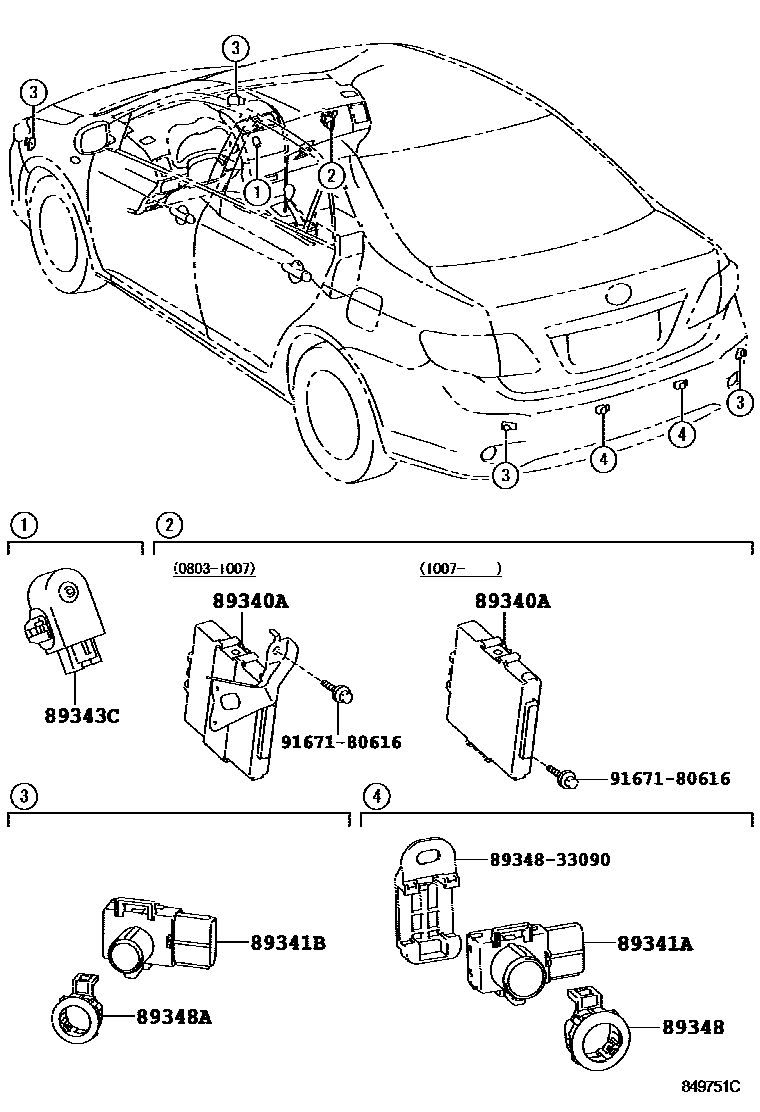

Toyota COROLLA 测距雷达和倒车雷达 EPC diagram — 849751C
测距雷达和倒车雷达 — 849751C (200803 – 999999)

PNC and OE references

PNCPart nameOE numbers
89340ADistance warning ECU assembly89340-12060 · 89340-12070
89343CNo. 1 distance warning buzzer89343-30010
