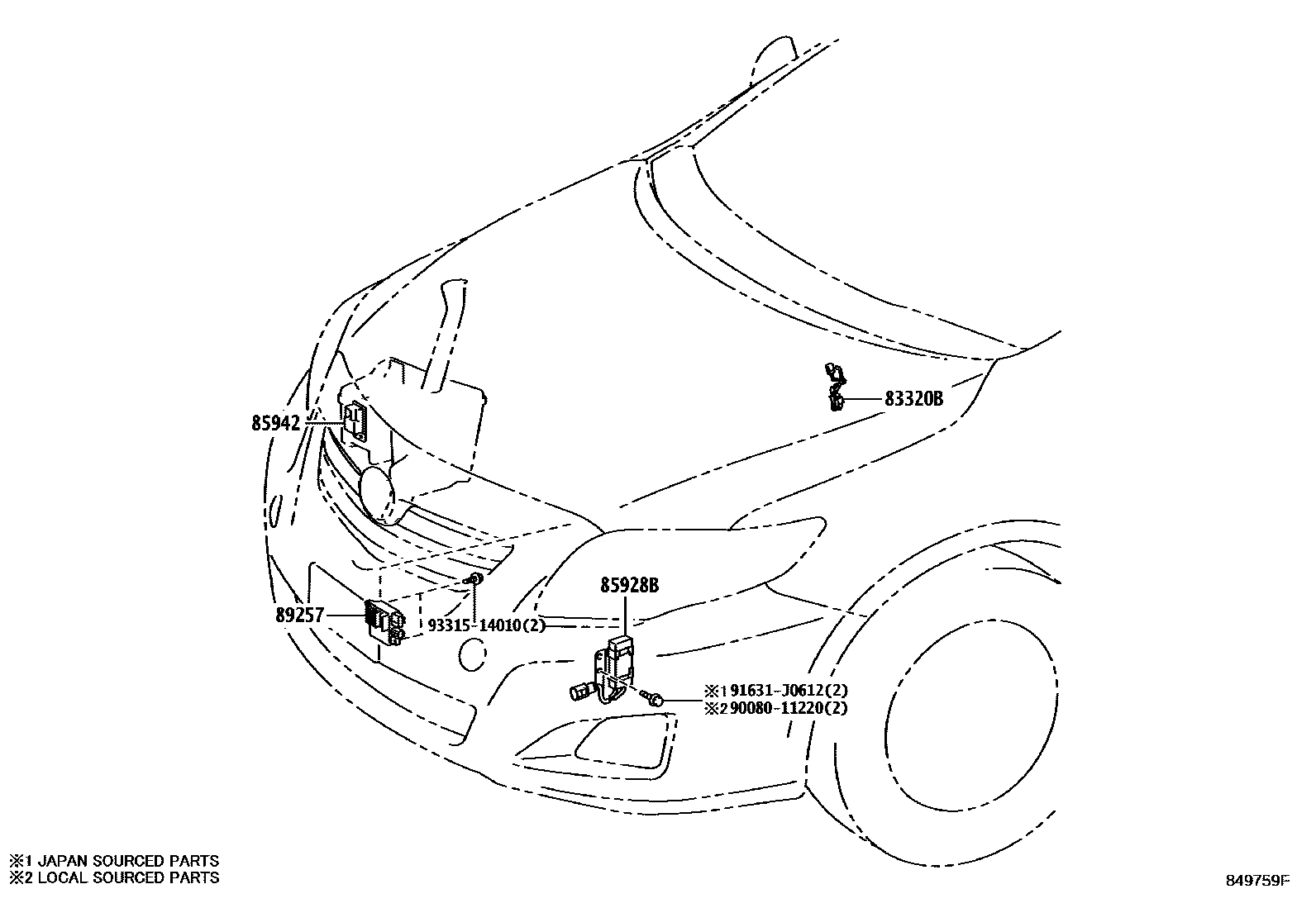

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 10 images and 86 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 · 28300-28010 |
| 28371 | No. 1 ignition relay | 90987-02030 |
| 81980 | Turn signal flasher relay assembly | 81980-0D050 · 81980-46010 |
| 82210J | fuse | 90982-08294 · 90982-08295 · 90982-08296 |
| 82241J | Shorting pin | 82241-42010 |
| 82291D | Wiring harness (to solenoid valve) | 82291-12080 |
| 82600F | Spare fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-12280 |
| 82630 | Fuse holder assembly | 82631-12070 |
| 82630C | Fuse holder assembly | 82631-12080 |
| 82630D | fuse holder | 82631-12090 |
| 82641 | Integrated relay No. 1 | 82641-47020 |
| 82660B | Relay assembly | 82755-12010 |
| 82660C | Relay assembly | 82755-12020 |
| 82661 | No. 1 relay box cover | 82661-12310 |
| 82662A | No. 1 relay box upper cover | 82662-12520 · 82662-12521 · 82662-12530 · 82662-12531 |
| 82663 | Relay box lower cover | 82663-12100 |
| 82673A | Junction box bracket | 82673-12240 |
| 82673B | Junction box bracket | 82673-12250 |
| 82673C | Junction box bracket | 82673-12260 |

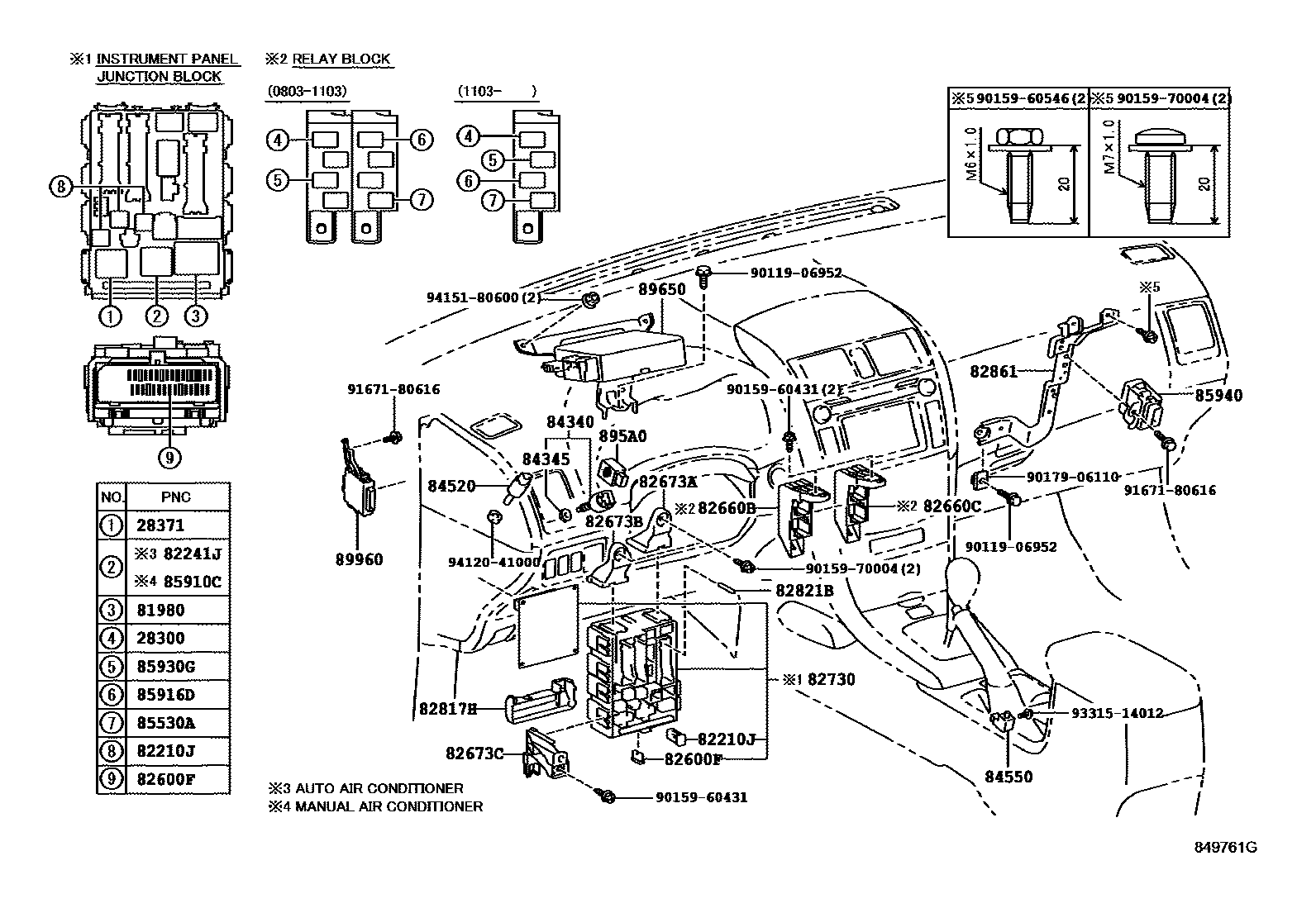

| 82730 | Instrument panel junction box assembly | 82730-12430 · 82730-12450 · 82730-12E70 · 82730-12V30 |

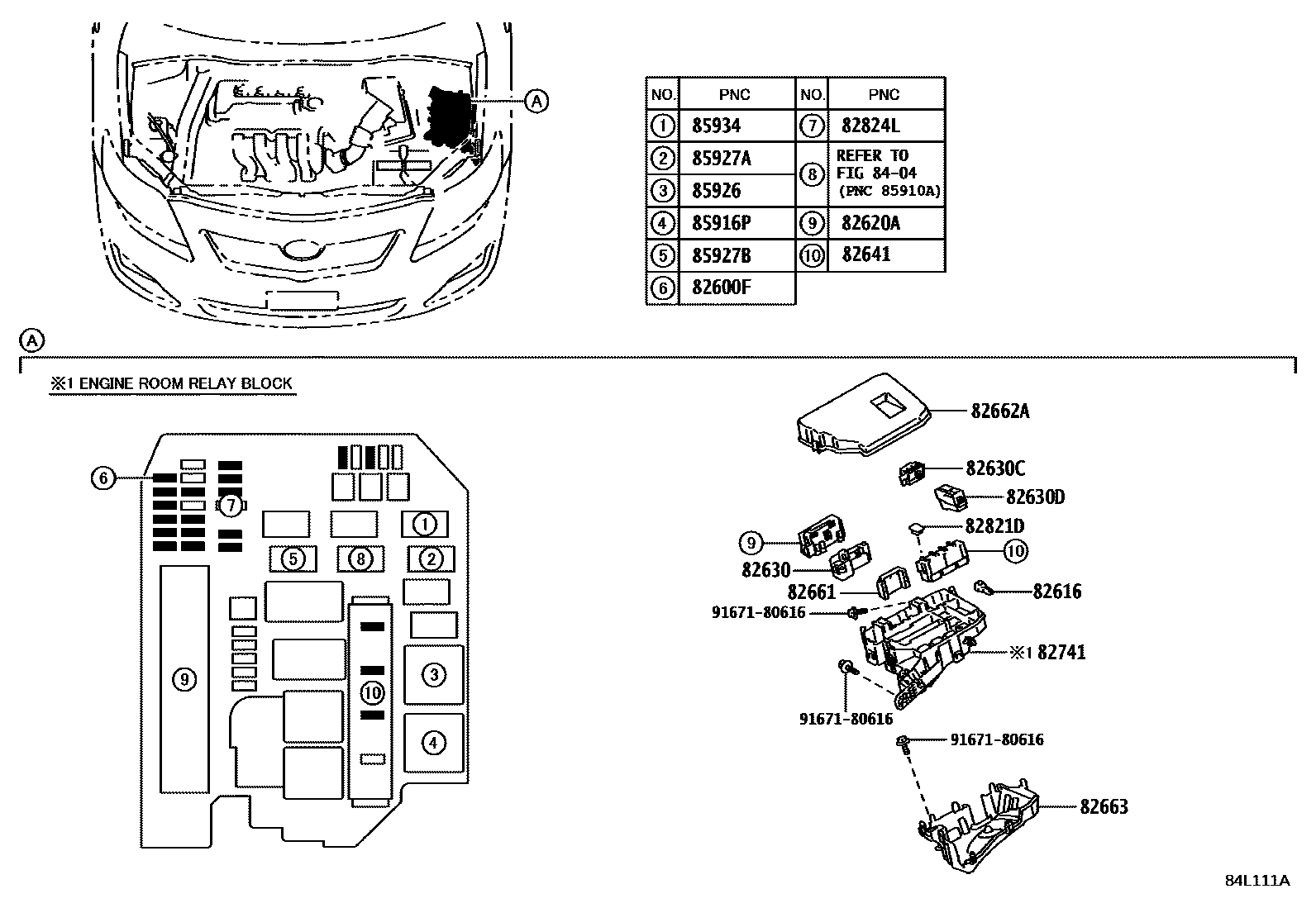

| 82741 | Engine room relay box | 82741-12110 |
| 82817H | Harness protection device | 82817-12B50 |
| 82821B | Connector cover | 82821-52020 |
| 82821D | Connector cover | 82821-47090 |
| 82824L | Shorting pin | 82824-20140 |
| 82861 | No. 1 ECU integrated bracket | 82861-02050 |

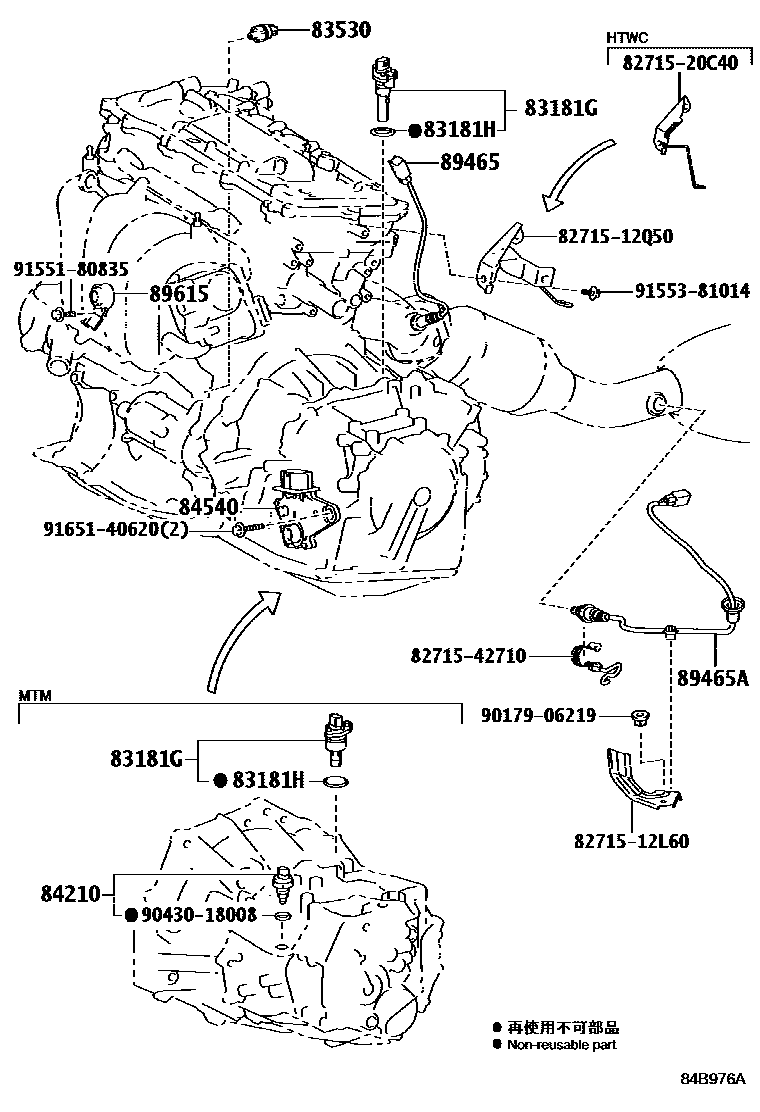

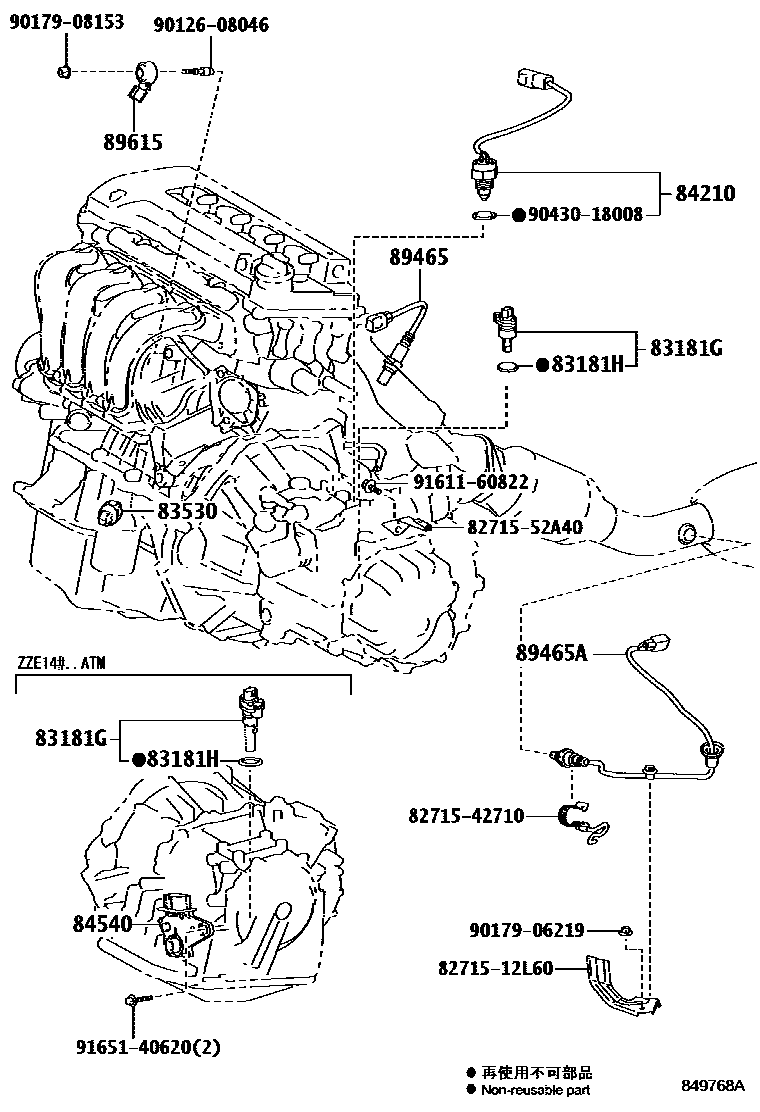

| 83181G | speedometer sensor | 83181-12020 · 83181-12040 |
| 83181H | O-ring (for speedometer sensor) | 96711-24018 · 96711-24030 |
| 83320 | Fuel gauge sensor assembly | 83320-02130 · 83320-12840 |
| 83320B | Fuel gauge No. 2 sensor assembly | 83320-12850 · 83320-12851 · 83320-12852 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84113A | No.1 switch bracket | 84113-52010 |
| 84113B | No. 2 switch bracket | 84113-52020 |
| 84140 | Headlight dimmer switch assembly | 84140-02220 · 84140-02221 · 84140-02630 · 84140-02631 · 84140-02650 · 84140-0K101 · 84140-0K131 |
| 84150D | Headlight washer switch assembly | 84150-42020 |
| 84210 | Reversing light switch assembly | 84210-12040 · 84210-52010 · 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-02110 · 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-02110 · 84231-60070 |

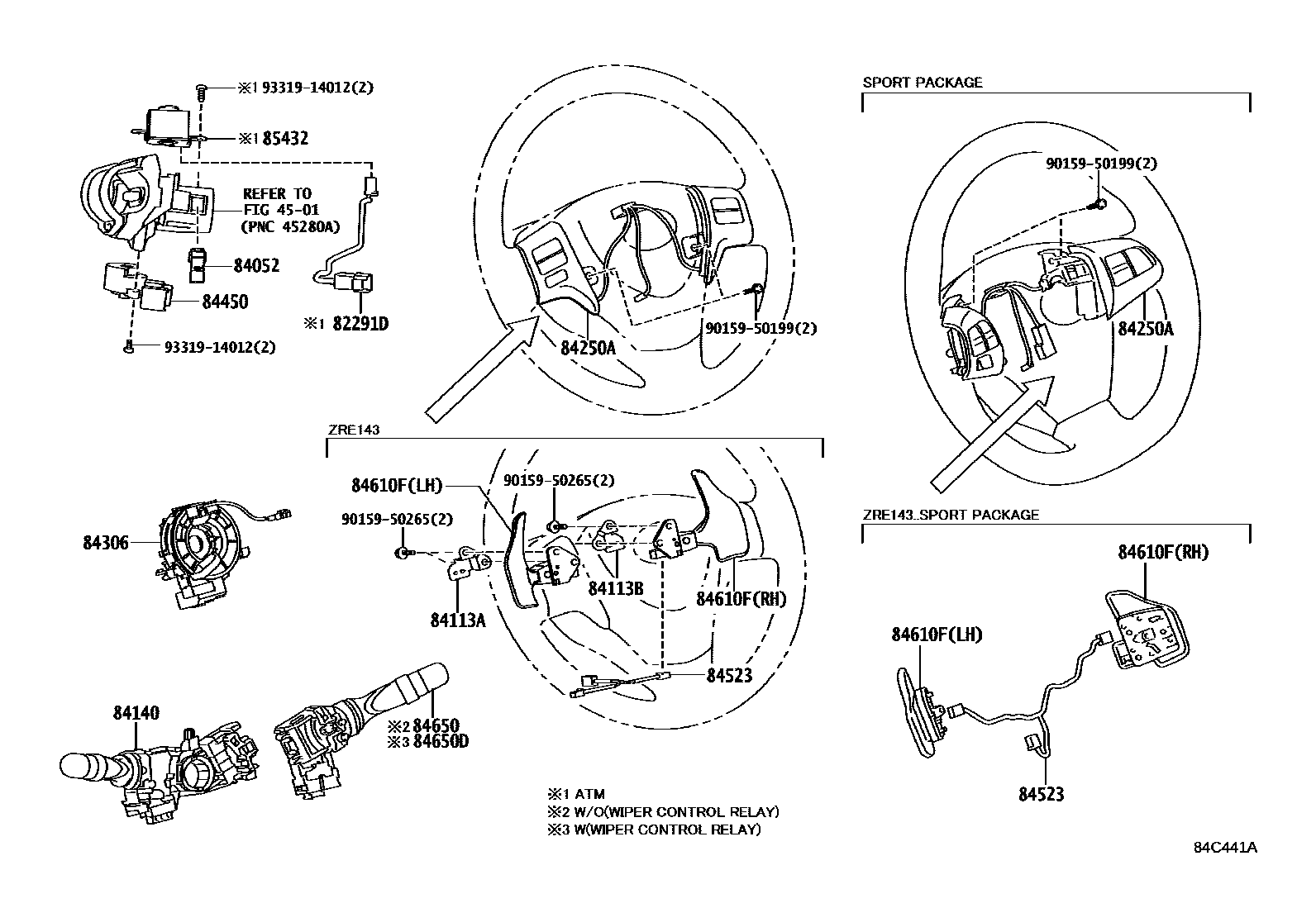

| 84250A | Steering wheel decorative cover switch assembly | 84250-02120 · 84250-02140 · 84250-02150 · 84250-02170 · 84250-02180 · 84250-02270 · 84250-02280 · 84250-02290 · 84250-02580 |
| 84306 | Spiral cable sub-assembly | 84306-02220 · 84306-02230 · 84306-02240 |
| 84330 | Hazard warning signal switch assembly | 84332-12520 |
| 84340 | brake light switch assembly | 84340-09040 · 84340-69075 |
| 84345 | Brake light switch base adjuster | 84345-0K010 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84523 | No. 1 switch harness | 84523-02010 · 84523-52020 |
| 84540 | Neutral start switch assembly | 84540-42010 · 84540-46010 |
| 84550 | Parking brake switch assembly | 84550-02010 · 84550-33010 |
| 84610F | Transmission shift switch assembly | 84610-02011 · 84610-02021 · 84610-52030 · 84610-52040 |
| 84650 | Windshield wiper switch assembly | 84652-02600 · 84652-02601 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-02581 · 84652-02590 · 84652-0K111 |
| 84720A | No. 1 mode selector switch assembly | 84721-YV010 |

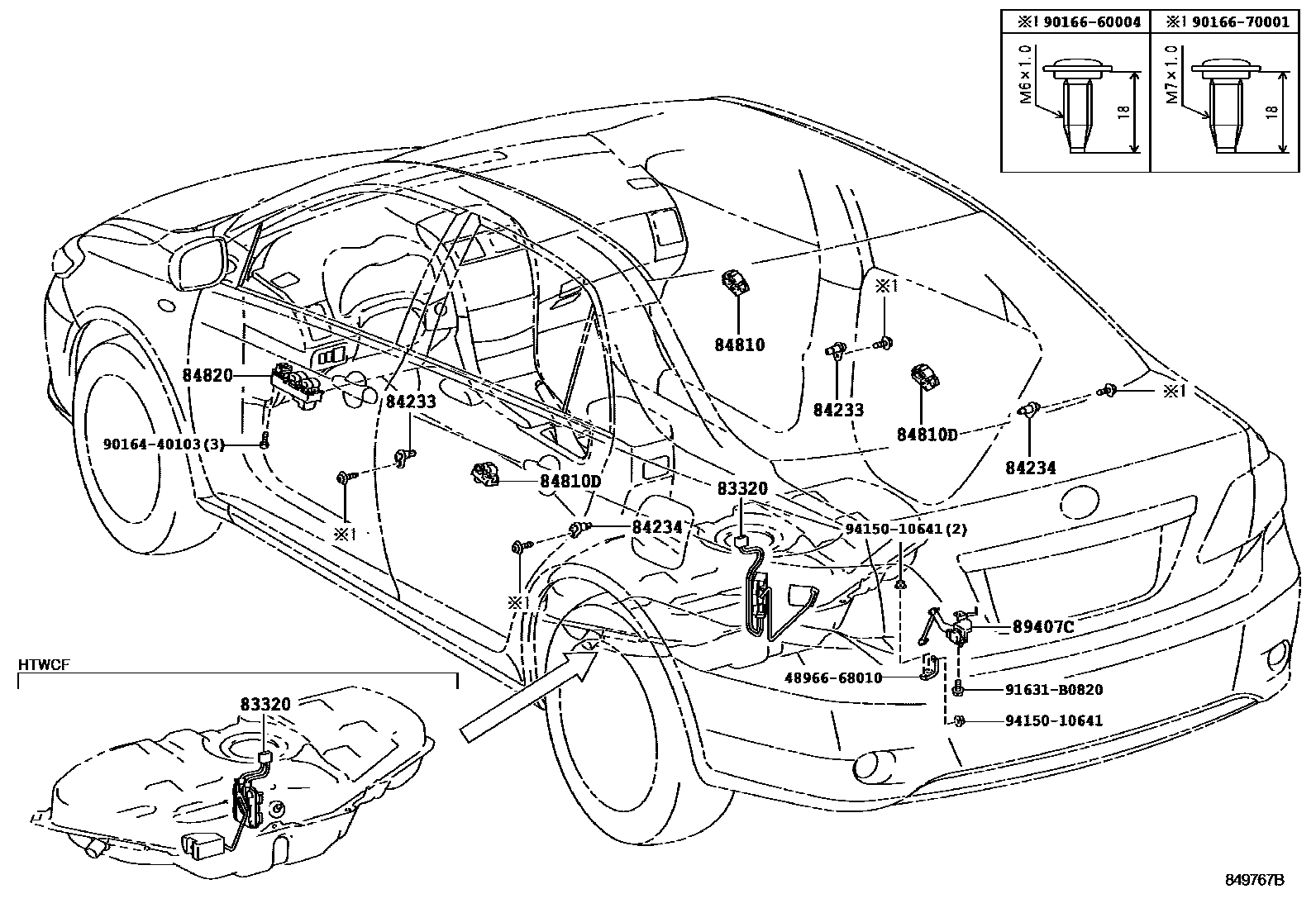

| 84810 | Electric window lift switch assembly | 84810-02050 · 84810-02110 |
| 84810D | Rear electric window lift switch assembly | 84810-02050 · 84810-02110 |
| 84820 | Electric window lift main switch assembly | 84040-02050 · 84820-02270 |
| 84870A | Exterior rearview mirror switch assembly | 84870-28020 · 84870-34010 |

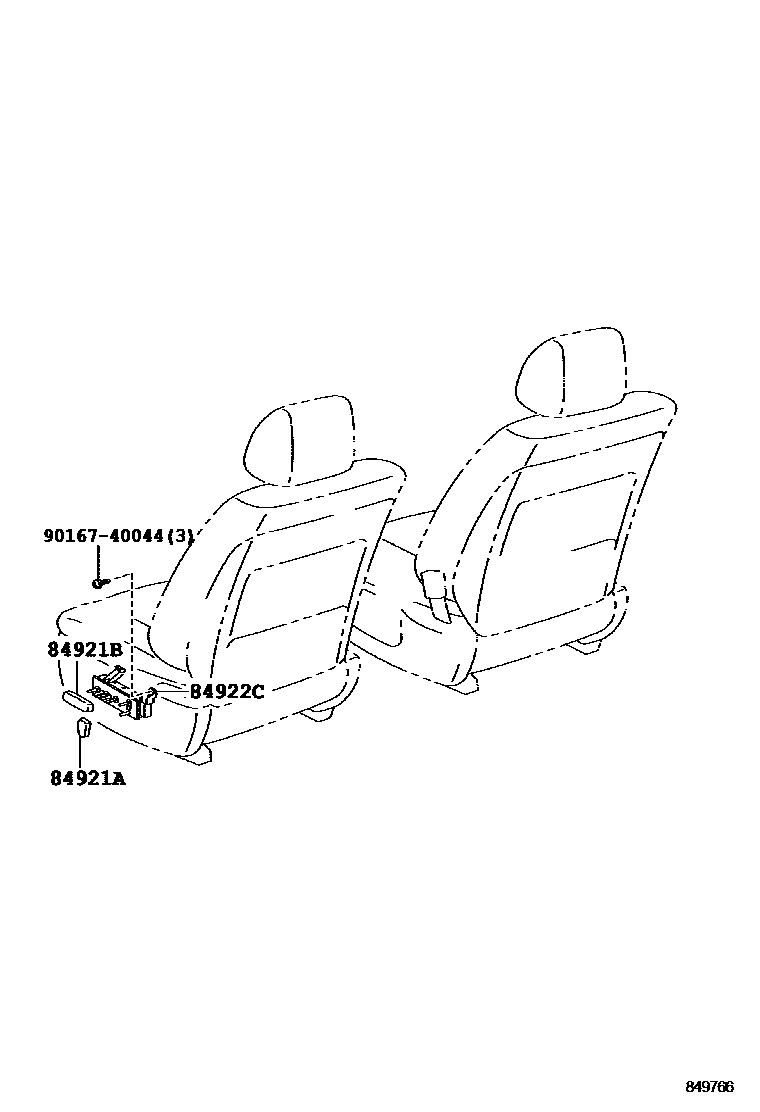

| 84922C | Front left electric seat switch | 84922-12030 |
| 85432 | Key interlock solenoid valve | 85432-71010 |

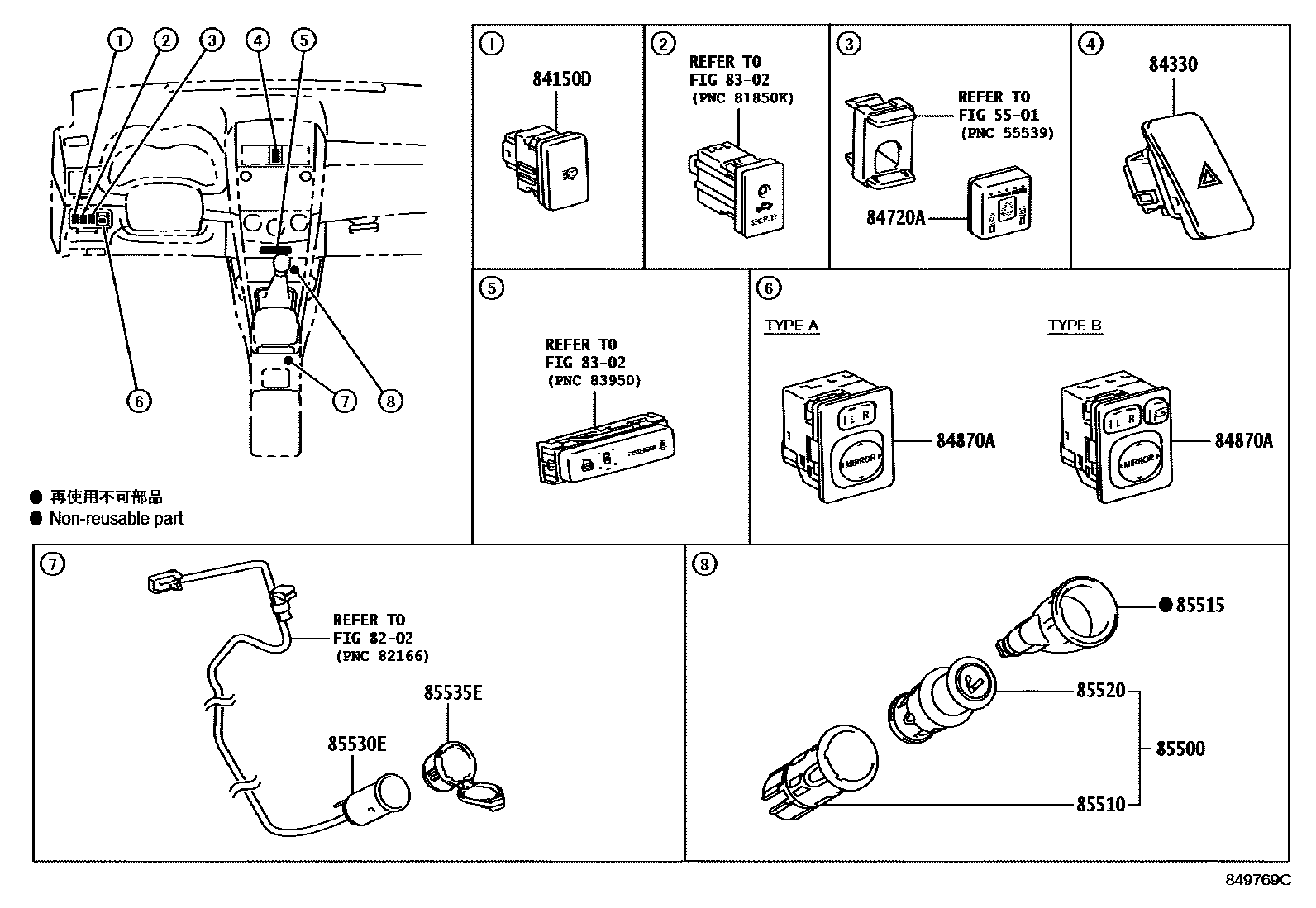

| 85500 | Cigarette lighter assembly | 85500-02020 |
| 85510 | Cigarette lighter socket and fixing bracket assembly | 85510-02010 |
| 85515 | Cigarette lighter frame bracket | 85515-02070 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-02010 |
| 85530A | power outlet relay | 90080-87021 |
| 85530E | No. 3 power socket assembly | 85530-02030 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04010 |
| 85916D | fog light relay | 90080-87021 |
| 85916P | headlight relay | 90987-02025 |
| 85926 | Headlight dimmer relay | 90987-02025 · 90987-04010 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02027 |
| 85928B | Cooling fan resistor | 85928-12030 |
| 85930G | ACC relay | 90080-87021 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 85940 | Windshield wiper relay assembly | 85940-12160 |
| 85942 | Headlight washer control relay | 85942-12031 · 85942-12040 |
| 89257 | Cooling fan ECU | 89257-12010 · 89257-12020 |
| 89407C | Rear height control sensor sub-assembly | 89407-12010 |
| 89465 | oxygen sensor | 89465-02360 · 89465-12A30 · 89467-12030 · 89467-12100 · 89467-52060 |
| 89465A | Oxygen sensor No. 2 | 89465-02200 |
| 895A0 | Brake light control relay assembly | 895A0-46020 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-12670 · 89650-12840 · 89650-12841 · 89650-12850 · 89650-12860 · 89650-12870 · 89650-12B80 · 89650-12B81 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-12440 |
