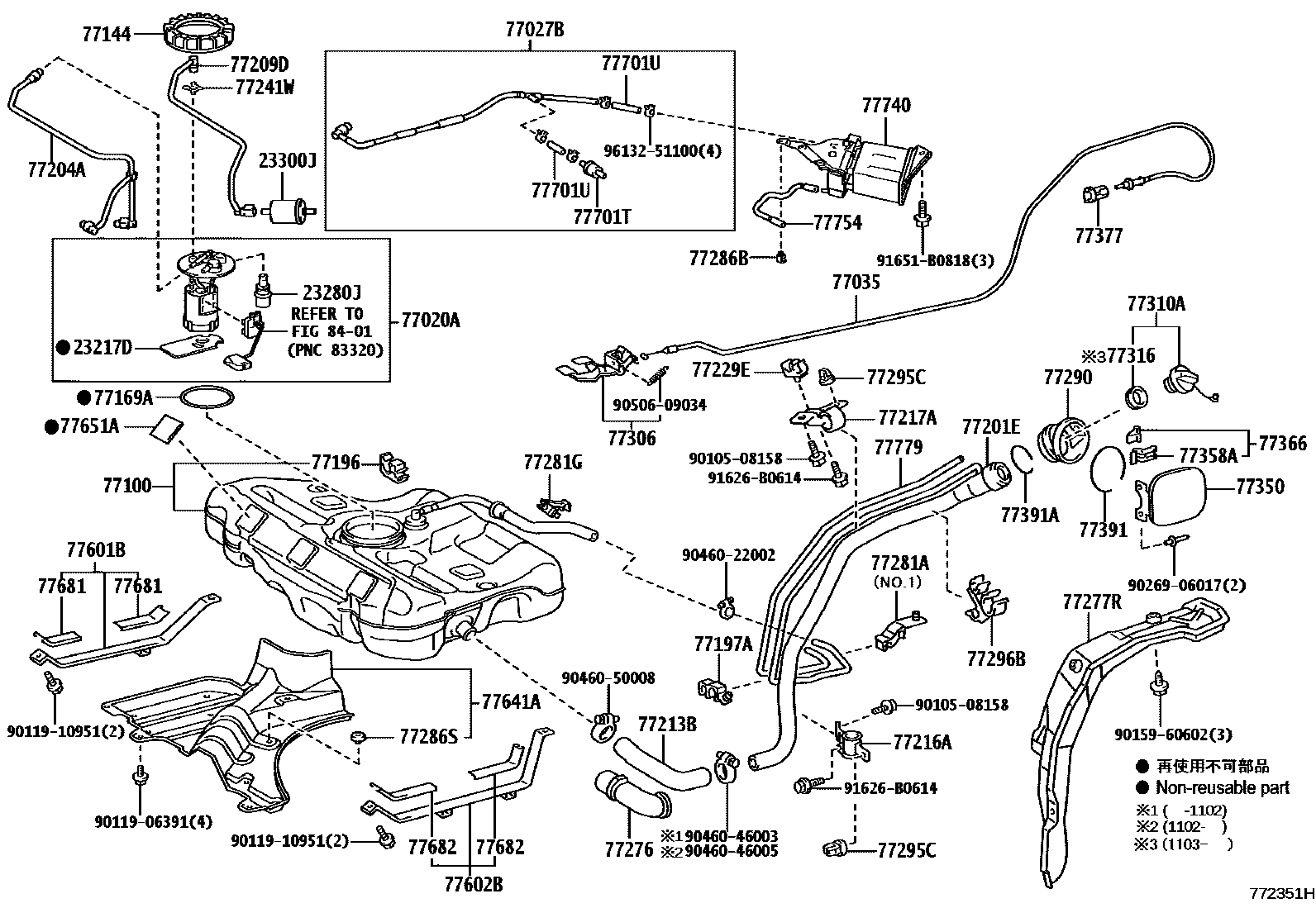

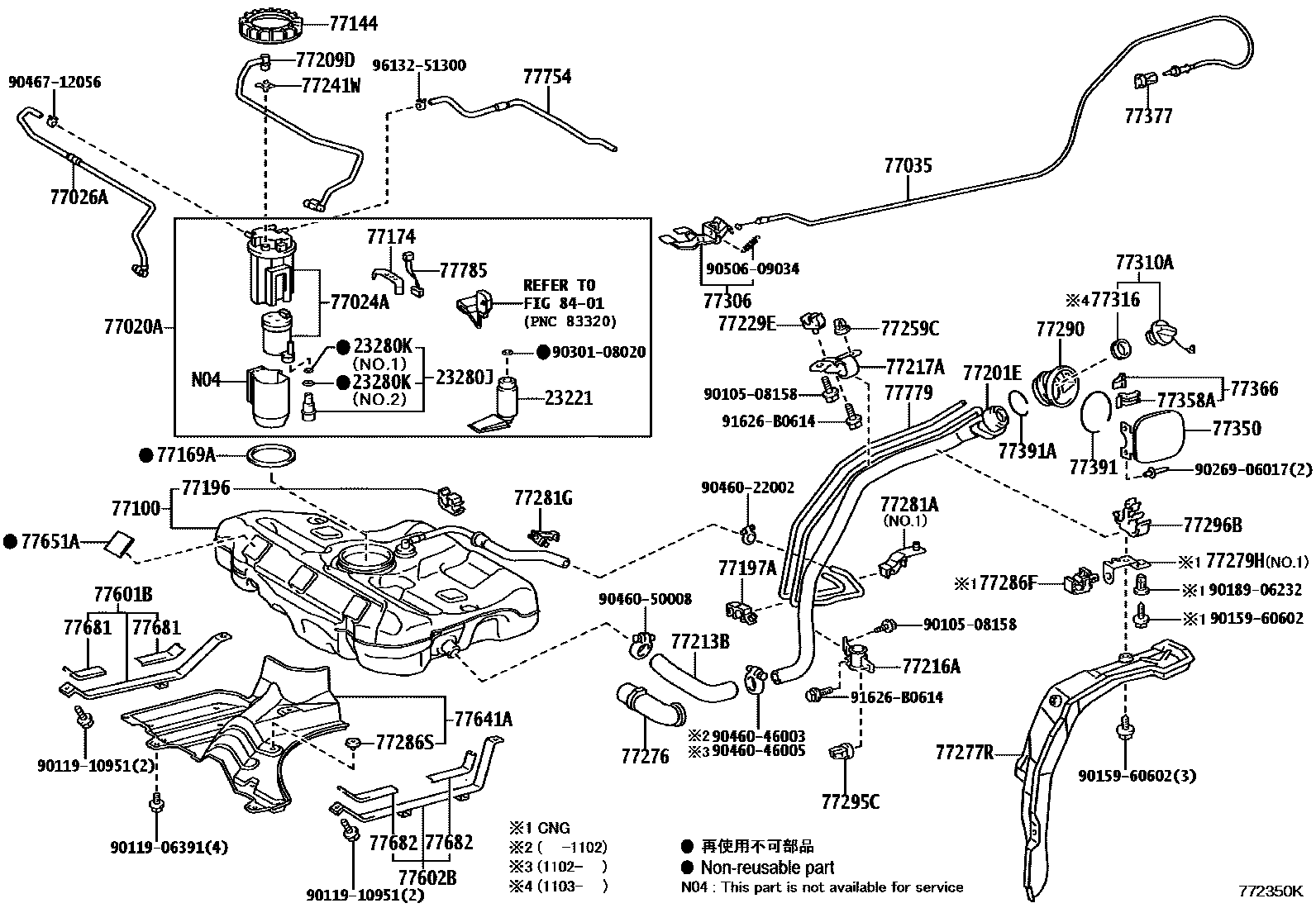

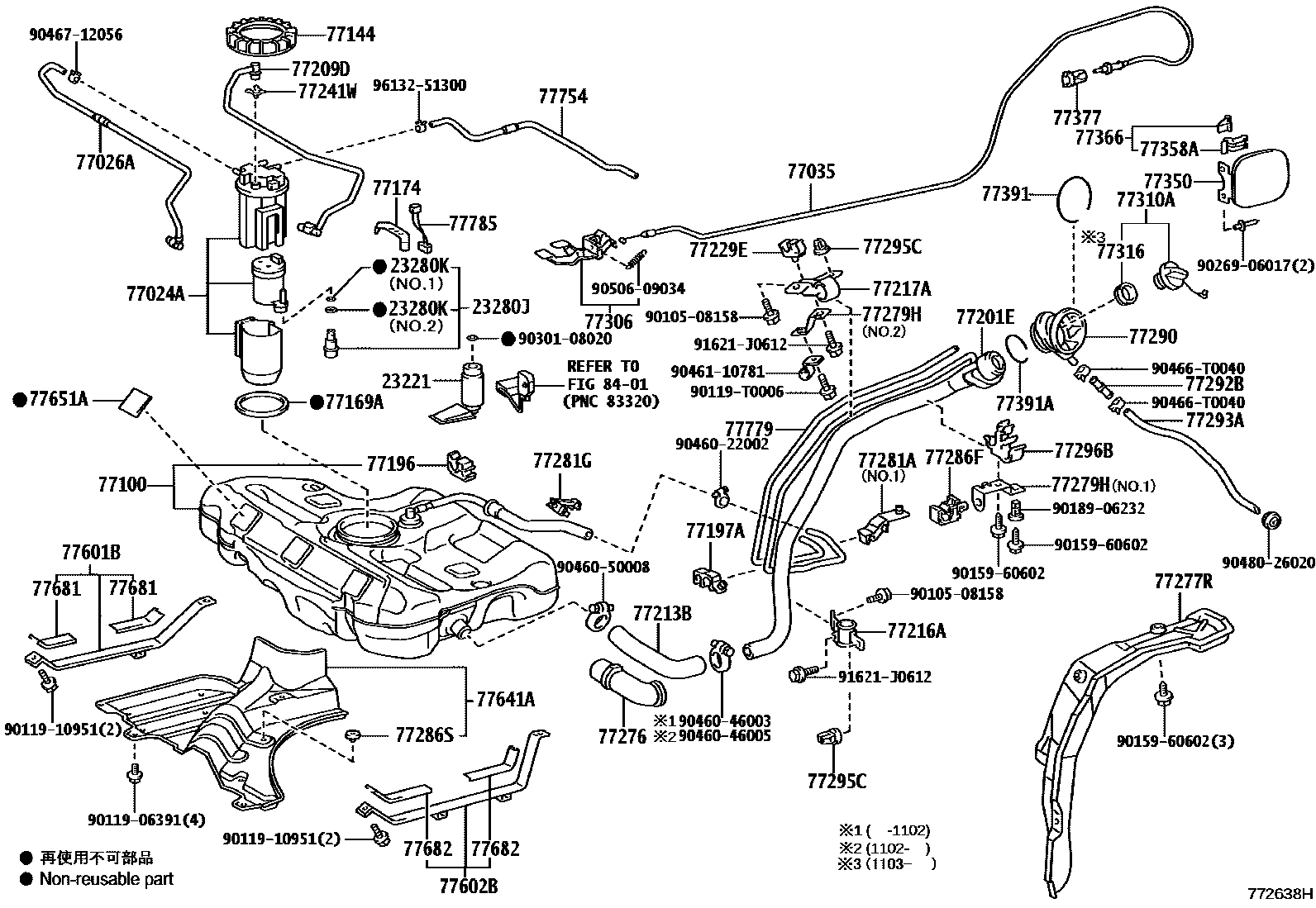

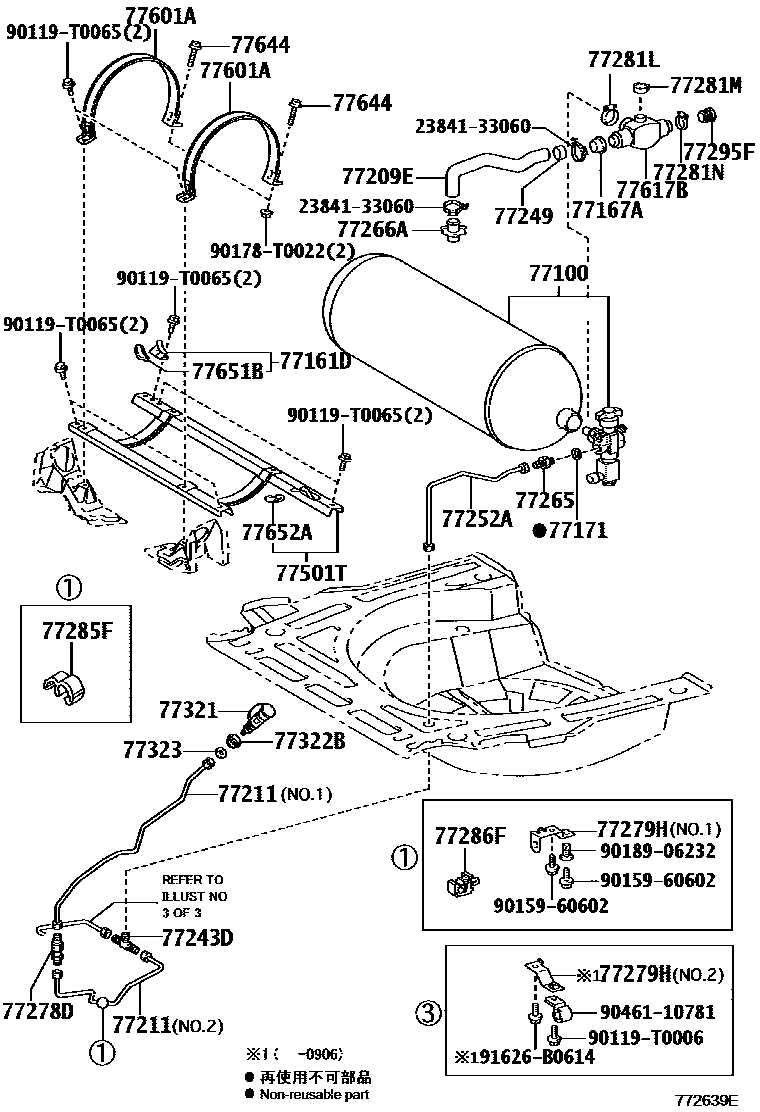

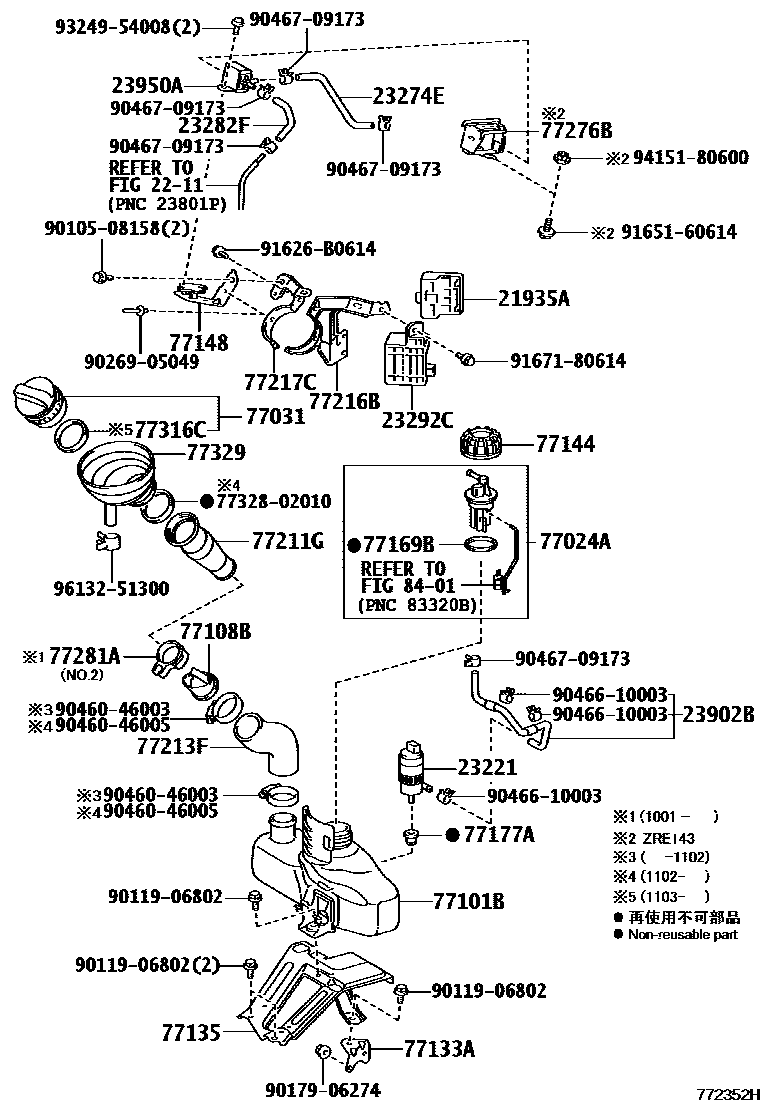

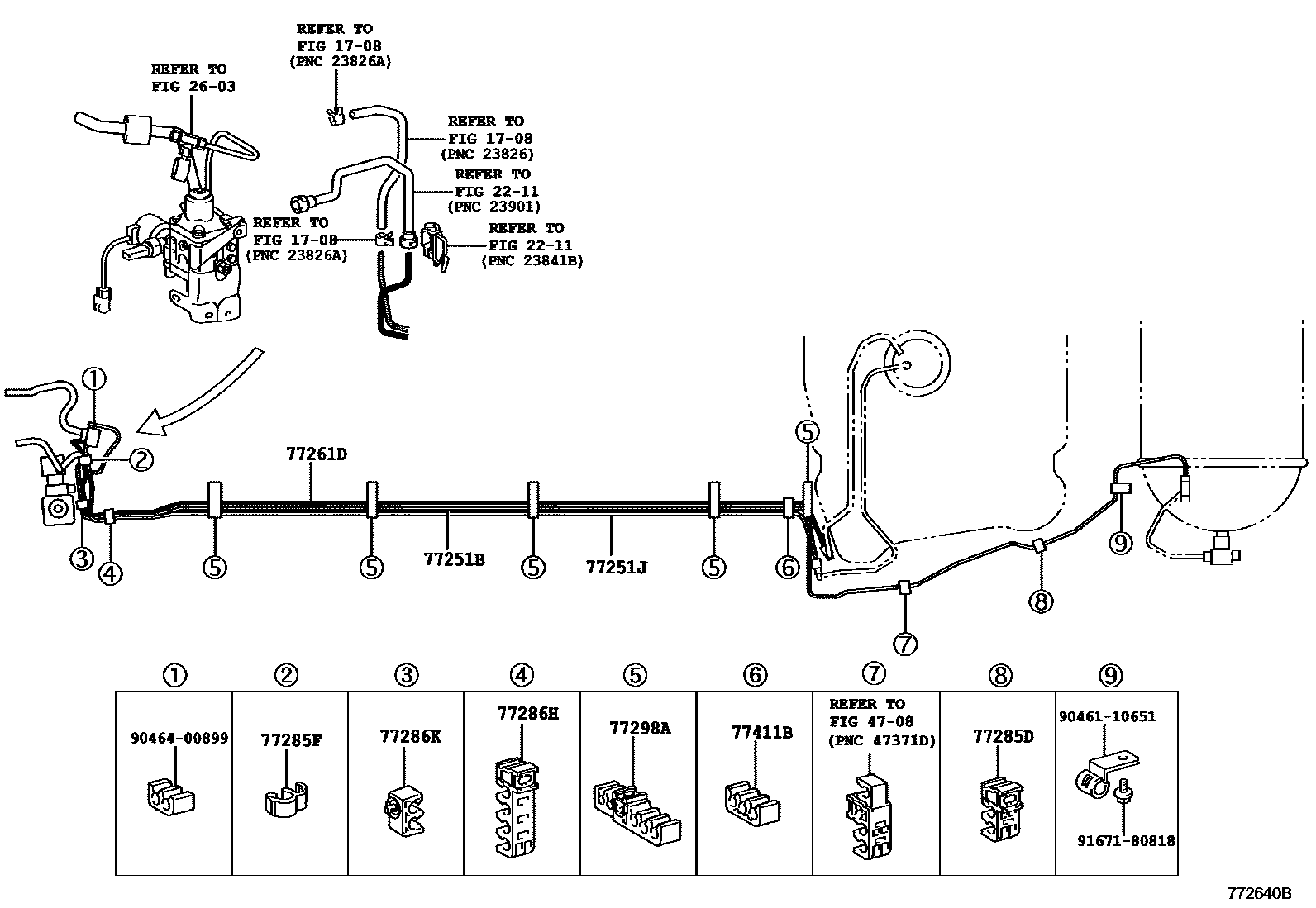

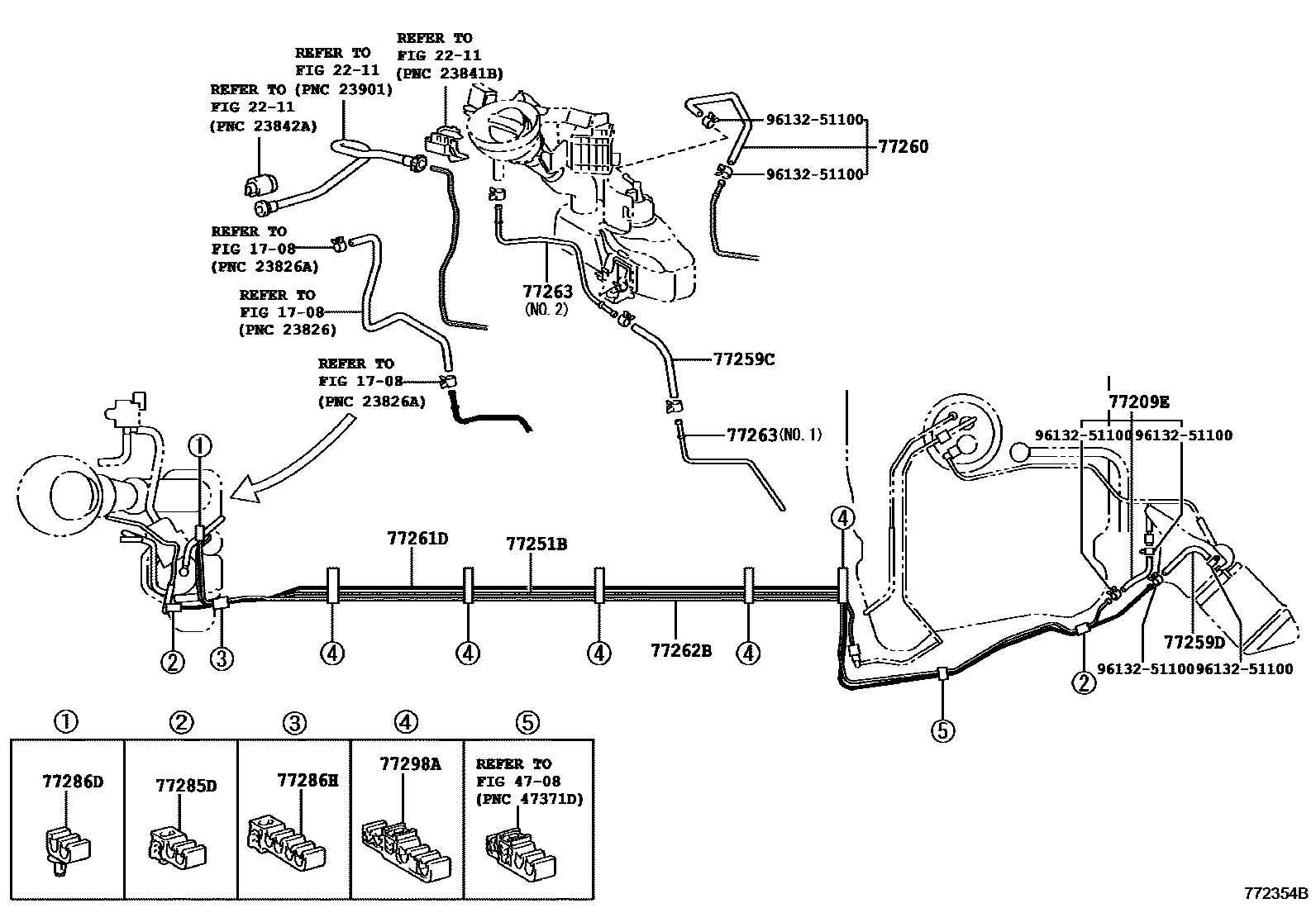

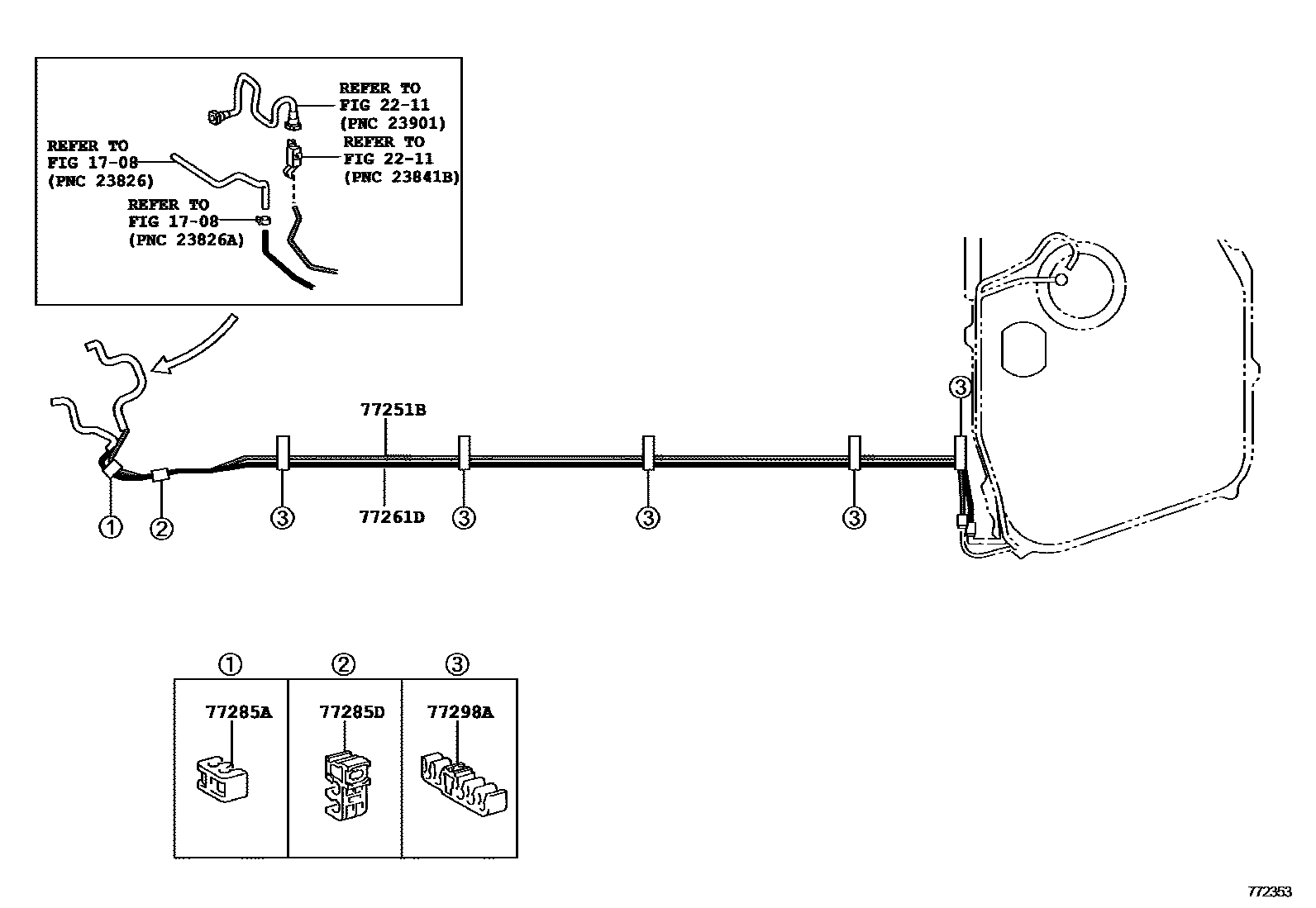

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 8 images and 118 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 21935A | Solenoid valve bracket | 21935-22010 |
| 23217D | fuel pump filter | 23217-0D140 |
| 23221 | fuel pump | 23220-22130 · 23220-22131 · 23220-22180 · 23220-22181 · 23221-0D030 · 23221-0D220 · 23221-0D221 |
| 23274E | No. 3 fuel hose | 23274-0D020 |
| 23280J | Fuel pressure regulator assembly | 23280-0D010 · 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 23282F | No. 4 fuel hose | 23282-0D020 |
| 23292C | Fuel hose protector | 23292-22010 |
| 23300J | fuel filter assembly | 23300-0D100 |
| 23902B | No. 2 fuel pipe sub-assembly | 23902-0D020 |
| 23950A | Solenoid valve assembly | 23950-0D020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02360 · 77020-02361 · 77020-12690 · 77020-12730 |
| 77024A | Fuel absorber sub-assembly | 77024-12101 · 77024-12110 · 77024-12111 · 77024-12112 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-02060 |
| 77027B | No. 1 fuel evaporation exhaust pipe sub-assembly | 77027-02080 |
| 77031 | Fuel tank cap assembly | 77310-12170 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02310 |
| 77100 | fuel tank assembly | 77001-02450 · 77001-02460 · 77100-02A00 |
| 77101B | Upper fuel tank sub-assembly | 77101-02270 |
| 77108B | Fuel tank refueling check valve sub-assembly | 77108-12070 |
| 77133A | No. 1 auxiliary fuel tank bracket | 77133-02050 |
| 77135 | One-way valve bracket | 77135-02030 · 77135-02031 |
| 77144 | Fuel pump instrument fixture | 77144-02100 · 77144-52030 |
| 77148 | Fuel pipe to fuel tank bracket | 77148-12090 · 77148-12091 |
| 77161D | Fuel tank guard | 77161-YZB00 |
| 77167A | No. 2 fuel tank vent pipe bracket | 77166-YV020 |
| 77169A | Fuel suction pipe fixed gasket | 77169-02080 |
| 77169B | No. 1 fuel suction pipe fixing pad | 77169-12040 |
| 77171 | Fuel tank pipe No. 1 gasket | 77171-02010 |
| 77174 | No. 1 oil suction pipe bracket | 77174-12030 |
| 77177A | Check valve gasket | 77177-12040 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-12080 |
| 77197A | No. 2 evaporation vent pipe clamp | 77196-12060 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-02300 · 77201-02301 · 77201-02310 |
| 77204A | fuel tank return pipe | 77204-02070 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-02150 · 77209-02160 |
| 77209E | Fuel drain hose sub-assembly | 77209-12280 · 77209-12350 |
| 77211 | fuel tank inlet pipe | 77211-02190 · 77211-02200 |
| 77211G | Fuel tank filler pipe | 77211-02160 |
| 77213B | Fuel tank to filler pipe hose | 77213-12330 |
| 77213F | Fuel tank to filler pipe hose | 77213-12320 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-02130 |
| 77216B | No. 2 fuel tank filler pipe bracket | 77216-02120 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-02090 |
| 77217C | No. 2 fuel tank filler pipe bracket | 77217-02080 |
| 77229E | Snorkel clamp | 77229-12100 |
| 77241W | Pipe joint clip | 77241-32060 |
| 77243D | No. 1 fuel pipe joint | 77243-02030 |
| 77249 | fuel drain hose | 77249-12120 |
| 77251B | main fuel pipe | 77251-02390 · 77251-02400 · 77251-02410 · 77251-02520 |
| 77251J | No. 1 main fuel pipe | 77251-02500 |
| 77252A | No. 2 main fuel pipe | 77252-02010 |
| 77259C | fuel hose | 77259-12390 |
| 77259D | No. 1 fuel hose | 77259-12400 |
| 77260 | Main fuel hose assembly | 77260-12040 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02320 · 77261-02330 · 77261-02340 · 77261-02400 |
| 77262B | No. 2 fuel tank to carbon canister pipe | 77262-02020 |
| 77263 | No. 3 fuel tank to carbon canister pipe | 77263-02030 · 77263-02060 · 77263-02070 |
| 77265 | Main fuel line connector | 77265-02010 |
| 77266A | No. 1 fuel line protection device | 77266-12160 |
| 77276 | Fuel hose protector | 77276-12050 · 77276-12130 |
| 77276B | Fuel hose protector | 77276-12110 |
| 77277R | Fuel tank filler pipe protection device | 77277-02090 · 77277-YZB00 |
| 77278D | Check valve with bracket | 77278-02050 |
| 77279H | Fuel filler pipe protection device fixing bracket | 57552-YZB00 · 57553-YZB00 |
| 77281A | Fuel filler pipe clamp | 77281-12110 · 77281-12160 |
| 77281G | fuel hose clamp | 77281-12150 |
| 77281L | fuel hose clamp | 77281-YV010 |
| 77281M | fuel hose clamp | 77281-YV020 |
| 77281N | fuel hose clamp | 77281-YV030 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-42110 |
| 77285D | No. 1 fuel pipe clamp | 77285-50040 |
| 77285F | No. 1 fuel pipe clamp | 77285-30140 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77286-12140 |
| 77286D | No. 2 fuel pipe clamp | 77286-12120 |
| 77286F | No. 2 fuel pipe clamp | 77286-12160 |
| 77286H | No. 3 fuel pipe clamp | 77285-12120 |
| 77286K | No. 2 fuel pipe clamp | 77286-20190 |
| 77286S | Fuel tank protective shell cushion | 77286-12110 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-02140 · 77291-YY020 |
| 77292B | fuel tank drain plug cover | 77292-YY020 |
| 77293A | No. 3 fuel tank filler pipe cover | 77293-YY020 |
| 77295C | Fuel pipe retaining ring | 77295-12070 |
| 77295F | fuel hose retainer | 77295-YV020 |
| 77296B | No. 1 fuel line protector bracket | 77296-12070 |
| 77298A | No. 4 fuel pipe clamp | 77298-48050 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-12050 |
| 77310A | Fuel tank cap assembly | 77300-52030 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77316C | fuel tank cap gasket | 77316-75020 |
| 77321 | Fuel inlet connector | 77321-02010 |
| 77322B | Fuel tank inlet connector No. 1 gasket | 77322-YZB00 |
| 77323 | Fuel tank inlet connector No. 2 gasket | 77323-YZB00 |
| 77329 | fuel tank cover | 77329-02020 |
| 77350 | Fuel filler cap assembly | 77350-12510 · 77350-YY010 |
| 77358A | Fuel filler cap stopper | 77358-30060 |
| 77366 | Fuel filler cap hinge spring | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-12050 |
| 77391 | fuel inlet ring | 77391-12060 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-48020 |
| 77501T | Fuel tank bracket sub-assembly | 77501-02020 · 77501-02021 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-YZB00 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-02100 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-02100 |
| 77617B | Fuel tank valve rear cover | 77617-YV010 |
| 77641A | No. 1 fuel tank protective shell | 77641-02140 |
| 77644 | fuel tank bolt | 77644-02010 |
| 77651A | No. 1 fuel tank liner | 77651-02100 · 77651-12080 |
| 77651B | fuel tank liner | 77651-YZB01 |
| 77652A | No. 2 fuel tank liner | 77652-YZB02 |
| 77681 | Fuel tank right side strap seat | 77681-02050 |
| 77682 | Fuel tank left side strap seat | 77681-02050 |
| 77701T | Check valve (for main fuel tank) | 90917-10090 |
| 77740 | Carbon canister assembly | 77740-12730 |
| 77754 | No. 1 carbon canister outlet hose | 77754-02100 · 77754-02110 |
| 77779 | Carbon canister outlet pipe | 77779-02050 · 77779-02060 |
| 77785 | fuel pump wiring harness | 77785-72010 · 77785-72011 |
