Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.

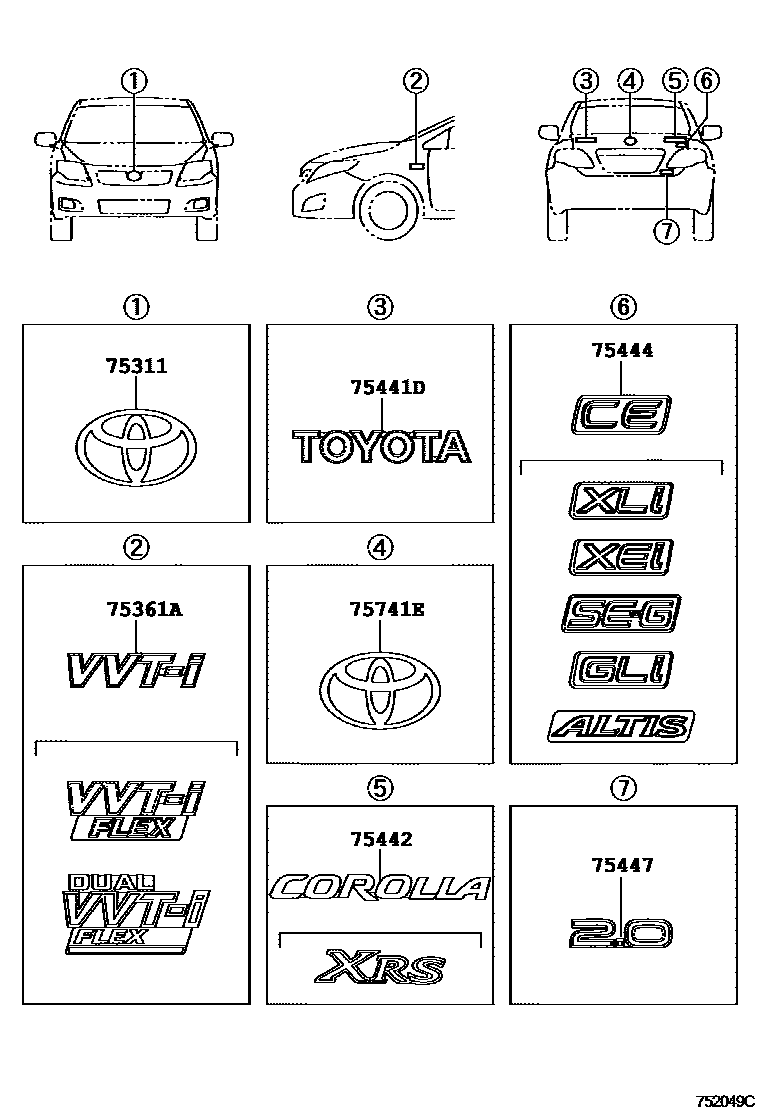

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 752049C
丰田徽标和铭牌(车外和车内) — 752049C (200803 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75301-02060
75361AFront fender No. 1 nameplate75351-02090 · 75351-02110 · 75351-02120
75441DTrunk door No. 1 name plate75441-02180
75442Trunk door number plate No. 275442-02240 · 75444-12B71
75444Trunk door No. 4 nameplate75444-02440 · 75444-02600 · 75444-02610 · 75444-02640 · 75444-12C00 · 75444-12C10
75447Trunk door No. 7 nameplate75447-02200
75741Elogo75431-02100
