Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

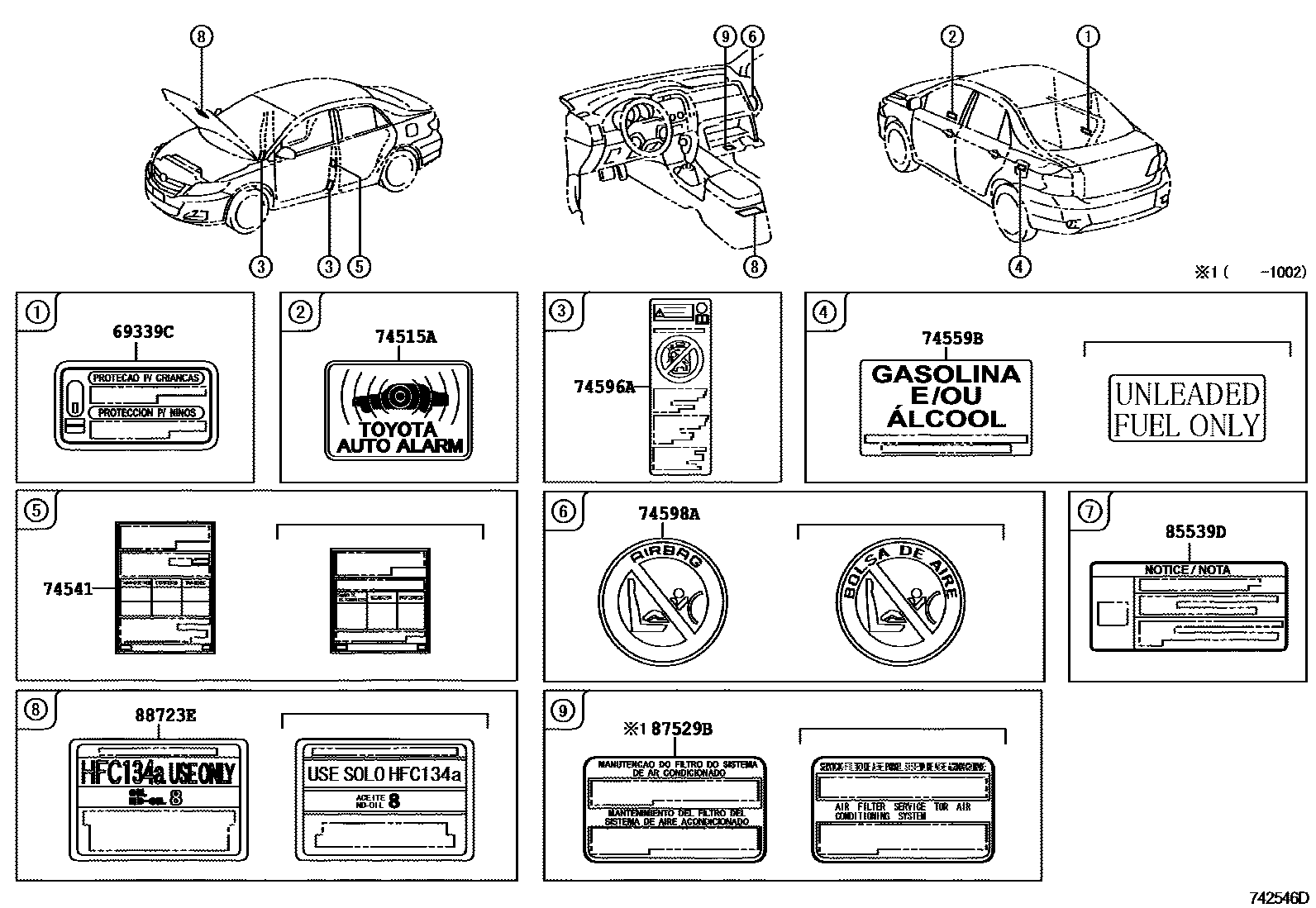

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16793E | ETIQUETTE, PRECAUTION VENT REFROIDISSEMENT | 16793-0G010 |
| 69339C | Child Restraint Information Label | 69339-02040 |
| 74515A | Anti-theft warning nameplate | 74515-33020 |
| 74541 | tire pressure warning plate | 42661-02B40 · 42661-02B50 |
| 74559B | fuel information label | 74559-02040 · 74559-14050 |
| 74596A | Side air bag warning label | 74596-02050 |
| 74598A | Passenger air bag warning label | 74598-02030 · 74598-02060 |
| 85539D | Power socket attention labels | 85539-12020 |
| 87529B | Cabin filter information label | 87529-02040 · 87529-02050 |
| 88723E | Cooler maintenance warning label | 88723-02190 · 88723-02210 |
