Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 2 images and 5 PNC and OE references.

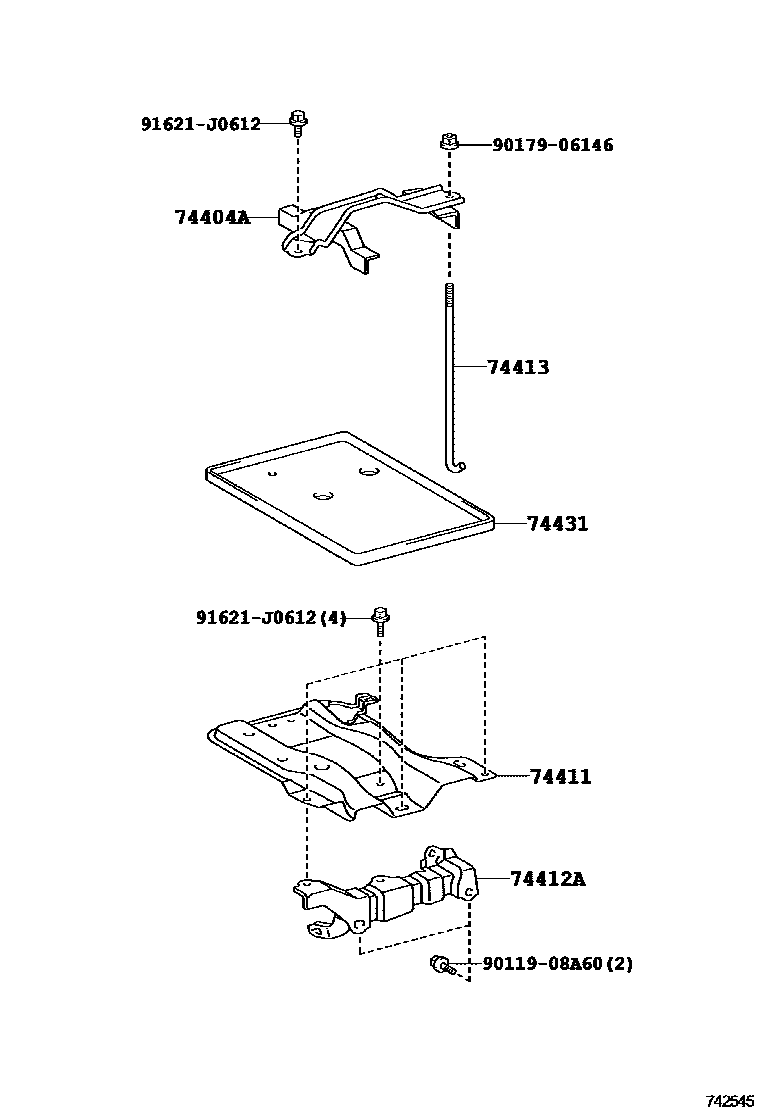

Toyota COROLLA battery holder EPC diagram — 742545
battery holder — 742545 (200803 – 999999)

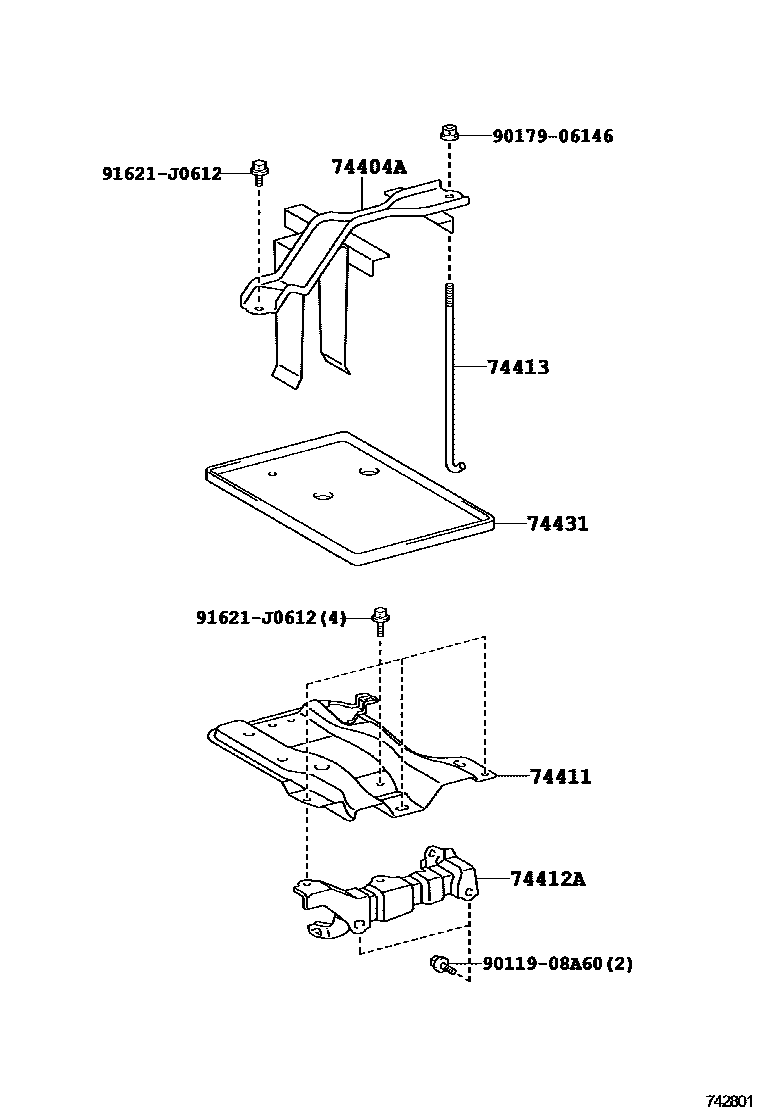

Toyota COROLLA battery holder EPC diagram — 742801
battery holder — 742801 (200903 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-02220 · 74404-02240 · 74404-02311 · 74404-02320
74411battery holder74401-02060 · 74401-12030
74412ANo. 2 battery holder74410-02100
74413Battery clamp bolt74451-02090 · 74451-02100
74431battery tray74431-02051 · 74431-12030
