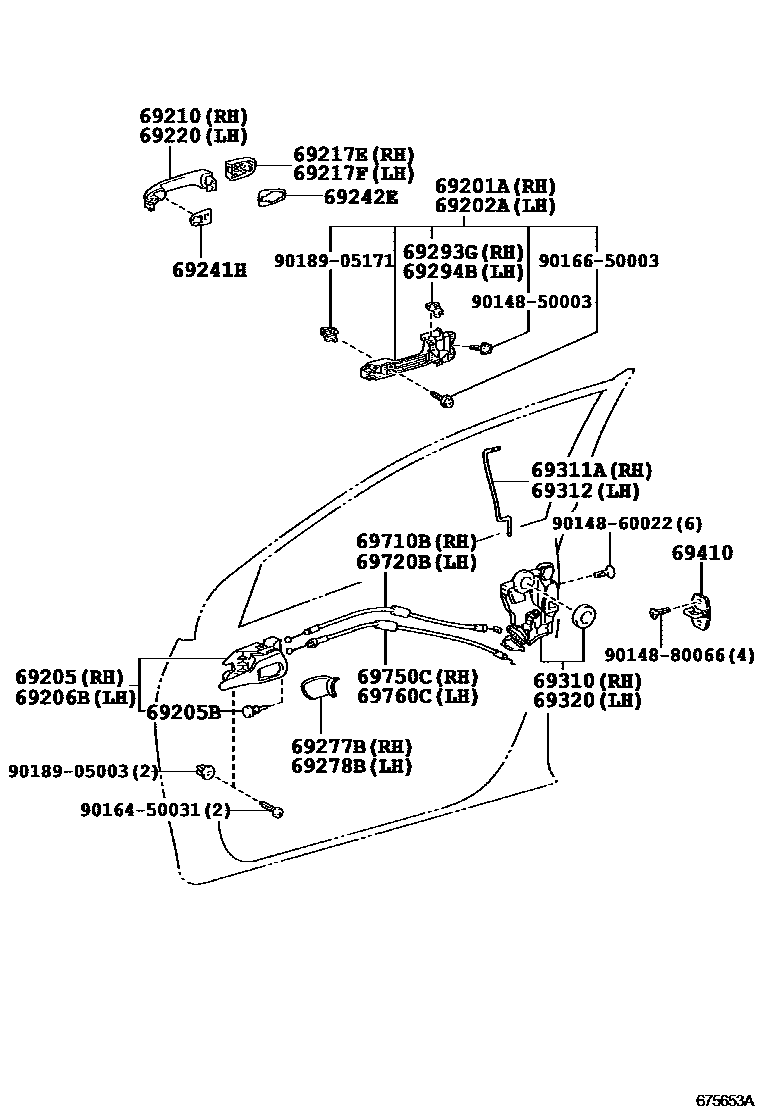

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69201A | Right front door outer handle frame sub-assembly | 69201-02190 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-02120 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04027 |
| 69210 | Right front door outer handle assembly | 69210-06040 · 69211-02180 |
| 69217E | Right front door outer handle cover | 69217-02120 · 69217-06020 · 69217-0K904 · 69217-33030 |
| 69217F | Left front door outer handle cover | 69217-02120 · 69217-06020 |
| 69220 | Left front door outer handle assembly | 69210-06040 · 69211-02180 |
| 69241H | Front door exterior handle pad | 69241-02050 |
| 69242E | Front door rear outer handle pad | 69242-02050 |
| 69293G | Right front door outer handle buckle | 69293-12030 |
| 69294B | Left front door outer handle buckle | 69293-12040 |
| 69310 | Right front door lock assembly | 69030-02390 · 69030-02400 |
| 69311A | Right front door lock opening lever | 69311-02210 · 69311-02250 |
| 69312 | Left front door lock opening lever | 69312-02210 · 69312-02250 |
| 69320 | Left front door lock assembly | 69040-02350 |
| 69410 | Front door lock plate assembly | 69410-0K030 |
| 69710B | Right front door lock remote control cable assembly | 69710-02170 · 69710-02210 |
| 69720B | Left front door lock remote control cable assembly | 69710-02170 · 69710-02210 |
| 69750C | Right front door inner lock cable assembly | 69750-02200 · 69750-02240 |
| 69760C | Left front door inner lock cable assembly | 69750-02200 · 69750-02240 |
