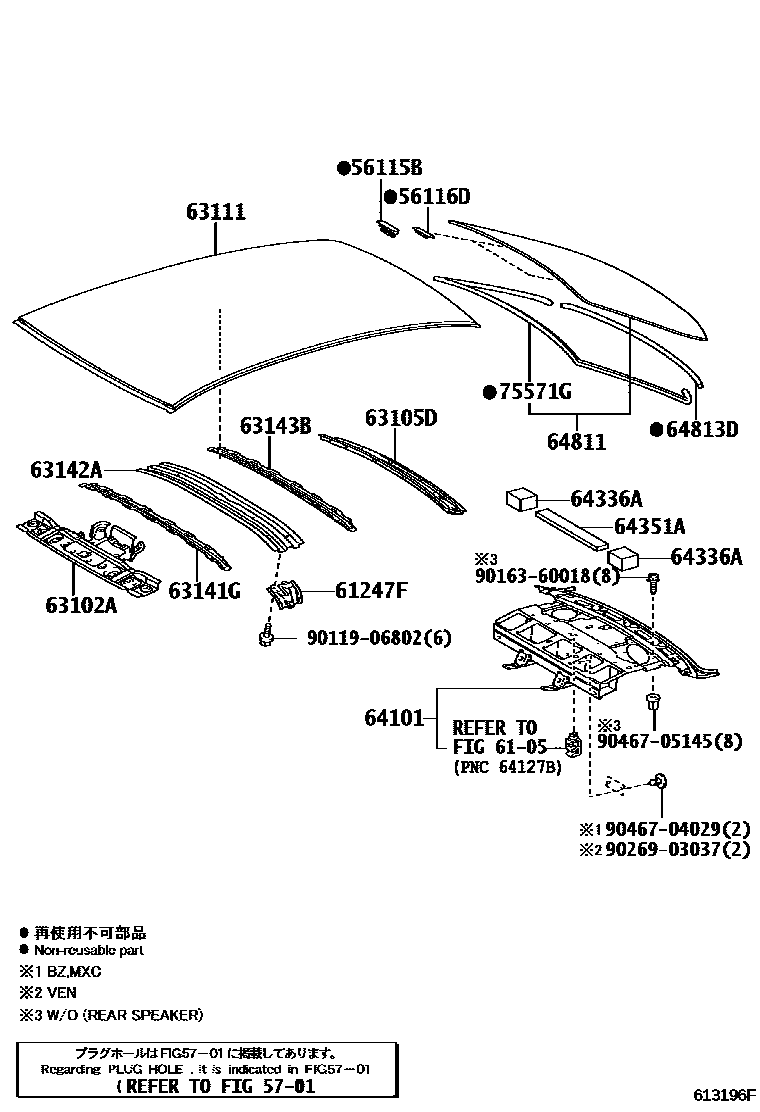

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 61247F | Roof inner longitudinal beam reinforcement | 61247-12050 |
| 63102A | Windshield roof sub-assembly | 63102-12300 |
| 63105D | Rear window upper frame sub-assembly | 63105-12290 |
| 63111 | roof panel | 63111-02350 |
| 63141G | No. 1 roof panel reinforcement | 63143-12130 |
| 63142A | No. 2 roof panel reinforcement | 63141-12290 |
| 63143B | No. 3 roof panel reinforcement | 63144-12110 |
| 64101 | Upper back panel sub-assembly | 64101-02130 · 64101-02210 · 64101-02220 · 64101-02250 |
| 64336A | Glove box decorative panel side silencer pad | 64336-02040 |
| 64351A | No. 1 glove box decorative mat | 64351-02040 |
| 64811 | back window glass | 64801-02090 · 64801-02091 · 64801-02100 |
| 64813D | Back window glass adhesive seal | 64813-12180 |
| 75571G | No. 1 rear window outer upper protective strip | 75571-02280 |
