Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

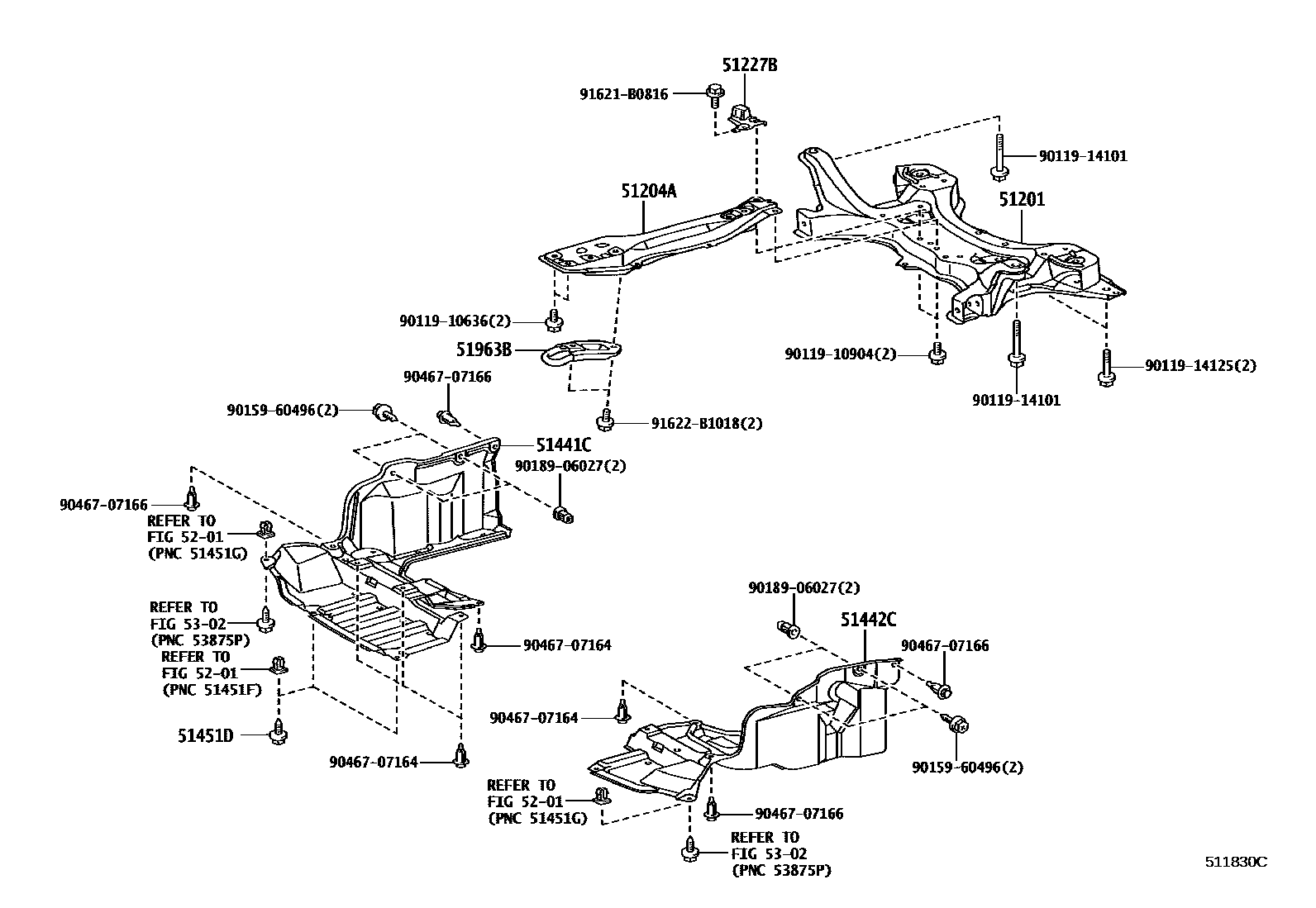

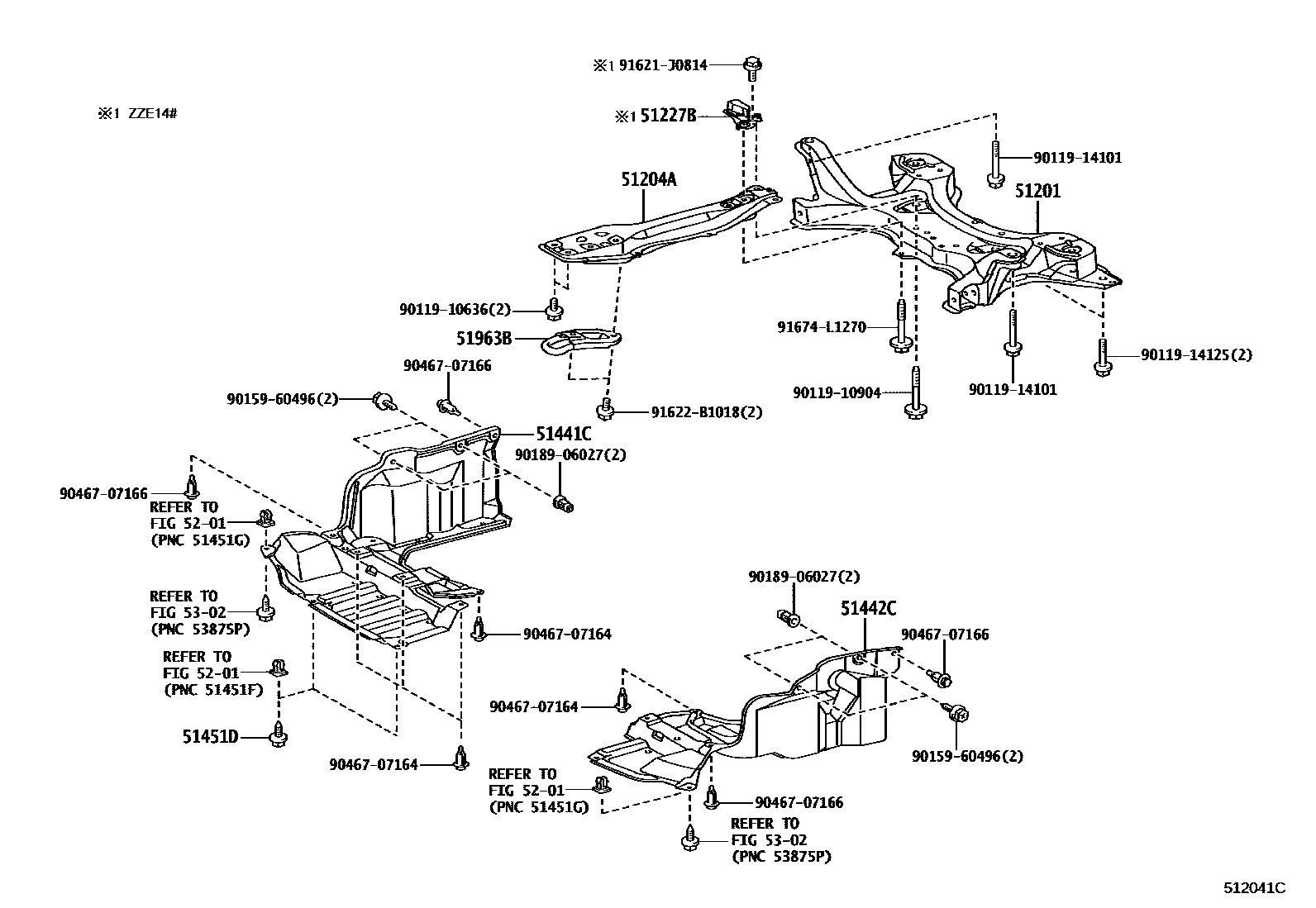

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-02140 · 51201-02160 · 51201-02180 · 51201-12431 |
| 51204A | Engine center mount beam sub-assembly | 51204-02100 · 51204-02110 · 51204-12150 |
| 51227B | Front suspension beam dynamic damper | 51227-02080 · 51227-12081 |
| 51441C | Engine right bottom cover | 51441-02290 · 51441-02370 |
| 51442C | Engine left bottom cover | 51442-02380 · 51442-02390 · 51442-02430 · 51442-02440 |
| 51451D | VIS, NO.1 | 90159-60488 |
| 51963B | Right front transport hook | 51960-02120 · 51960-02130 |
