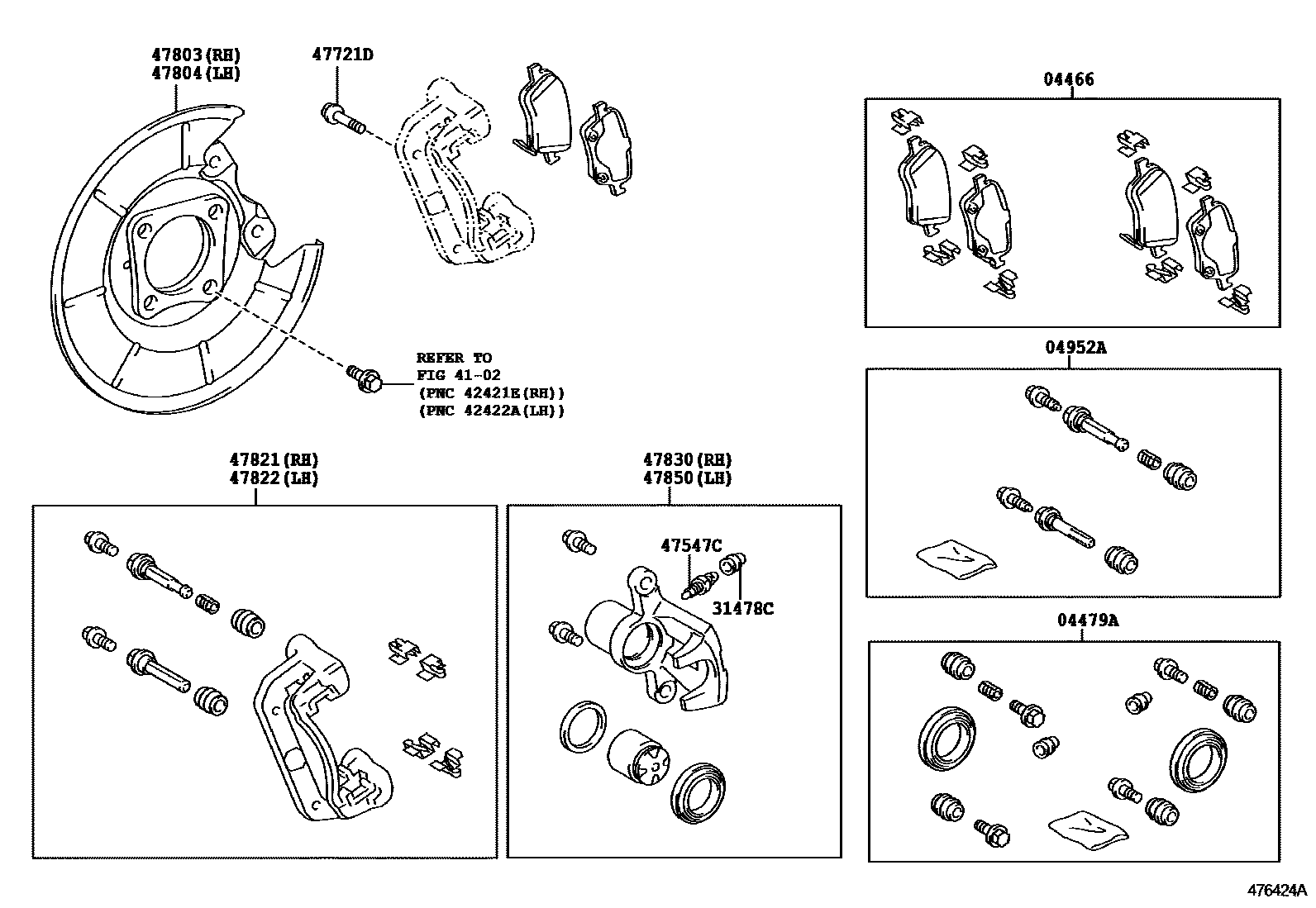

Toyota COROLLA 后盘式制动器卡钳和防尘罩 — Figure 4707
Toyota COROLLA EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-02180 · 04466-02181 · 04466-02182 |
| 04479A | Rear disc brake cylinder assembly | 04479-02340 |
| 04952A | Rear disc brake cylinder sliding pin assembly | 04956-02080 |
| 31478C | Bleed plug cap (for rear disc brake) | 90069-39009 |
| 47547C | Bleed plug (for rear disc brake) | 90069-39000 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90105-10510 |
| 47803 | Right rear disc brake dust cover sub-assembly | 47803-02070 |
| 47804 | Left rear disc brake dust cover sub-assembly | 47804-02070 |
| 47821 | Right disc brake cylinder retaining bracket | 47821-09030 |
| 47822 | Left disc brake cylinder retaining bracket | 47822-09030 |
| 47830 | Right rear disc brake cylinder assembly | 47830-02221 · 47830-02230 |
| 47850 | Left rear disc brake cylinder assembly | 47850-02221 · 47850-02230 |
