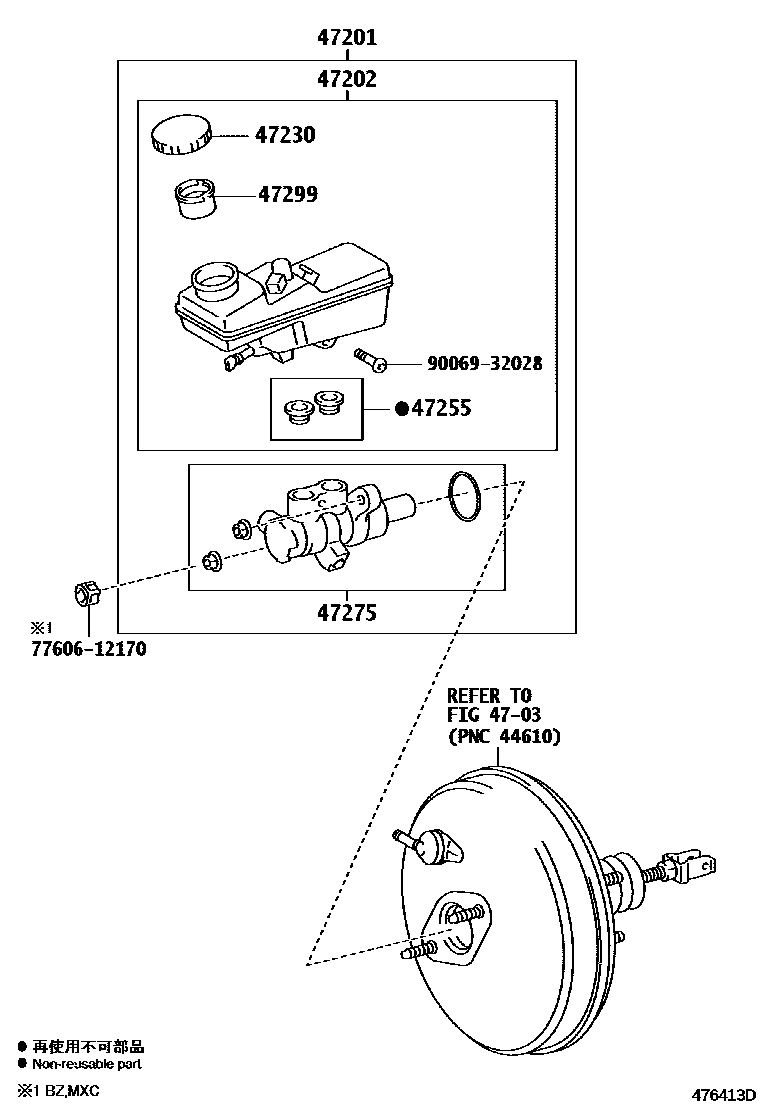

Toyota COROLLA 制动总泵 — Figure 4702
Toyota COROLLA EPC diagram 4702, 制动总泵, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47201 | Brake master cylinder sub-assembly | 47201-09330 · 47201-09331 · 47201-09550 · 47201-09551 · 47201-09680 · 47201-09690 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-09110 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-02250 |
| 47255 | Master pump reservoir seal | 47255-09040 |
| 47275 | brake master cylinder gasket | 47275-09010 |
| 47299 | Brake master cylinder reservoir filter | 47299-02160 |
