Toyota COROLLA Front Drive Shaft — Figure 4302

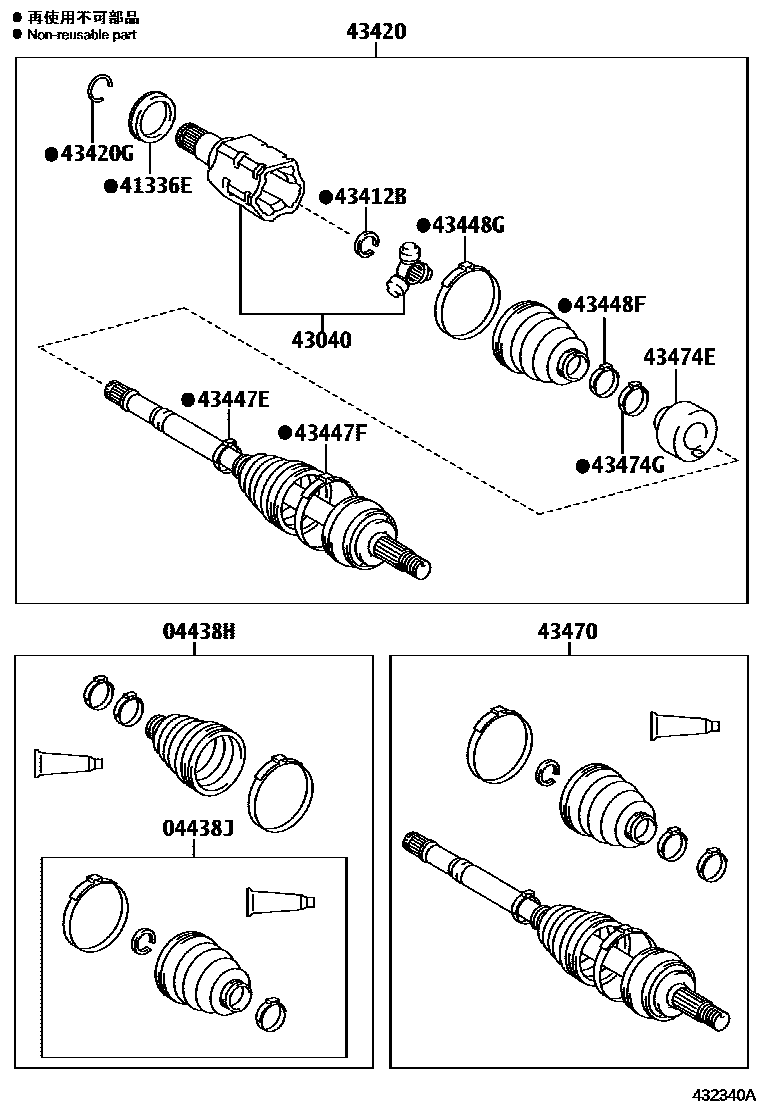

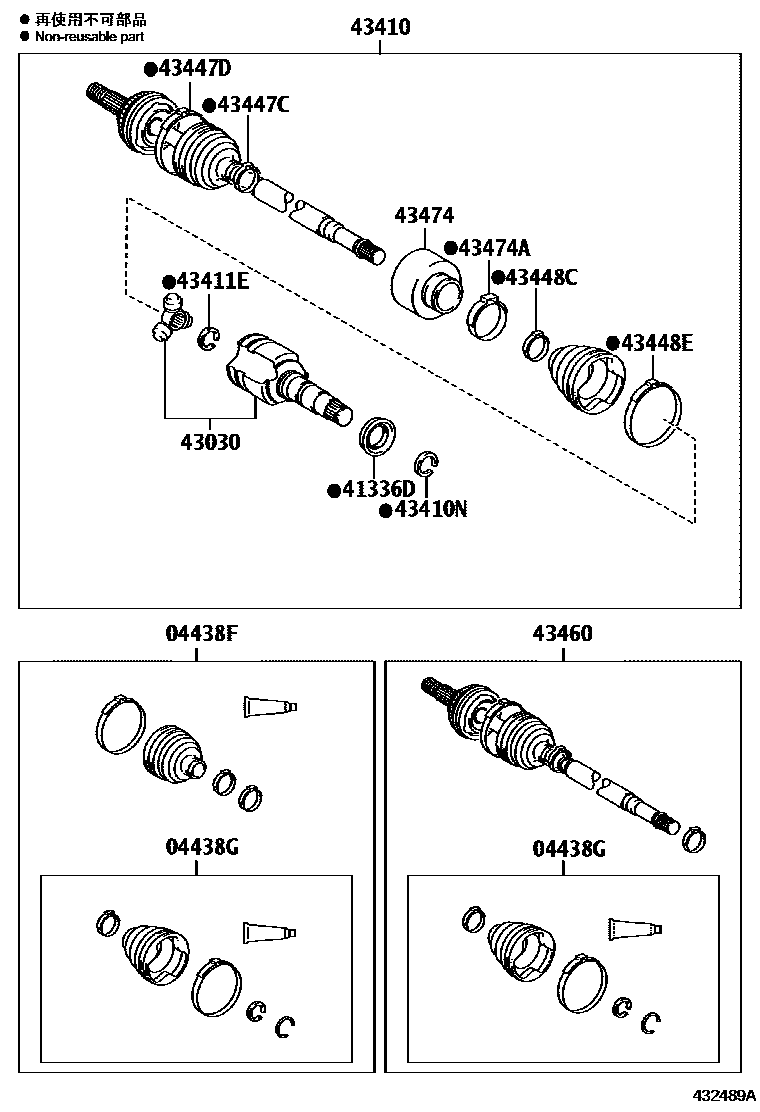

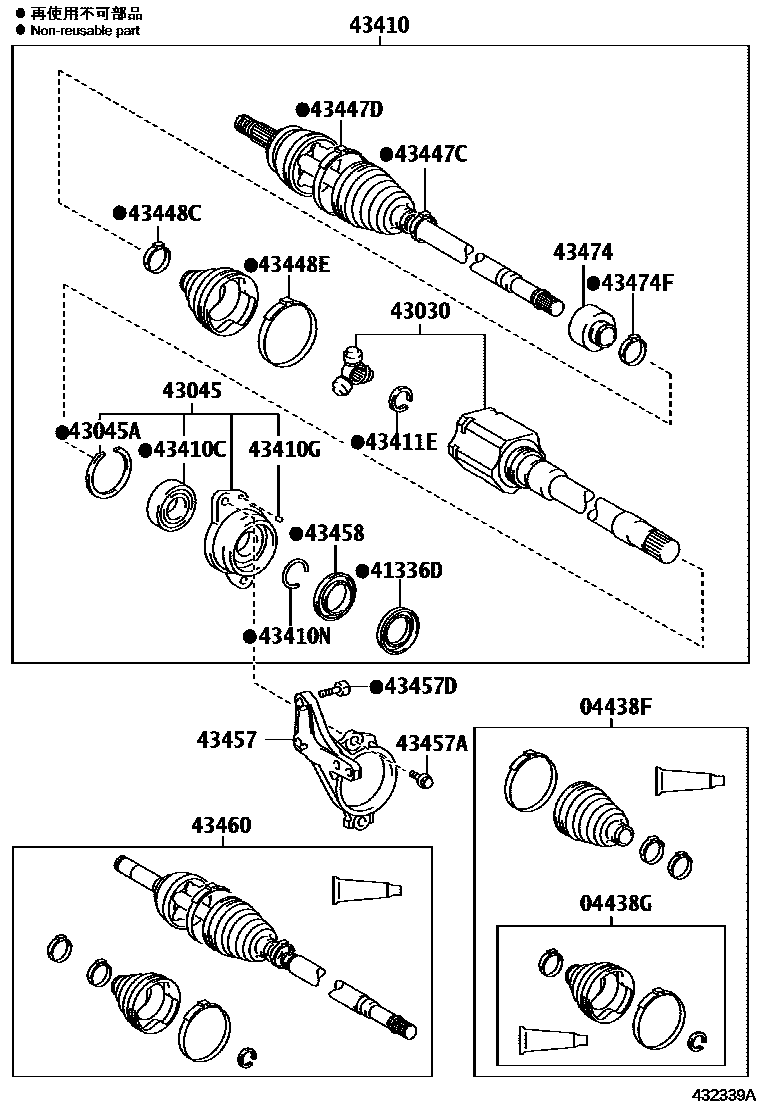

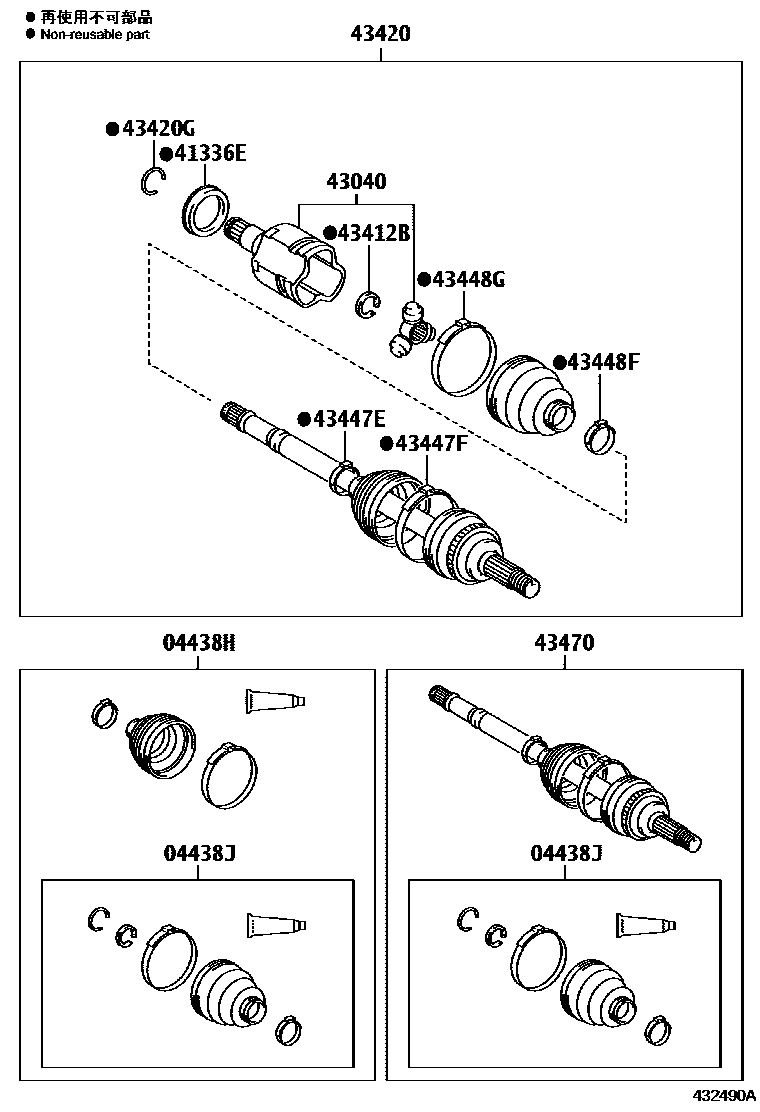

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 4 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-02520 · 04427-02530 · 04427-02550 · 04427-02560 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-02360 · 04437-02370 · 04437-02390 · 04437-02400 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-02560 · 04428-02530 · 04428-02540 · 04428-02560 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-02360 · 04437-02370 · 04437-02390 · 04437-02400 |
| 41336D | Right front driveshaft dust cover | 41336-02080 · 41336-12010 · 41336-12060 |
| 41336E | Left front driveshaft dust cover | 41336-02190 · 41336-12010 · 41336-12060 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-02080 · 43040-02170 · 43040-02180 · 43040-02190 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-02170 · 43040-02180 · 43040-02190 · 43040-02200 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-64020 |
| 43045A | Snap ring (for drive shaft bearing housing sub-assembly) | 90520-69002 |
| 43410 | Right front driveshaft assembly | 43410-02710 · 43410-02720 · 43410-02730 · 43410-02740 · 43410-02750 · 43410-02770 |
| 43410C | Bearings (for front driveshaft) | 90363-41003 |
| 43410G | Direct sales (for front driveshaft) | 90250-06003 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-02300 · 43425-02330 · 43425-02350 · 43425-02390 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-02290 · 43425-02320 · 43425-02360 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-02290 · 43425-02320 · 43425-02360 |
| 43420 | Left front drive shaft assembly | 43420-02700 · 43420-02701 · 43420-02760 · 43420-02761 · 43420-02770 · 43420-02780 · 43420-02790 · 43420-02830 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-02300 · 43425-02330 · 43425-02350 · 43425-02380 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-02560 · 42345-02620 · 42345-02690 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-02570 · 42345-02630 · 42345-02700 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-02560 · 42345-02620 · 42345-02690 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-02570 · 42345-02630 · 42345-02700 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-02550 · 42345-02610 · 42345-02680 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-02350 · 42345-02540 · 42345-02600 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-02550 · 42345-02610 · 42345-02680 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-02350 · 42345-02540 · 42345-02600 |
| 43457 | drive shaft bearing bracket | 43457-28060 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10361 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-02010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09T40 · 43460-09T50 · 43460-09T60 · 43460-09T70 · 43460-09U20 · 43470-8Z001 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09W50 · 43470-09W60 · 43470-09W70 · 43470-09W71 · 43470-09W80 · 43470-09W81 · 43470-09Z10 · 43470-8Z002 |
| 43474 | drive shaft damper | 43474-02260 · 43474-02270 · 43474-02320 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-02580 · 42345-02640 |
| 43474E | Left front driveshaft shock absorber | 43474-02330 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-02680 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-02680 |
