Toyota COROLLA LPG或CNG喷射系统 — Figure 2607

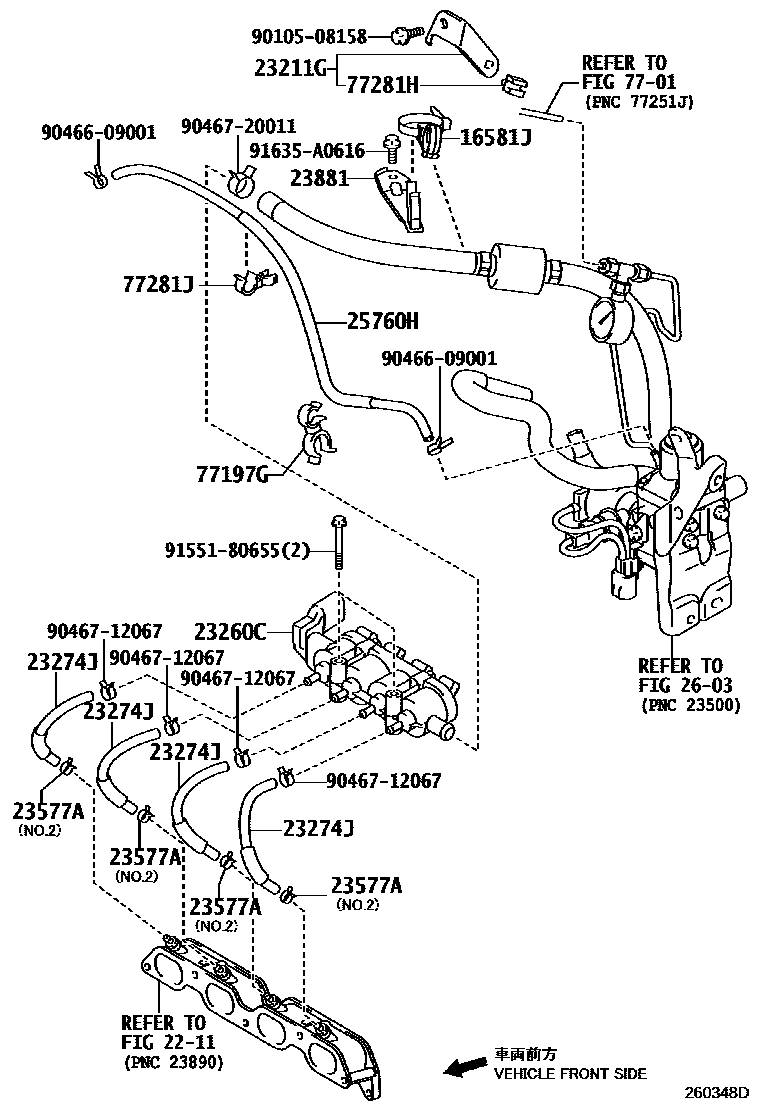

Toyota COROLLA EPC diagram 2607, LPG或CNG喷射系统, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16581J | No. 1 hose clamp | 16581-22100 |
| 23211G | Bracket (for fuel pipe) | 23211-22040 |
| 23260C | LPG injector assembly | 23260-YV010 · 23260-YV011 |
| 23274J | No. 3 fuel hose | 23274-YZB00 |
| 23577A | card holder | 23577-YZB01 |
| 23841E | FIXATION, TUYAU DE CARBURANT | 23841-22050 · 23841-22051 |
| 23881 | fuel hose bracket | 23881-22010 · 23881-YZB00 |
| 25760H | Vacuum transfer hose assembly | 25760-22010 |
| 77197G | No. 2 evaporation vent pipe clamp | 77197-12060 |
| 77281H | No. 1 fuel hose clamp | 77299-48040 |
| 77281J | No. 2 fuel hose clamp | 77281-12140 |
