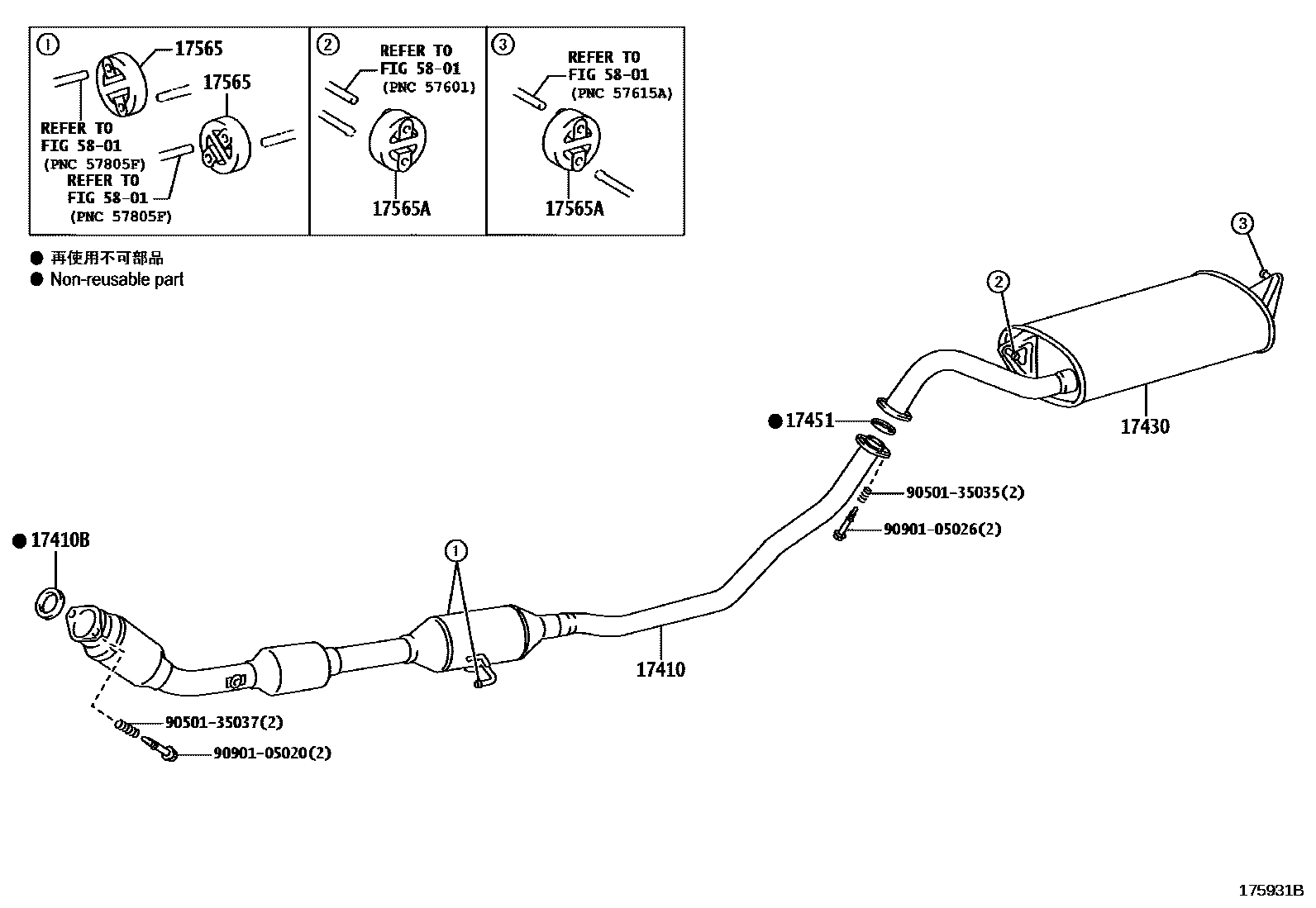

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-0D480 · 17410-0D520 · 17410-0T180 · 17410-0T420 · 17410-0T480 · 17410-0T490 · 17410-0T600 |
| 17410B | Exhaust pipe gasket | 17451-22070 · 17451-28070 |
| 17430 | Exhaust tailpipe assembly | 17430-0D490 · 17430-0T130 |
| 17451 | Exhaust pipe gasket | 17451-23041 · 17451-23042 · 17451-28031 · 17451-28032 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-22030 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-22040 |
