Toyota COROLLA Water Pump — Figure 1601

Toyota COROLLA EPC diagram 1601, Water Pump, with 2 images and 4 PNC and OE references.

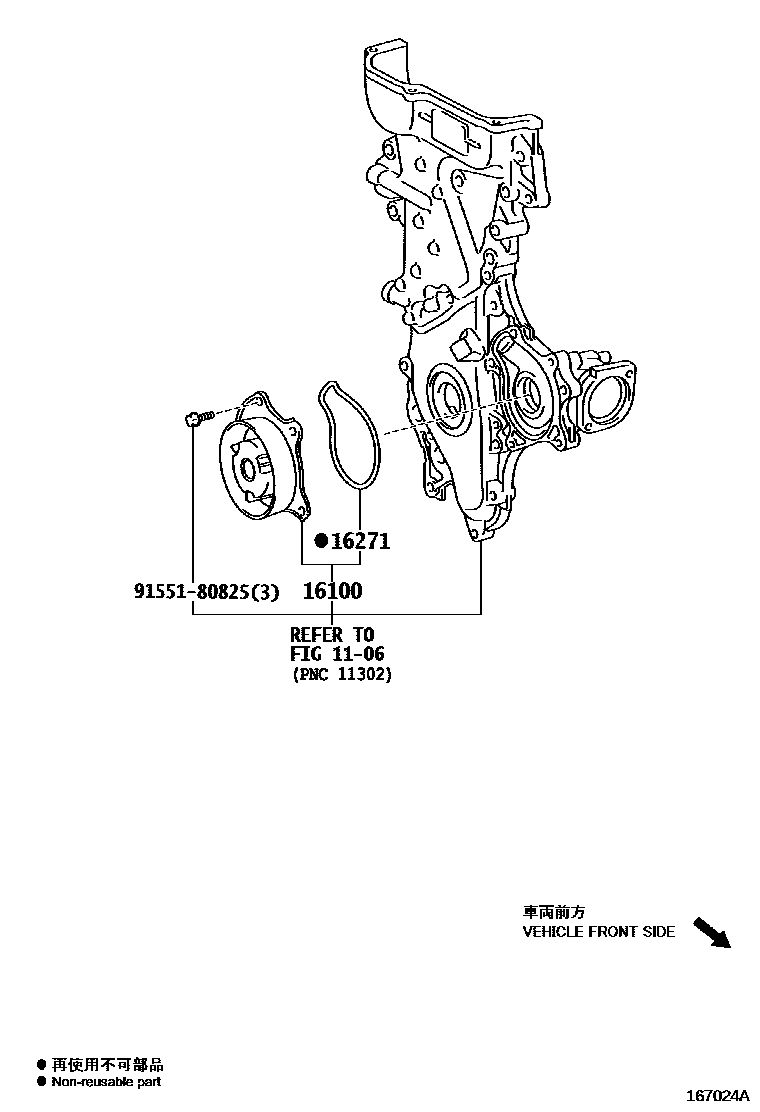

Toyota COROLLA Water Pump EPC diagram — 167024A
Water Pump — 167024A (201003 – 999999)

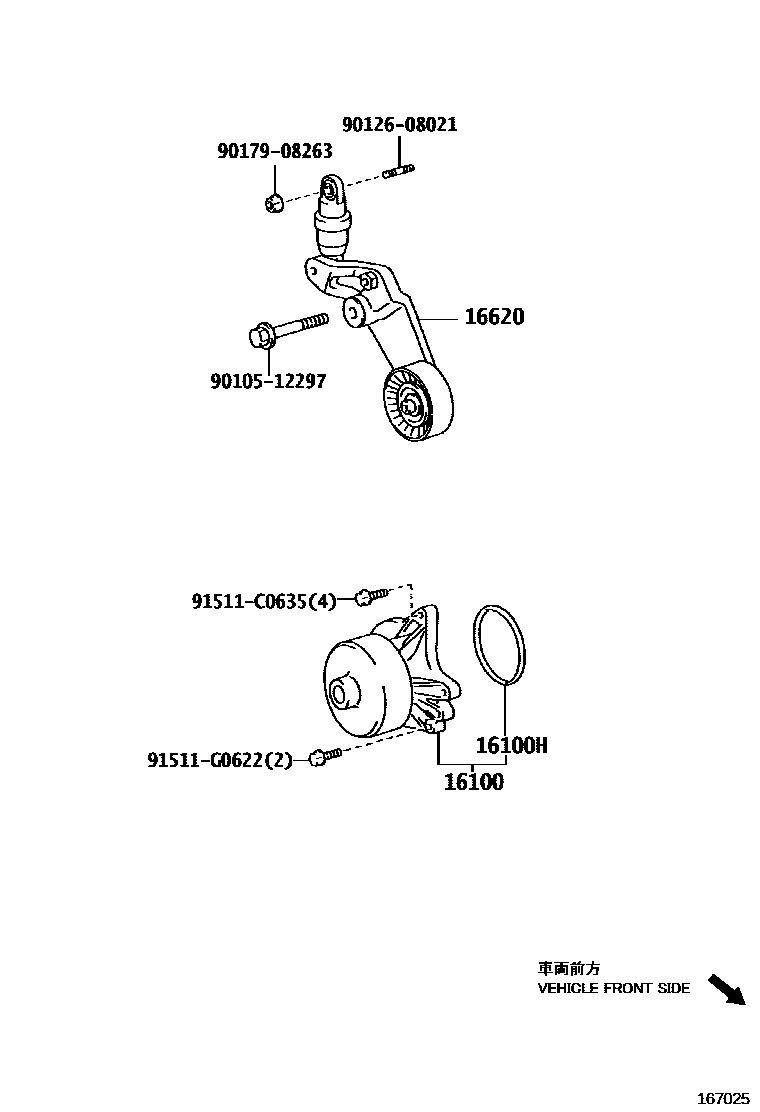

Toyota COROLLA Water Pump EPC diagram — 167025
Water Pump — 167025 (200803 – 999999)

PNC and OE references

PNCPart nameOE numbers
16100Engine water pump assembly16100-09310 · 16100-29415 · 16100-39466
16100HO-ring (for water pump)90301-69006
16271water pump gasket16271-37010
16620Poly V-belt tensioner assembly16620-0D021 · 16620-0W093 · 16620-22013
