Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 10 images and 2 PNC and OE references.

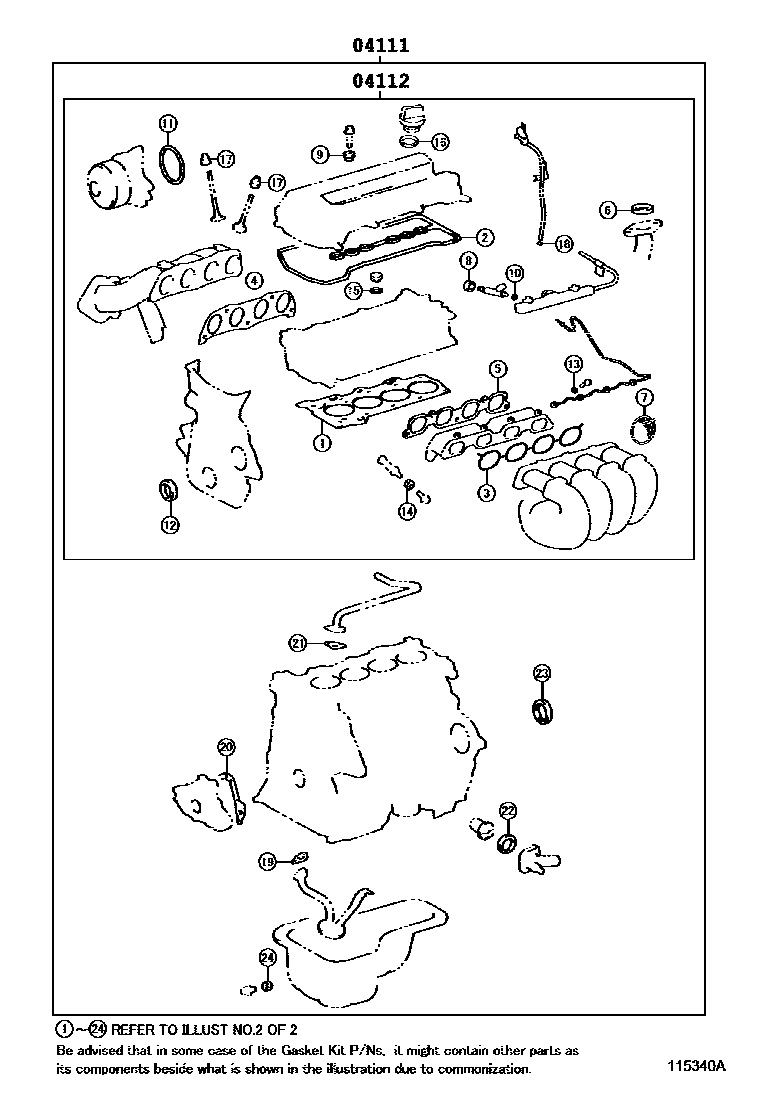

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 115340A
Engine Overhaul Gasket Kit — 115340A (200803 – 999999)

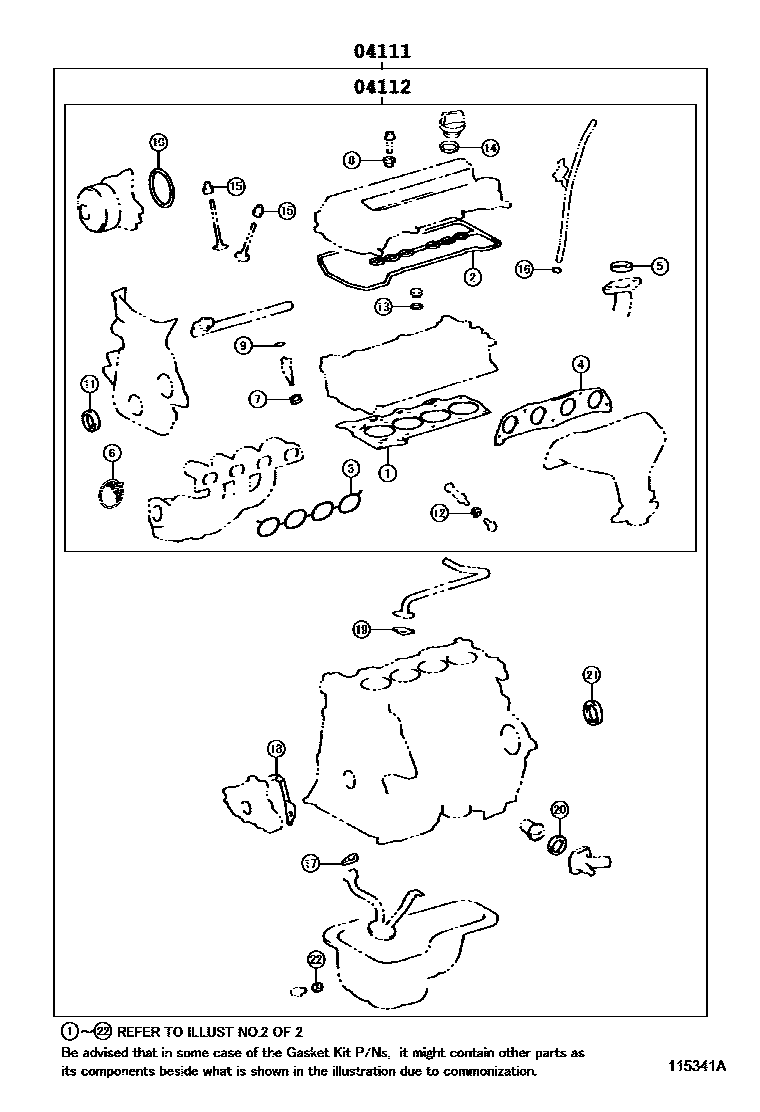

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 115341A
Engine Overhaul Gasket Kit — 115341A (200803 – 999999)

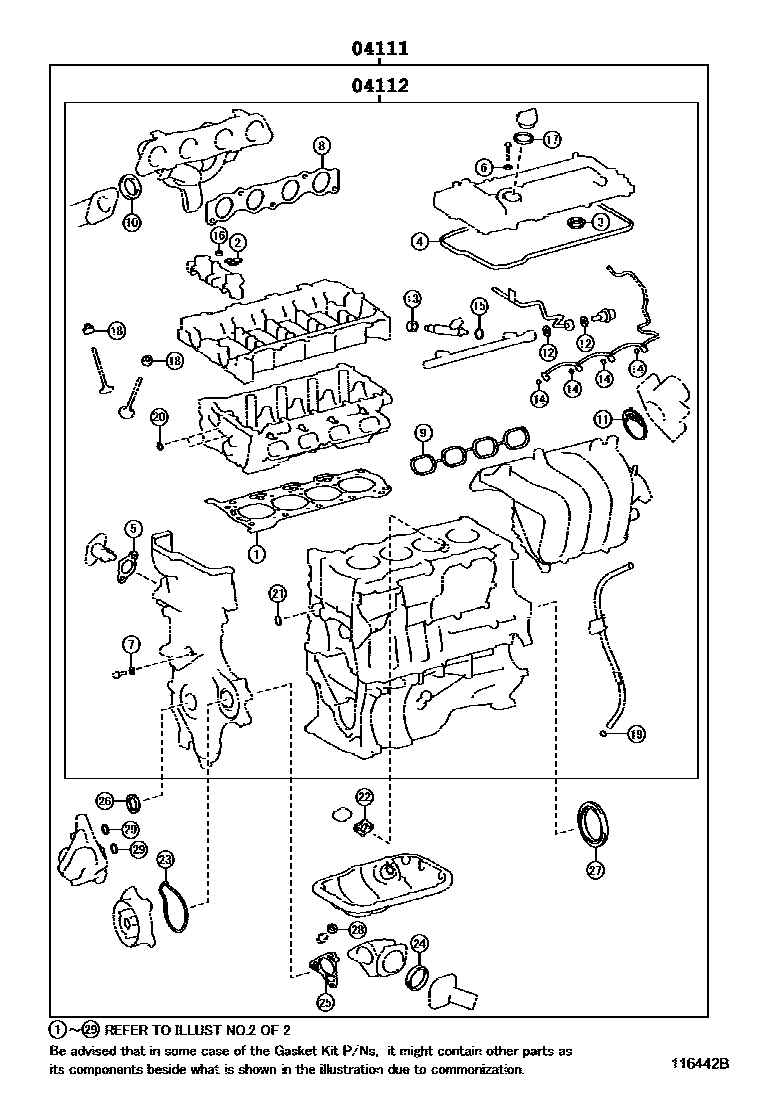

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 116442B
Engine Overhaul Gasket Kit — 116442B (201005 – 999999)

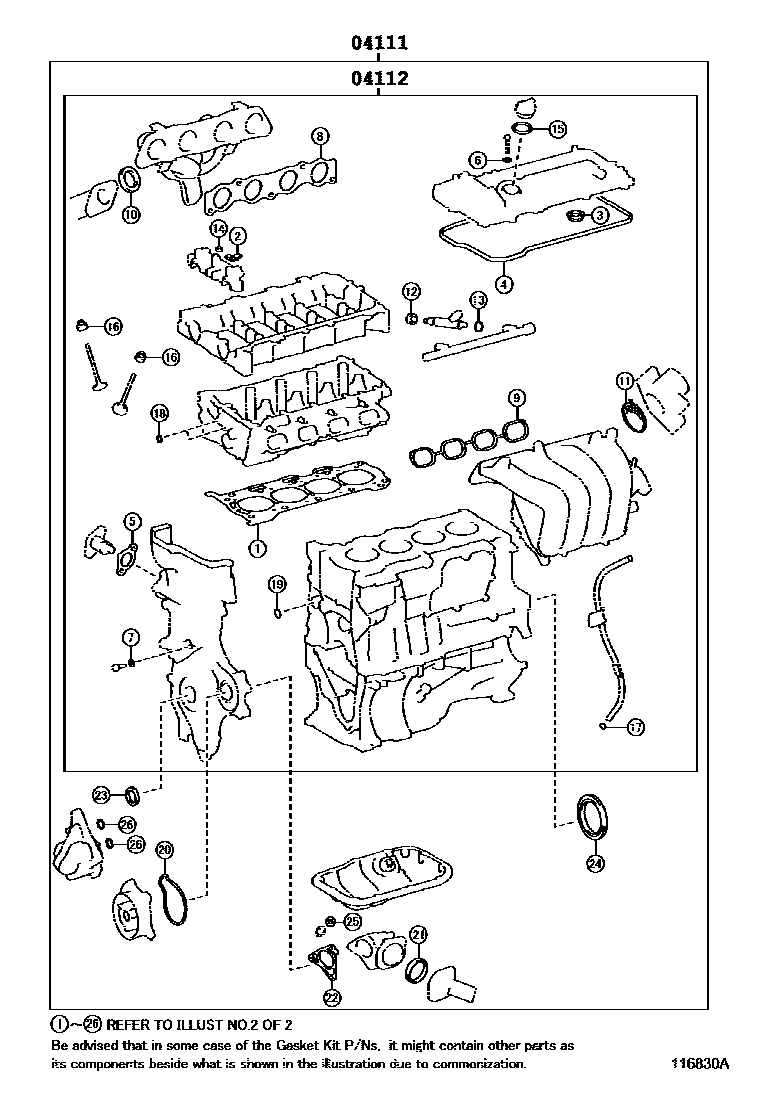

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 116830A
Engine Overhaul Gasket Kit — 116830A (201103 – 999999)

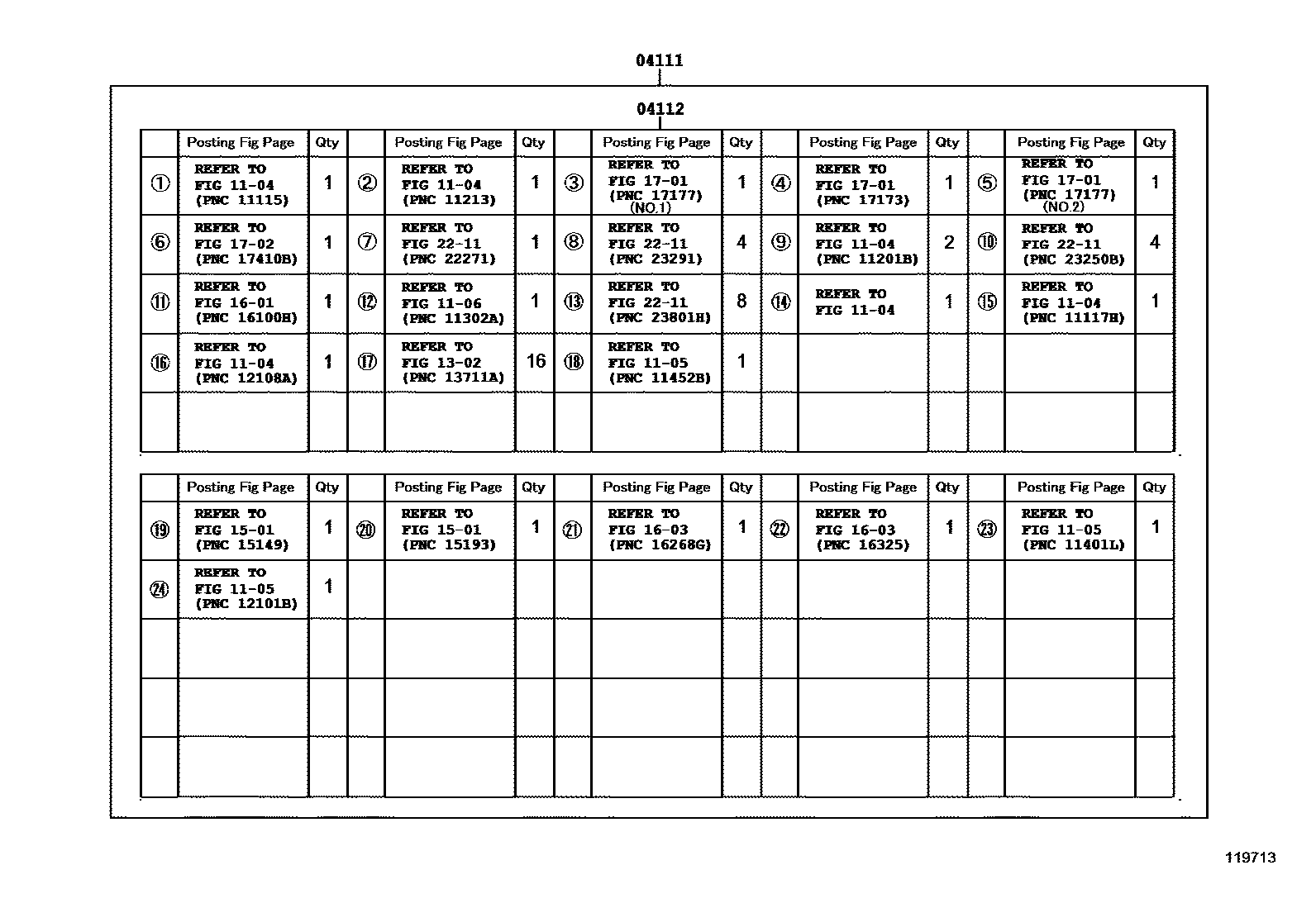

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119713
Engine Overhaul Gasket Kit — 119713 (200803 – 999999)

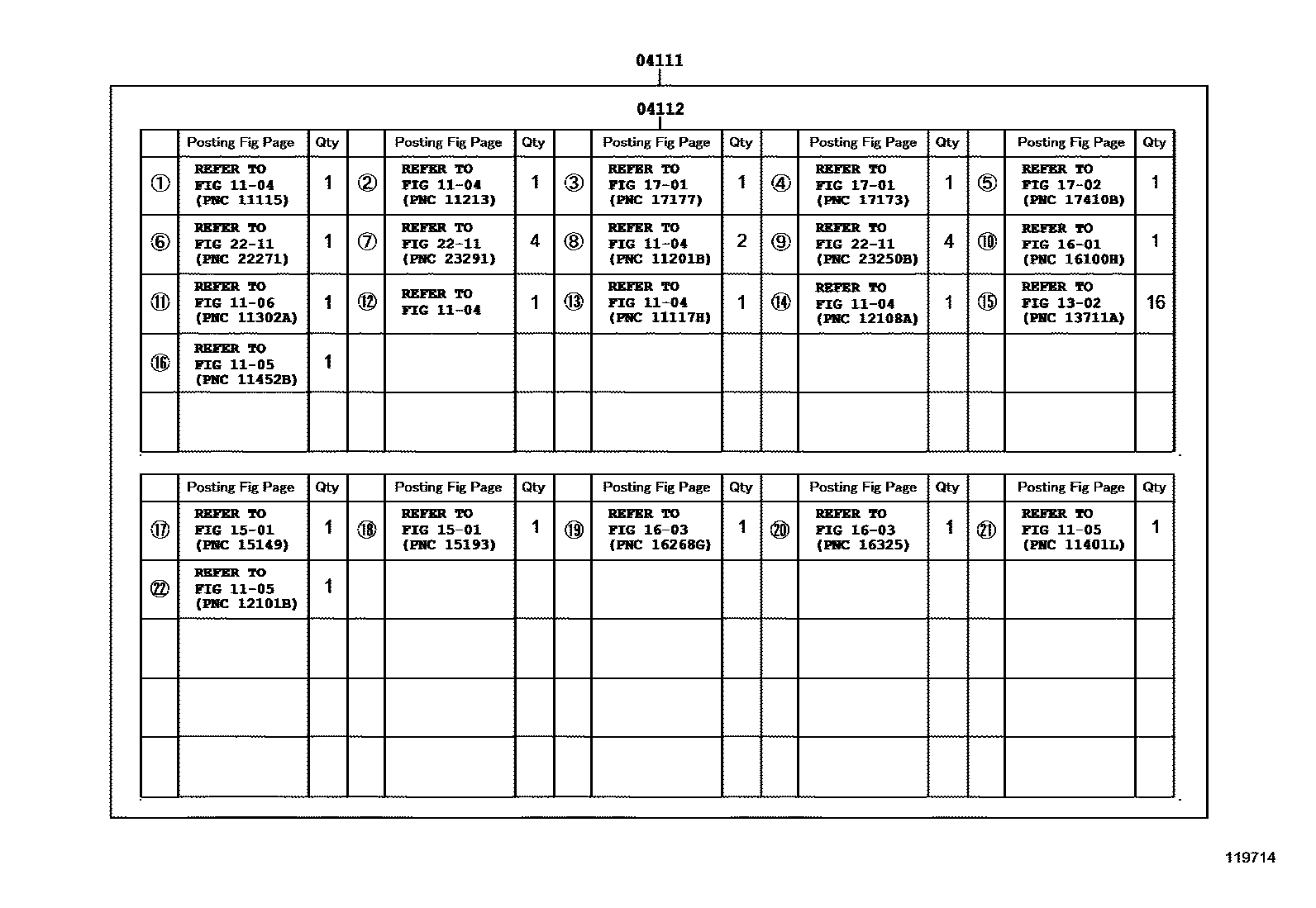

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119714
Engine Overhaul Gasket Kit — 119714 (200803 – 999999)

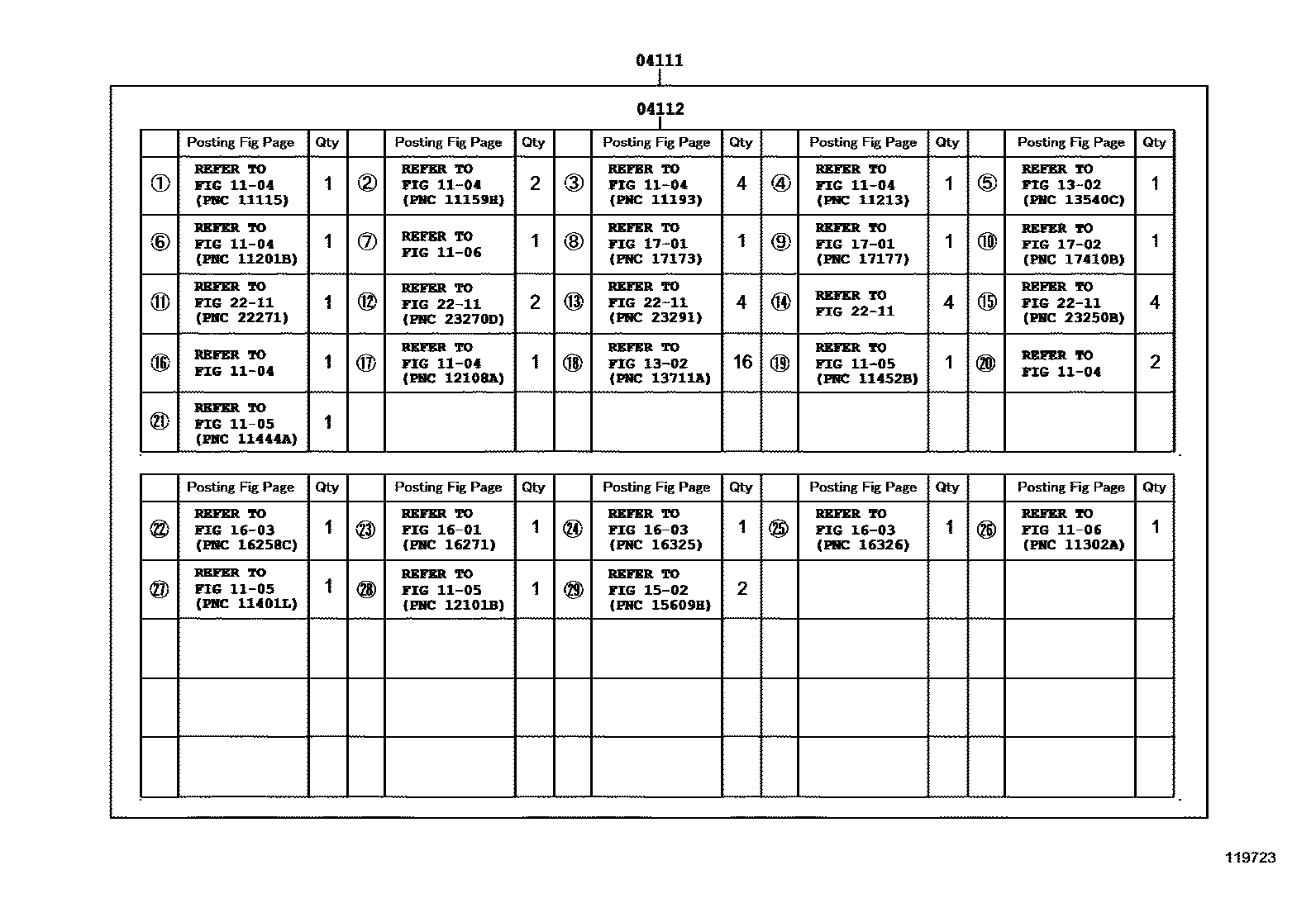

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119723
Engine Overhaul Gasket Kit — 119723 (201005 – 999999)

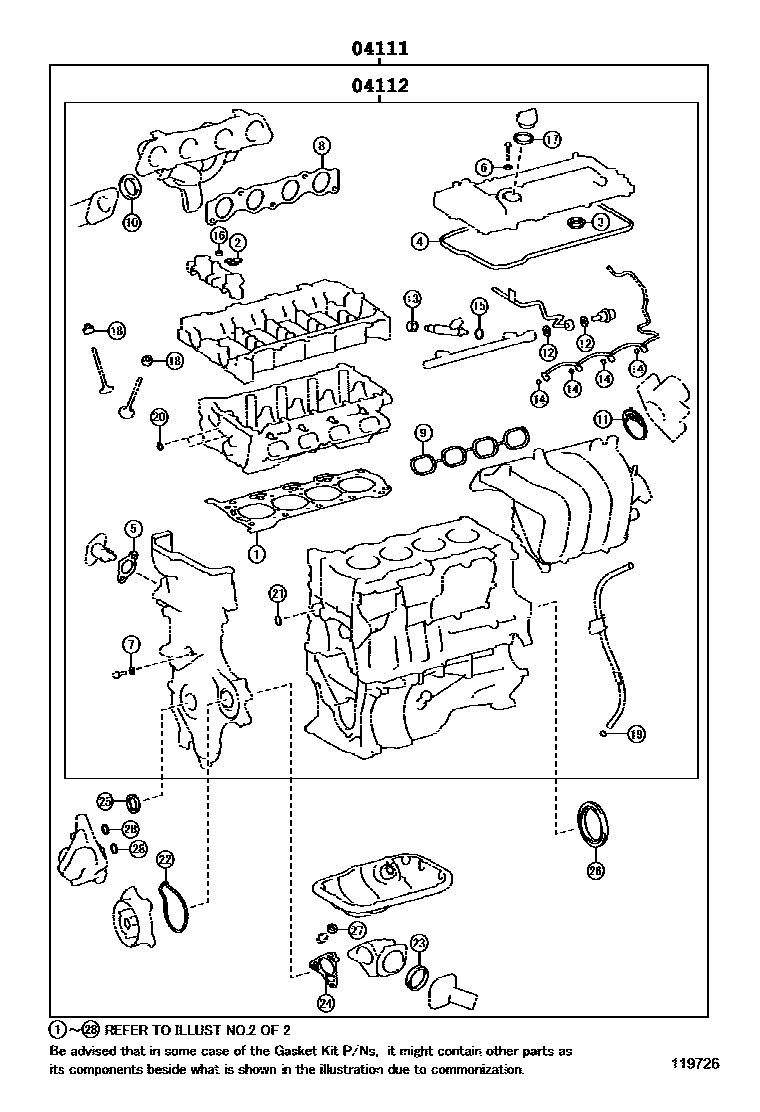

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119726
Engine Overhaul Gasket Kit — 119726 (201103 – 999999)

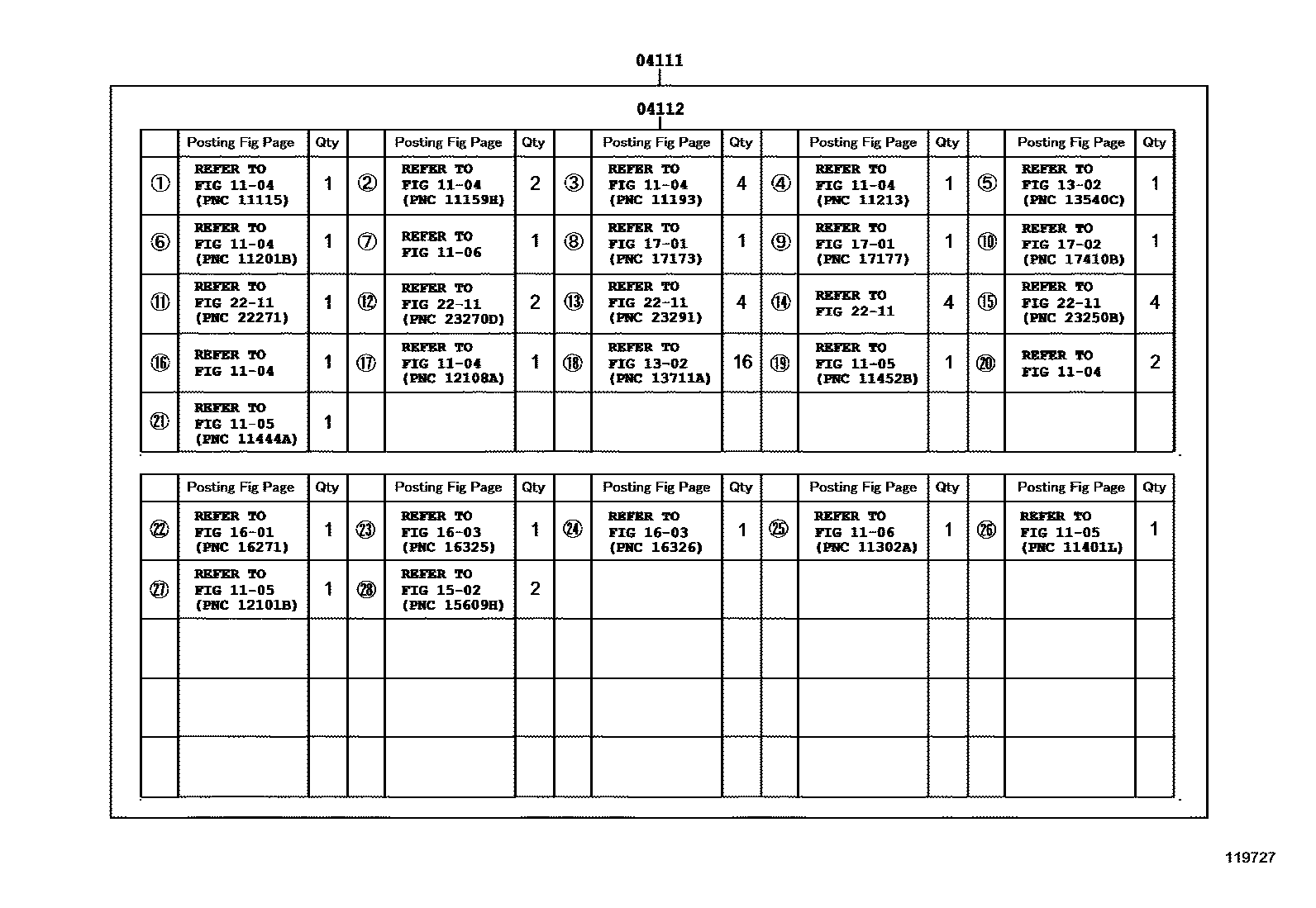

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119727
Engine Overhaul Gasket Kit — 119727 (201103 – 999999)

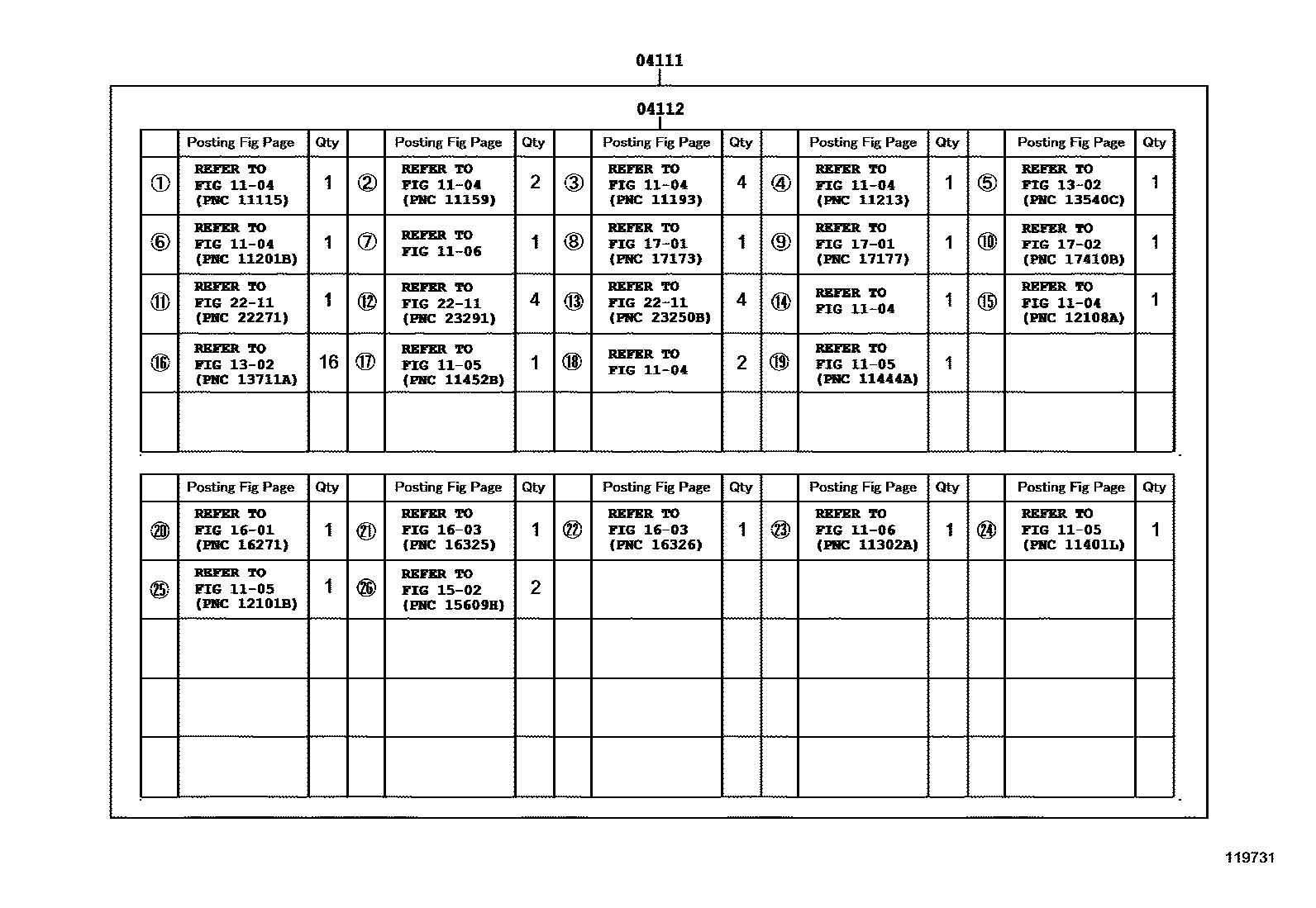

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119731
Engine Overhaul Gasket Kit — 119731 (201103 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-22700 · 04111-22701 · 04111-22840 · 04111-22841 · 04111-22960 · 04111-22961 · 04111-22962 · 04111-37320 · 04111-37321 · 04111-37322 · 04111-37380 · 04111-37381 · 04111-37382 · 04111-37390 · 04111-37391 · 04111-37392
04112Engine valve grinding pad assembly04112-22621 · 04112-22690 · 04112-22800 · 04112-37260 · 04112-37320 · 04112-37321 · 04112-37322 · 04112-37330 · 04112-37331 · 04112-37332
