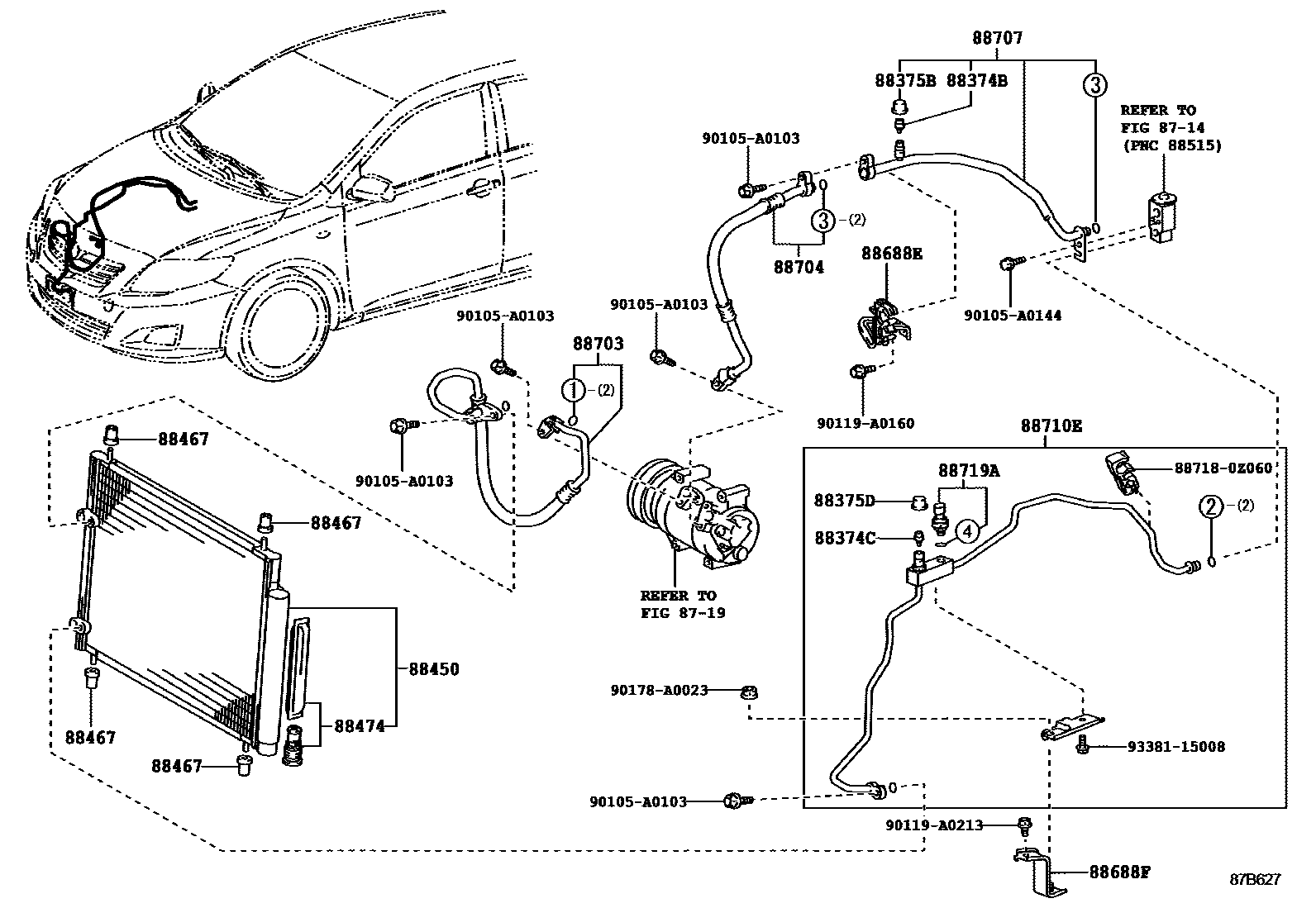

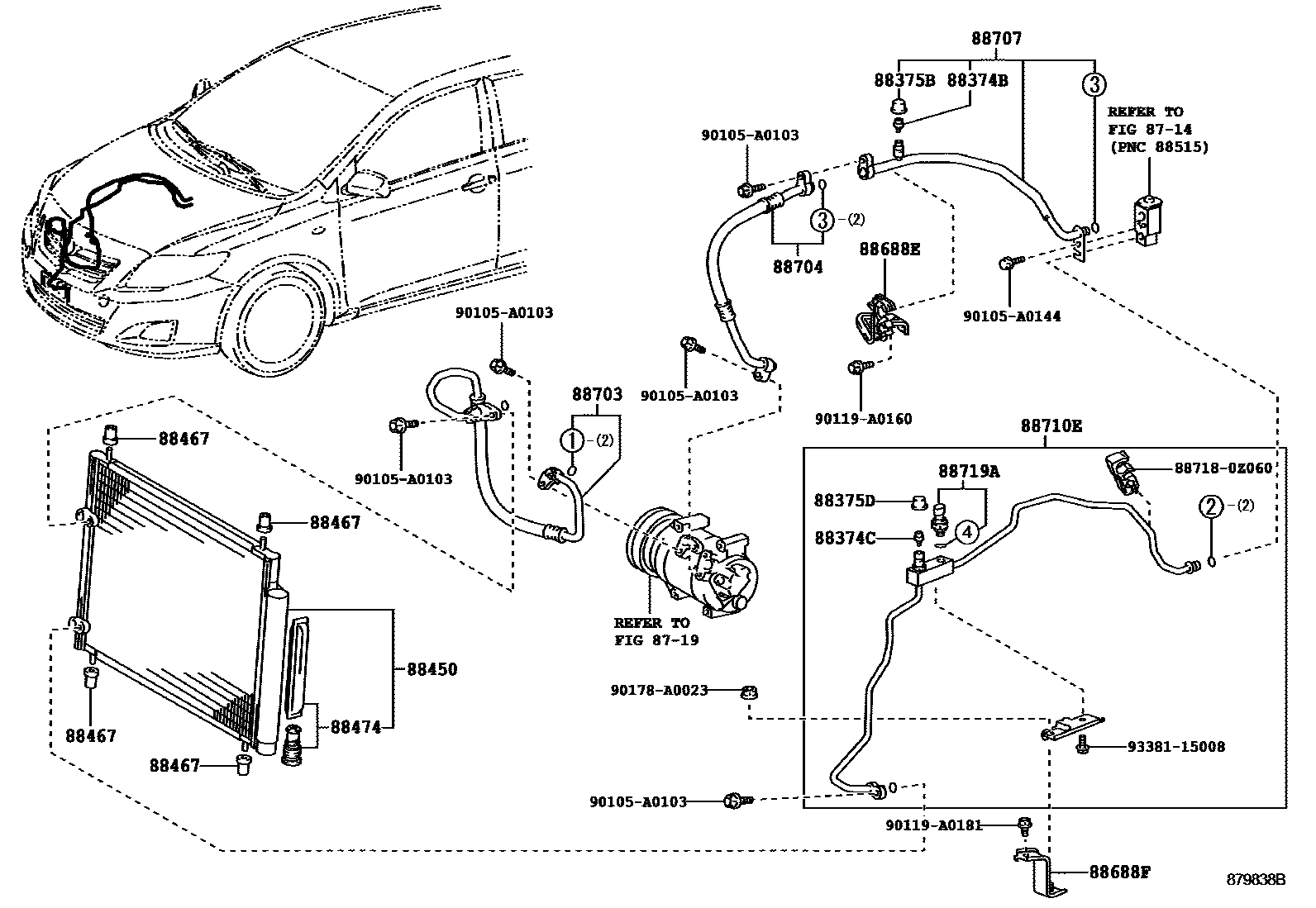

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 14 PNC and OE references.

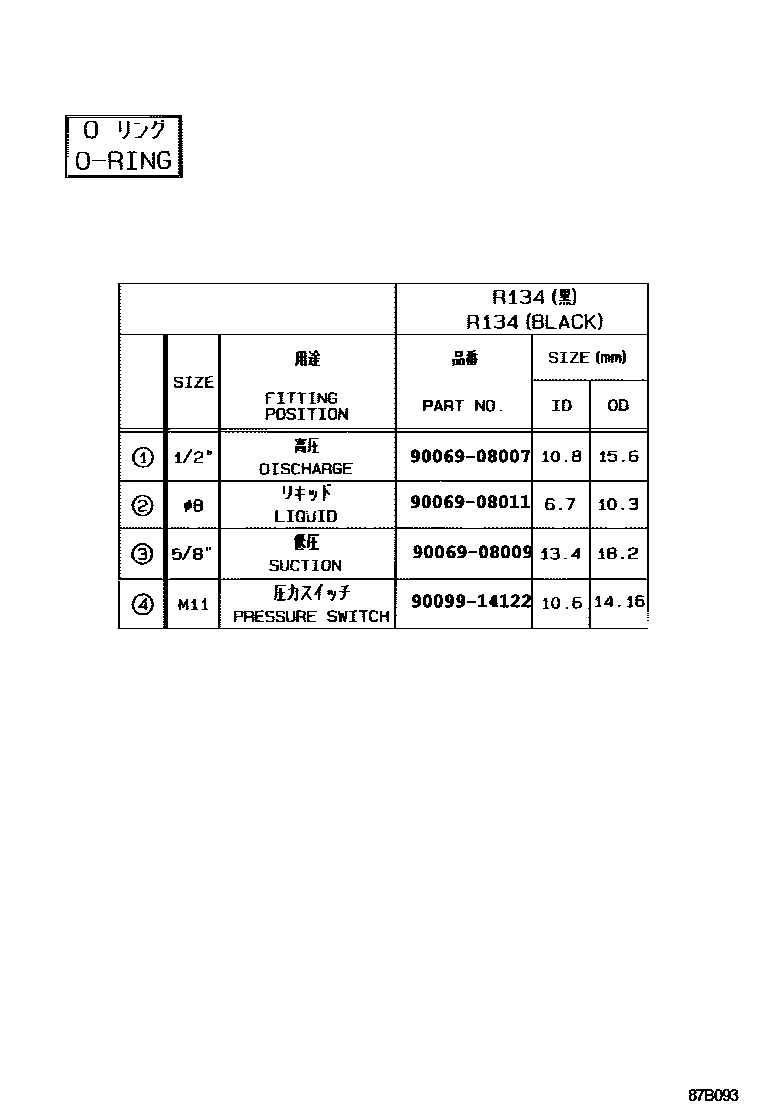

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-02060 |
| 88450 | Condenser assembly with liquid reservoir | 88450-02330 |
| 88467 | No. 1 air conditioning condenser buffer pad | 16716-28010 |
| 88474 | cooler dryer | 88474-17010 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-0Z160 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-0Z230 |
| 88703 | Discharge hose sub-assembly | 88703-02460 · 88703-02470 · 88703-02690 |
| 88704 | Oil suction hose sub-assembly | 88704-02690 · 88704-02700 |
| 88707 | Suction pipe sub-assembly | 88707-02070 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-0Z020 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
