Toyota COROLLA 后视镜 — Figure 8701

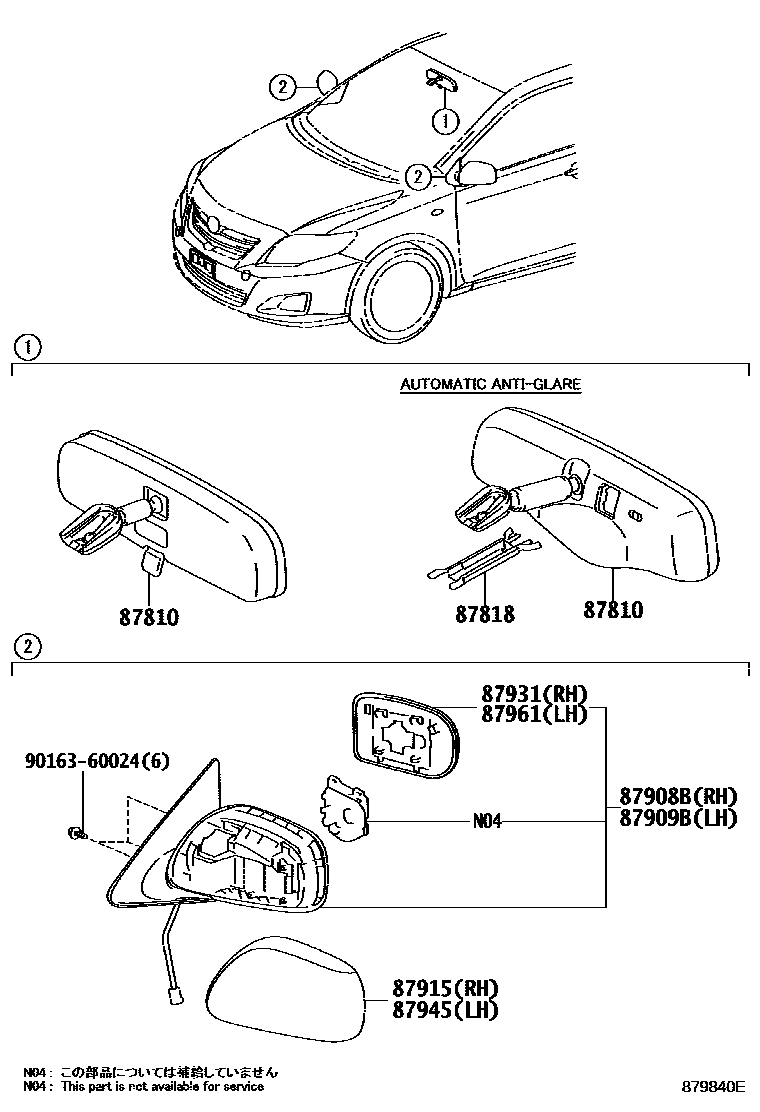

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-02130 · 87810-06051 · 87810-06080 |
| 87818 | Interior rearview mirror cover | 87818-06020 |
| 87908B | Right rearview mirror sub-assembly | 87908-02B01 · 87908-02B50 |
| 87909B | Left rearview mirror sub-assembly | 87909-02A81 · 87909-02B40 |
| 87915 | Right exterior rearview mirror cover | 87915-02220 |
| 87931 | Right exterior rearview mirror | 87931-02890 · 87931-02B00 |
| 87945 | Left exterior rearview mirror cap | 87945-02210 |
| 87961 | Left exterior rearview mirror | 87961-02870 · 87961-02A80 |
