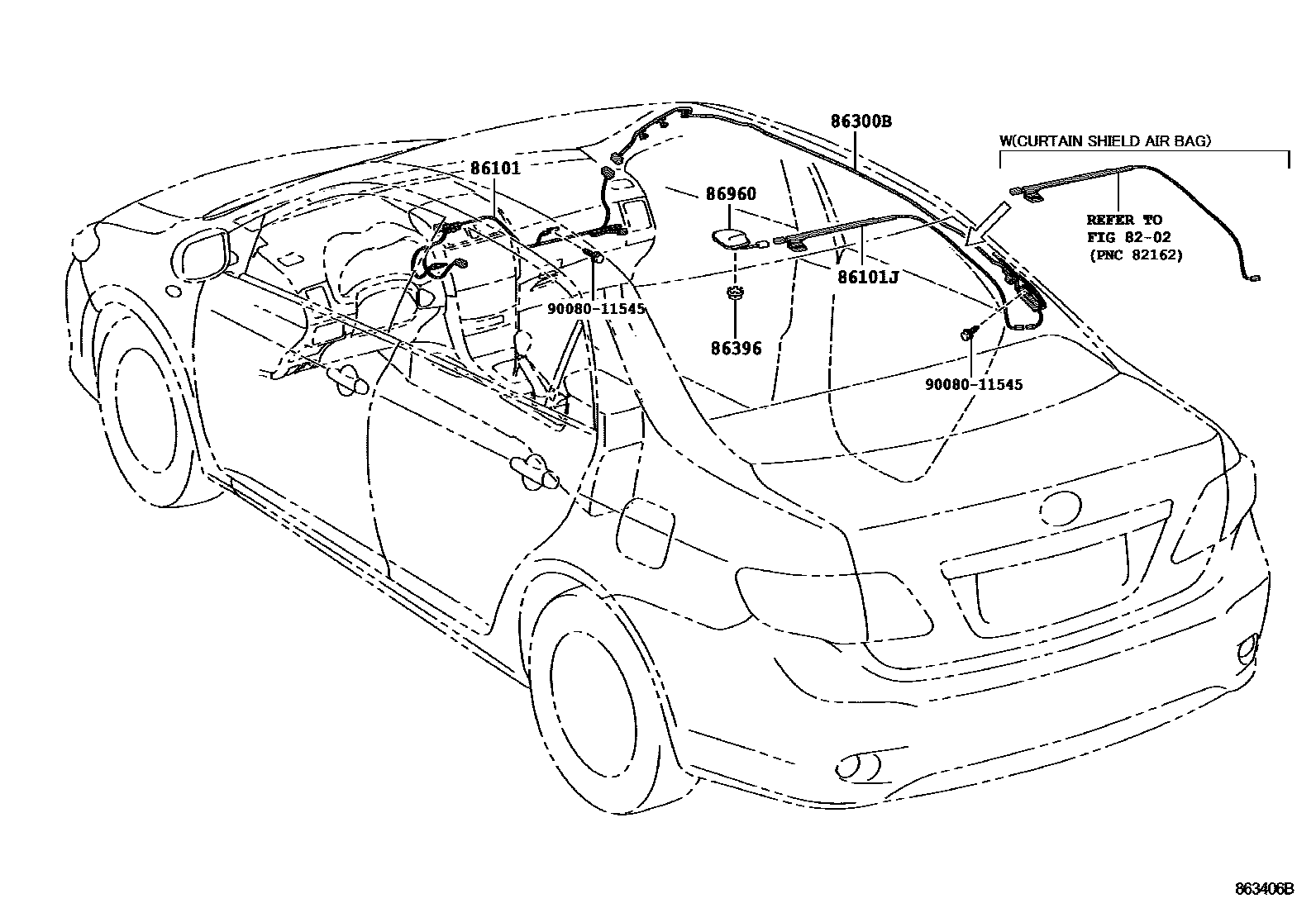

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-02230 · 86101-02330 · 86101-02460 · 86101-02470 |
| 86101J | No. 2 antenna wire sub-assembly | 86101-02360 · 86101-02370 |
| 86300B | Amplifier antenna assembly | 86300-02240 · 86300-02290 |
| 86396 | Antenna nut | 86396-20040 |
| 86960 | Satellite radio antenna assembly | 86960-02040 |
