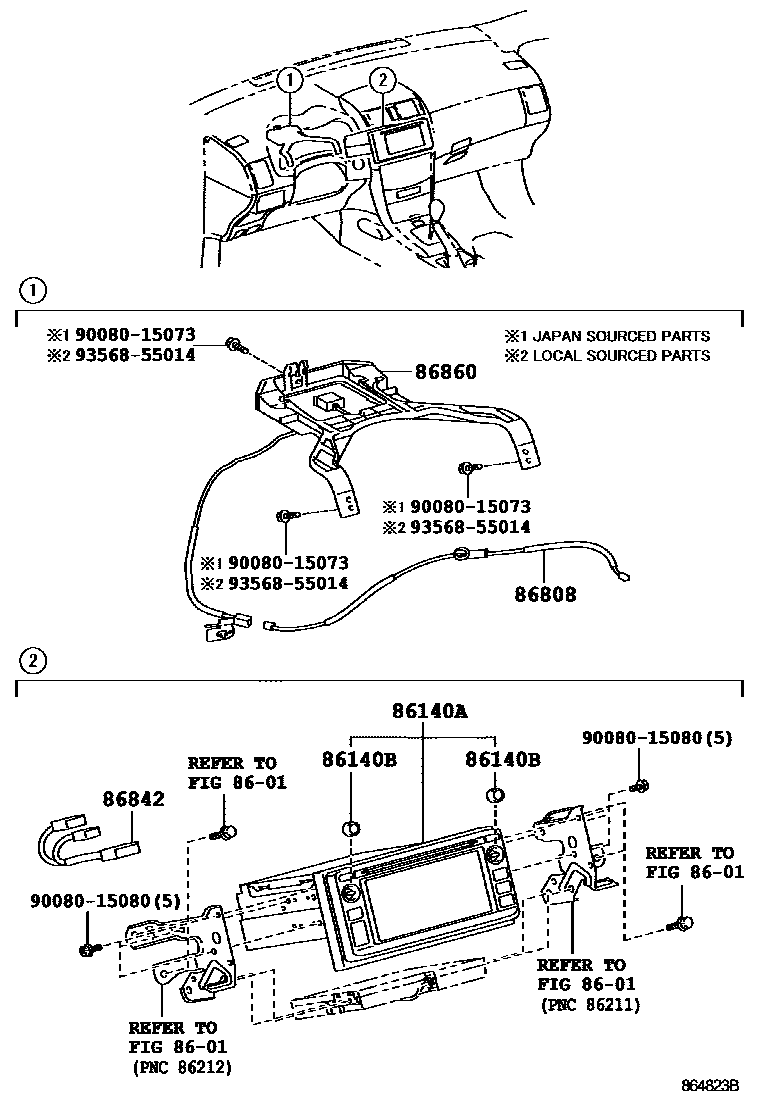

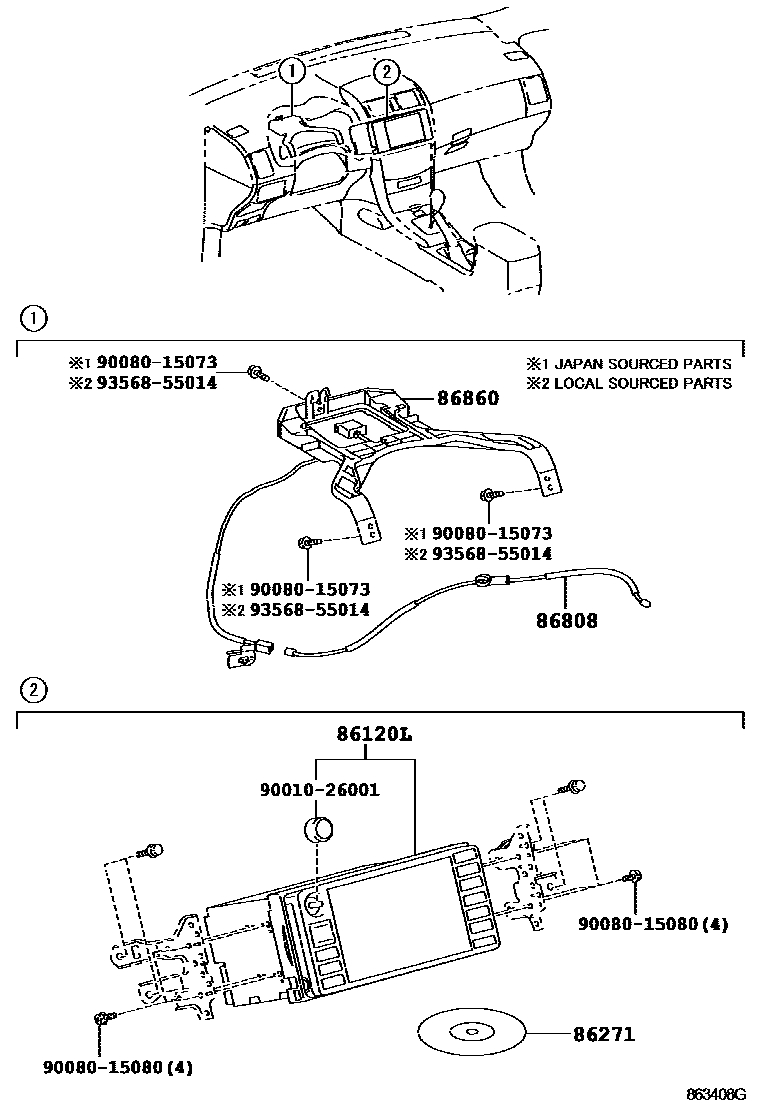

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86120-02E40 · 86120-12C00 |
| 86140A | Radio and display receiver assembly | 86140-02110 · 86140-02111 · 86140-02120 · 86140-02121 · 86140-02150 |
| 86140B | Radio and display receiver switch button | 90011-25217 · 90011-25254 |
| 86271 | CD | 86271-12080 · 86271-12081 · 86271-12082 · 86271-12083 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-02070 |
| 86842 | Navigation harness No. 1 | 86842-YY030 |
| 86860 | Navigation antenna assembly | 86860-12130 |
