Toyota COROLLA 扬声器 — Figure 8602

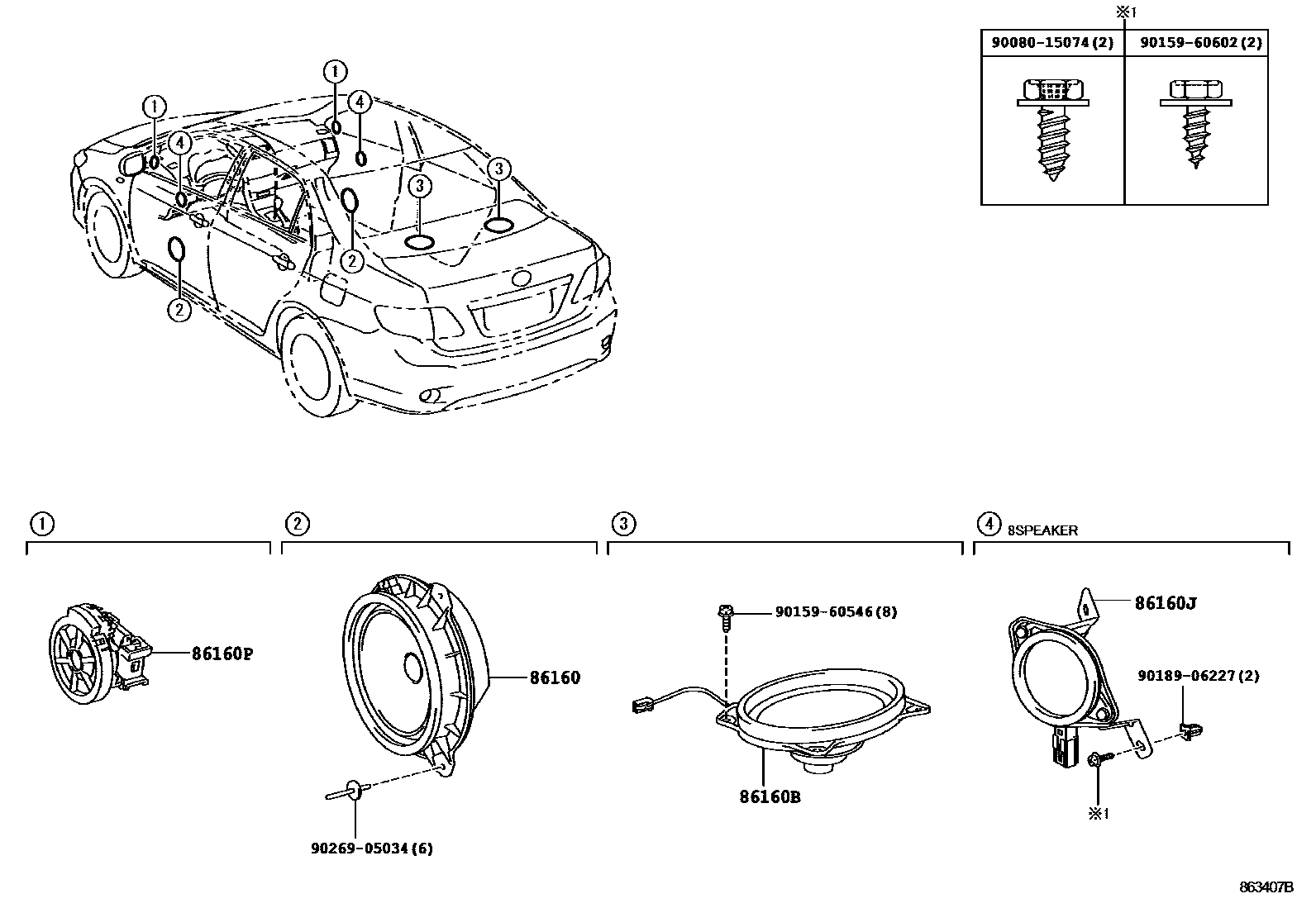

Toyota COROLLA EPC diagram 8602, 扬声器, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-02770 · 86160-0R090 · 86160-AC290 |
| 86160B | Rear speaker assembly | 86160-02890 · 86160-AA450 |
| 86160J | No. 3 front speaker assembly | 86160-02830 · 86160-02840 |
| 86160P | No. 2 front speaker assembly | 86160-0R010 · 86160-AC460 |
