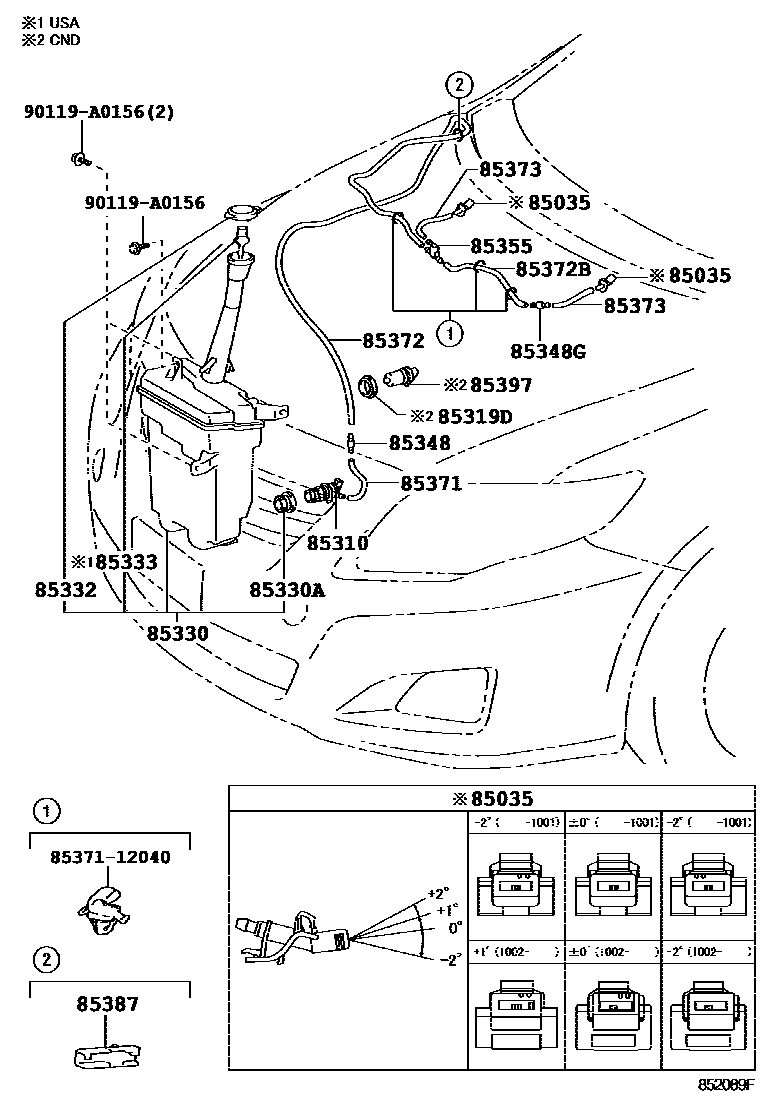

Toyota COROLLA 挡风玻璃清洗器 — Figure 8503
Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12300 · 85381-12310 · 85381-12320 · 85381-12350 · 85381-30110 · 85381-30150 |
| 85310 | Windshield washer motor and pump assembly | 85330-60190 |
| 85319D | front washer seal | 85319-AA020 |
| 85330 | Windshield washer fluid tank assembly | 85315-02320 · 85315-02330 |
| 85330A | Windshield washer fluid tank bushing | 85336-60300 |
| 85332 | Windshield washer fluid tank cap | 85316-02300 · 85386-0C010 |
| 85333 | Windshield washer fluid tank filter | 85312-02030 |
| 85348 | Windshield washer hose connector No. 1 | 85317-02300 |
| 85348G | Windshield washer hose connector No. 2 | 85317-02300 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85371 | Windshield washer hose (from motor to connector) | 90068-33032 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-33072 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-33068 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-45004 |
| 85387 | Clip No. 1 (for windshield washer) | 85387-02260 |
| 85397 | Liquid level warning switch assembly | 85397-AA040 |
