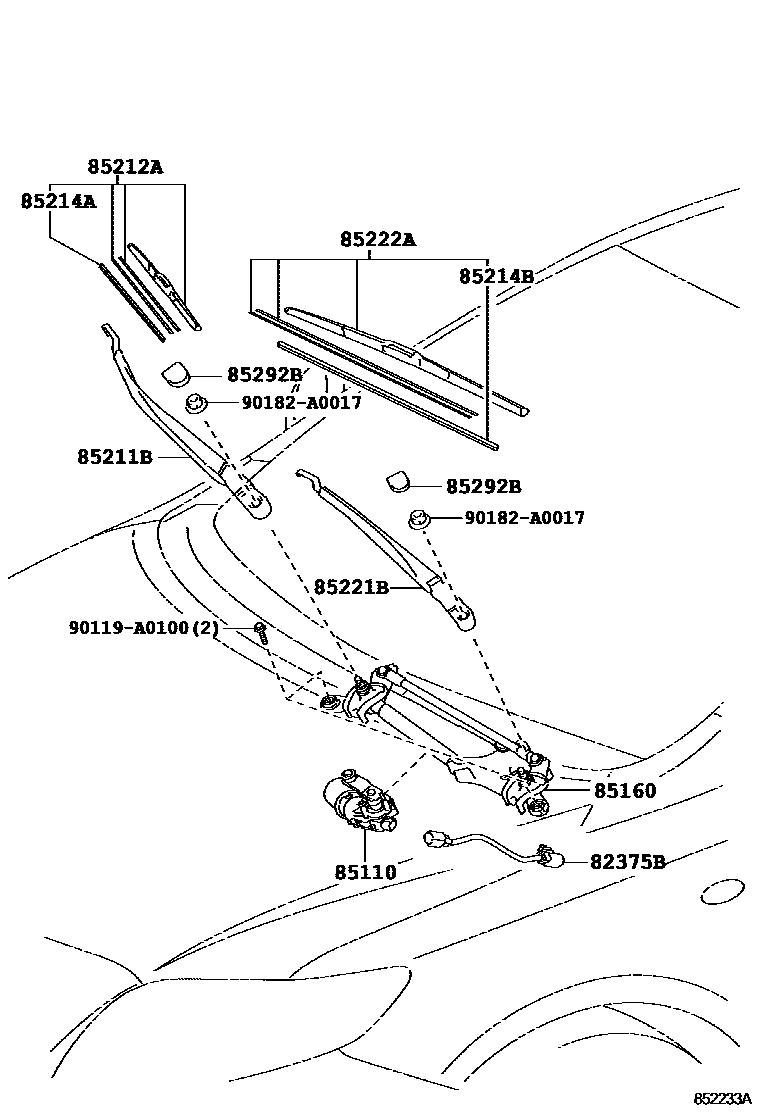

Toyota COROLLA 挡风玻璃刮水器 — Figure 8501
Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82375B | Wiper motor wiring harness | 82375-12310 · 82375-12311 |
| 85110 | Windshield wiper motor assembly | 85110-02270 · 85110-02271 |
| 85160 | Windshield wiper connecting rod assembly | 85150-02240 |
| 85211B | Right front wiper arm | 85211-02260 |
| 85212A | Right front wiper blade | 85212-02230 · 85212-28170 |
| 85214A | Right wiper rubber strip | 85214-28090 |
| 85214B | Left wiper rubber strip | 85214-68020 |
| 85221B | Left front wiper arm | 85221-02270 |
| 85222A | Left front wiper blade | 85222-02250 · 85222-12830 |
| 85292B | Front wiper arm cap | 85292-AA010 |
