Toyota COROLLA 防盗装置 — Figure 8424

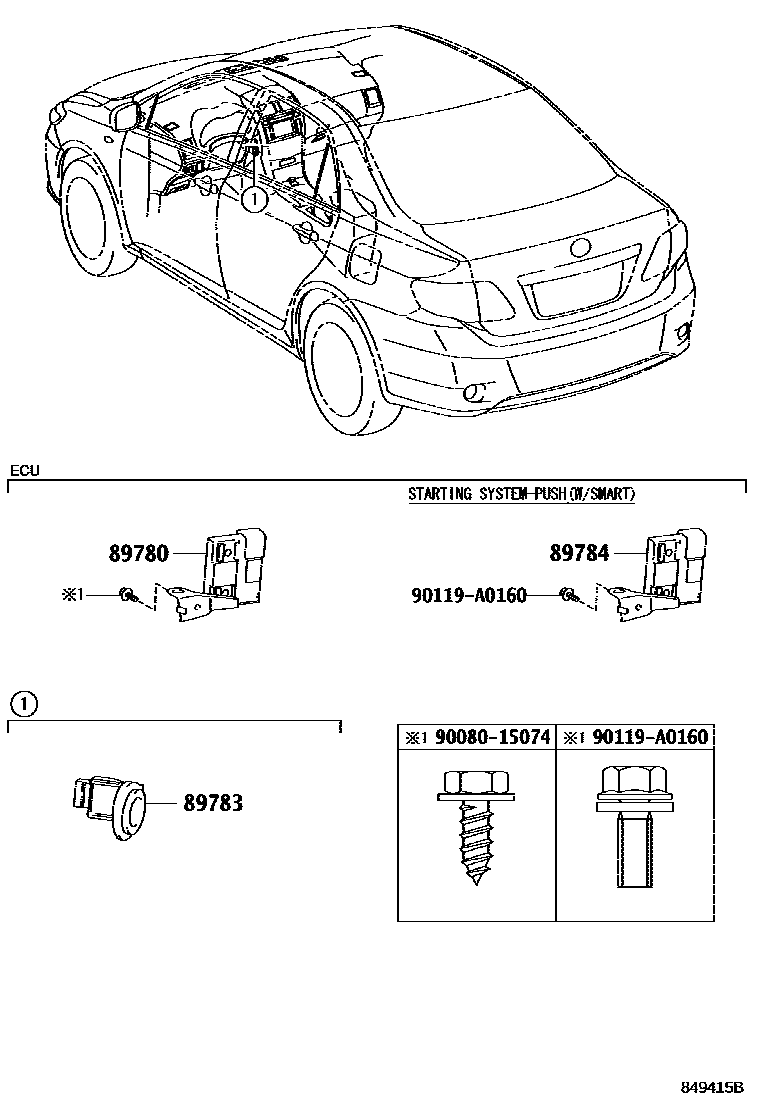

Toyota COROLLA EPC diagram 8424, 防盗装置, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89780 | Transceiver key ECU assembly | 89780-02100 · 89780-02250 |
| 89783 | transceiver key amplifier | 89783-02070 · 89783-02110 |
| 89784 | Shutdown code system ECU | 89784-02030 · 89784-02060 |
