Toyota COROLLA 空气囊 — Figure 8421

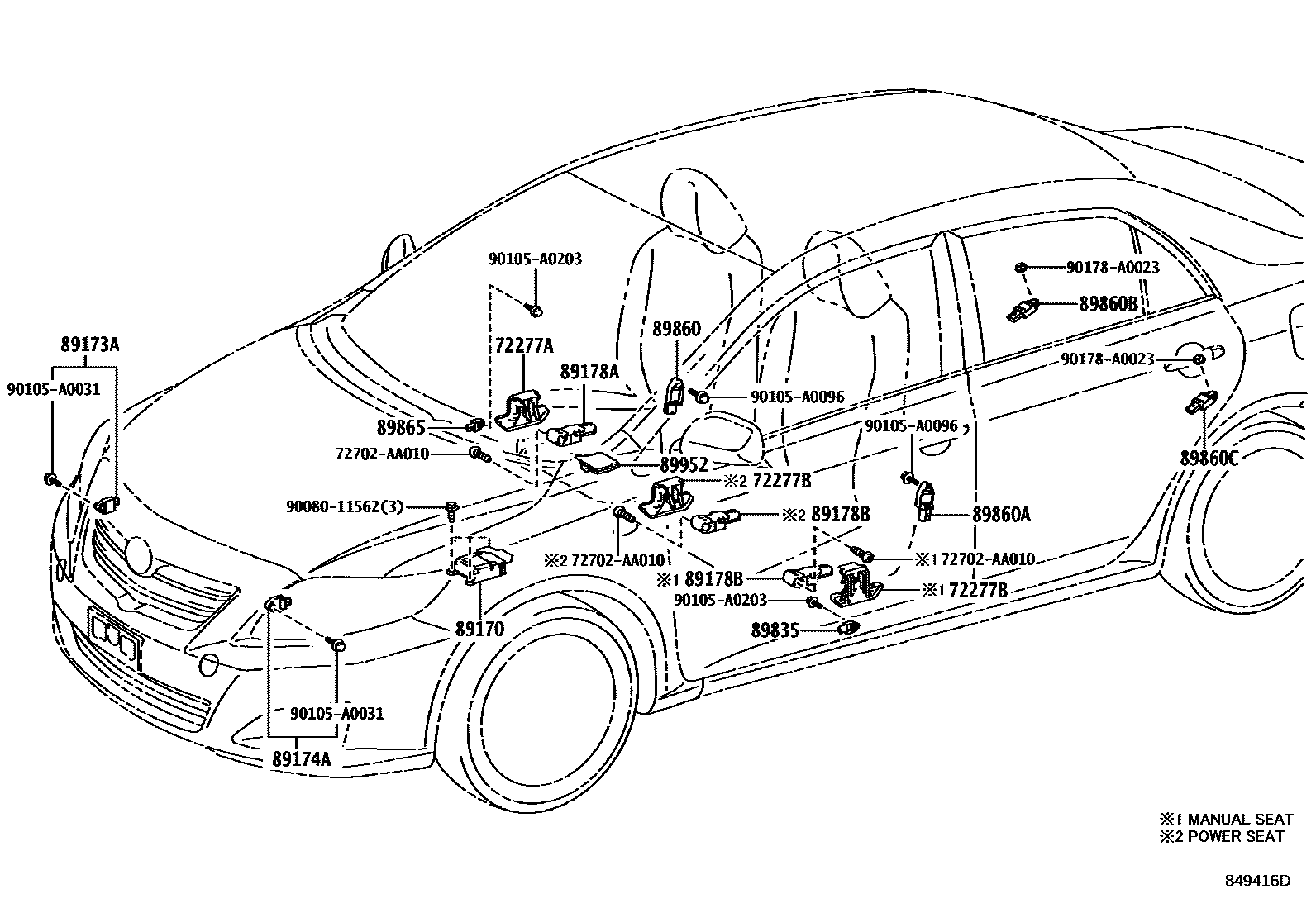

Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 72277A | Seat sliding position sensor protective cover | 72277-06010 |
| 72277B | Seat 2 sliding position sensor protective cover | 72277-06010 · 72277-06020 |
| 89170 | air bag sensor assembly | 89170-02750 · 89170-02760 · 89170-02A60 · 89170-02D51 · 89170-02D52 · 89170-02D53 · 89170-02F10 · 89170-12A80 |
| 89173A | Right front air bag sensor | 89173-09510 · 89173-09690 · 89173-49375 |
| 89174A | Left front air bag sensor | 89173-09510 · 89173-09690 · 89173-49375 |
| 89178A | Seat position air bag sensor | 89178-06030 |
| 89178B | Seat position 2 air bag sensor | 89178-06030 · 89178-06040 |
| 89835 | Left door side air bag sensor | 89831-0C090 |
| 89860 | Right side airbag sensor assembly | 89831-01010 · 89831-02110 · 89831-28020 |
| 89860A | Left side air bag sensor assembly | 89831-01010 · 89831-02110 · 89831-28020 |
| 89860B | Right No. 2 side airbag sensor assembly | 89831-02090 · 89831-02120 · 89831-12020 |
| 89860C | Left No. 2 side airbag sensor assembly | 89831-02090 · 89831-02120 · 89831-12020 |
| 89865 | Right door side air bag sensor | 89831-0C090 |
| 89952 | Occupant detection ECU | 89952-02010 · 89952-02011 |
