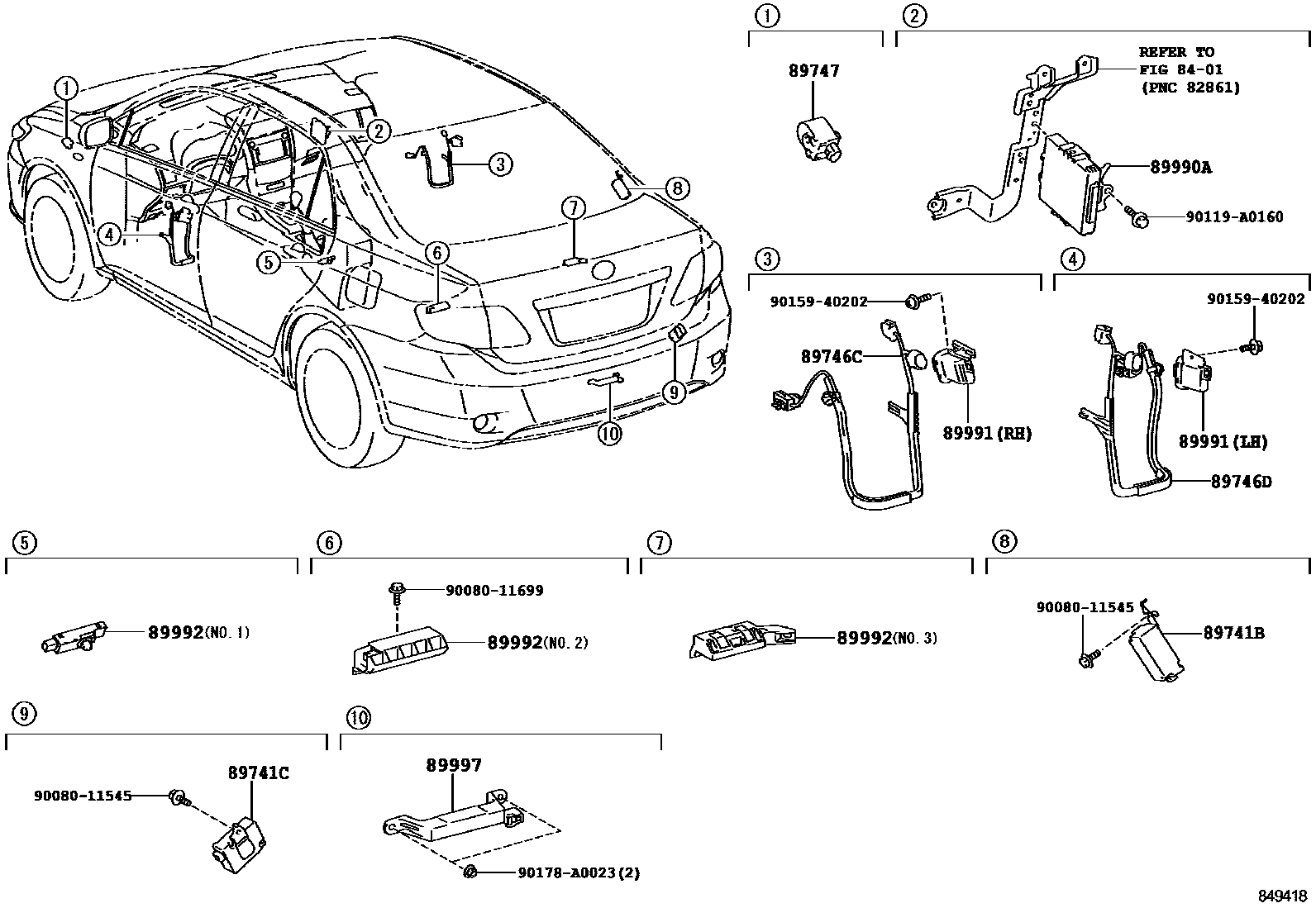

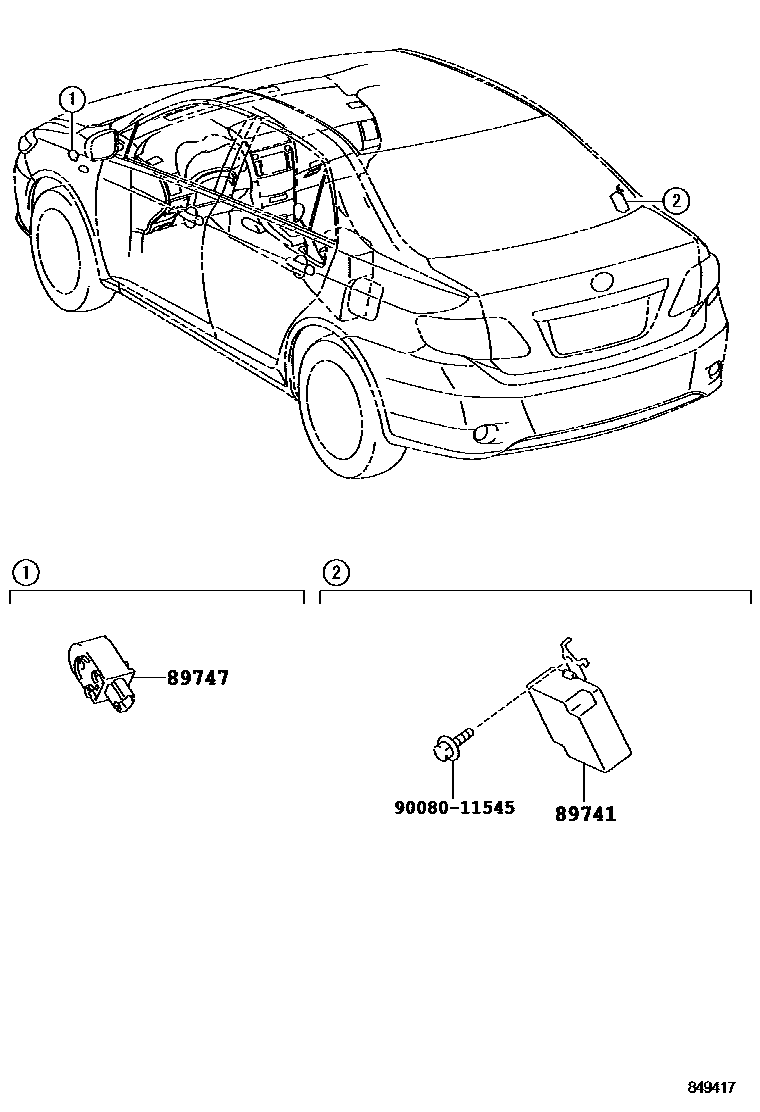

Toyota COROLLA 遥控门锁 — Figure 8420
Toyota COROLLA EPC diagram 8420, 遥控门锁, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89741 | door control receiver | 89741-02150 |
| 89741B | Door control receiver No. 2 | 89740-02060 |
| 89741C | Door control receiver No. 3 | 89740-02070 |
| 89746C | No. 1 electronic key wiring harness | 89746-02090 |
| 89746D | No. 2 electronic key wiring harness | 89746-02100 |
| 89747 | Remote door lock buzzer | 89747-02010 |
| 89990A | Smart key ECU assembly | 89990-02060 · 89990-02061 · 89990-02110 |
| 89991 | Door electronic key oscillator | 89991-06010 · 89991-06020 |
| 89992 | Car electronic key oscillator | 89992-02090 · 89992-02100 · 89992-02110 |
| 89997 | electronic key antenna | 89997-30070 · 89997-41010 |
