Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 8 images and 89 PNC and OE references.
PNC and OE references

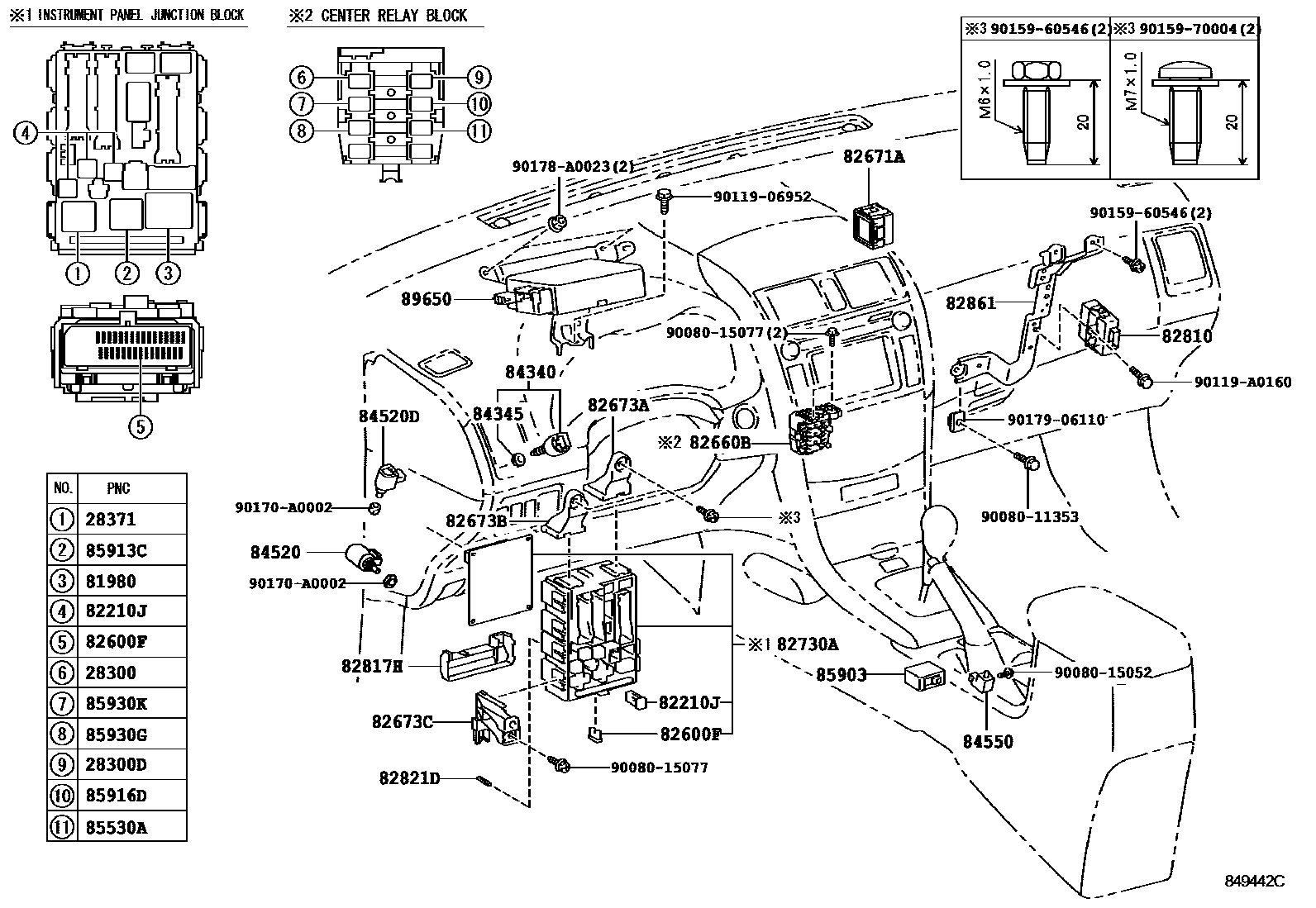

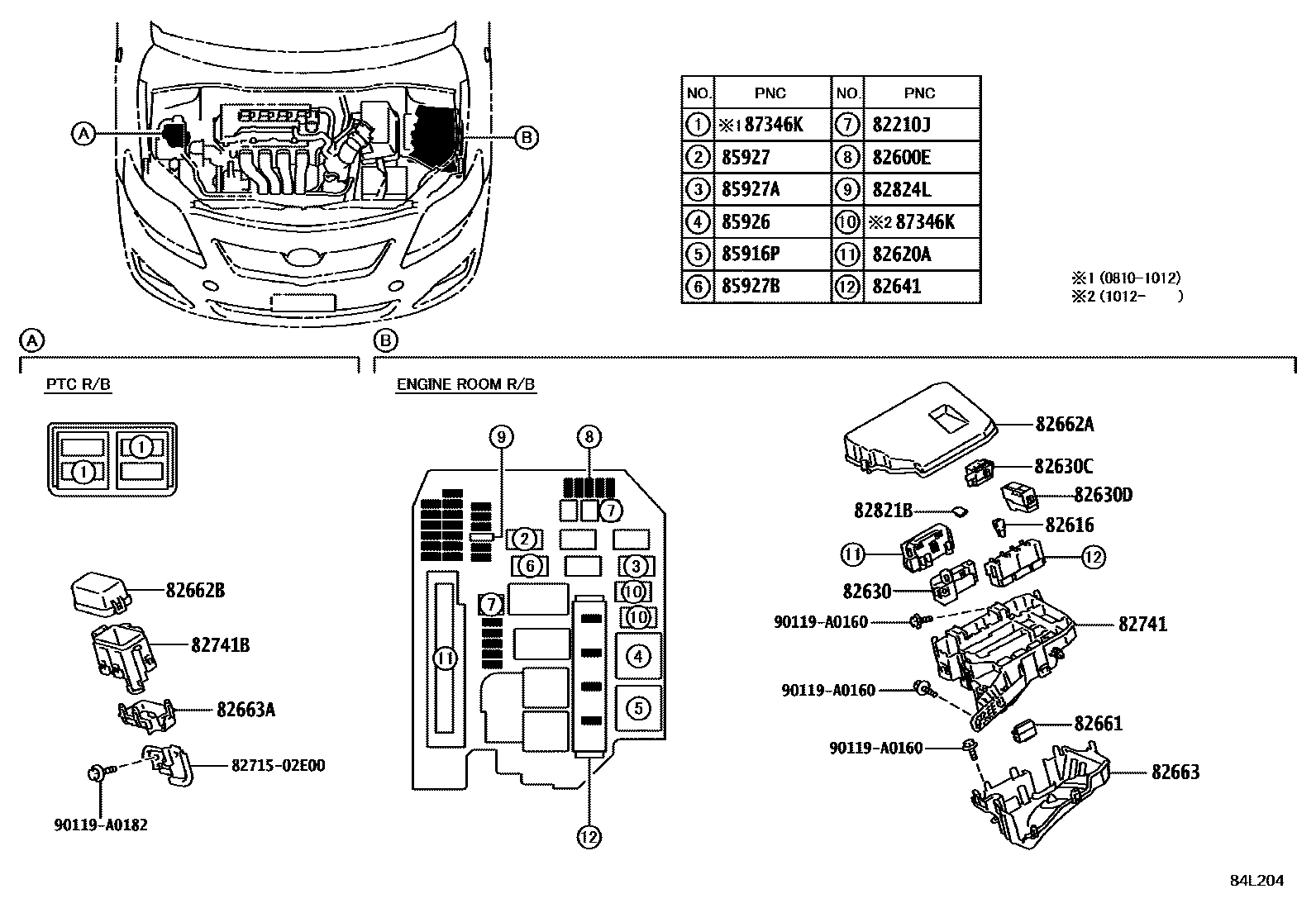

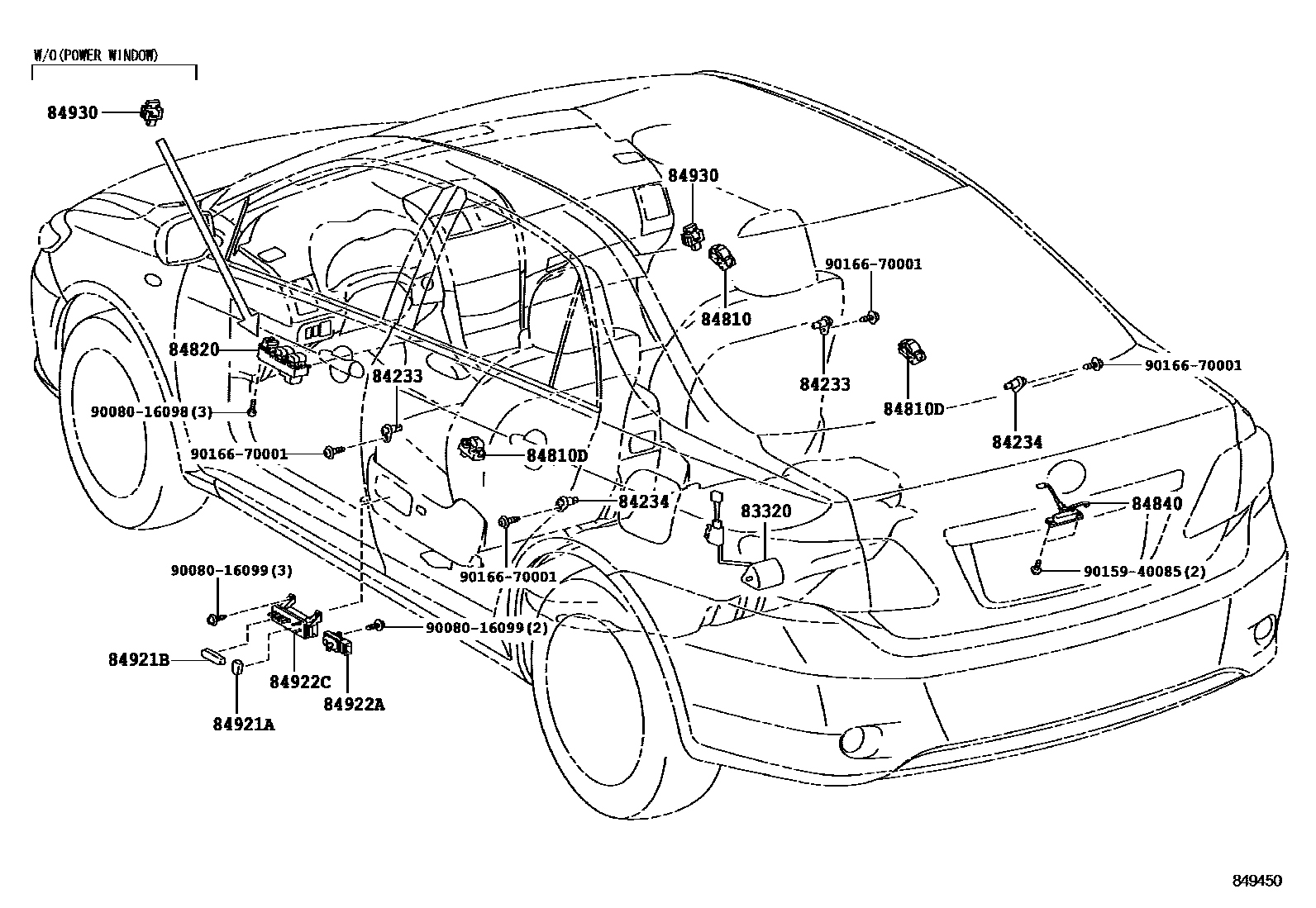

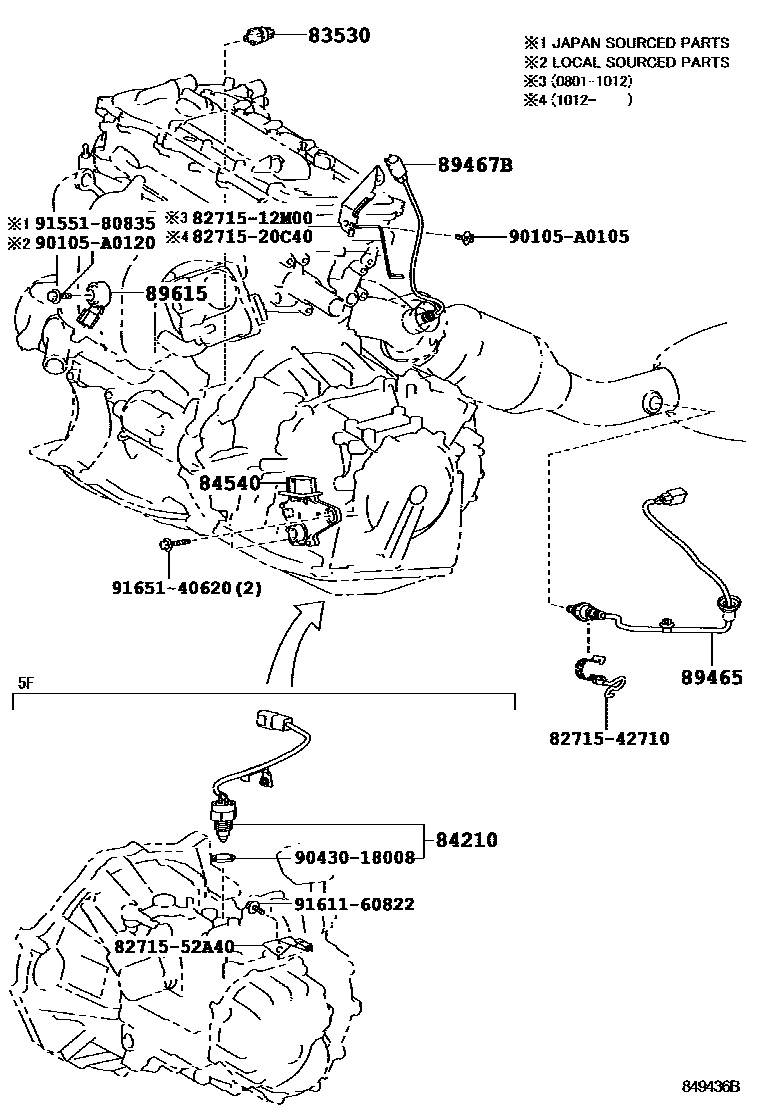

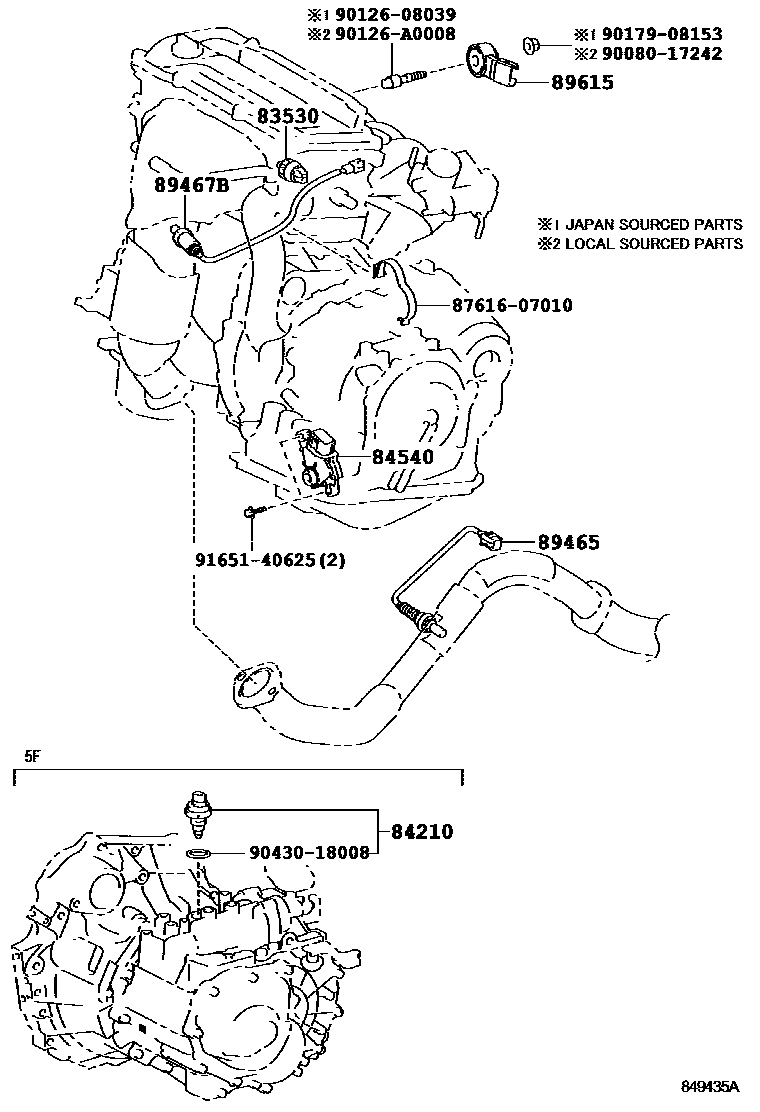

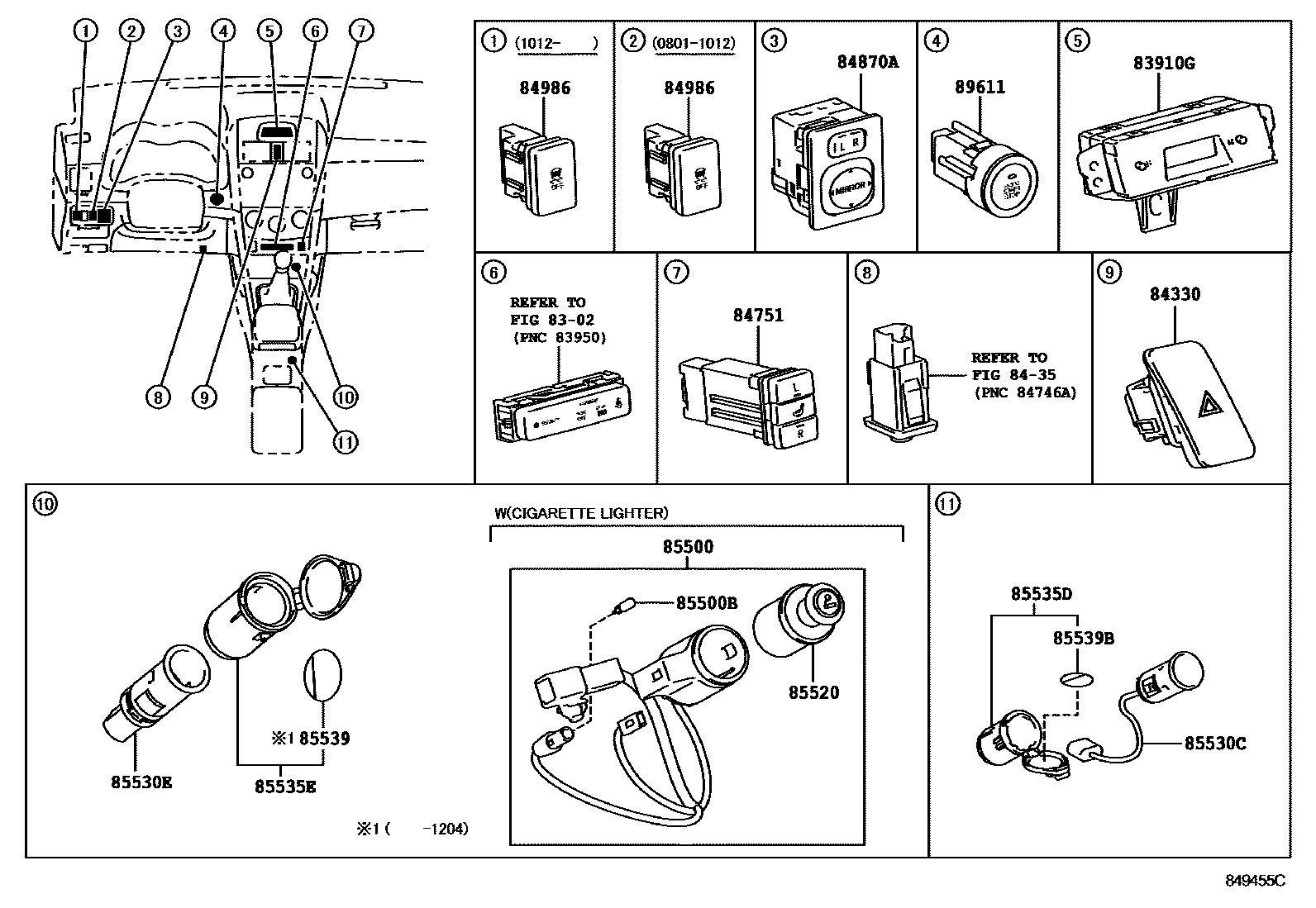

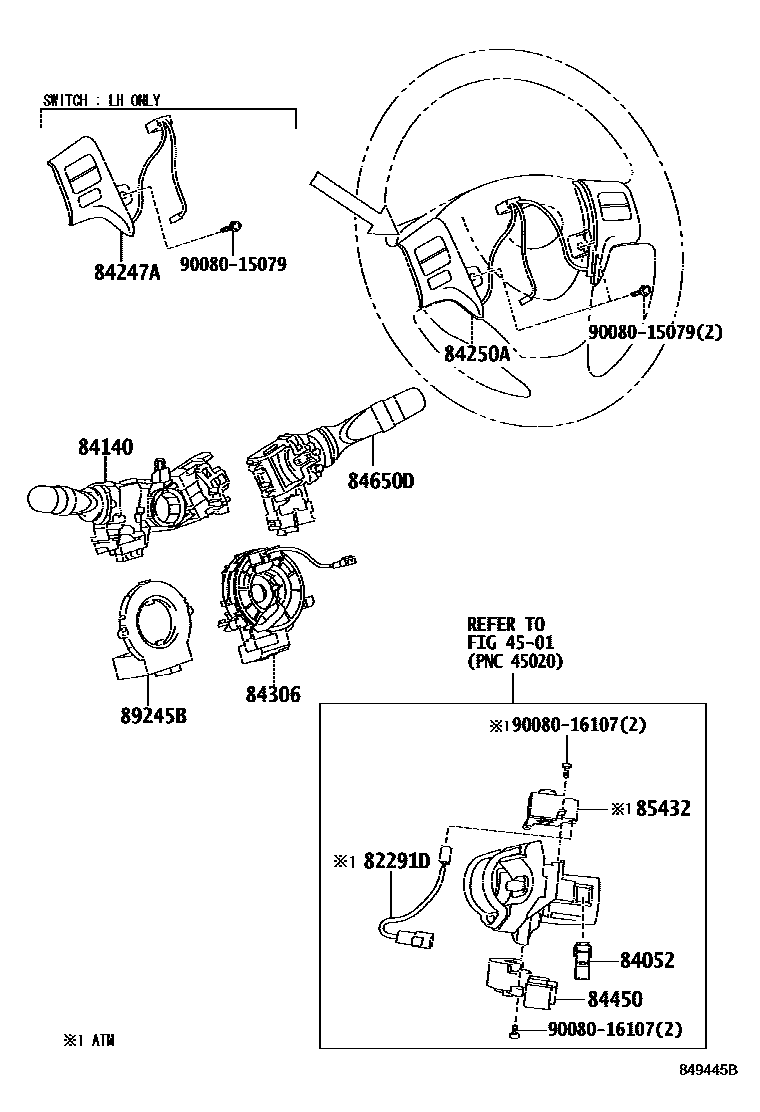

| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-0A010 |
| 28300D | starter cutoff relay | 90080-87026 |
| 28371 | No. 1 ignition relay | 90987-A2002 |
| 81980 | Turn signal flasher relay assembly | 81980-02050 |
| 82210J | fuse | 90982-08294 · 90982-08295 · 90982-08296 |
| 82291D | Wiring harness (to solenoid valve) | 82291-02020 |
| 82600E | Engine room fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-12280 |
| 82630 | Fuse holder assembly | 82631-12070 |
| 82630C | Fuse holder assembly | 82631-12080 |
| 82630D | fuse holder | 82631-12090 |
| 82641 | Integrated relay No. 1 | 82641-47020 |
| 82660B | Relay assembly | 82755-02030 |
| 82661 | No. 1 relay box cover | 82661-12310 |
| 82662A | No. 1 relay box upper cover | 82662-02270 |
| 82662B | No. 2 relay box upper cover | 82662-12280 |
| 82663 | Relay box lower cover | 82663-12100 |
| 82663A | No. 2 relay box lower cover | 82663-12070 |
| 82671A | junction box | 82671-12310 |
| 82673A | Junction box bracket | 82673-12240 |
| 82673B | Junction box bracket | 82673-12250 |
| 82673C | Junction box bracket | 82673-12260 |
| 82730A | Driver's side junction box assembly | 82730-02830 · 82730-02880 · 82730-02890 · 82730-02A00 · 82730-02A10 · 82730-02A20 · 82730-02A21 · 82730-02F30 · 82730-02F31 |
| 82741 | Engine room relay box | 82741-12110 |
| 82741B | Engine room relay box | 82741-12080 |
| 82810 | Driving light relay assembly | 82810-02060 · 82810-02061 · 82810-02080 |
| 82817H | Harness protection device | 82817-12B50 |
| 82821B | Connector cover | 82821-47090 |
| 82821D | Connector cover | 82821-52020 |
| 82824L | Shorting pin | 82824-20140 |
| 82861 | No. 1 ECU integrated bracket | 82861-02040 |
| 83320 | Fuel gauge sensor assembly | 83320-02010 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-0E010 · 83530-12050 · 83530-28020 · 83530-60020 |
| 83910G | clock assembly | 83910-02140 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84140 | Headlight dimmer switch assembly | 84140-02660 · 84140-02670 · 84140-0E070 · 84140-0E090 |
| 84210 | Reversing light switch assembly | 84210-12040 · 84210-52010 · 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-08030 |
| 84234 | Door control light switch assembly (for rear door) | 84231-08030 |
| 84247A | Steering wheel decorative cover left switch | 84247-02040 · 84247-02060 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-02110 · 84250-02210 |
| 84306 | Spiral cable sub-assembly | 84306-04080 · 84306-0E010 |
| 84330 | Hazard warning signal switch assembly | 84332-02170 |
| 84340 | brake light switch assembly | 84340-09070 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84520D | Cruise control cancel switch assembly | 84520-42010 |
| 84540 | Neutral start switch assembly | 84540-46010 · 84540-48010 |
| 84550 | Parking brake switch assembly | 84550-02020 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-02390 · 84652-02610 · 84652-02700 · 84652-02710 |
| 84751 | Seat heater switch | 84751-02040 |
| 84810 | Electric window lift switch assembly | 84810-06030 |
| 84810D | Rear electric window lift switch assembly | 84810-06030 |
| 84820 | Electric window lift main switch assembly | 84820-02240 |
| 84840 | Trunk door opening switch assembly | 84840-12050 |
| 84870A | Exterior rearview mirror switch assembly | 84870-08010 |
| 84922C | Front left electric seat switch | 84922-AE010 |
| 84930 | Door control switch assembly | 84930-0C010 |
| 84986 | vehicle stability control switch | 84986-02040 |
| 85432 | Key interlock solenoid valve | 85432-71010 |
| 85500 | Cigarette lighter assembly | 85500-12260 |
| 85500B | Cigarette lighter bulb | 90010-01163 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530A | power outlet relay | 90080-87026 |
| 85530C | Central power socket assembly | 85530-02020 |
| 85530E | No. 3 power socket assembly | 85530-06030 |
| 85539 | Power socket attention labels | 85539-60020 |
| 85539B | Central Power Socket Caution Label | 85539-60020 |
| 85903 | Shift lock control ECU sub-assembly | 85903-06010 |
| 85913C | Heater relay No. 1 | 90080-87025 |
| 85916D | fog light relay | 90080-87010 |
| 85916P | headlight relay | 90080-87024 |
| 85926 | Headlight dimmer relay | 90080-87024 · 90080-87025 |
| 85927 | cooling fan relay | 90080-87026 |
| 85927A | Cooling fan relay No. 2 | 90080-87014 · 90084-98032 |
| 85927B | Cooling fan relay No. 3 | 90080-87026 |
| 85930G | ACC relay | 90080-87026 |
| 85930K | No. 2 ACC relay | 90084-98032 · 90987-04004 |
| 87346K | PTC heater relay | 90080-87026 |
| 89245B | steering sensor | 89245-02050 |

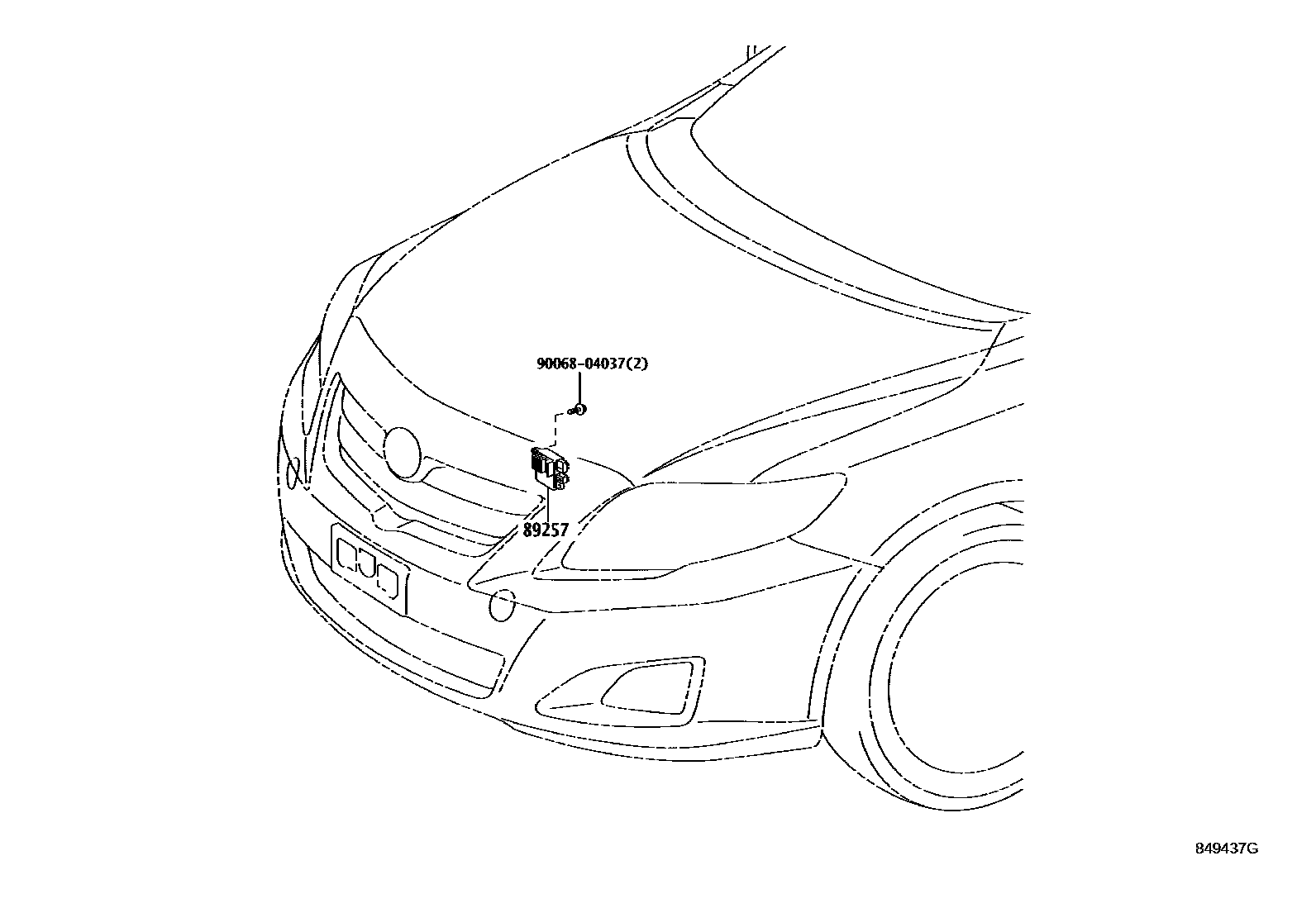

| 89257 | Cooling fan ECU | 89257-12010 |
| 89465 | oxygen sensor | 89465-02330 · 89465-02340 |
| 89467B | air fuel ratio sensor | 89467-02040 · 89467-02060 · 89467-02070 |
| 89611 | push button start switch | 89611-02070 · 89611-02071 · 89611-02072 |
| 89615 | knock control sensor | 89615-06010 · 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-02300 · 89650-02310 · 89650-02590 · 89650-02600 · 89650-02740 · 89650-02750 |
