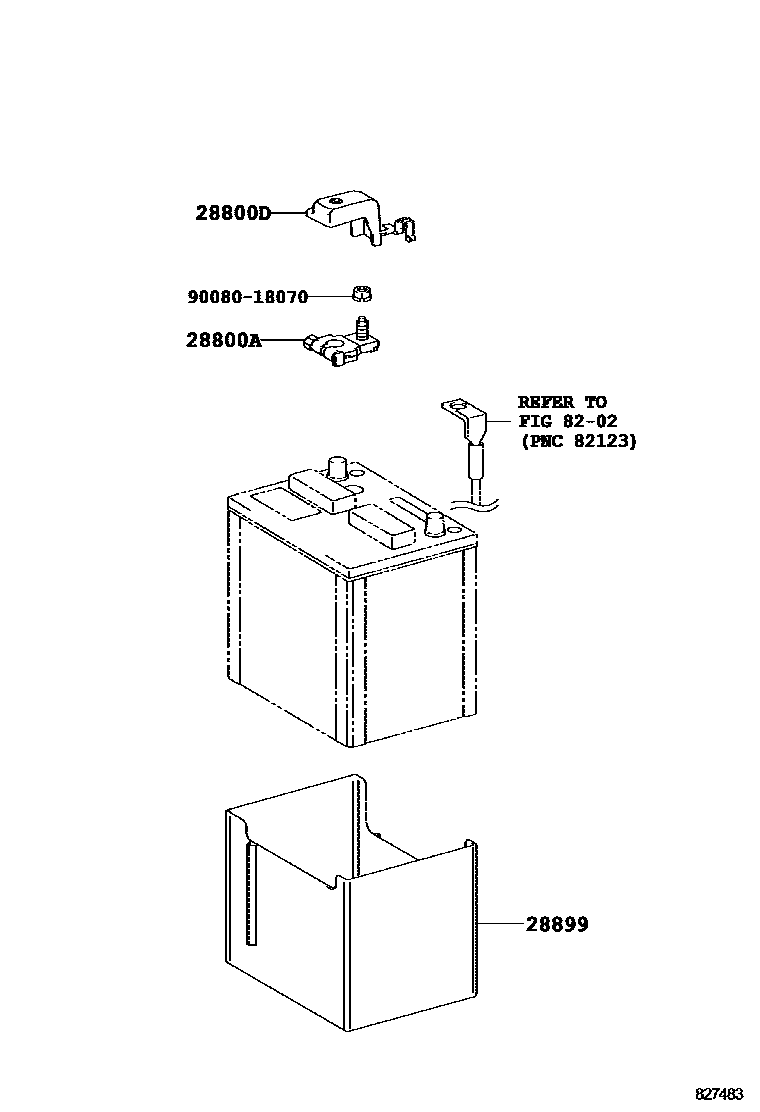

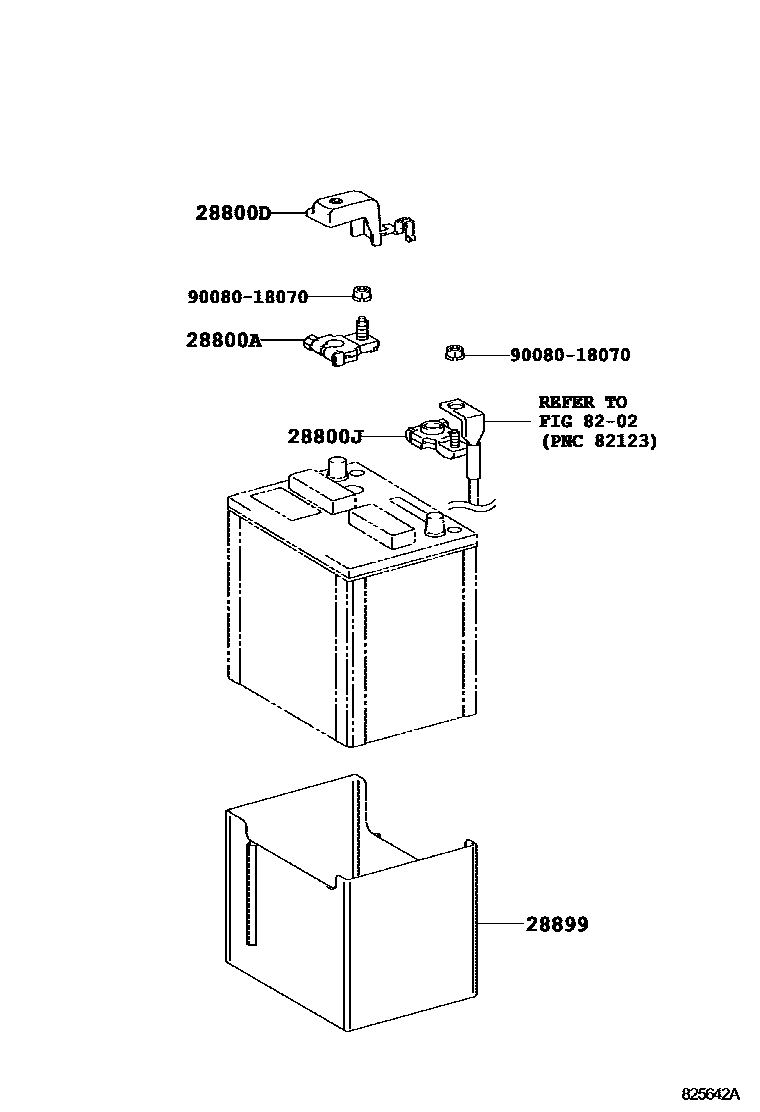

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 90982-05054 · 90982-05061 |
| 28800D | Connector cover (for battery terminals) | 82821-06040 · 82821-12490 |
| 28800J | battery negative terminal | 90982-06070 |
| 28899 | Battery insulation cover | 28899-28100 |
