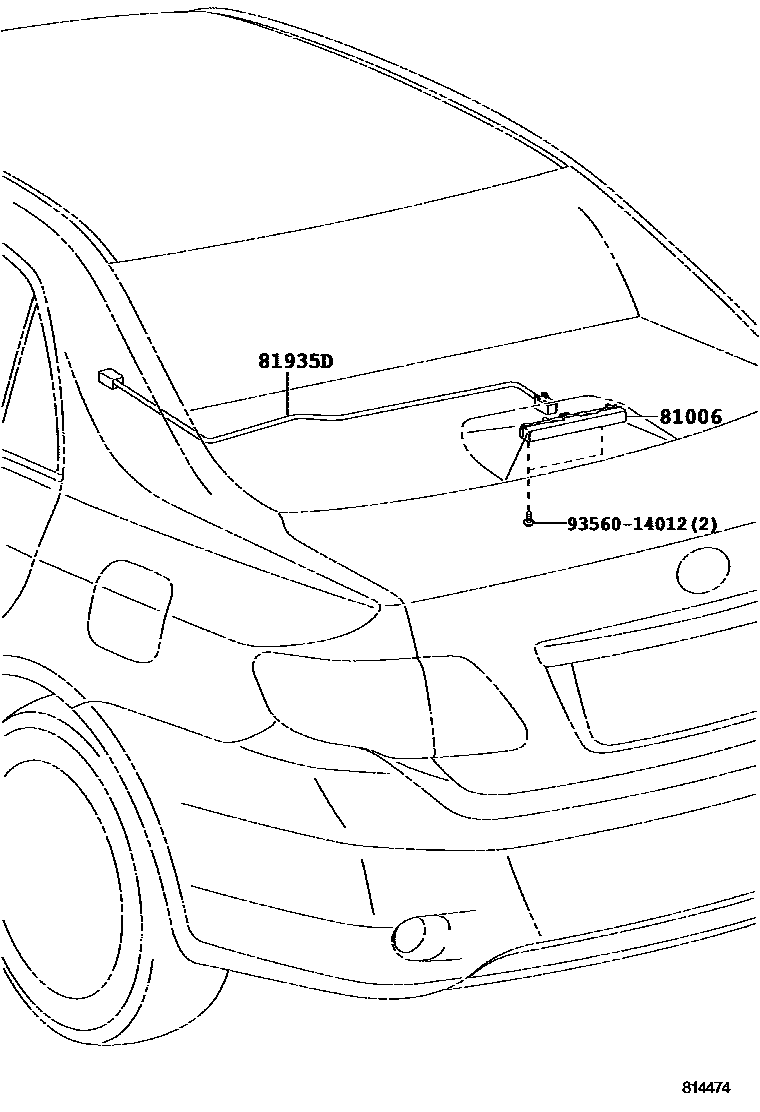

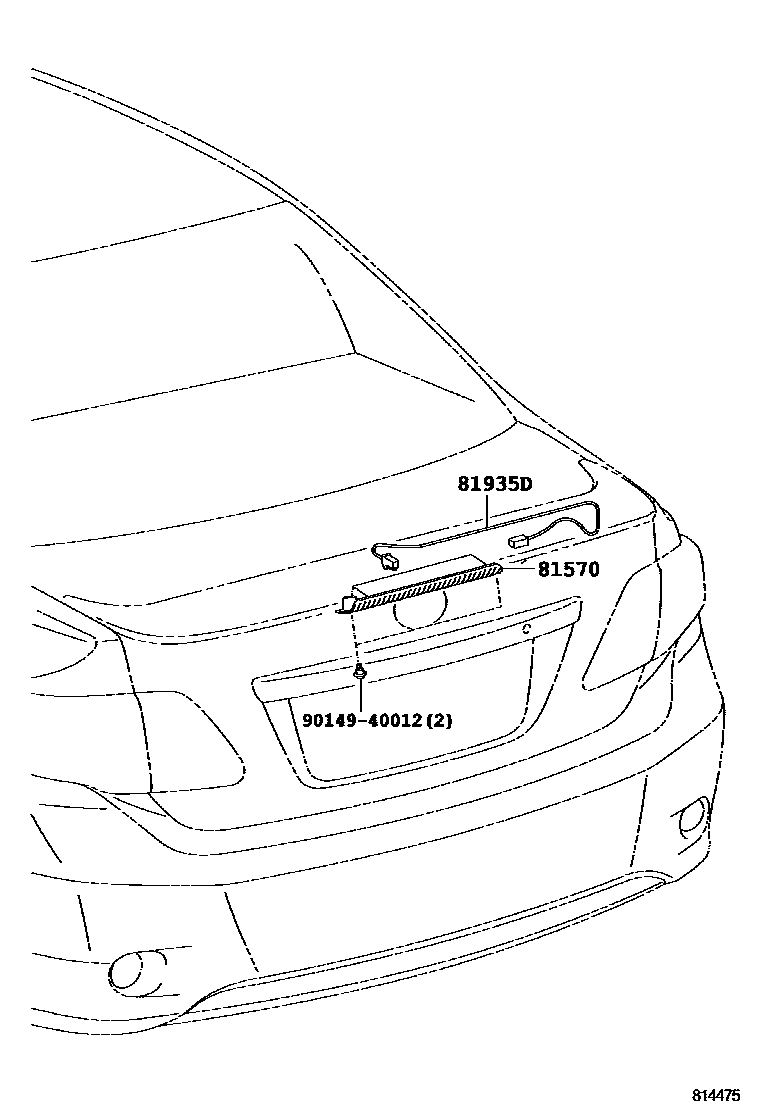

Toyota COROLLA 高位刹车灯 — Figure 8117
Toyota COROLLA EPC diagram 8117, 高位刹车灯, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81006 | central brake light assembly | 81006-02060 |
| 81570 | Central brake light assembly | 81570-0T010 · 81570-42071 |
| 81935D | Central brake light wire assembly | 81935-02040 · 81935-02050 |
