Toyota COROLLA reflector — Figure 8115

Toyota COROLLA EPC diagram 8115, reflector, with 2 images and 2 PNC and OE references.

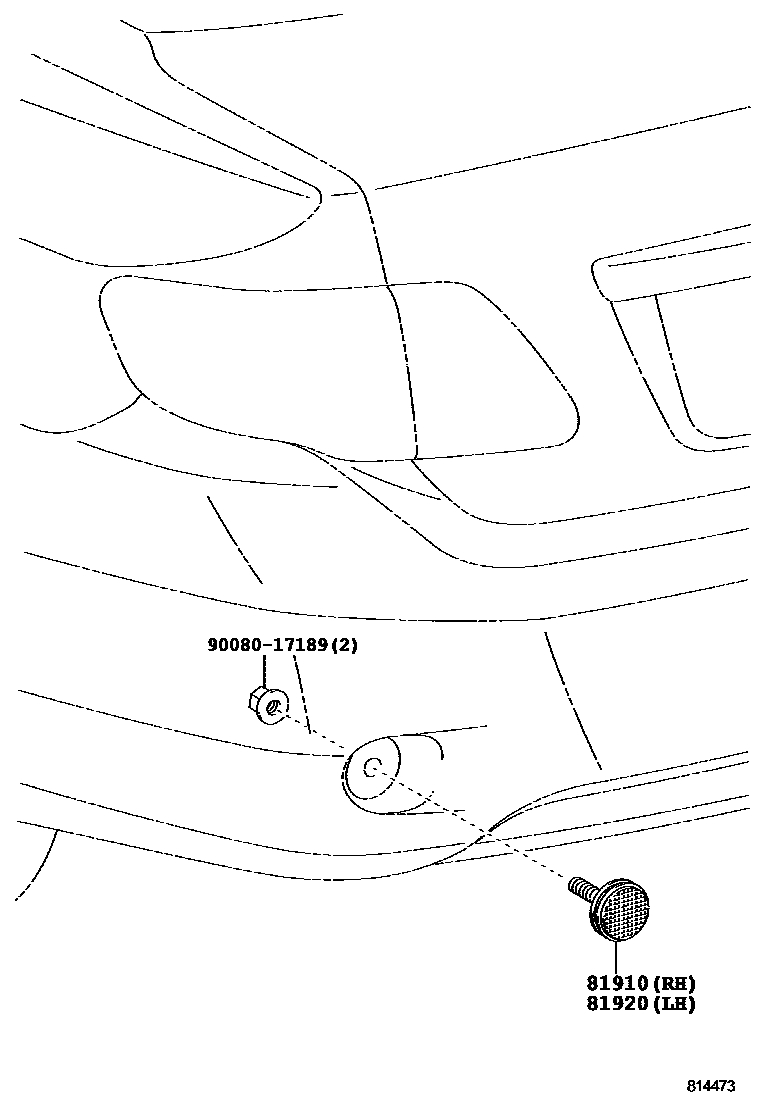

Toyota COROLLA reflector EPC diagram — 814473
reflector — 814473 (200801 – 201012)
Toyota COROLLA reflector EPC diagram — 815525
reflector — 815525 (201012 – 999999)

PNC and OE references

PNCPart nameOE numbers
81910Right reflector assembly81910-02040 · 81910-02130
81920Left reflector assembly81910-02040 · 81920-02030
