Toyota COROLLA 后组合灯 — Figure 8111

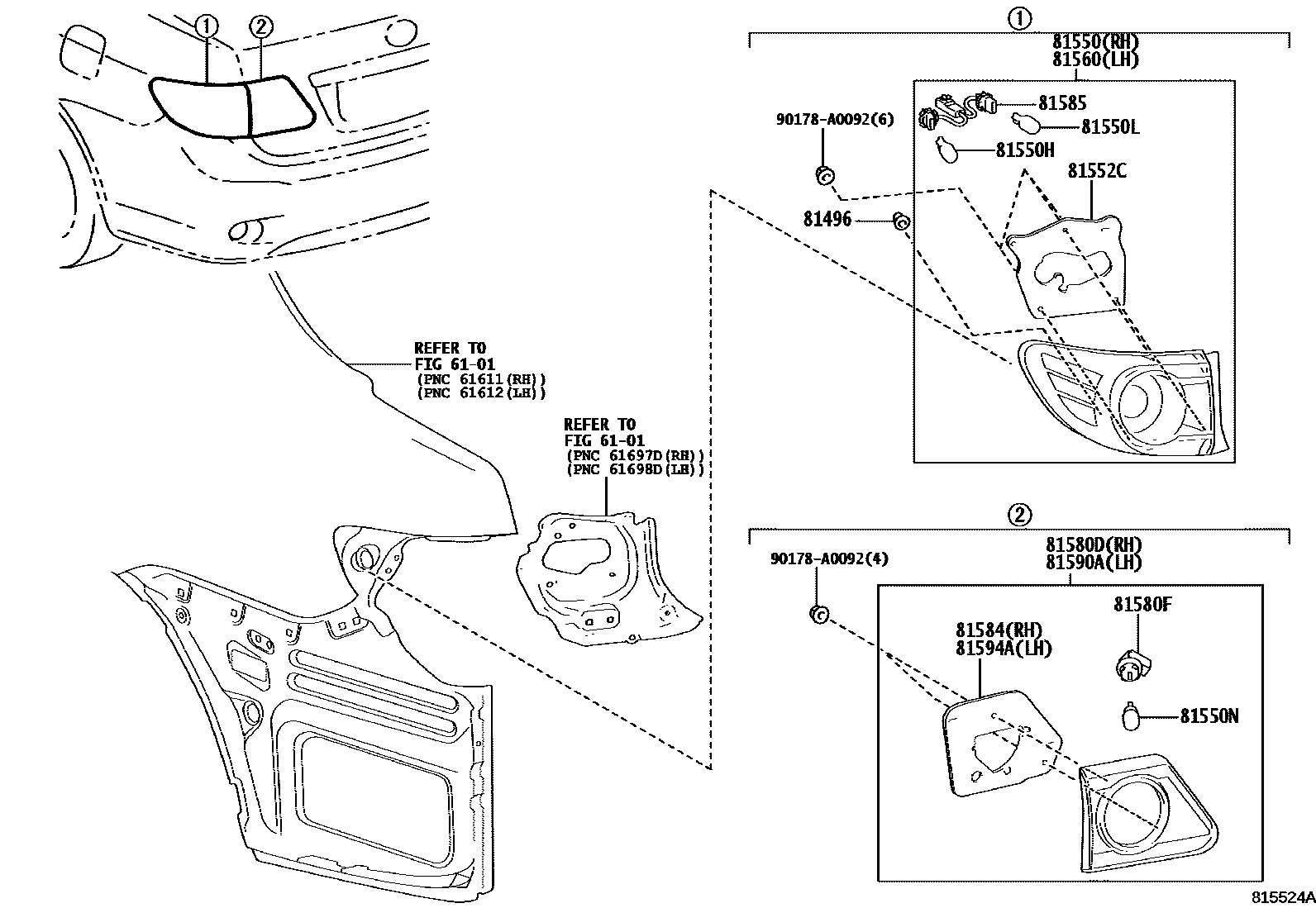

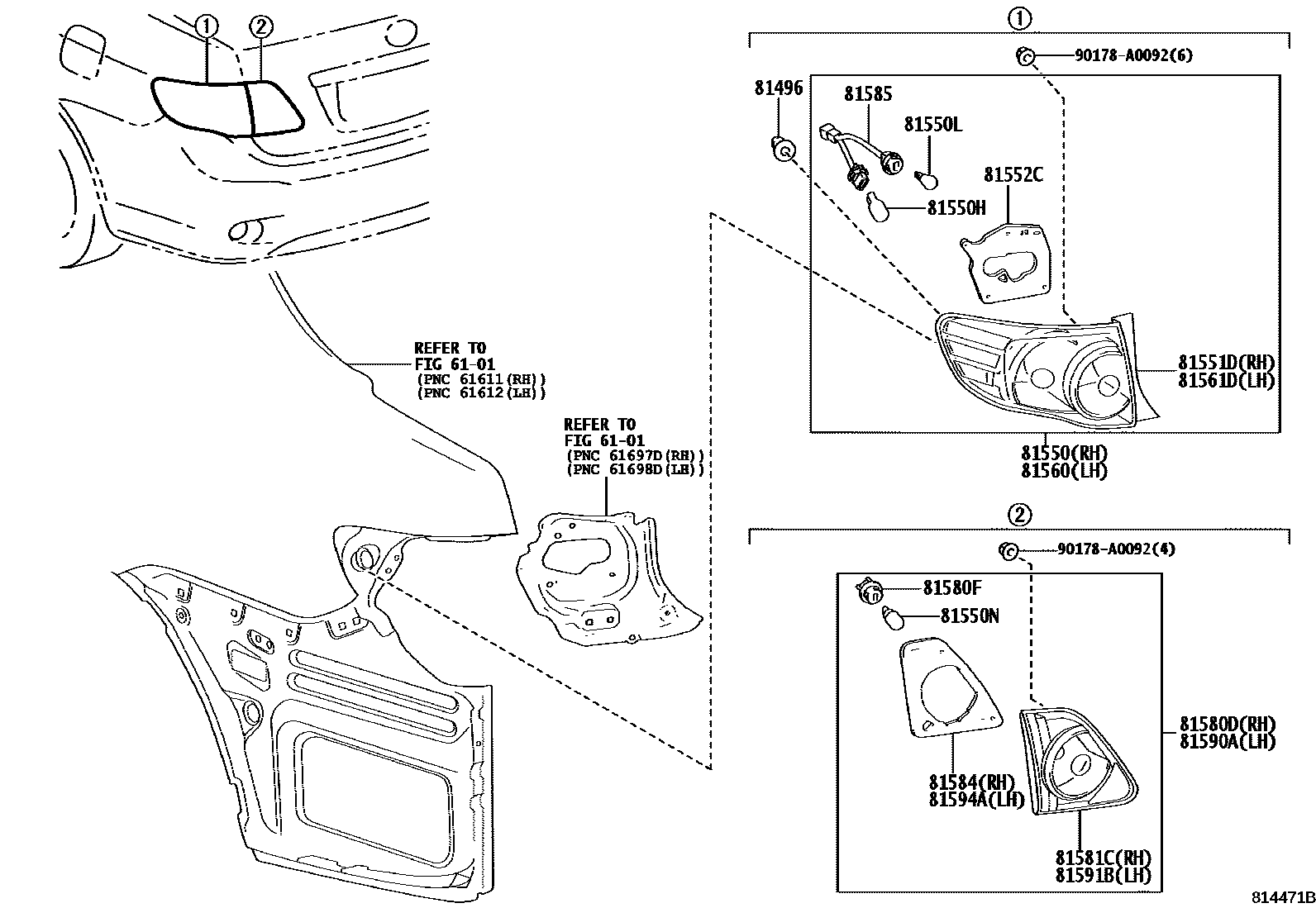

Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-02030 |
| 81550 | Right rear combination light assembly | 81550-02460 · 81550-02580 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550L | Rear turn signal light bulb | 90084-98036 · 90981-15021 |
| 81550N | reversing light bulb | 90981-11059 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-02460 |
| 81552C | Rear combination light gasket | 81552-02460 · 81554-02580 |
| 81560 | Left rear combination light assembly | 81560-02460 · 81560-02580 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-02460 |
| 81580D | Right rear light assembly | 81580-02190 · 81580-02290 |
| 81580F | Rear light lamp holder plug | 90075-60037 |
| 81581C | Right rear light lampshade and lamp body | 81581-02190 |
| 81584 | Right rear light seal | 81584-02190 · 81584-02290 |
| 81585 | Rear lamp holder and wiring harness | 81555-02460 · 81555-02580 |
| 81590A | Left rear light assembly | 81590-02190 · 81590-02290 |
| 81591B | Left rear light shade and body | 81591-02190 |
| 81594A | Left rear light gasket | 81594-02190 · 81594-02290 |
