Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 2 images and 3 PNC and OE references.

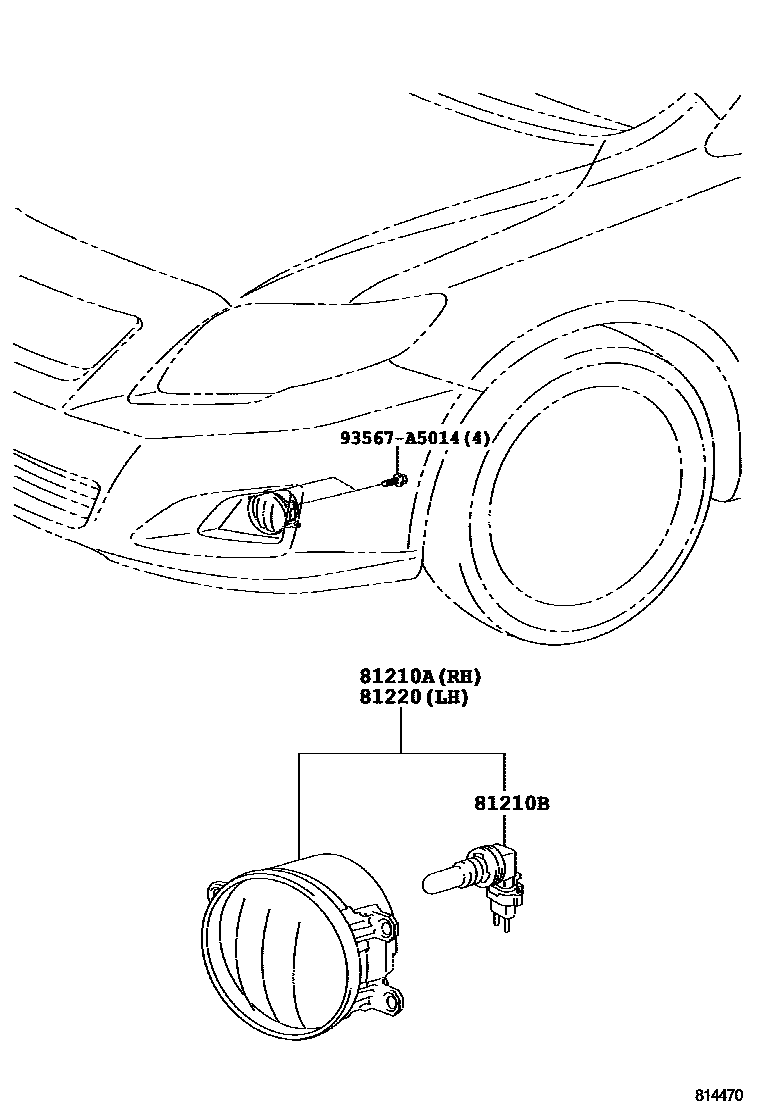

Toyota COROLLA Fog Lamp EPC diagram — 814470
Fog Lamp — 814470 (200801 – 201012)

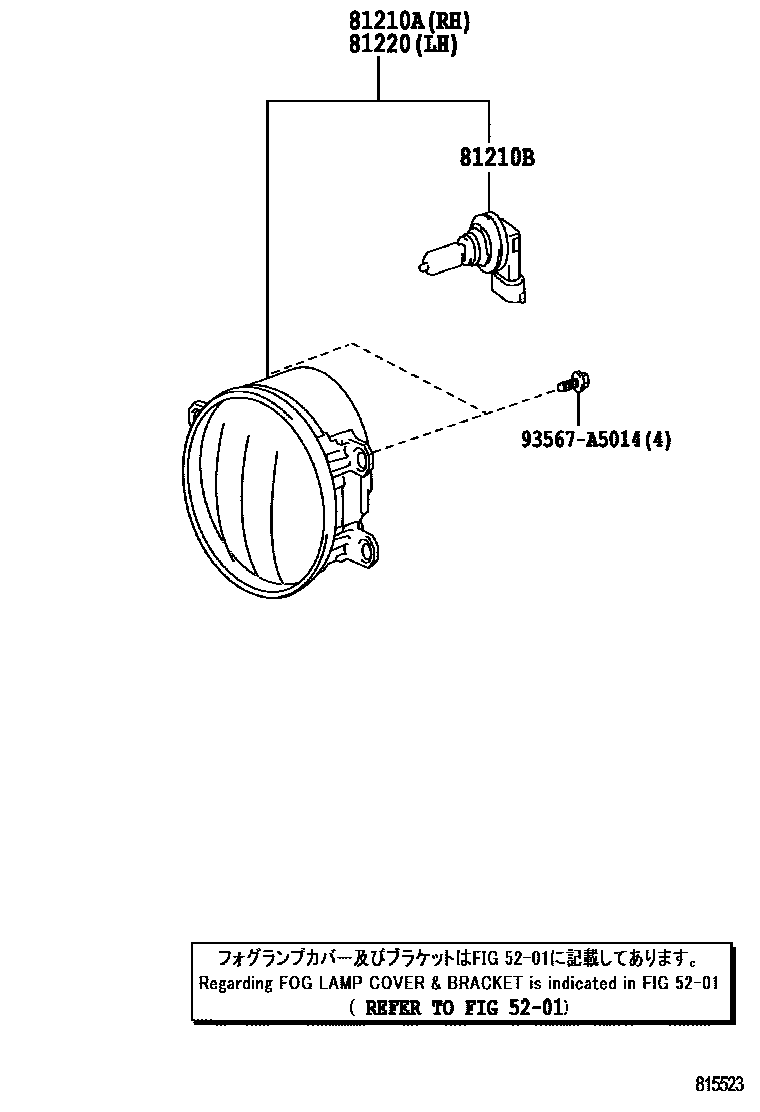

Toyota COROLLA Fog Lamp EPC diagram — 815523
Fog Lamp — 815523 (201012 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-06070 · 81210-06071
81210Bfog light bulb90981-AD006
81220Left fog light assembly81220-06070 · 81220-06071
