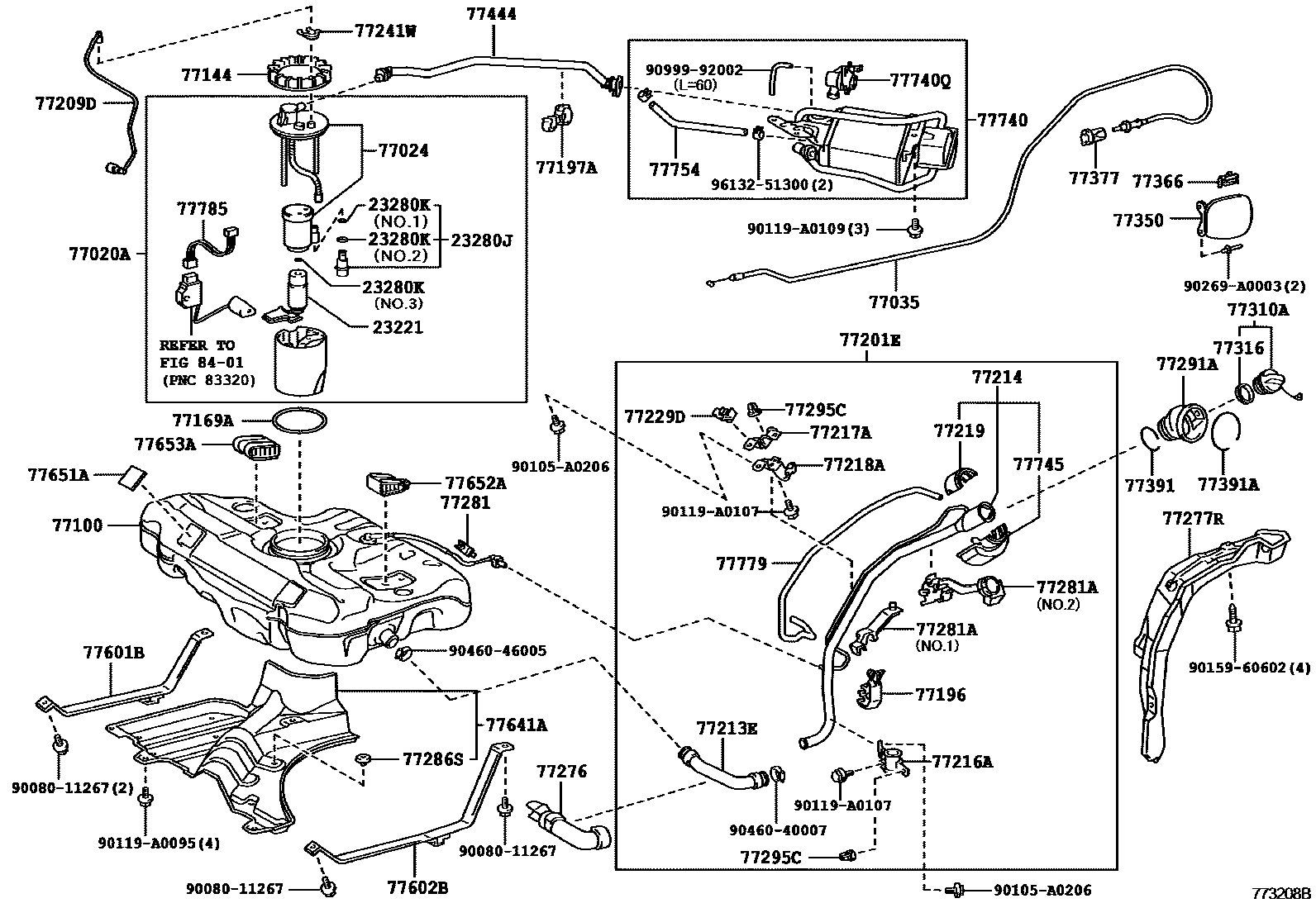

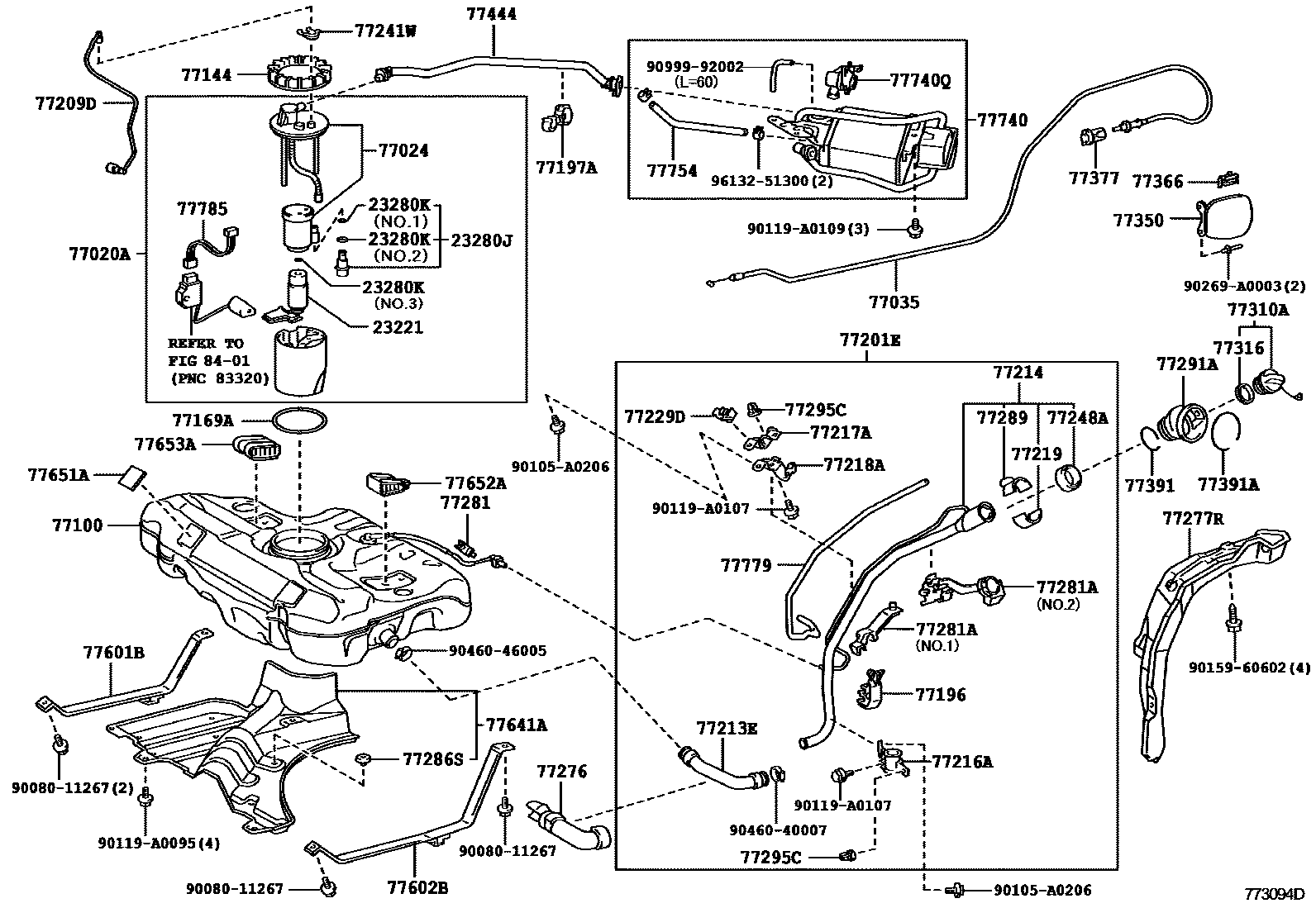

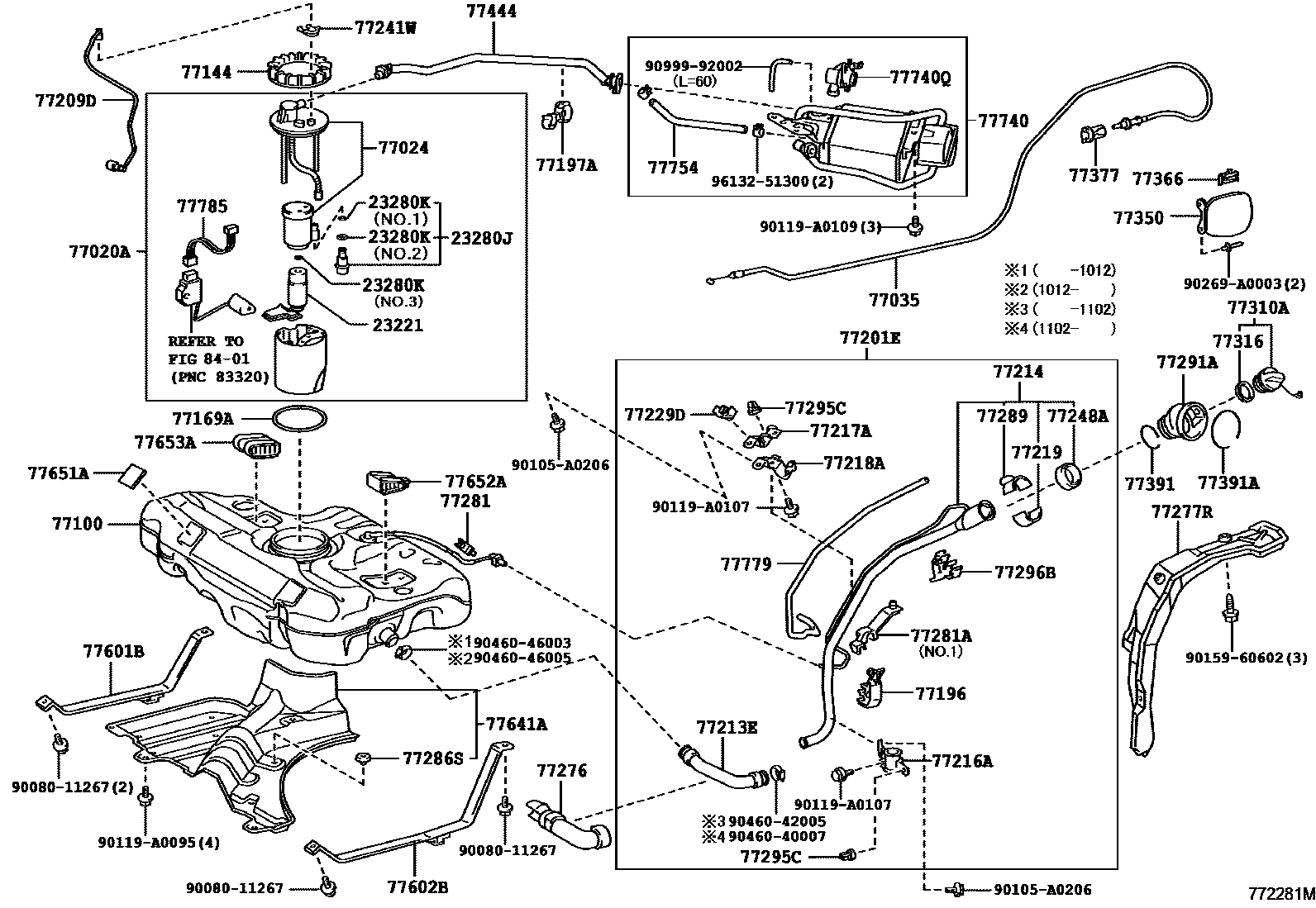

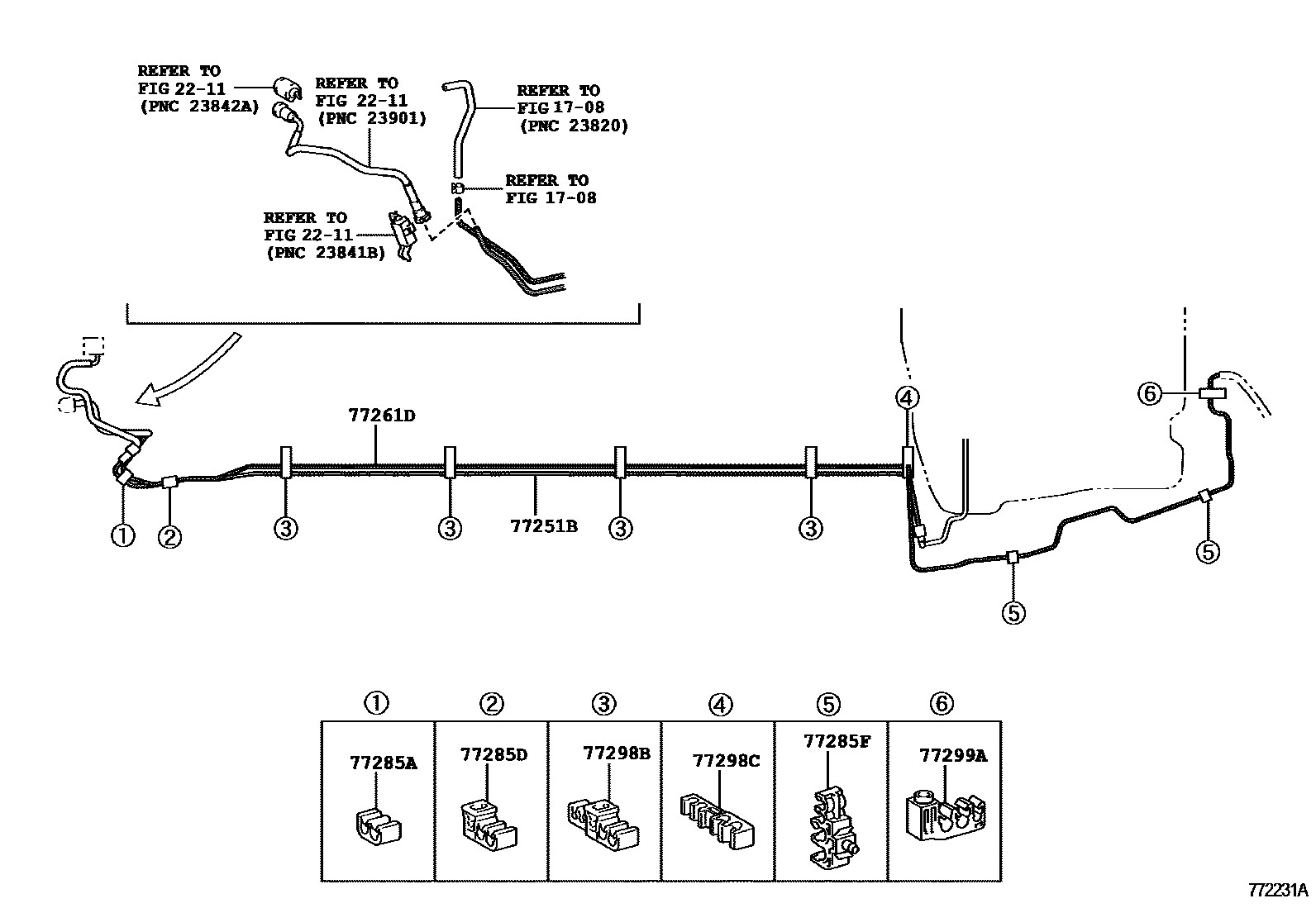

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 4 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23221 | fuel pump | 23220-0H130 · 23220-0H131 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 · 90301-A0013 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02291 |
| 77024 | Front main fuel pipe and fuel return pipe sub-assembly | 77024-02180 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02250 |
| 77100 | fuel tank assembly | 77001-01070 · 77001-02350 · 77001-02351 |
| 77144 | Fuel pump instrument fixture | 77144-04010 · 77144-04020 |
| 77169A | Fuel suction pipe fixed gasket | 77169-02050 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-02070 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-01010 |
| 77201E | Fuel tank filling pipe sub-assembly | 77210-02270 · 77210-02271 · 77210-02272 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-02110 |
| 77213E | Fuel tank to filler pipe hose | 77213-02060 |
| 77214 | Fuel tank filler pipe | 77201-02240 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-02080 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-02050 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-02030 |
| 77219 | Fuel tank filler pipe cap | 77219-06040 · 77219-0E010 |
| 77229D | No. 4 fuel tank filler pipe bracket | 77229-02020 |
| 77241W | Pipe joint clip | 77241-02010 |
| 77248A | Fuel tank filler pipe cap holder | 77248-06020 |
| 77251B | main fuel pipe | 77251-02350 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02270 |
| 77276 | Fuel hose protector | 77276-02020 |
| 77277R | Fuel tank filler pipe protection device | 77277-02080 · 77277-02140 · 77277-12270 |
| 77281 | No. 1 main fuel pipe bracket | 77281-02070 |
| 77281A | Fuel filler pipe clamp | 77281-02050 · 77281-12210 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-42110 |
| 77285D | No. 1 fuel pipe clamp | 77285-50040 |
| 77285F | No. 1 fuel pipe clamp | 77285-02020 |
| 77286S | Fuel tank protective shell cushion | 77286-12110 |
| 77289 | Fuel tank pipe holder | 77289-06050 |
| 77291A | Fuel tank filler pipe cover | 77291-02120 |
| 77295C | Fuel pipe retaining ring | 77295-12070 |
| 77296B | No. 1 fuel line protector bracket | 77296-02010 |
| 77298B | No. 4 fuel pipe clamp | 77298-52070 |
| 77298C | No. 4 fuel pipe clamp | 77298-12120 |
| 77299A | No. 5 fuel pipe clamp | 77299-02020 |
| 77310A | Fuel tank cap assembly | 77300-06040 |
| 77316 | fuel tank cap gasket | 77316-06050 · 77316-06070 |
| 77350 | Fuel filler cap assembly | 77350-02070 |
| 77366 | Fuel filler cap hinge spring | 77360-02020 |
| 77377 | Fuel filler cap lock retainer | 77377-AA020 |
| 77391 | fuel inlet ring | 77391-02041 |
| 77391A | fuel inlet ring | 77391-01040 |
| 77444 | fuel tank vent hose | 77404-02080 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-12370 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-12280 |
| 77641A | No. 1 fuel tank protective shell | 77641-02130 · 77641-02131 |
| 77651A | No. 1 fuel tank liner | 77651-12080 |
| 77652A | No. 2 fuel tank liner | 77652-02060 |
| 77653A | No. 3 fuel tank liner | 77653-02010 |
| 77740 | Carbon canister assembly | 77740-02130 · 77740-02131 |
| 77740Q | Carbon canister leak detection pump sub-assembly | 90910-AF002 · 90910-AF005 |
| 77745 | No. 1 carbon canister filter | 77745-0E010 |
| 77754 | No. 1 carbon canister outlet hose | 77754-02040 |
| 77779 | Carbon canister outlet pipe | 77779-02020 · 77779-02021 |
| 77785 | fuel pump wiring harness | 77785-02030 |
