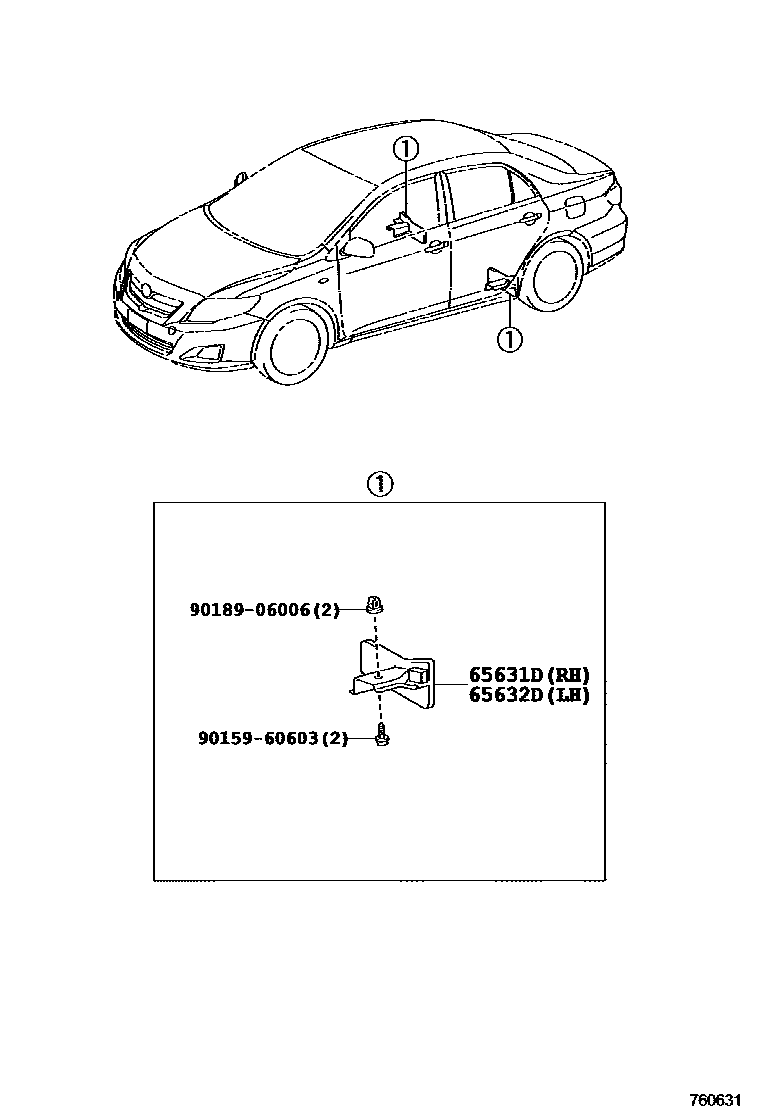

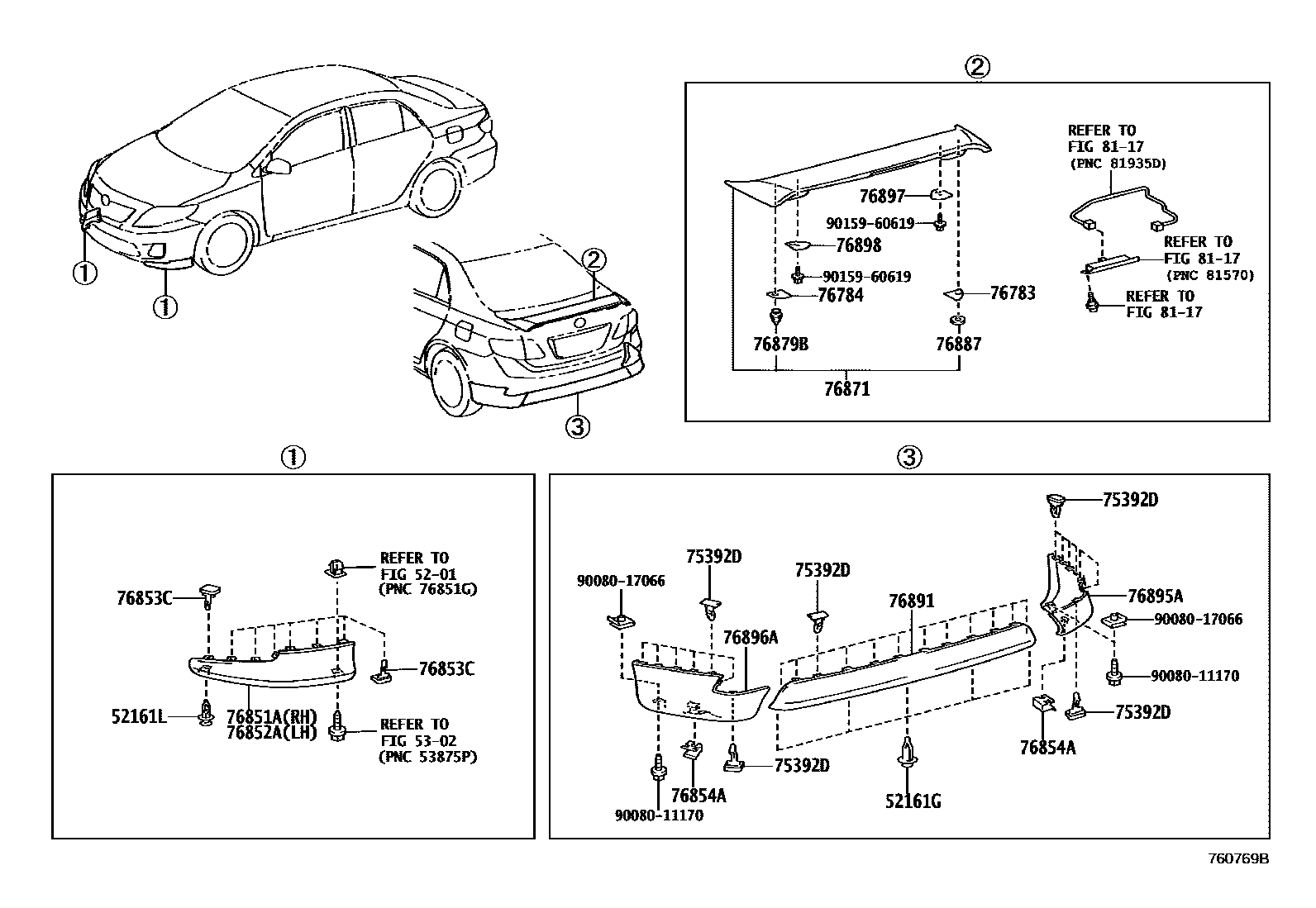

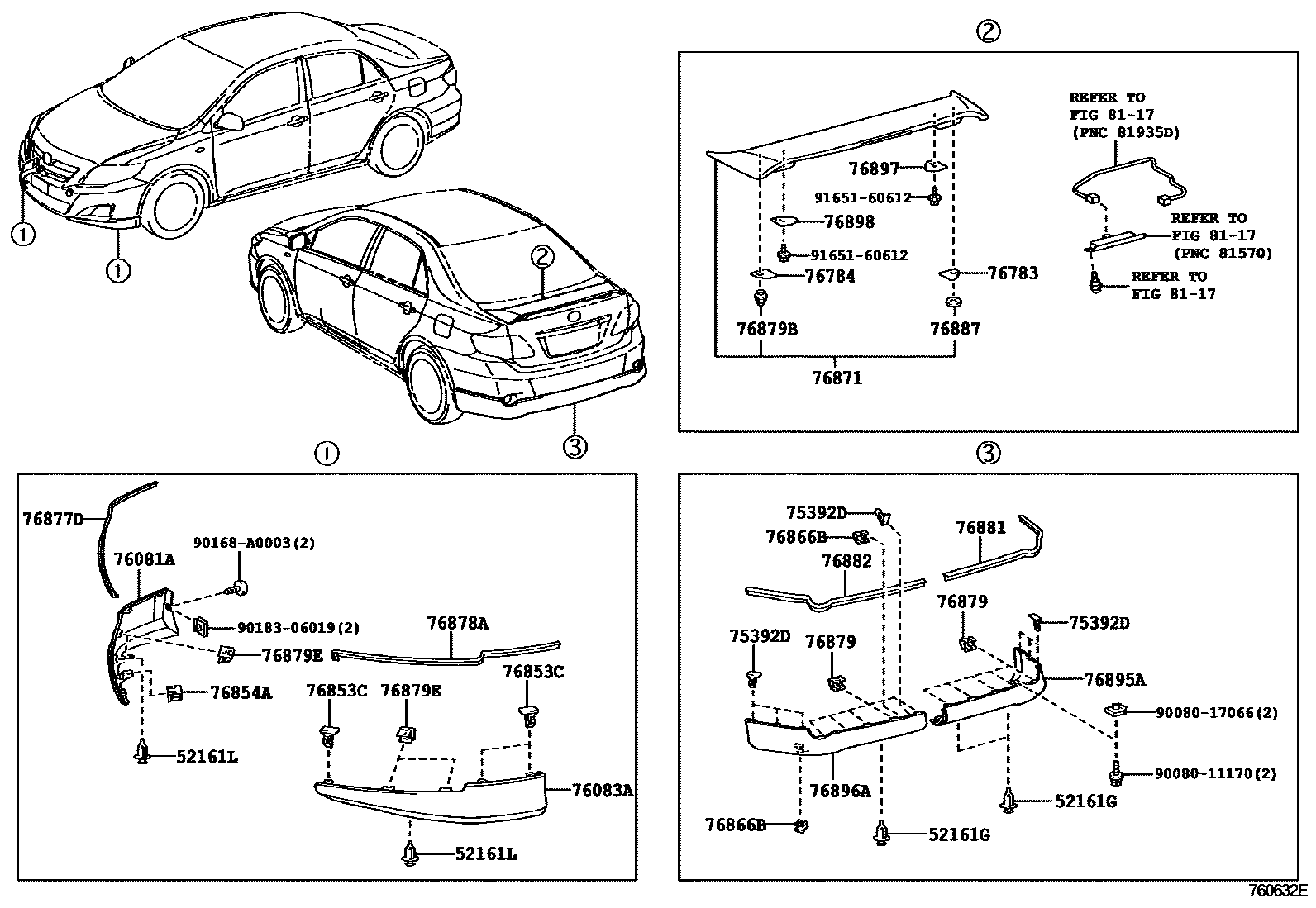

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161G | Rear bumper insert | 52161-02020 |
| 52161L | front spoiler insert | 52161-02020 |
| 65631D | Right rear wheel house front panel | 65631-02120 |
| 65632D | Left rear wheel house front panel | 65632-02120 |
| 75392D | External protective strip fixings | 75392-35200 · 75392-35220 |
| 76081A | Right front spoiler sub-assembly | 76081-02905 |
| 76083A | Left front spoiler sub-assembly | 76083-02902 |
| 76783 | Right rear lower spoiler tape | 76783-02050 |
| 76784 | Left rear lower spoiler tape | 76784-02050 |
| 76851A | Right front spoiler cover | 76851-02909 |
| 76852A | Left front spoiler cover | 76852-02908 |
| 76853C | No. 1 front spoiler fixing piece | 75392-35200 · 75392-35220 |
| 76854A | No. 2 front spoiler fixing piece | 76854-44010 |
| 76866B | No. 2 rear spoiler fixing piece | 76854-44010 |
| 76871 | rear spoiler | 76871-02907 · 76871-02920 · 76871-02923 |
| 76879 | No. 1 rear spoiler clip | 76879-44010 |
| 76879B | No. 2 rear spoiler clip | 76879-12060 · 90467-09203 |
| 76879E | Front spoiler clip | 76879-44010 |
| 76887 | Rear spoiler seal | 76887-02010 |
| 76891 | No. 1 rear spoiler | 76891-02030 |
| 76895A | Right rear bumper spoiler | 76895-02908 · 76895-02914 |
| 76896A | Left rear bumper spoiler | 76896-02906 · 76896-02911 |
| 76897 | Right rear spoiler protection strip | 76897-02050 |
| 76898 | Left rear spoiler protection strip | 76898-02050 |
