Toyota COROLLA 后防护条 — Figure 7504

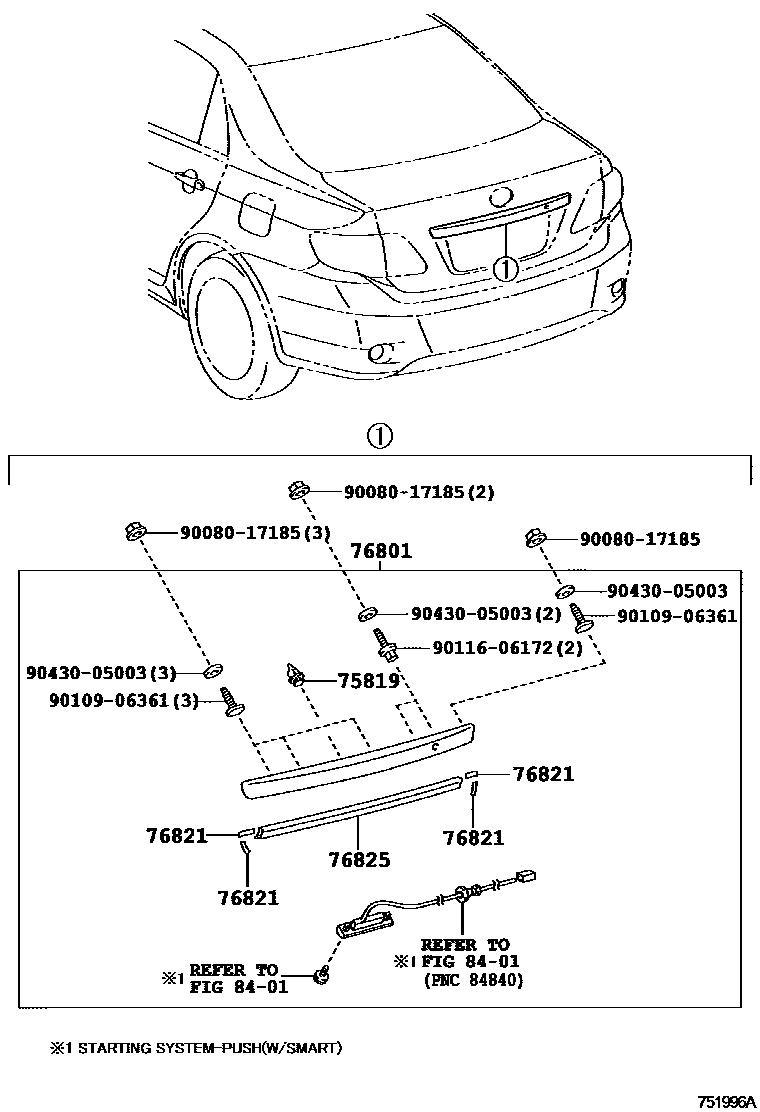

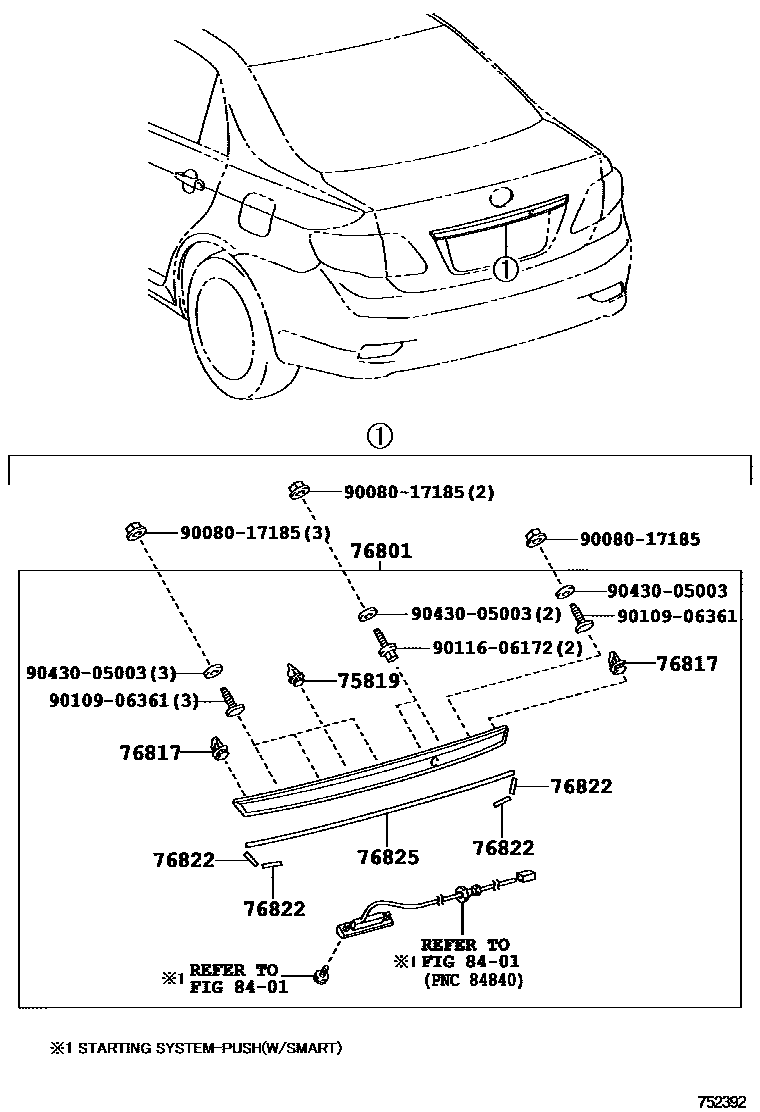

Toyota COROLLA EPC diagram 7504, 后防护条, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75819 | Trunk door protective strip clip | 75819-33010 |
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-02700 · 76801-02710 |
| 76817 | Rear door exterior decorative strip clip | 76817-12090 |
| 76821 | Protective cover for rear door trim strip | 76821-02100 |
| 76822 | Protective cover under rear door trim strip | 76822-02080 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-02060 · 76825-02130 |
