Toyota COROLLA 侧防护条 — Figure 7503

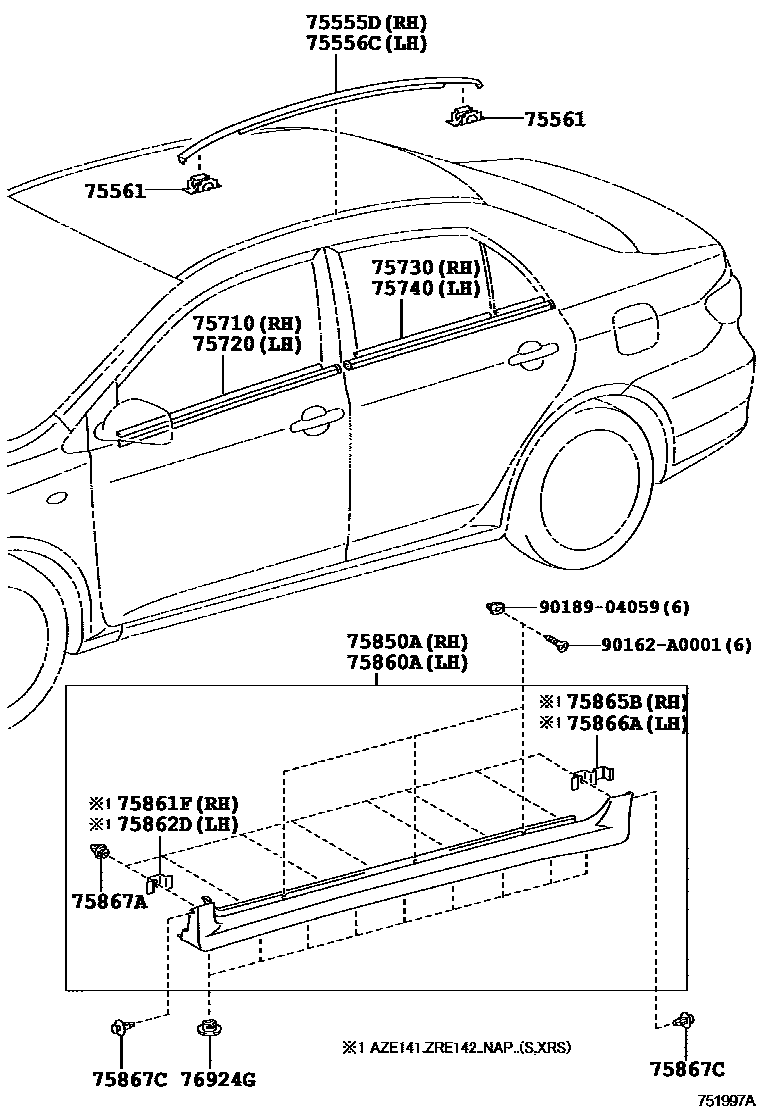

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-02140 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-02140 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-52040 |
| 75710 | Right front door waistline protection strip assembly | 75710-02210 · 75710-02360 |
| 75720 | Left front door waistline protection strip assembly | 75720-02210 · 75720-02360 |
| 75730 | Right rear door waistline protection strip assembly | 75730-02190 · 75730-02340 |
| 75740 | Left rear door waistline protection strip assembly | 75740-02190 · 75740-02340 |
| 75850A | Right body door sill panel protective strip assembly | 75850-02901 · 75850-02902 |
| 75860A | Left body door sill panel protective strip assembly | 75860-02901 · 75860-02902 |
| 75861F | Right side door sill panel protective strip fixing | 75861-02020 |
| 75862D | Left side door sill panel protective strip fixing | 75862-02020 |
| 75865B | No. 2 door sill panel protective strip fixings | 75865-02010 |
| 75866A | Door sill panel protective strip fixings | 75866-02010 |
| 75867A | Door sill panel protective strip clip | 75867-02010 |
| 75867C | Door sill panel protective strip clip | 90467-06165 |
| 76924G | Door sill panel protective strip fixings | 76924-02020 |
