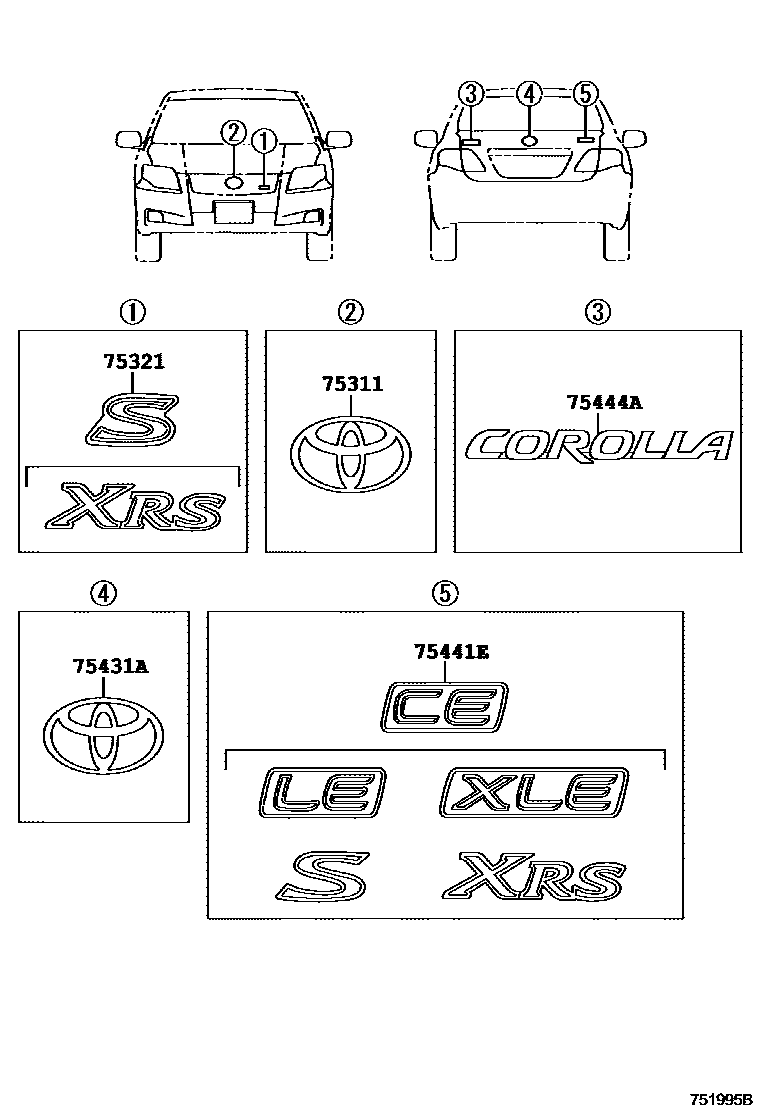

Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75301-02010 |
| 75321 | Radiator grille or front plate | 75321-12390 · 75321-12470 |
| 75431A | No. 1 sign on back door | 75431-02080 · 90975-A2003 |
| 75441E | Back door No. 1 nameplate | 75444-12B10 · 75444-12B20 · 75444-12B61 · 75444-12B71 · 75444-12C30 · 75444-12C60 |
| 75444A | No. 4 nameplate on back door | 75442-02181 · 75442-02260 |
