Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

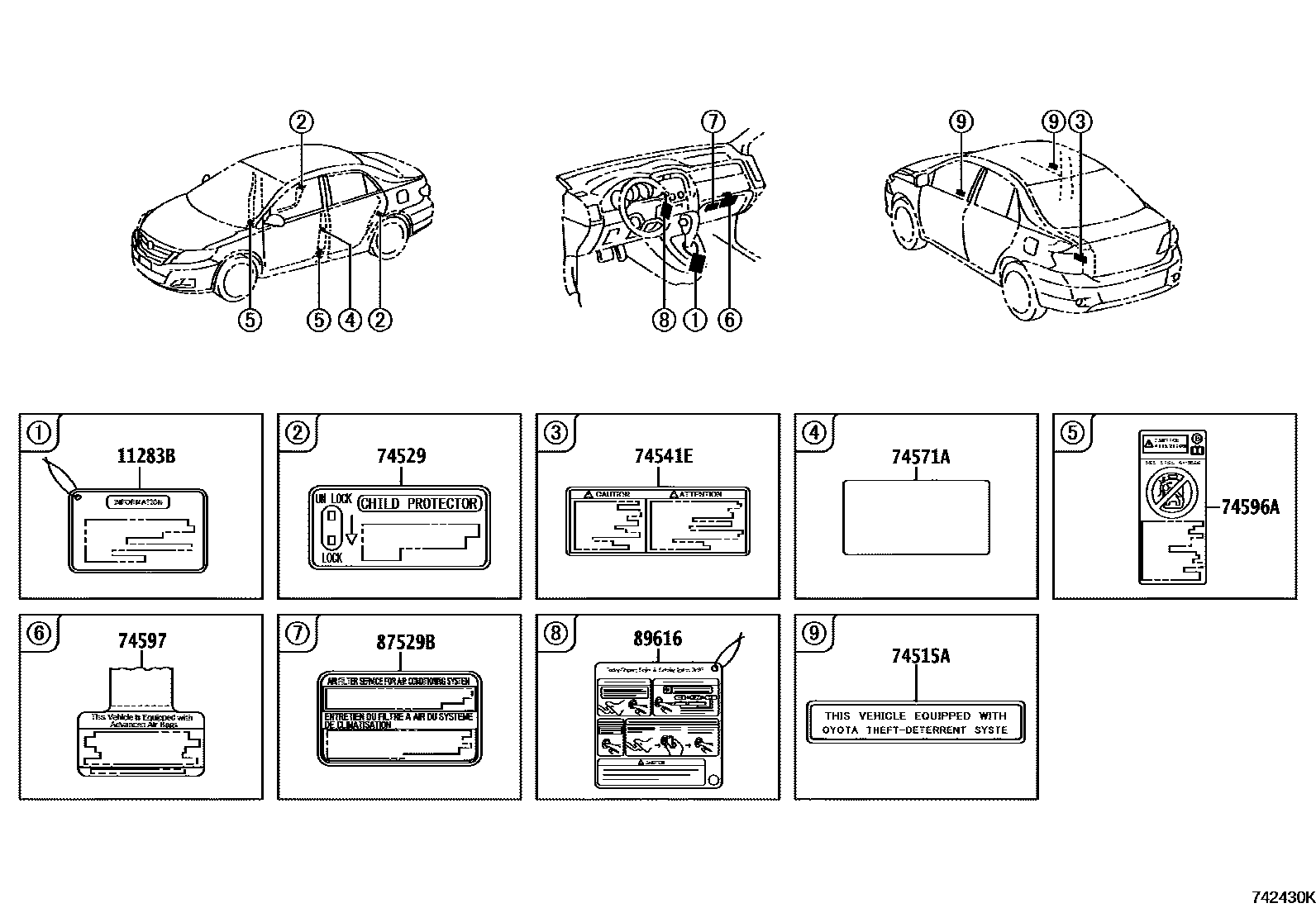

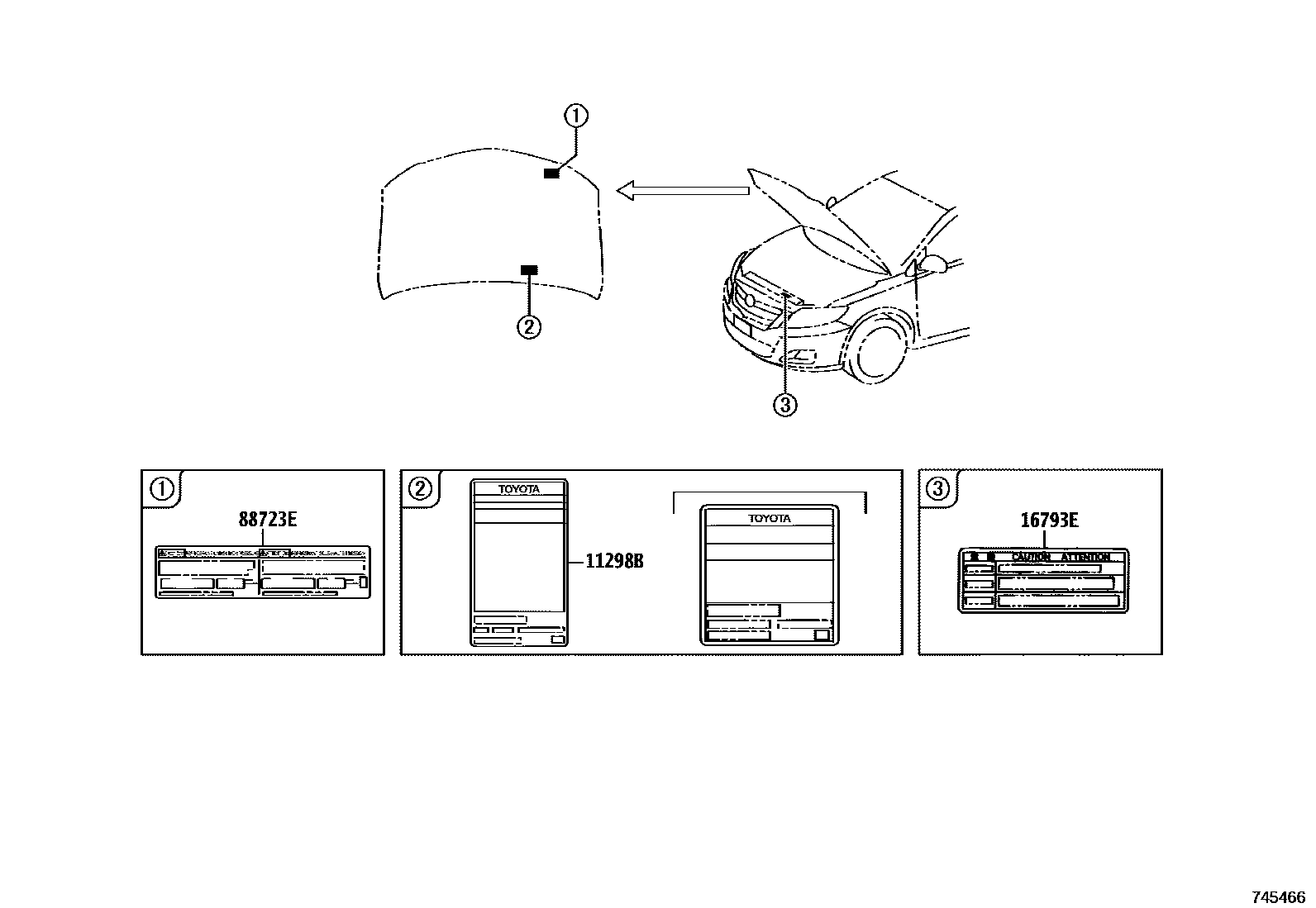

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11283B | Leak Detection Pump Information Label | 11294-28010 |
| 11298B | Emission Control Information Label | 11298-28500 · 11298-28700 · 11298-28770 · 11298-28A40 · 11298-37120 · 11298-37200 · 11298-37230 · 11298-37370 · 11298-37400 |
| 16793E | ETIQUETTE, PRECAUTION VENT REFROIDISSEMENT | 16793-46010 |
| 74515A | Anti-theft warning nameplate | 74515-14010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-03010 |
| 74541E | Small spare tire warning plate | 42668-06010 |
| 74571A | Label cover protective film | 74571-03020 · 74571-32010 |
| 74596A | Side air bag warning label | 74596-02020 |
| 74597 | Driver and Passenger Air Bag Warning Labels | 74599-0E020 |
| 87529B | Cabin filter information label | 87529-0E010 |
| 88723E | Cooler maintenance warning label | 88723-02150 |
| 89616 | Button start information label | 89616-30031 |
