Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 5 PNC and OE references.

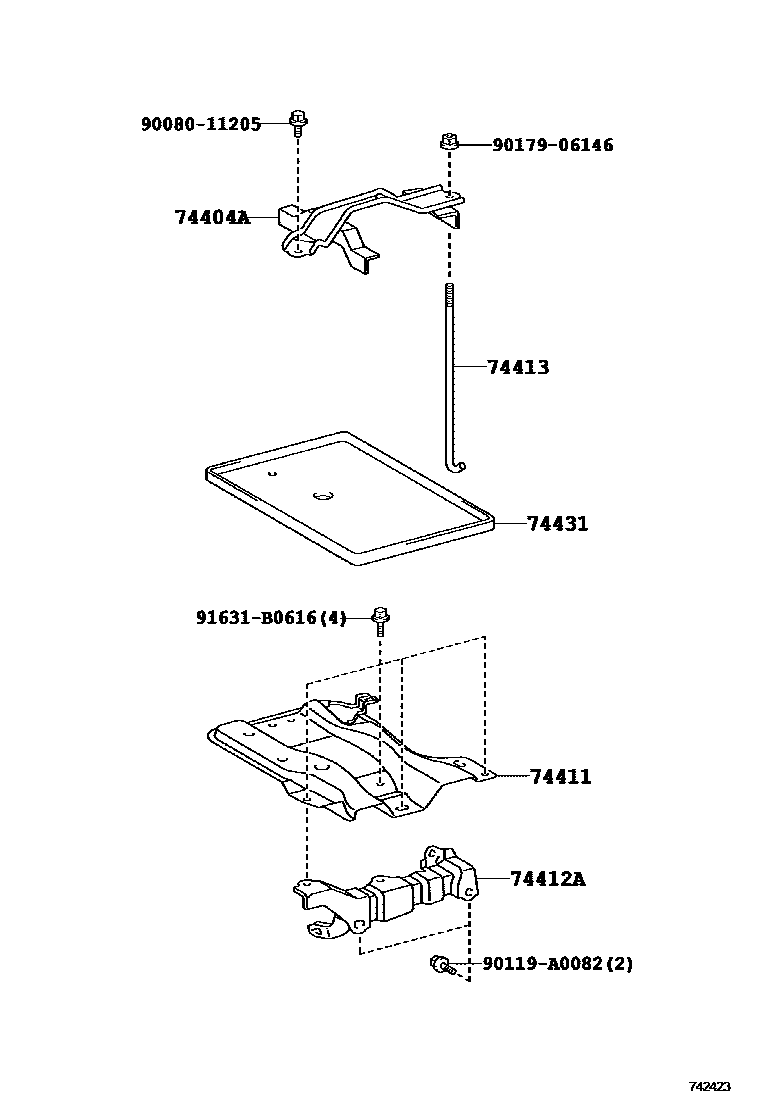

Toyota COROLLA battery holder EPC diagram — 742423
battery holder — 742423 (200801 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-02190
74411battery holder74401-02040
74412ANo. 2 battery holder74410-02080
74413Battery clamp bolt74451-02080
74431battery tray74431-02110 · 74431-02250
