Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

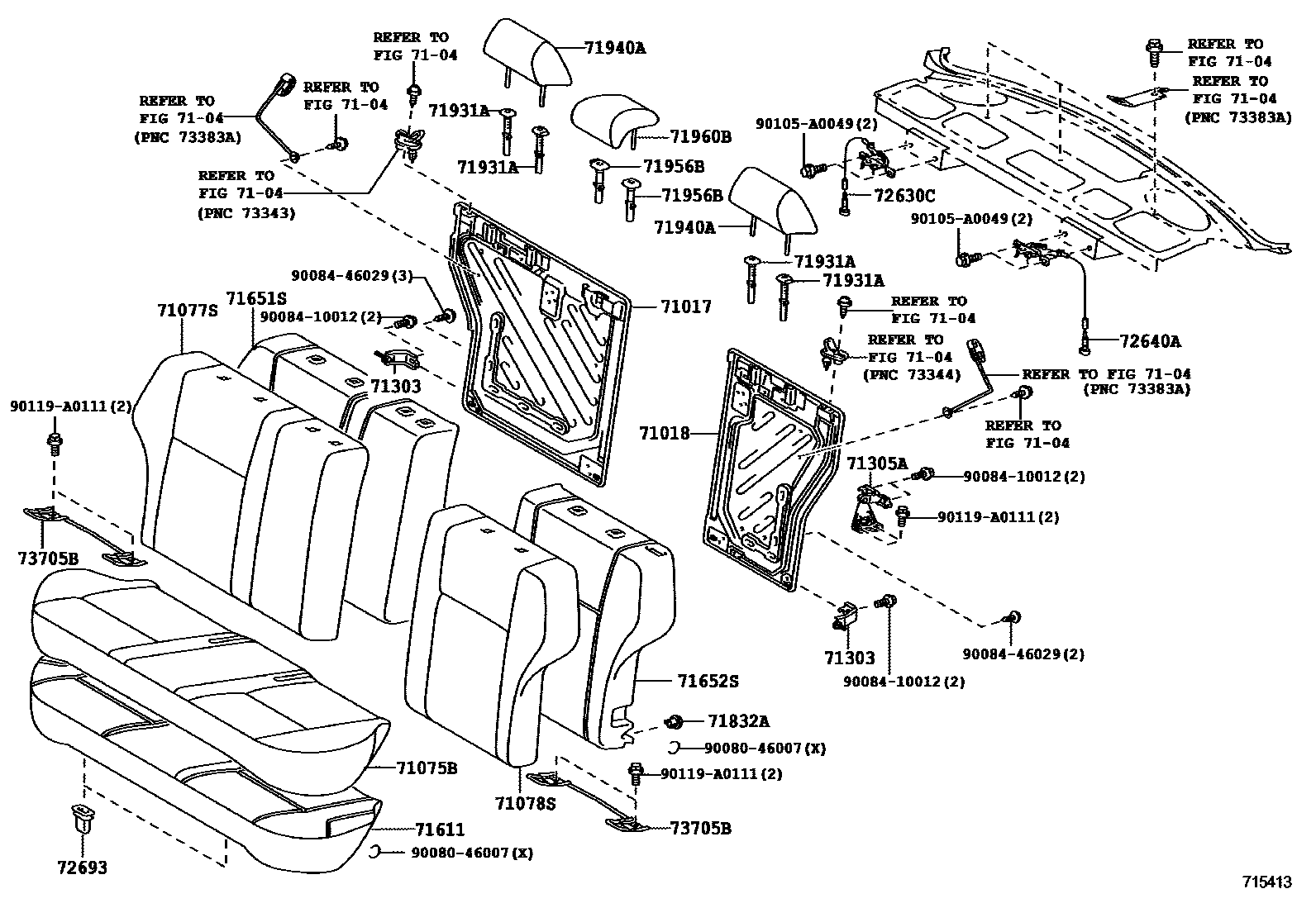

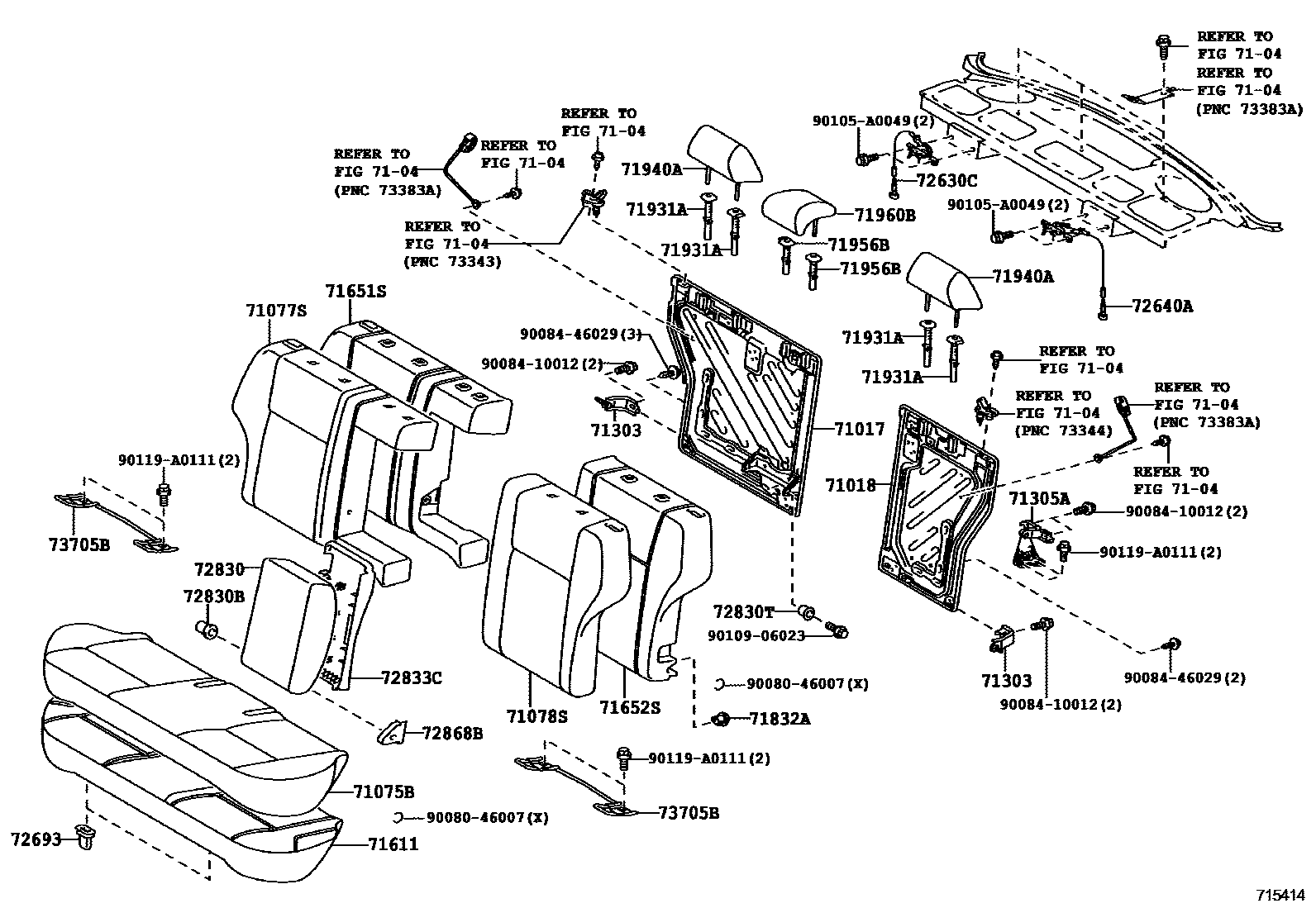

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-02231 · 71017-02232 · 71017-02290 · 71017-02310 · 71017-02311 · 71017-02312 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02120 · 71018-02121 · 71018-02210 |
| 71303 | Rear seat back hinge sub-assembly | 71303-02130 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-02130 |
| 71611 | Rear seat cushion cushion | 71503-02150 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-02330 · 71651-02340 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02320 |
| 72630C | Rear right seat back lock assembly | 72630-02090 |
| 72640A | Rear left seat back lock assembly | 72640-02090 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72830B | Bushing (for rear seat center armrest) | 90386-06011 |
| 72830T | Bushing (for rear seat center armrest) | 90386-08077 |
| 72833C | Center armrest panel of rear seat No. 1 | 72833-02020 |
| 73705B | Cross anchor bracket sub-assembly | 73705-12080 |
