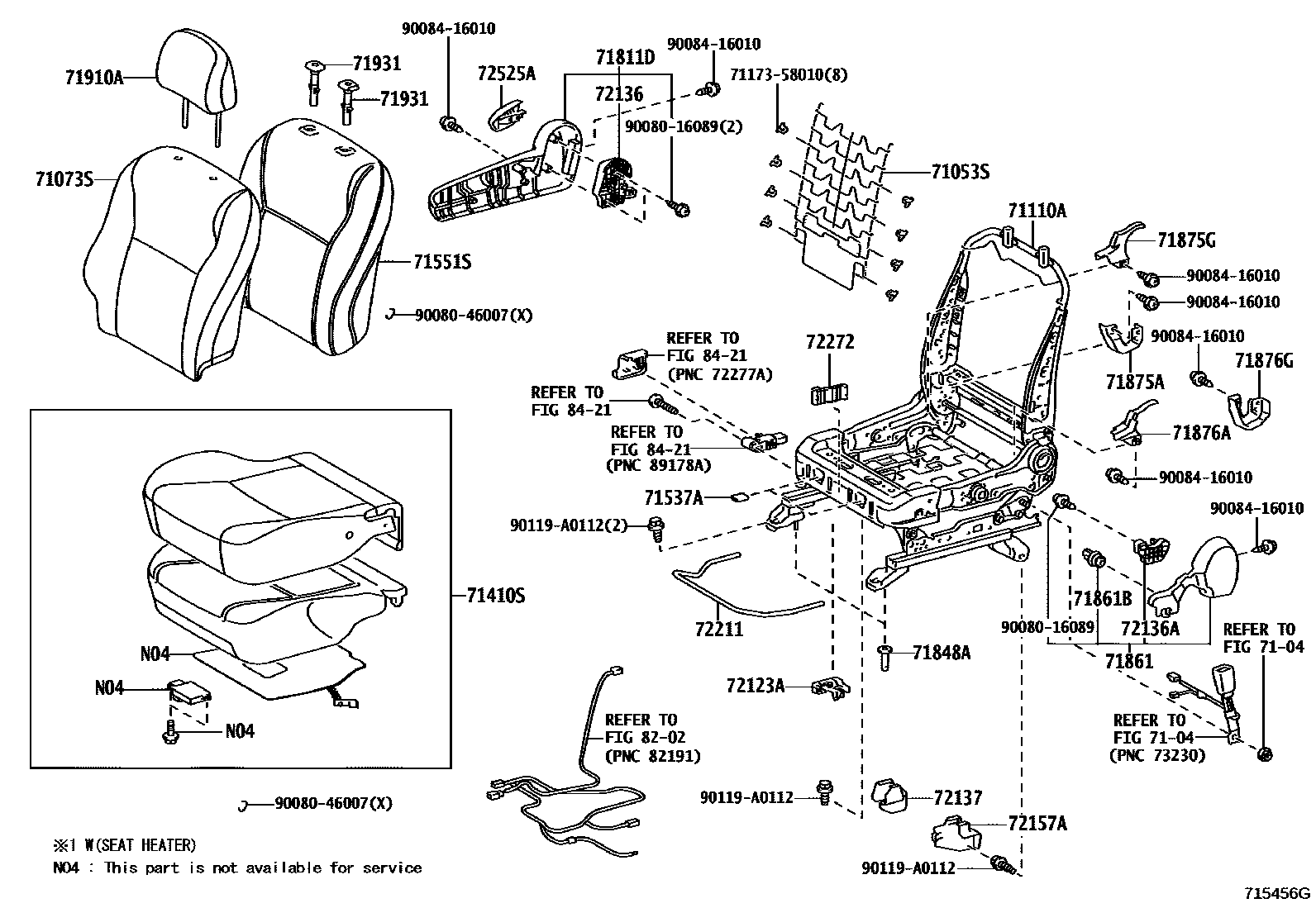

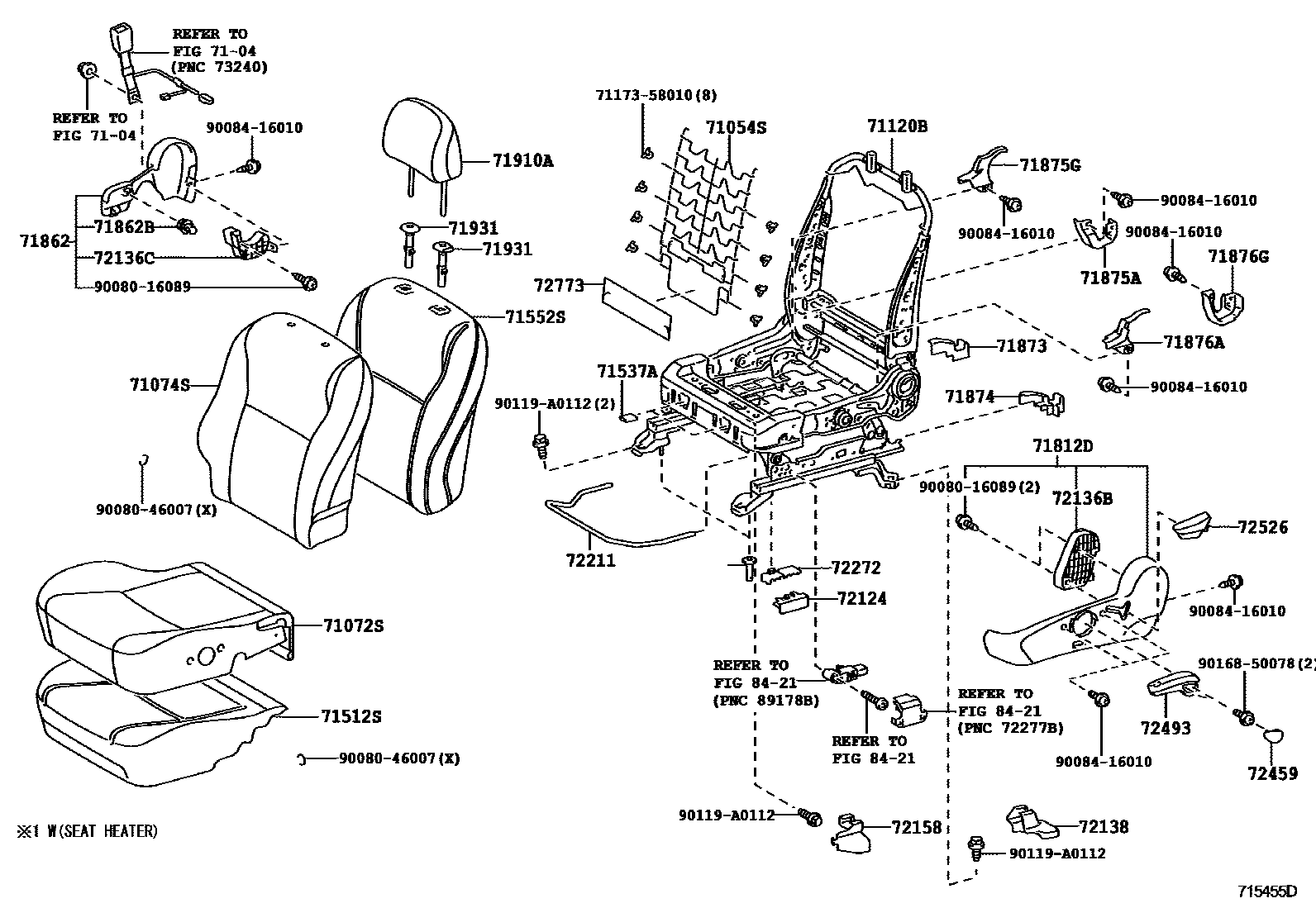

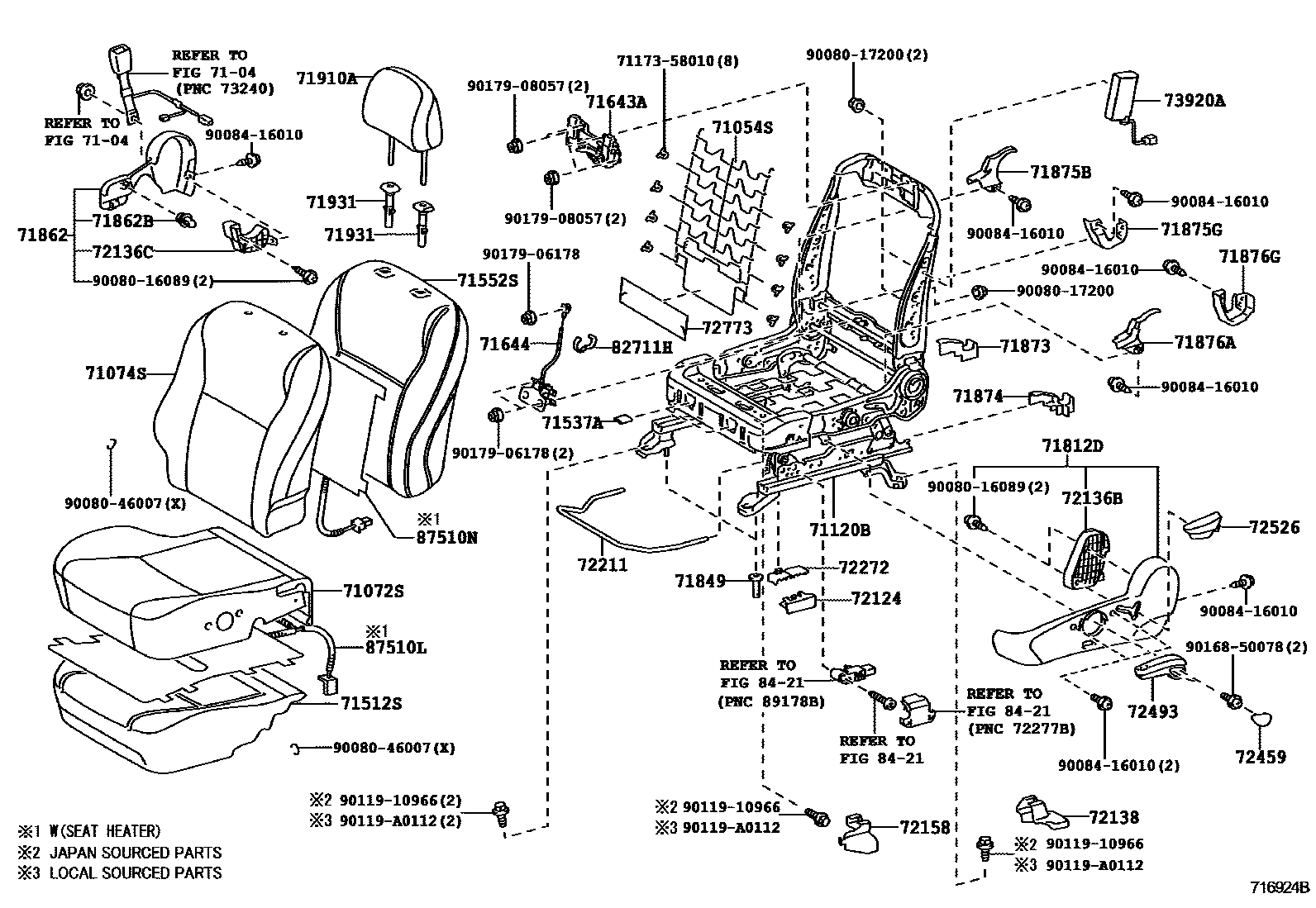

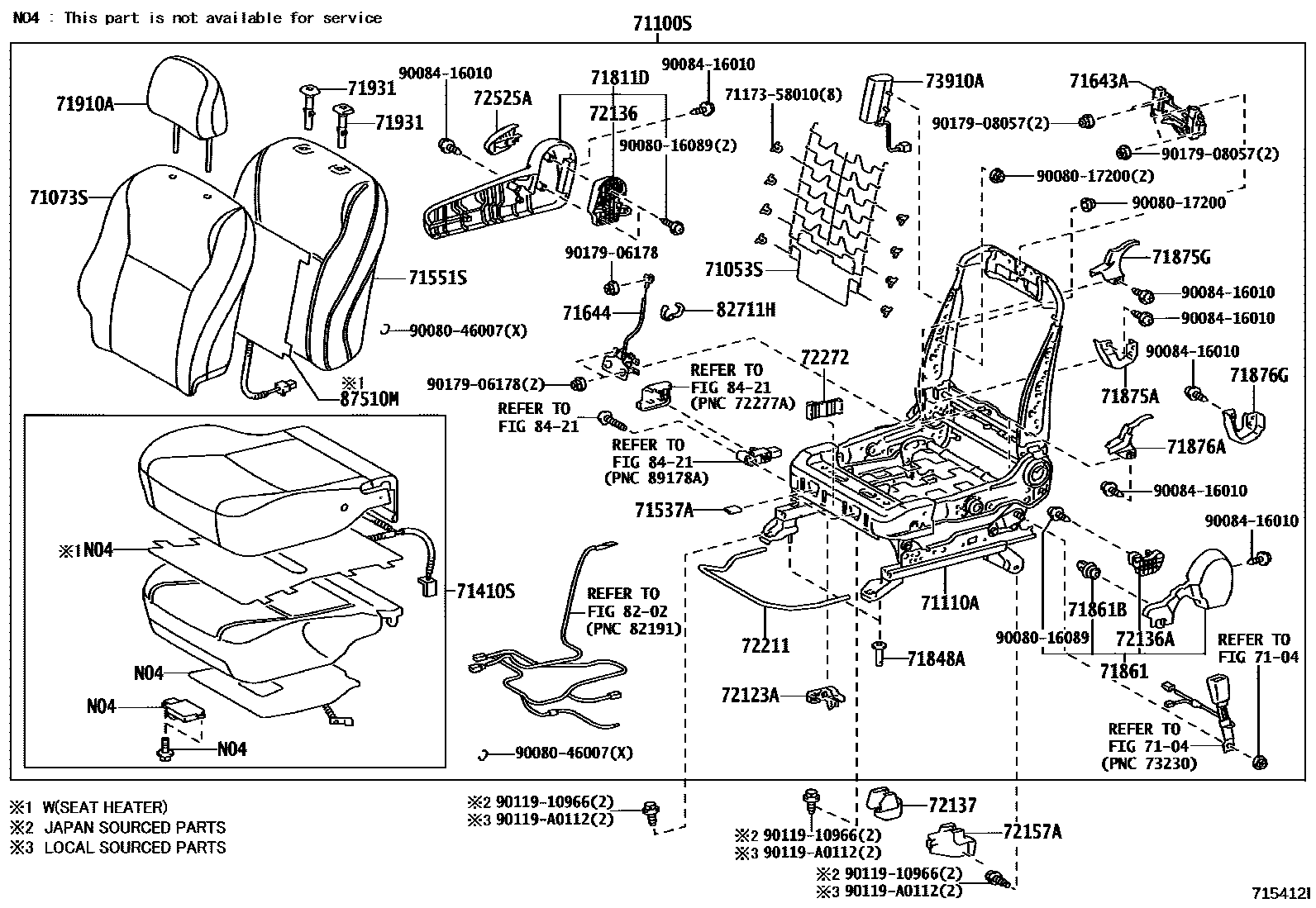

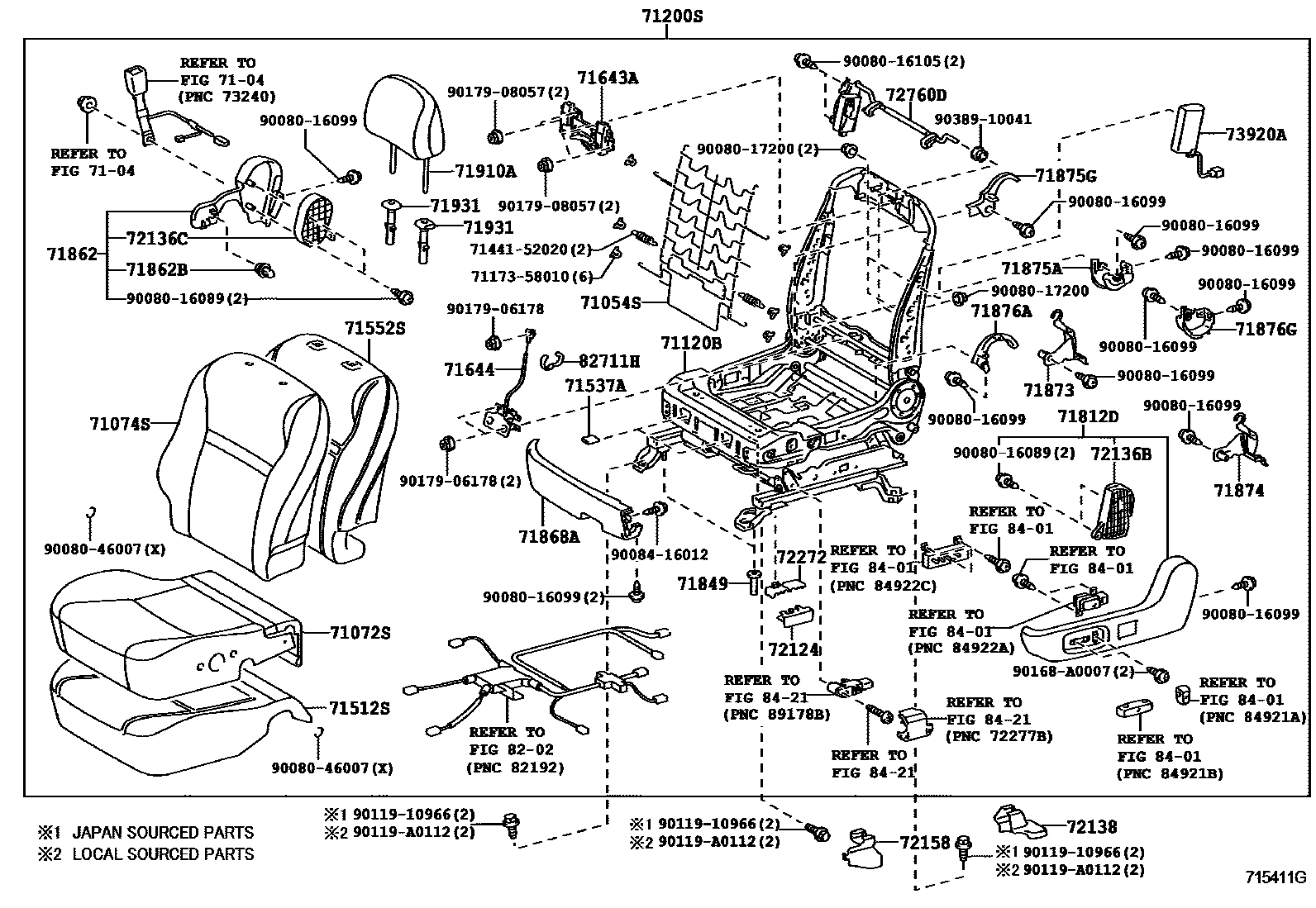

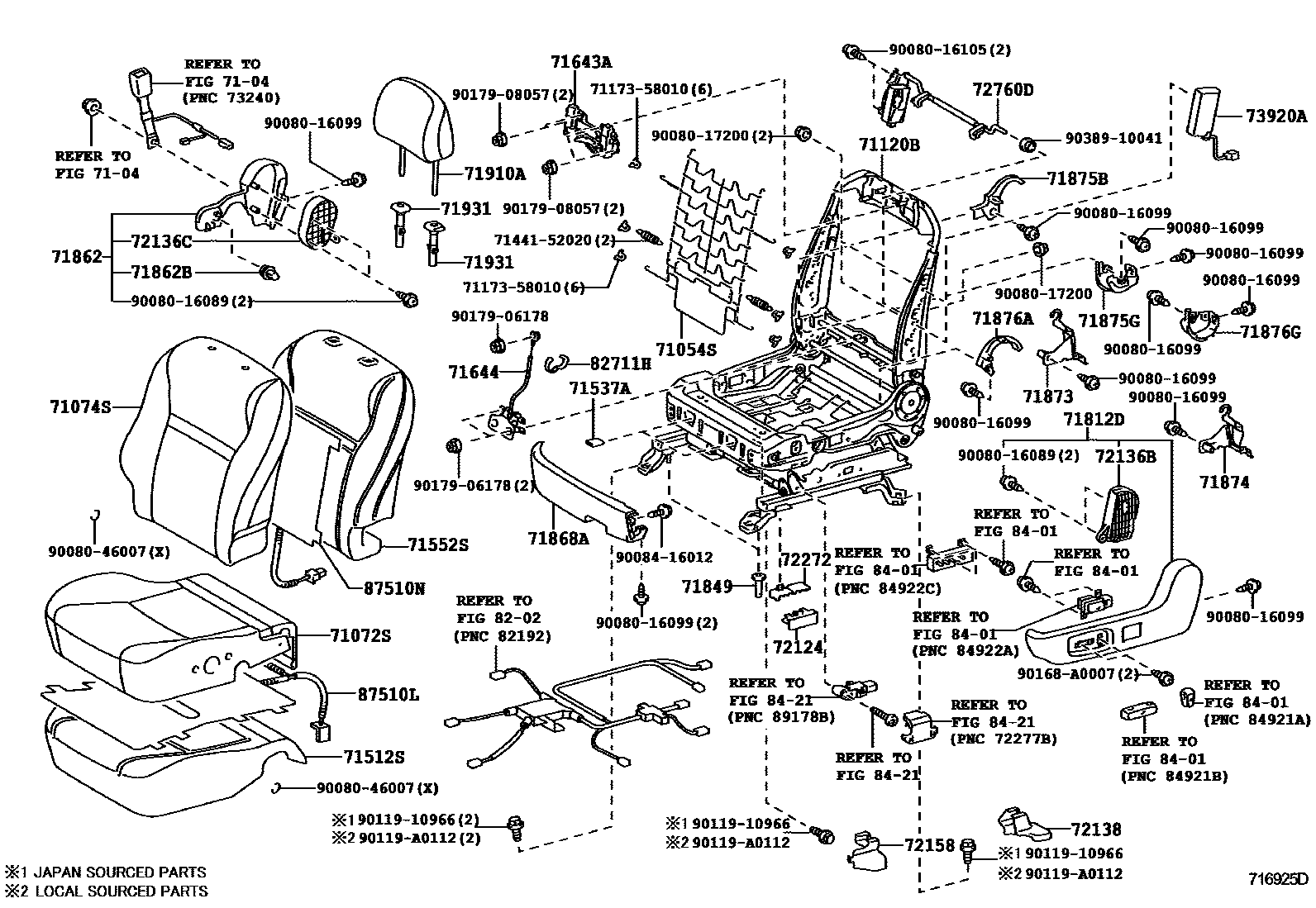

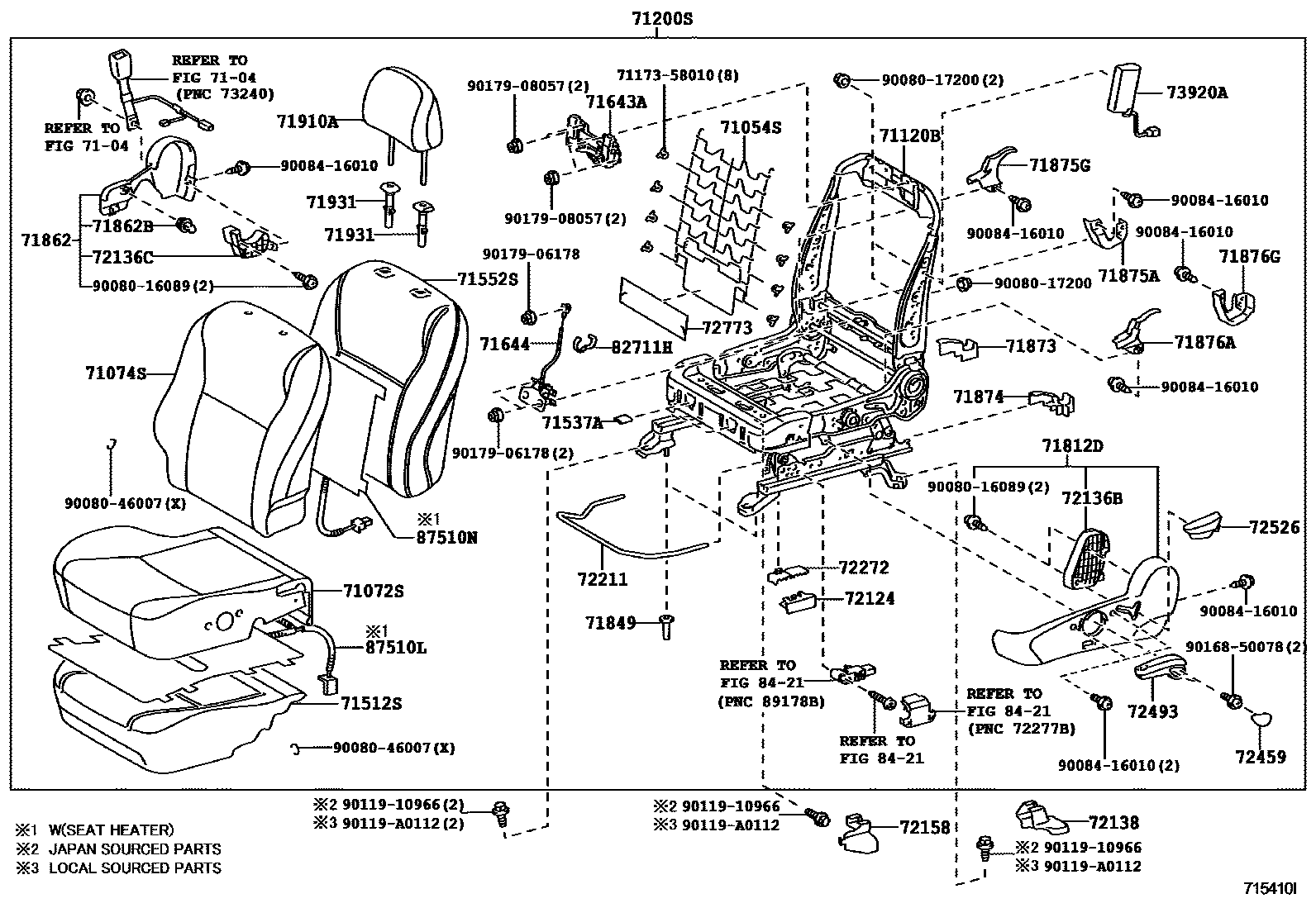

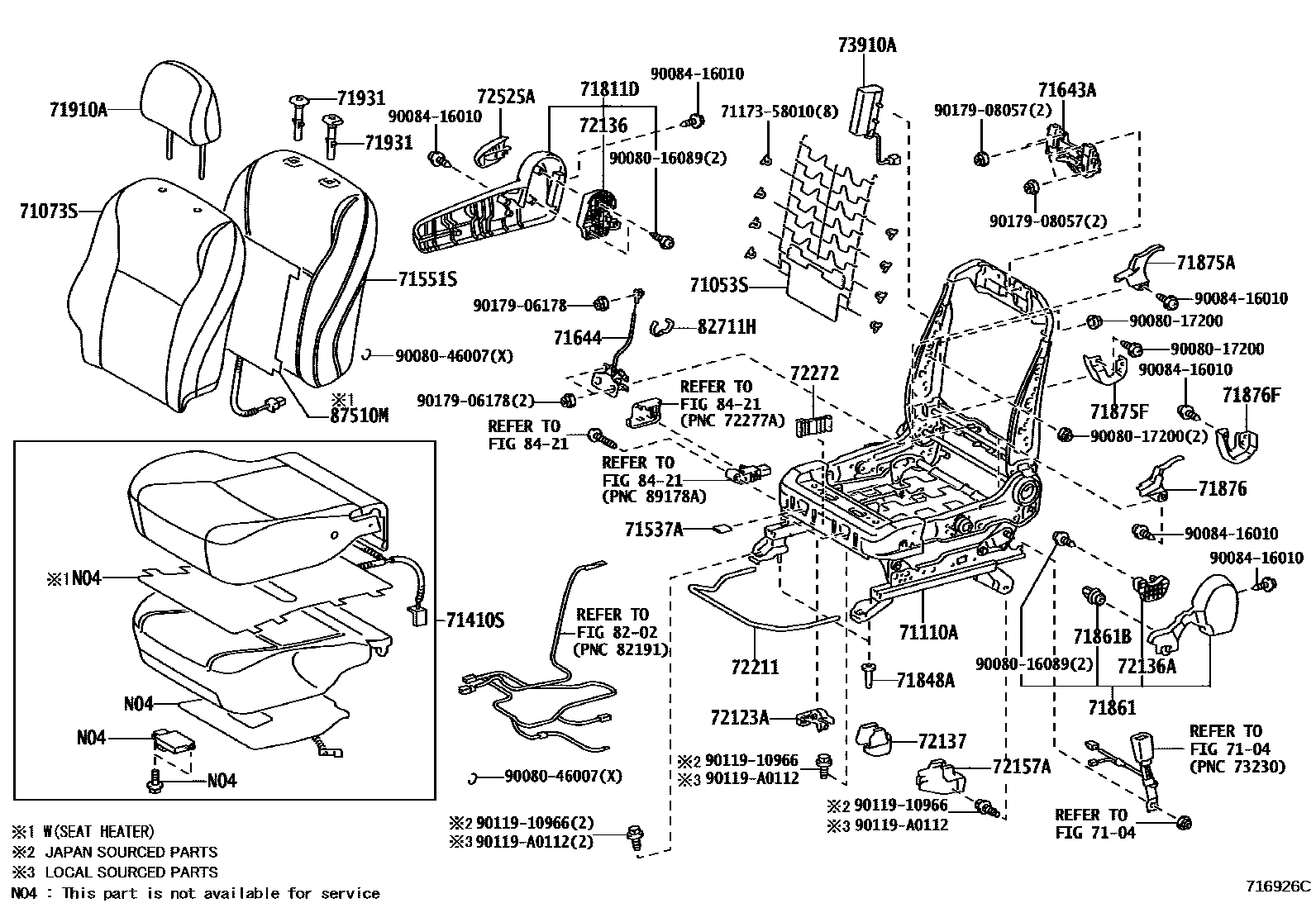

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101
Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 8 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71053S | Front right seat back spring sub-assembly | 71053-02150 · 71053-02160 |
| 71054S | Front left seat back spring sub-assembly | 71053-02150 · 71053-02160 · 71053-02170 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-02V40 |
| 71074S | Front left seat back cover (for split seats) | 71074-0Z290 |
| 71110A | Front right seat (with adjuster) frame assembly | 71110-02100 · 71110-02170 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-02140 · 71120-02150 · 71120-02190 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-02250 · 71512-02260 |
| 71537A | Front seat cushion protective cover | 71537-AA020 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02551 · 71551-02561 · 71551-02720 |
| 71552S | Front left seat back cushion (for split seats) | 71552-02401 · 71552-02411 · 71552-02530 |
| 71643A | Active head restraint upper unit | 71643-04010 · 71643-12011 |
| 71644 | Active head restraint lower unit | 71644-04010 · 71644-12030 |
| 71811D | Front right seat cushion guard | 71811-02300 |
| 71812D | Front left seat cushion guard | 71812-02370 |
| 71848A | Right seat adjuster cover | 71848-02010 |
| 71849 | left seat adjuster cover | 71848-02010 |
| 71861 | Front right seat cushion inner guard | 71861-02140 |
| 71861B | Clip (for front right seat guard) | 71769-33020 |
| 71862 | Front left seat cushion inner guard | 71862-02160 |
| 71862B | Clip (for front left seat guard) | 71769-33020 |
| 71873 | Front right seat cushion lower guard panel | 71873-02100 · 71873-06080 |
| 71874 | Front left seat cushion lower guard | 71874-02100 · 71874-06090 |
| 71875A | Right backrest tilt adjuster inner cover | 71813-0E010 · 71875-02130 · 71875-AA060 |
| 71875B | Right backrest tilt adjuster inner cover | 71875-02130 |
| 71875F | Right backrest recliner inner cover (for right seat) | 71875-AA060 |
| 71875G | Right backrest recliner inner cover (for left seat) | 71813-0E010 · 71875-AA060 |
| 71876 | Left backrest tilt adjuster inner cover | 71876-02130 |
| 71876A | Left backrest tilt adjuster inner cover | 71876-02130 |
| 71876F | Left backrest recliner inner cover (for right seat) | 71876-AA060 |
| 71876G | Left backrest recliner inner cover (for left seat) | 71813-0E020 · 71876-AA060 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-02030 |
| 72124 | Front left seat outer slide rail bracket cover | 72124-02030 |
| 72136 | No. 1 seat slide rail lower rail | 72136-02020 |
| 72136A | No. 2 seat slide rail lower rail | 72136-02080 |
| 72136B | No. 3 seat slide rail lower rail | 72136-02030 · 72136-02040 |
| 72136C | No. 4 seat slide rail lower rail | 72136-02050 · 72136-02090 |
| 72137 | Right seat outer slide rail cover | 72137-02130 |
| 72138 | Left seat outer slide rail cover | 72138-02110 · 72138-02130 |
| 72157A | Right seat inner slide rail bracket cover | 72157-02140 |
| 72158 | Left seat inner slide rail bracket cover | 72158-02130 · 72158-02140 |
| 72211 | Seat slide adjustment handle | 72211-02080 |
| 72272 | Seat rail control cable clip | 72272-02060 |
| 72459 | Seat height adjuster knob cover | 72459-06010 |
| 72493 | No. 2 height adjuster handle | 72493-02010 |
| 72525A | Right seat back recliner release handle | 72525-06020 |
| 72526 | Left seat back recliner release handle | 72526-06020 |
| 72760D | Left lumbar support adjuster assembly | 72760-0E010 |
| 72773 | lumbar support panel | 72773-02010 |
| 73910A | Front right seat airbag assembly | 73910-02130 |
| 73920A | Front left seat airbag assembly | 73920-02130 · 73920-02170 |
| 82711H | Wire harness clip | 82711-2B660 |
| 87510L | Front left seat cushion heater assembly | 87510-02130 · 87510-02150 · 87510-02180 |
| 87510M | Front right seat back heater assembly | 87510-02240 |
| 87510N | Front left seat back heater assembly | 87510-02240 |
