Toyota COROLLA 锁芯组件 — Figure 6712

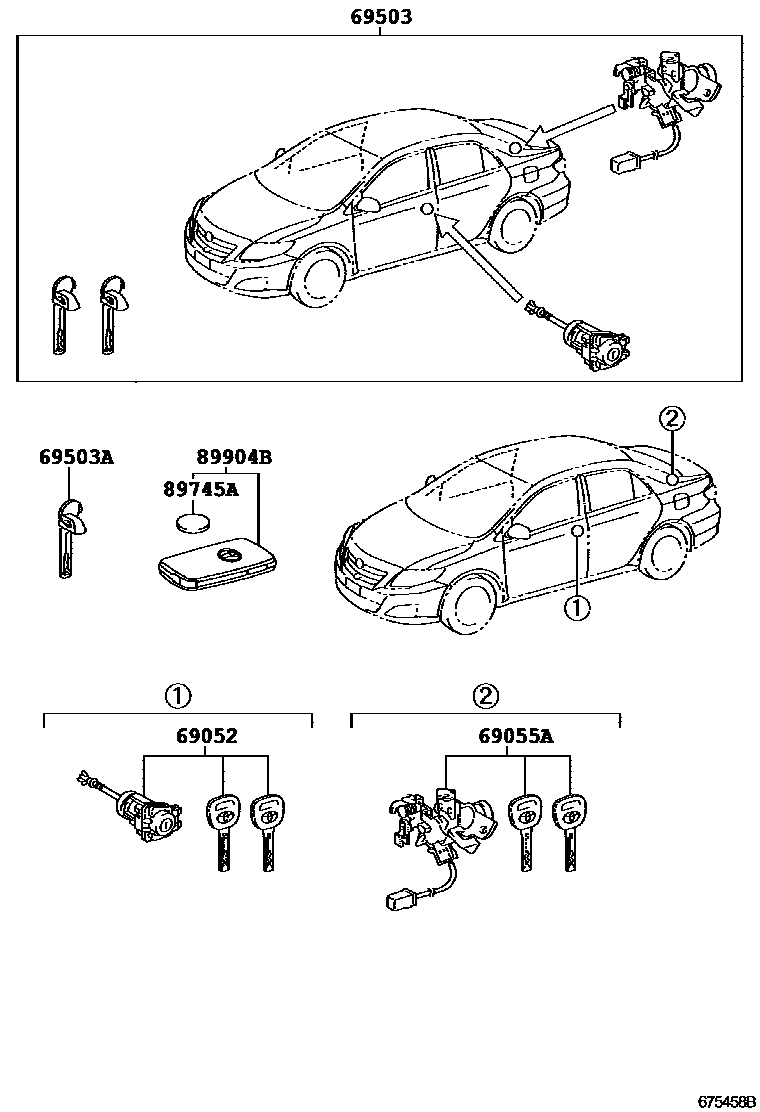

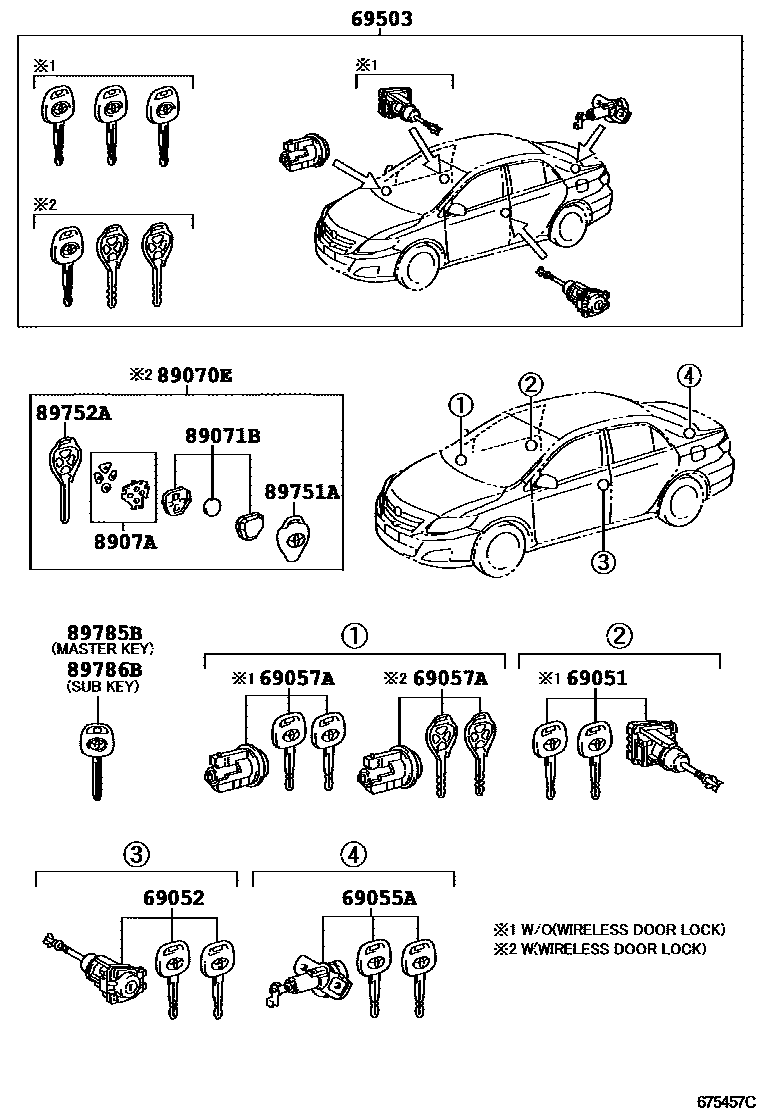

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-04020 |
| 69052 | Left door lock cylinder and key assembly | 69052-04020 · 69052-06050 · 69052-12650 |
| 69055A | Luggage lock cylinder and key assembly | 69055-02160 · 69055-02200 · 69055-12A30 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02350 · 69057-02360 · 69057-02361 · 69057-02580 · 69057-08020 |
| 69503 | Door lock cylinder components | 69005-02400 · 69005-02410 · 69005-02420 · 69005-02670 · 69005-02680 |
| 69503A | external tooth key | 69515-52120 |
| 89070E | Remote key assembly | 89070-02270 · 89070-02620 |
| 89071B | Remote key sub-assembly module assembly | 89071-02070 · 89071-02071 |
| 8907A | Transmitter switch assembly | 8907A-33010 |
| 89745A | Transmitter battery | 89745-52020 |
| 89751A | Transmitter housing cover | 89751-28070 |
| 89752A | transmitter housing | 89752-02070 · 89752-02310 |
| 89785B | transceiver key master transmitter | 89785-08020 · 89785-08040 |
| 89786B | transceiver key secondary transmitter | 89786-08020 · 89786-08040 |
| 89904B | Electronic key transmitter sub-assembly | 89904-06041 · 89904-06130 |
