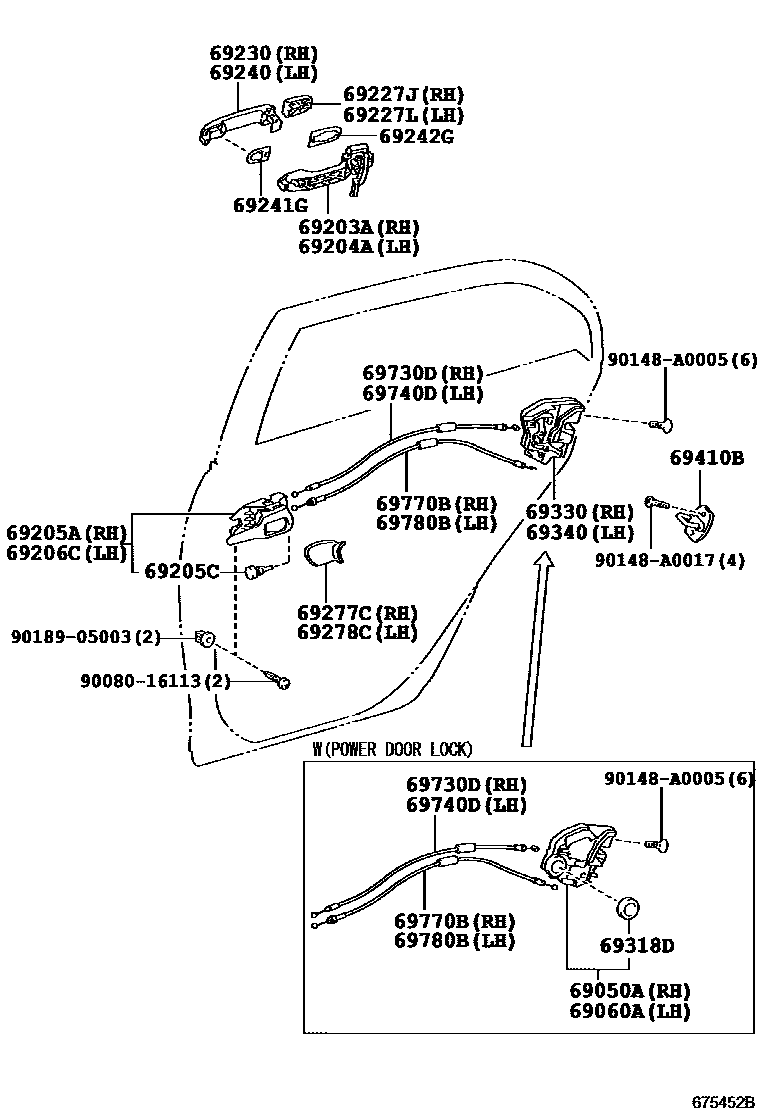

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69050A | Right rear door lock assembly with motor | 69050-02210 · 69050-06100 |
| 69060A | Left rear door lock assembly with motor | 69060-02200 · 69060-06100 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-02150 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-02150 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04027 |
| 69227J | Right rear door outer handle cover | 69229-02011 |
| 69227L | Left rear door outer handle cover | 69229-02011 |
| 69230 | Right rear door outer handle assembly | 69211-02080 |
| 69240 | Left rear door outer handle assembly | 69211-02080 |
| 69241G | Rear door front exterior handle pad | 69241-AA011 |
| 69242G | Rear door rear outer handle pad | 69238-AA010 |
| 69318D | door lock harness seal | 69318-AA010 |
| 69330 | Right rear door door lock assembly | 69330-02110 |
| 69340 | Left rear door lock assembly | 69340-02110 |
| 69410B | Rear door lock plate assembly | 69410-AA030 |
| 69730D | Right rear door lock remote control cable assembly | 69730-02130 |
| 69740D | Left rear door lock remote control cable assembly | 69730-02130 |
| 69770B | Right rear door inner lock cable assembly | 69770-02200 · 69770-02210 |
| 69780B | Left rear door inner lock cable assembly | 69770-02200 · 69770-02210 |
