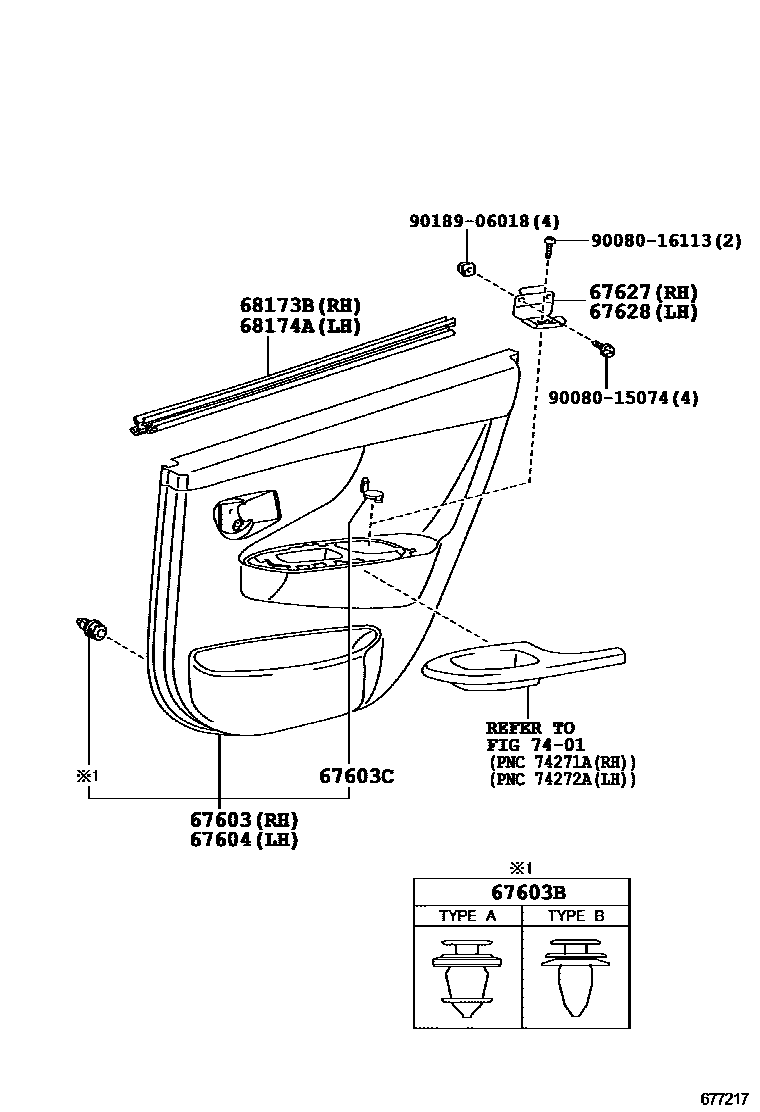

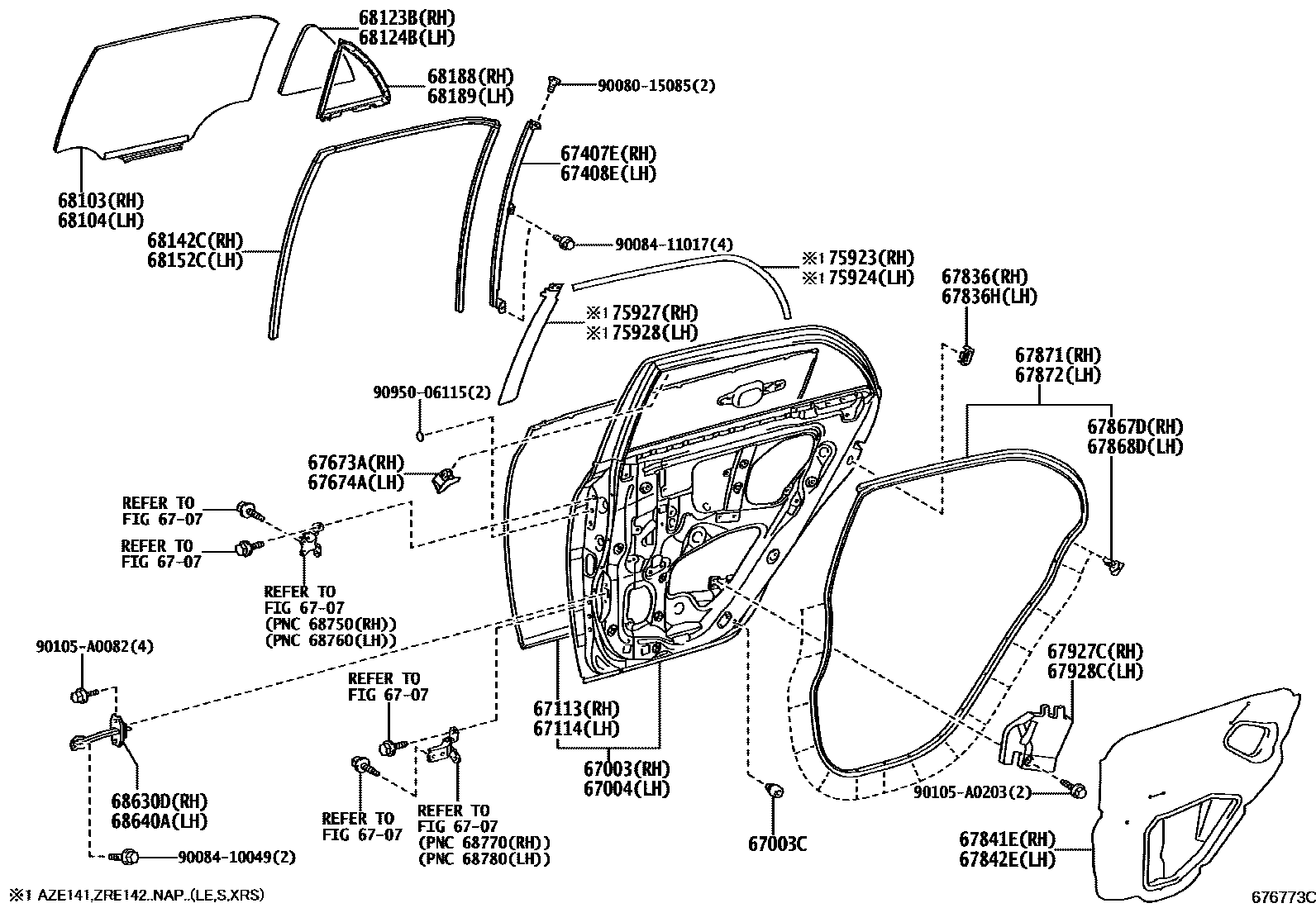

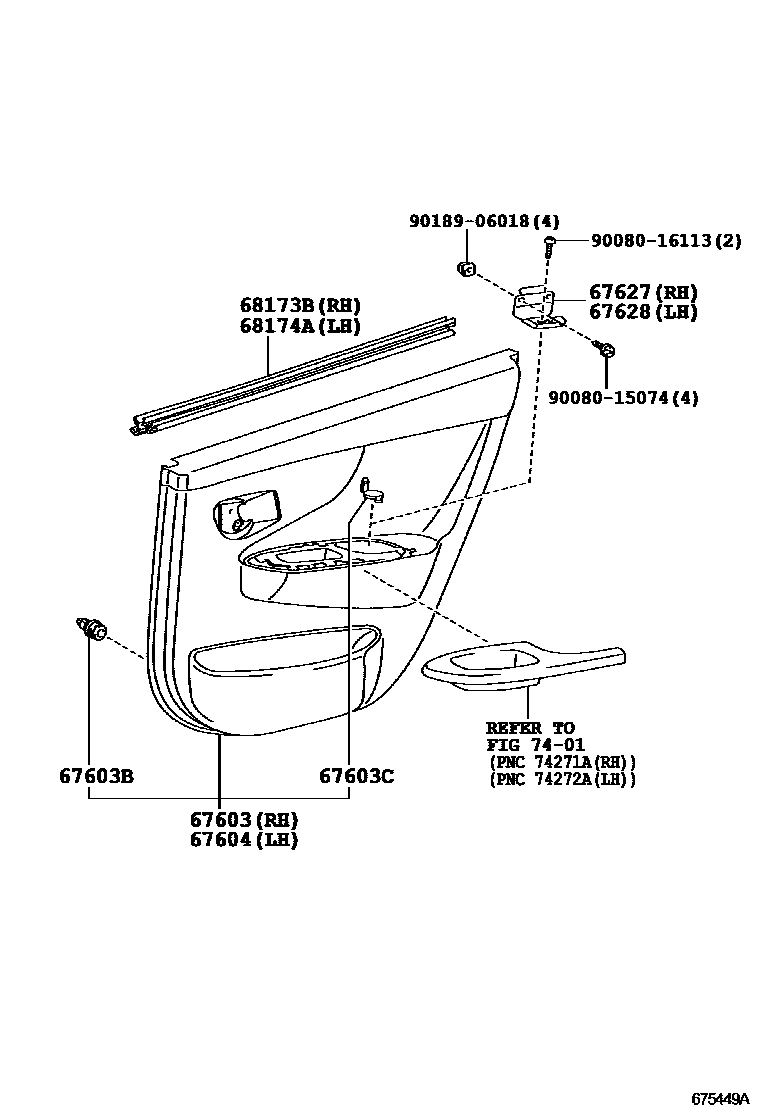

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 4 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-02320 · 67003-02330 |
| 67003C | Rear door panel cushion | 90541-09124 · 90541-09143 |
| 67004 | Left rear door panel sub-assembly | 67004-02220 · 67004-02330 |
| 67113 | Right rear door outer panel | 67113-02150 |
| 67114 | Left rear door outer panel | 67114-02150 |
| 67407E | Right rear door window divider sub-assembly | 67407-12290 |
| 67408E | Left rear door window divider sub-assembly | 67408-12290 |
| 67603B | Catch (for rear door trim panel) | 67773-0E020 · 90467-A0005 |
| 67627 | Right rear door trim panel bracket | 67625-02120 |
| 67628 | Left rear door trim panel bracket | 67625-02120 |
| 67673A | Right rear door frame decorative strip | 67673-0E010 |
| 67674A | Left rear door frame decorative strip | 67674-0E010 |
| 67836 | Right rear door lock child restraint cover | 67836-12040 |
| 67836H | Left rear door lock child restraint cover | 67836-12040 |
| 67841E | Right rear door access hole cover | 67841-02190 |
| 67842E | Left rear door access hole cover | 67842-02170 |
| 67867D | Right rear door seal strip fixing | 67867-12150 · 67868-02020 |
| 67868D | Left rear door seal strip fixing | 67867-12150 · 67868-02020 |
| 67871 | Right rear door sealing strip | 67871-02180 |
| 67872 | Left rear door sealing strip | 67872-02180 |
| 67927C | Separate door No. 1 reinforcement cushion pad | 67927-02020 · 67927-02030 · 67927-02060 |
| 67928C | Separate door No. 2 reinforcement cushion pad | 67928-02020 · 67928-02050 · 67928-02070 |
| 68103 | Right rear door glass sub-assembly | 68103-02260 |
| 68104 | Left rear door glass sub-assembly | 68104-02250 |
| 68123B | Right rear door corner window glass | 68123-02210 |
| 68124B | Left rear door corner window glass | 68124-02210 |
| 68142C | Right rear door glass lift slot | 68142-02200 |
| 68152C | Left rear door glass lift slot | 68152-02200 |
| 68173B | Right rear door glass inner sealing strip | 68173-02160 |
| 68174A | Left rear door glass inner sealing strip | 68174-02130 |
| 68188 | Right rear door corner window seal | 68188-02120 |
| 68189 | Left rear door corner window seal | 68189-02120 |
| 68630D | Right rear door opening limiter assembly | 68630-02160 |
| 68640A | Left rear door opening limiter assembly | 68630-02160 |
| 75923 | No. 2 right side light-shielding film | 75923-02140 · 75923-02200 |
| 75924 | No. 2 left shading film | 75924-02150 · 75924-02200 |
| 75927 | No. 4 right side light-blocking film | 75927-02010 |
| 75928 | No. 4 left shading film | 75928-02010 |
