Toyota COROLLA 前门车窗升降器和合页 — Figure 6704

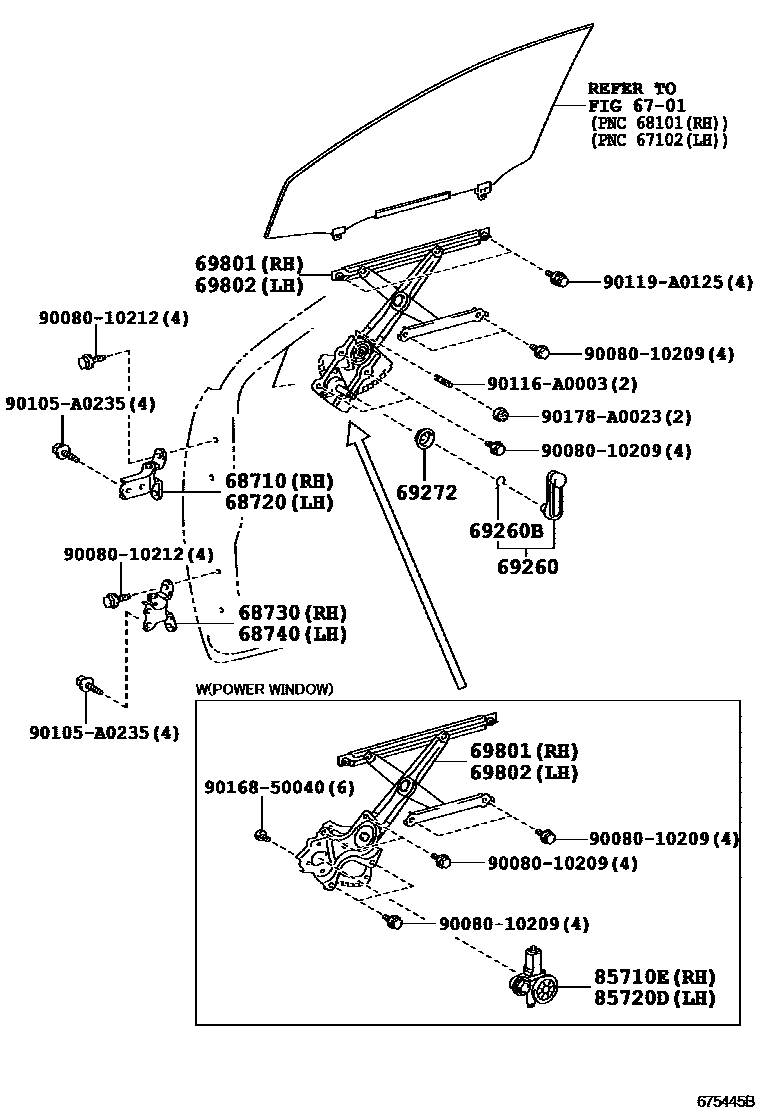

Toyota COROLLA EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-02020 |
| 68720 | Left front door upper hinge assembly | 68720-02020 |
| 68730 | Right front door lower hinge assembly | 68730-02080 |
| 68740 | Left front door lower hinge assembly | 68740-02080 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90080-52001 |
| 69272 | Front door window lift inner handle plate | 69268-12020 |
| 69801 | Right front door window lifter sub-assembly | 69801-02170 · 69810-02350 |
| 69802 | Left front door window lifter sub-assembly | 69802-02180 · 69820-02360 |
| 85710E | Right power window lift motor assembly | 85710-AE010 |
| 85720D | Left electric window lift motor assembly | 85720-AE010 |
