Toyota COROLLA 前门板和前门玻璃 — Figure 6701

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 4 images and 35 PNC and OE references.

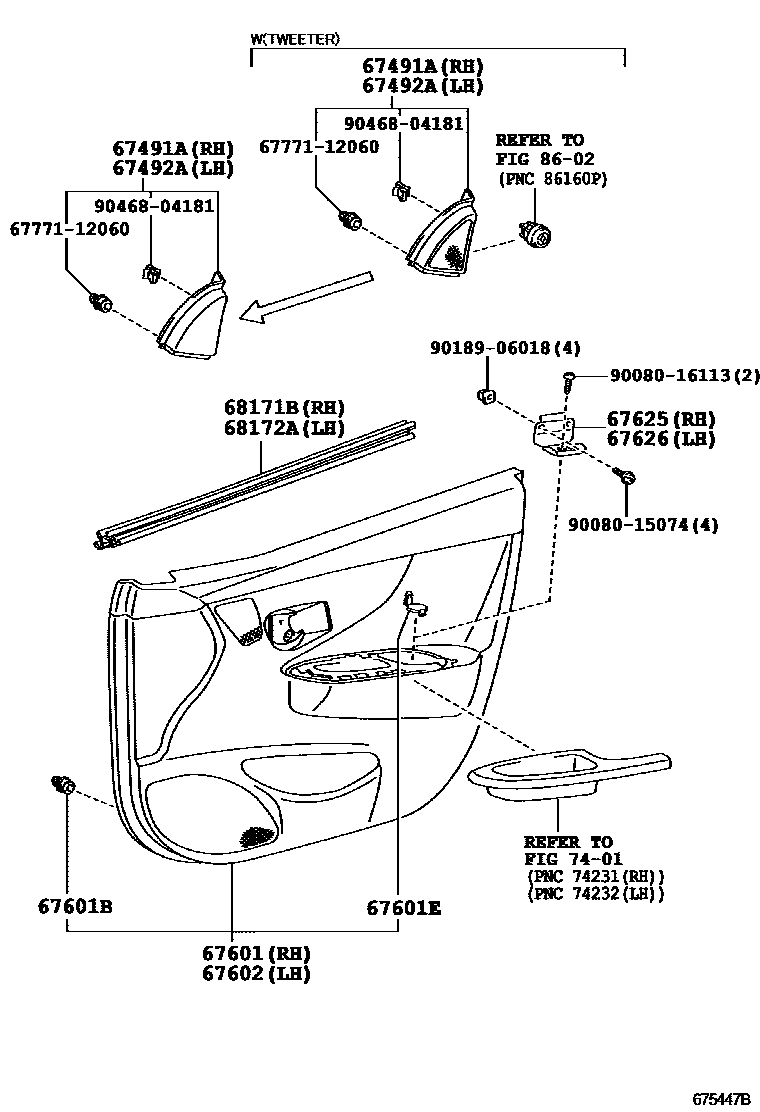

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 675447B
前门板和前门玻璃 — 675447B (200801 – 201112)

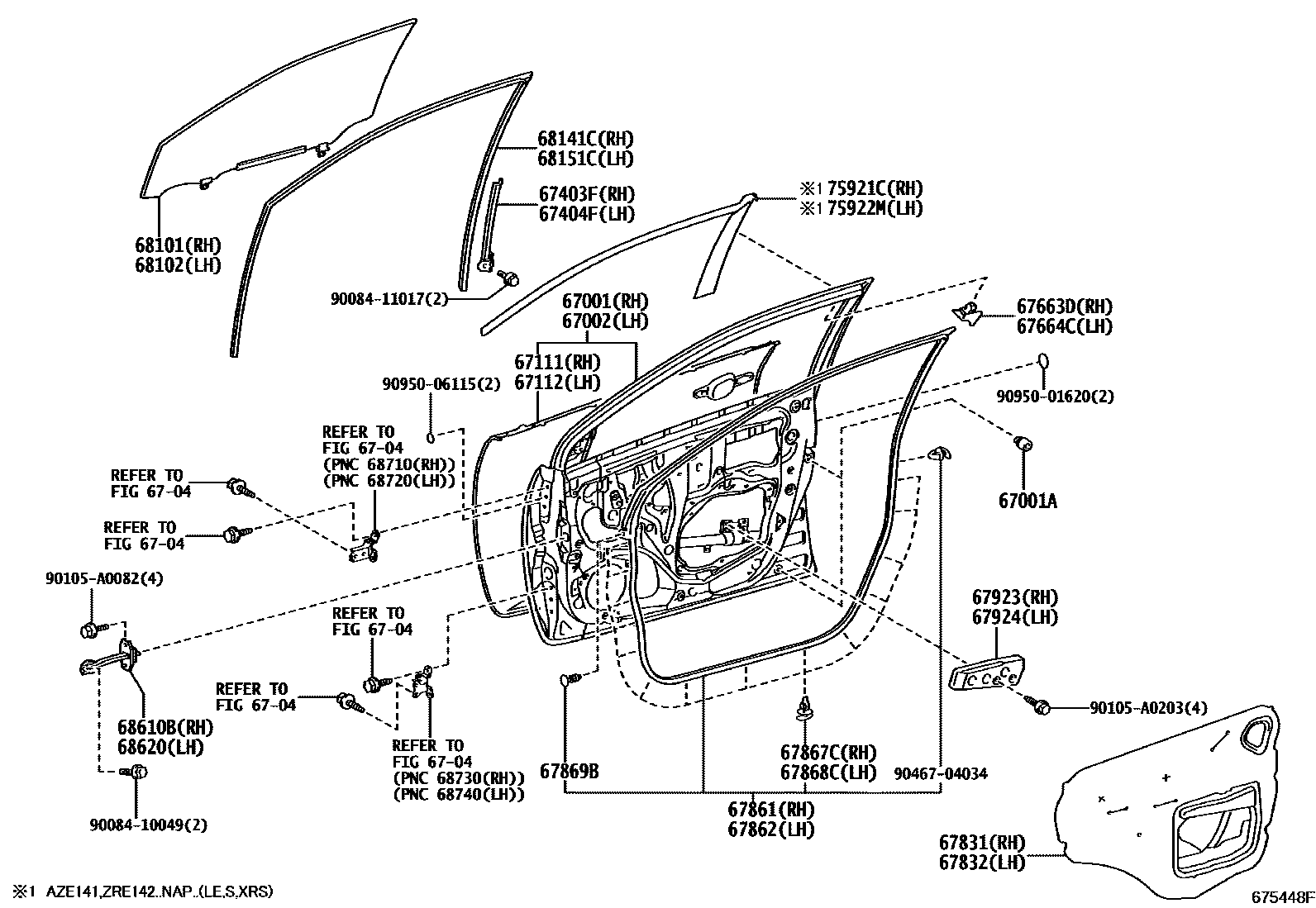

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 675448F
前门板和前门玻璃 — 675448F (200801 – 201012)

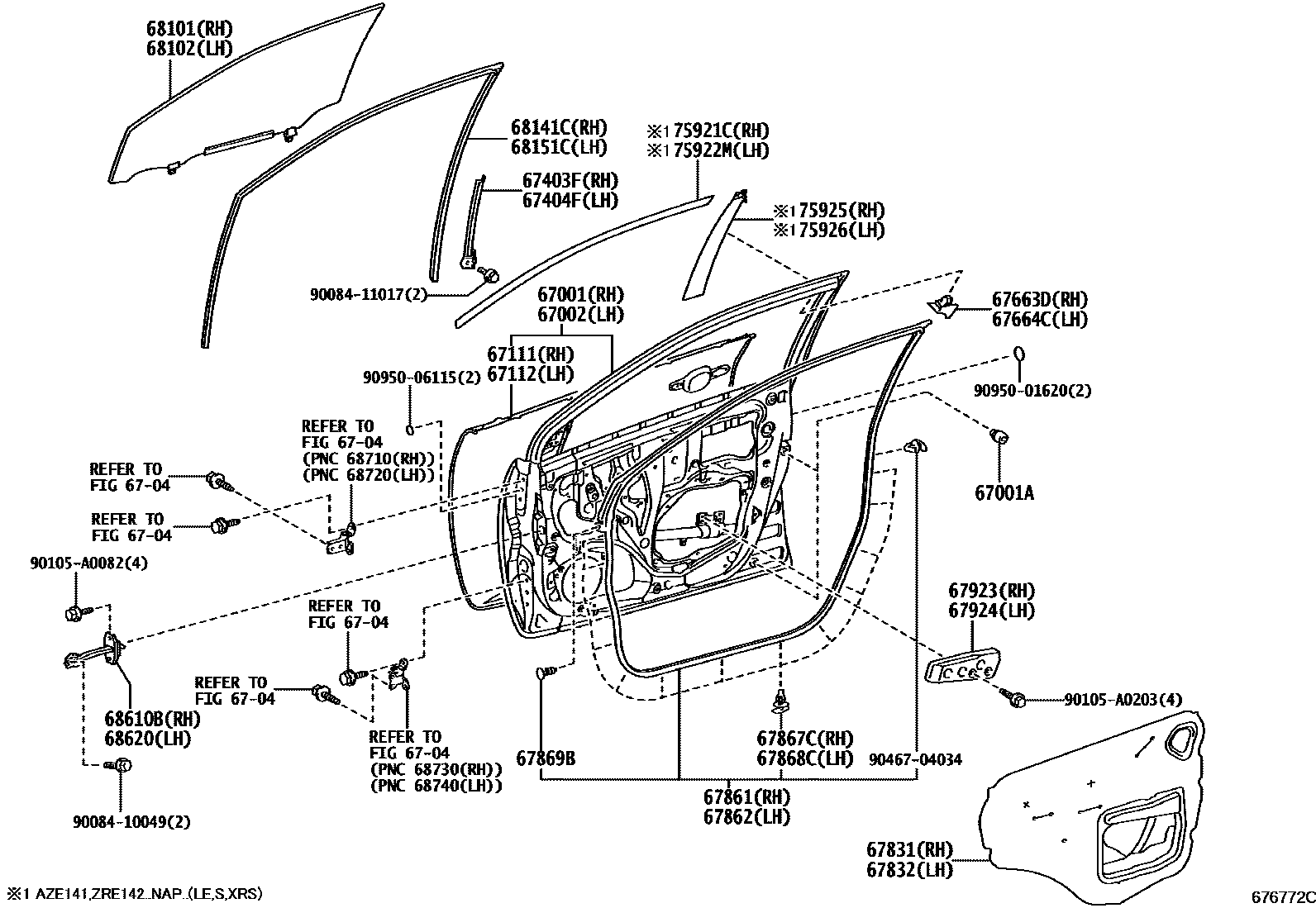

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 676772C
前门板和前门玻璃 — 676772C (201012 – 999999)

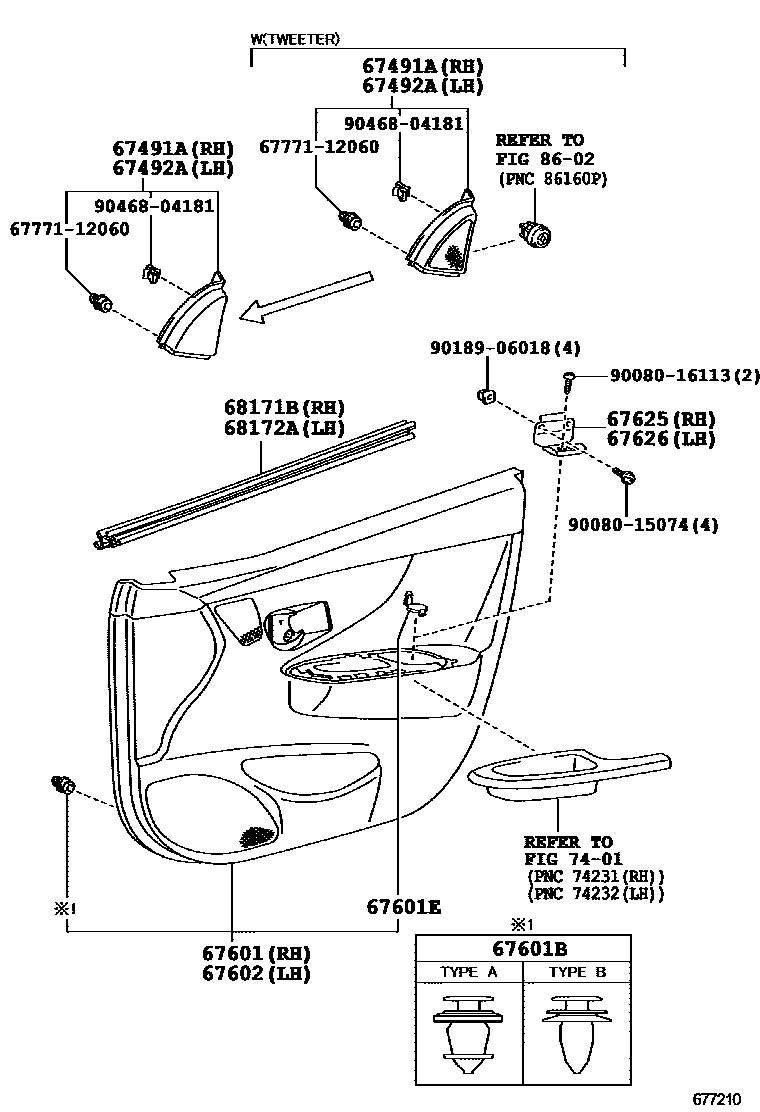

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 677210
前门板和前门玻璃 — 677210 (201112 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-02340 · 67001-02420
67001AFront door panel cushion90541-09124 · 90541-09143
67002Left front door panel sub-assembly67002-02330 · 67002-02420
67111Outer right front door panel67111-02180
67112Outer left front door panel67112-02180
67403FRight front door rear lower door frame sub-assembly67403-02110
67404FLeft front door rear lower door frame sub-assembly67404-02110
67491ARight front door lower door frame bracket decorative strip67491-02250 · 67491-02260
67492ALeft front door lower door frame bracket decorative strip67492-02250 · 67492-02260
67601BCatch (for front door trim panel)67773-0E020 · 90467-A0005
67625Right front door trim panel bracket67625-02120
67626Left front door trim panel bracket67625-02120
67663DRight door frame decorative strip67663-0E010
67664CLeft door frame decorative strip67664-0E010
67831Right front door access hole cover67831-02240 · 67831-02241
67832Left front door access hole cover67832-02240 · 67832-02241
67861Right front door seal67861-02220
67862Left front door seal67862-02220
67867CRight front door seal strip fixing67867-12150 · 67868-02020
67868CLeft front door seal strip fixing67867-12150 · 67868-02020
67869BFront door seal strip clip67869-20030
67923Front door No. 1 reinforcement cushion pad67923-02070
67924Front door No. 2 reinforcement cushion pad67924-02080
68101Right front door glass sub-assembly68101-02280 · 68101-02281
68102Left front door glass sub-assembly68102-02280 · 68102-02281
68141CRight front door glass lift channel68141-02260
68151CLeft front door glass lift channel68151-02240
68171BRight front door glass inner sealing strip68171-02180
68172ALeft front door glass inner sealing strip68172-02170
68610BRight front door opening limiter assembly68610-02160
68620Left front door opening limiter assembly68610-02160
75921CNo. 1 right side light-shielding film75921-02120 · 75921-02170
75922MNo. 1 left shading film75922-02120 · 75922-02170
75925No. 3 right side light-blocking film75925-02040
75926No. 3 left shading film75926-02040
