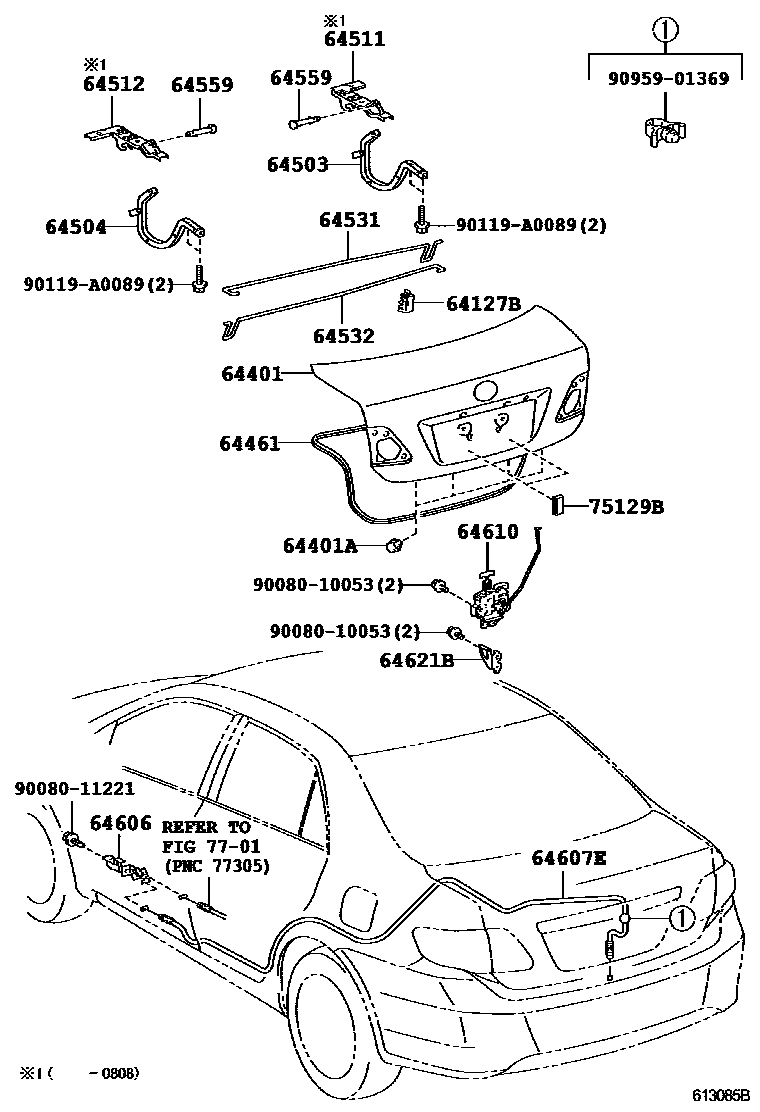

Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105
Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33041 |
| 64401 | Trunk door panel sub-assembly | 64401-02350 · 64401-02360 · 64401-02370 · 64401-02580 · 64401-02590 · 64401-02600 · 64401-02A70 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90084-54011 |
| 64461 | Trunk door seal | 64461-02130 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-02130 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-02130 |
| 64511 | Trunk door right hinge bracket | 64511-02110 |
| 64512 | Trunk door left hinge bracket | 64512-02080 |
| 64531 | Trunk door right hinge torsion bar | 64531-02210 · 64531-02211 · 64531-02213 · 64531-02220 · 64531-02221 · 64531-02223 |
| 64532 | Trunk door left hinge torsion bar | 64532-02200 · 64532-02201 · 64532-02203 · 64532-02210 · 64532-02211 · 64532-02213 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64606 | Trunk door lock opening lever sub-assembly | 64606-12050 |
| 64607E | Trunk door lock control cable sub-assembly | 64607-02210 · 64607-02211 · 64607-02220 · 64607-02221 |
| 64610 | Trunk door lock assembly | 64600-02040 · 64610-02130 |
| 64621B | Trunk door latch | 64621-AC010 |
| 75129B | rear license plate cushion | 75129-02020 |
