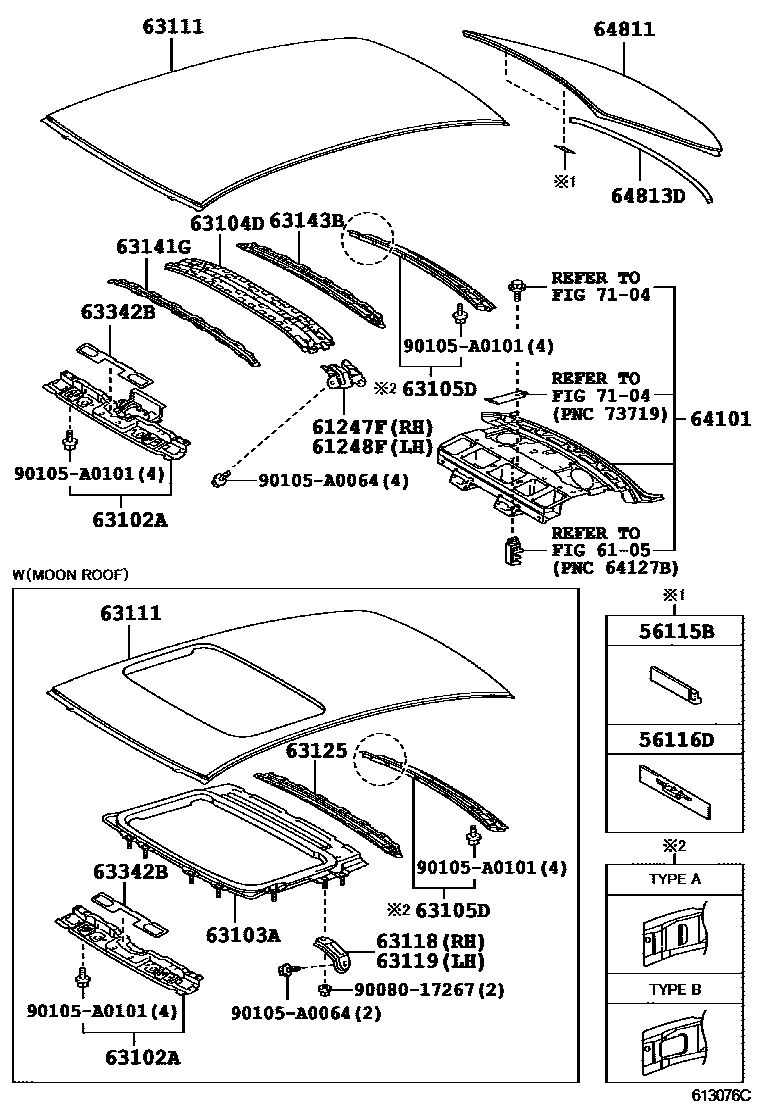

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 61247F | Roof inner longitudinal beam reinforcement | 61247-02070 |
| 61248F | Roof left inner longitudinal beam reinforcement | 61248-02030 |
| 63102A | Windshield roof sub-assembly | 63102-02130 · 63102-02150 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-02050 |
| 63104D | No. 2 roof panel reinforcement sub-assembly | 63104-02090 |
| 63105D | Rear window upper frame sub-assembly | 63105-02080 · 63105-02090 |
| 63111 | roof panel | 63111-02310 · 63111-02320 · 63111-02360 |
| 63118 | Right roof panel bracket | 63118-02050 |
| 63119 | Left roof panel bracket | 63118-02050 |
| 63125 | No. 2 roof panel reinforcement | 63127-02030 |
| 63141G | No. 1 roof panel reinforcement | 63143-02070 |
| 63143B | No. 3 roof panel reinforcement | 63144-02090 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-02080 · 63201-02081 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-02040 |
| 63217G | Right sliding sunroof trim | 63217-02010 |
| 63218G | Sliding sunroof trim, left | 63218-02010 |
| 63236D | Sliding skylight drain hose clamp | 63236-12010 |
| 63249E | Sliding skylight drain hose | 63249-02260 |
| 63249F | Sliding skylight drain hose | 63249-02240 · 63249-02250 |
| 63251H | Sliding skylight seal | 63251-02060 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-02080 |
| 63342B | No. 2 roof muffler pad | 63342-02220 |
| 64101 | Upper back panel sub-assembly | 64101-02170 |
| 64811 | back window glass | 64801-02060 · 64801-02140 |
| 64813D | Back window glass adhesive seal | 64813-12180 |
