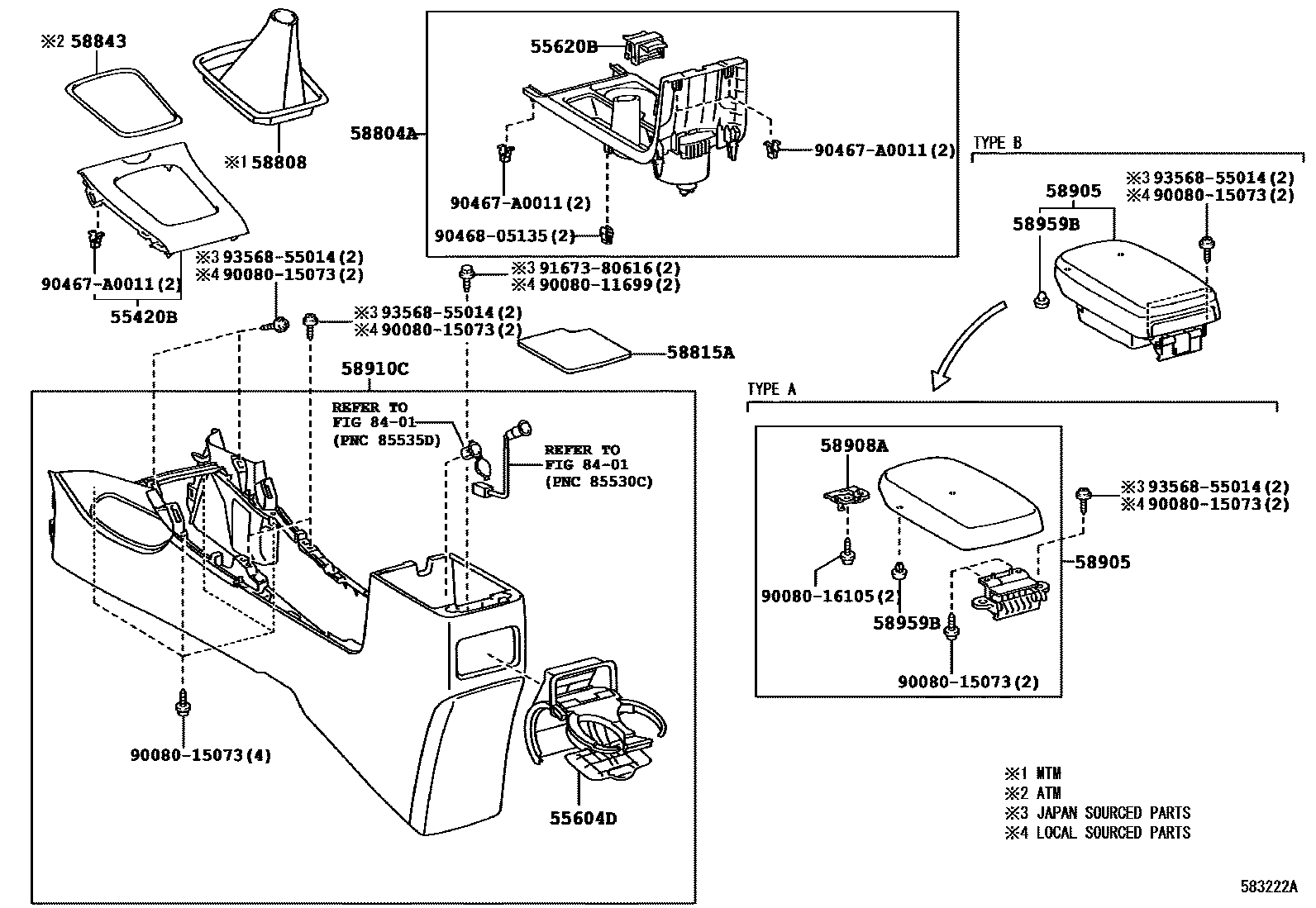

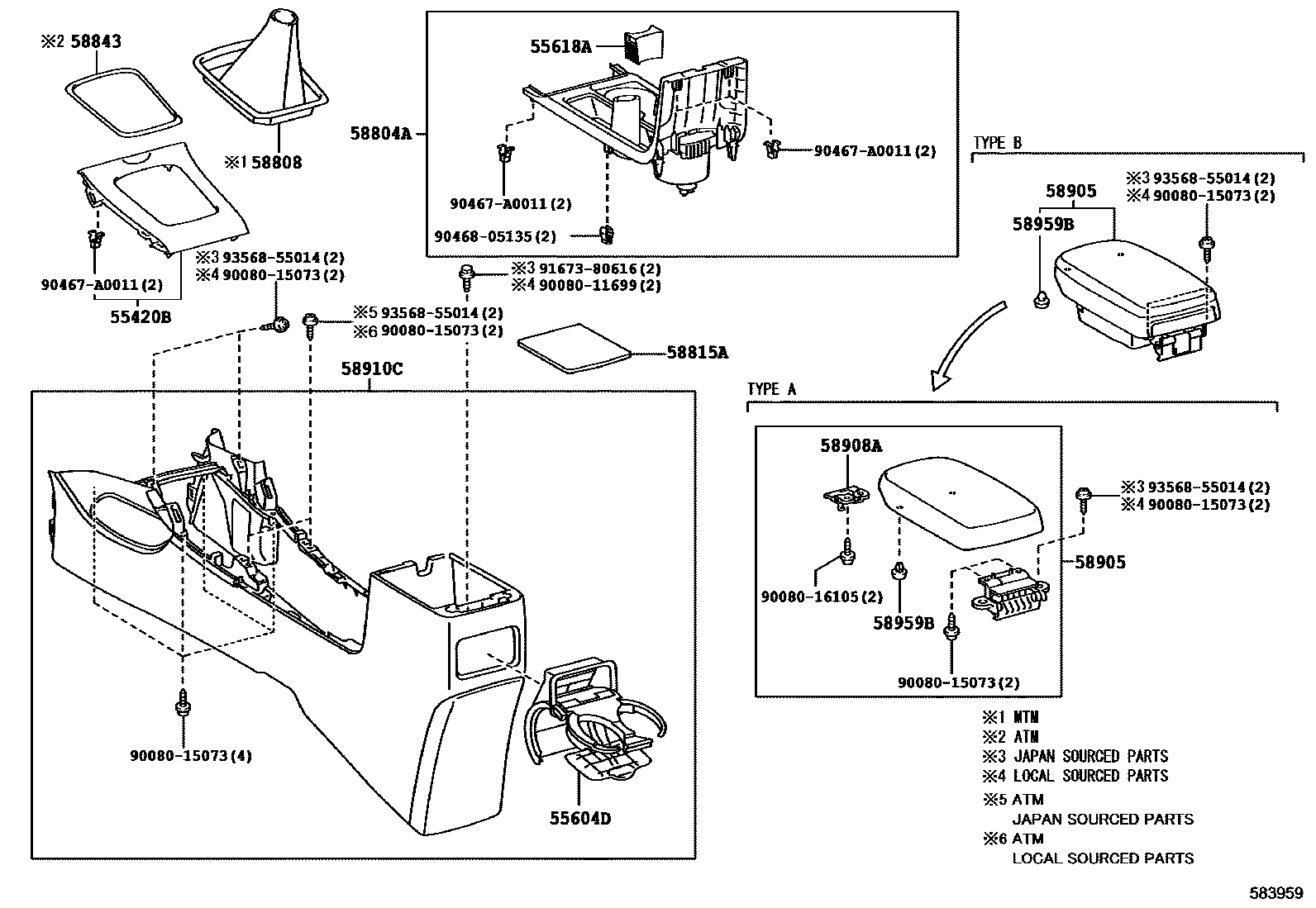

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55420B | Center instrument cluster No. 1 decorative panel assembly | 55420-02380 · 55420-02390 · 55420-02400 · 55420-02590 · 55420-02600 |
| 58815A | Armrest box felt pad | 58815-02130 · 58815-02260 |
| 58843 | shift hole frame | 58843-02080 · 58843-02090 · 58843-02100 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58959B | Armrest box cover cushion | 58959-60060 |
